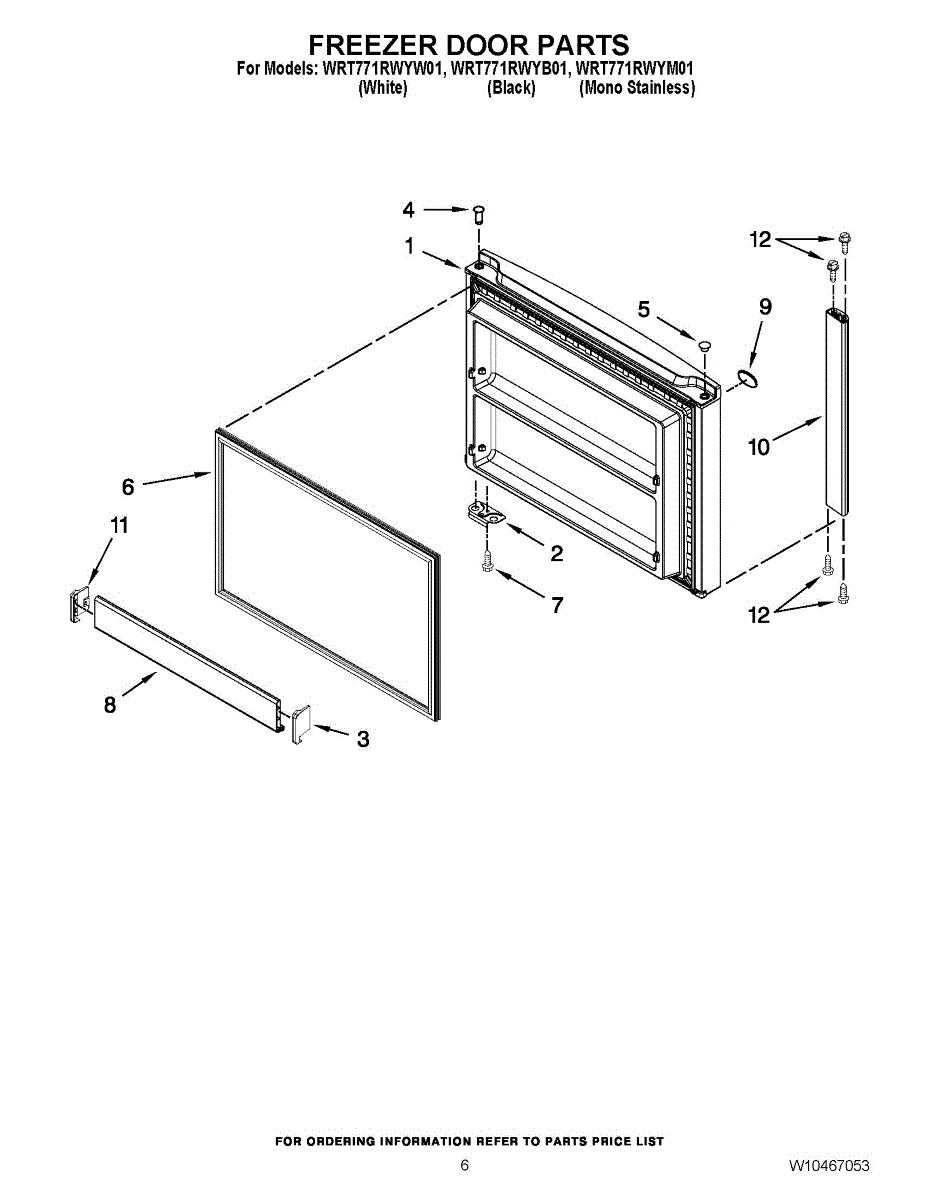

Parts for Whirlpool WRT771RWYM01: 04 - Freezer Door Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

Color: Black

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Freezer Door Gasket is an OEM part for Whirlpool freezers. This gasket forms a tight seal around the freezer door, keeping the cold air inside and preventing warm air from entering, which helps to maintain the optimal temperature and efficiency of the freezer. The gasket measures approximately 20.19” x 31.29” Color: Misty Beige. For Black order 217731

Causes of a bad door gasket can include regular wear and tear, exposure to extreme temperatures, mold or mildew buildup, and physical damage from repeated opening and closing of the door.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The freezer running more frequently to maintain temperature
• Difficulty keeping the door closed or it not sealing properly
• Visible cracks, tears, or deformation in the gasket

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Freezer Door Gasket (Black) is an OEM part for Whirlpool refrigerators. This part ensures an airtight seal around the freezer door. This gasket prevents warm air from entering and cold air from escaping the freezer compartment, playing a crucial role in maintaining the freezer's internal temperature. The gasket measures approximately 20.19” x 31.29”.

Causes of a bad Freezer Door Gasket can include natural aging and wear over time, exposure to extreme temperatures that can degrade the material, and physical damage from cleaning or heavy use.

Symptoms of a bad Freezer Door Gasket include:

• Visible cracks, tears, or wear in the gasket, leading to poor sealing
• Condensation or ice buildup around the door edges, indicating air leaks
• Difficulty in maintaining the freezer's set temperature, resulting in increased energy consumption
• The freezer door not closing properly or feeling less resistant to opening

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This name plate is the decorative centennial badge that restores the appliance's exterior appearance and branding. It replaces a missing, damaged, or faded badge to keep the unit looking factory-finished. What it does

• Restores the appliance's exterior badge for a like-new appearance
• Replaces badges that are cracked, scratched, peeling, or discolored
• Helps identify the appliance style when the original emblem is missing
• Cosmetic part only — does not affect appliance operation

• One name plate

• For best results, clean the mounting area and remove dirt or wax before installation
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• If access behind trim is required, unplug the appliance or disconnect power before removing panels
• Follow OEM instructions for removal and reinstallation to avoid damaging clips or surrounding trim

Color: Grey

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance
