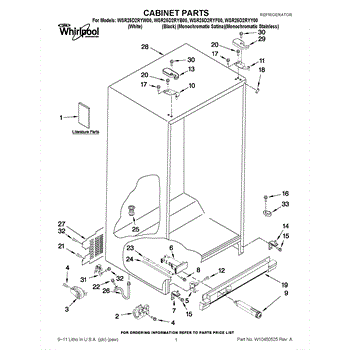

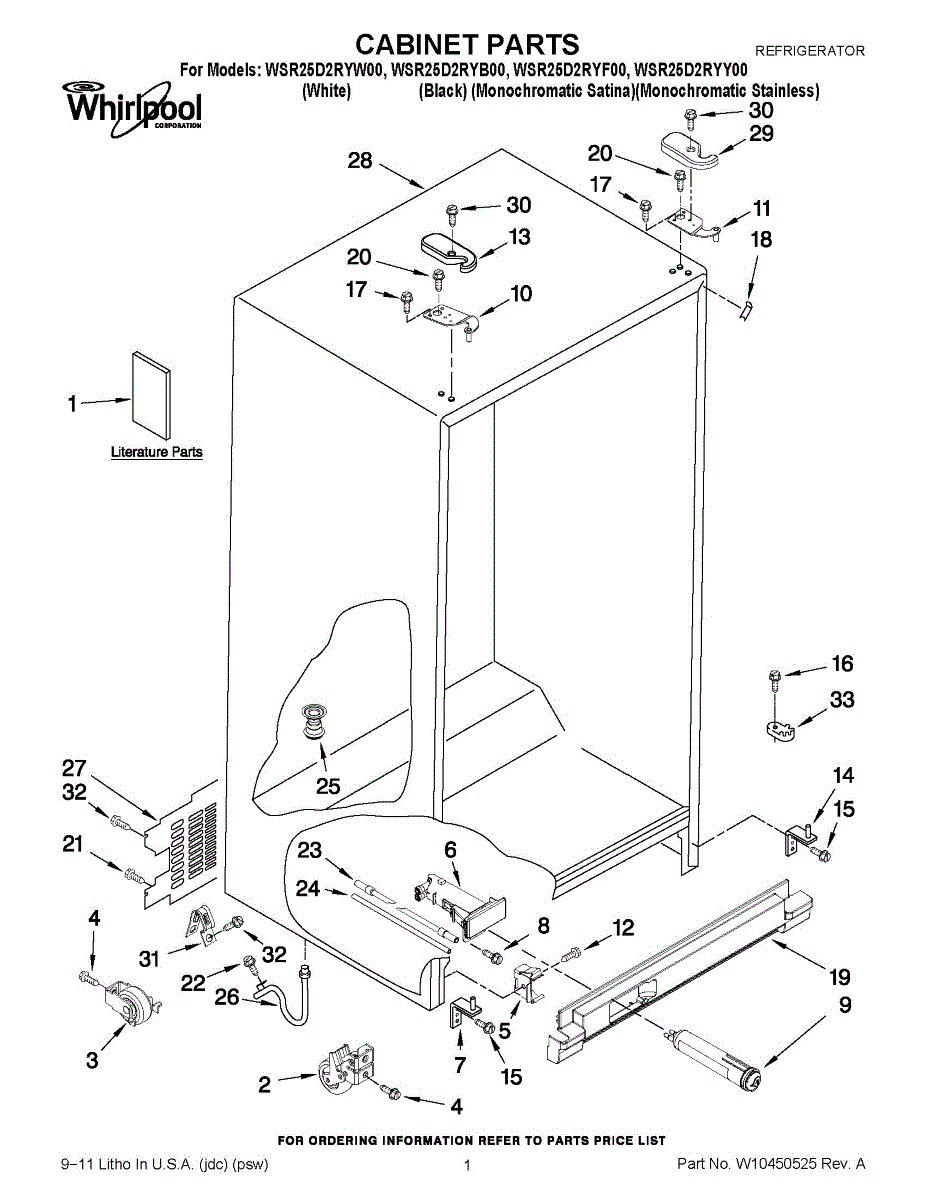

Parts for Whirlpool WSR25D2RYF00: 01 - Cabinet Parts

The Roller Assembly is an OEM part for Whirlpool refrigerators. This assembly includes the rollers that support and allow the refrigerator to be moved easily for cleaning or maintenance. Proper functioning rollers ensure smooth movement and stability of the appliance.

Causes of a bad roller assembly can include wear and tear from regular use, damage from moving the refrigerator improperly, or exposure to moisture leading to rust or corrosion.

Symptoms of a bad roller assembly include:

• Difficulty in moving the refrigerator
• Uneven or unstable placement of the appliance
• Unusual noises when moving the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cabinet roller assembly supports the refrigerator at the base and lets you roll the unit forward for cleaning or service. Replace a cracked or seized roller to restore smooth movement and a stable, level stance. What it does:

• Supports the refrigerator cabinet and helps maintain proper leveling
• Allows the unit to roll for easier cleaning and servicing
• Replaces worn, cracked, or seized rollers and damaged brackets
• Helps resolve wobbling, uneven stance, scraping noises, or difficulty moving the fridge

• One complete cabinet roller assembly

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a second person or an appliance dolly to safely tilt or move the unit
• Remove mounting fasteners, swap the assembly in the original position, and reuse hardware if applicable
• After installation, level the refrigerator and verify doors close and seal properly

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

The Water Filter Housing Assembly is an OEM replacement part for Whirlpool refrigerators. This assembly houses the water filter, ensuring it is securely and properly positioned to effectively filter impurities and contaminants from the water supplied to the refrigerator. It is instrumental in providing clean, safe water for ice-making and water dispensing.

Causes for a malfunctioning Water Filter Housing Assembly can include damage from over-tightening the filter, cracks in the housing from regular use or manufacturing defects, or issues with the seals that prevent leaks.

Symptoms of a bad Water Filter Housing Assembly include:

• Water leaks around the filter area
• Difficulty installing or removing the water filter
• Unfiltered or poorly filtered water
• Unusual noises from the filter area during water dispensing or ice-making

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Housing Assembly is an OEM replacement part for Whirlpool side-by-side refrigerators. It houses a replaceable water filter cartridge, which removes impurities from water delivered to the ice maker and dispenser.

Symptoms of a faulty housing assembly include:

• Leaks or water damage around the filter area
• Inability to insert or lock in a replacement filter cartridge
• Poor water quality impacting ice or drink purity

Causes can be cracks, stripped threads or distorting from years of operation and filter changes.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Housing Assembly is an OEM part for Whirlpool refrigerators. This assembly holds the water filter in place and connects it to the water supply, ensuring clean and filtered water is dispensed.

Causes of a bad water filter housing assembly can include wear and tear over time, damage from improper installation or removal of the filter, or cracks and leaks in the housing due to pressure or impact. A malfunctioning housing can compromise water filtration and lead to leaks.

Symptoms of a bad water filter housing assembly include:

• Water leaking from the filter area
• Reduced water flow or pressure from the dispenser
• Unusual tastes or odors in the dispensed water
• Difficulty in securing or removing the water filter

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A single-purpose threaded screw used to secure components and panels on compatible appliances. Simple, durable hardware that restores proper fit and reduces vibration or loose parts when a missing or damaged screw is the issue. What it does:

• Fastens panels, brackets, or small components using a 10-32 thread pattern
• Helps stop rattling, loose trim, or misaligned parts caused by a missing or stripped screw
• Restores secure connections after disassembly for repair or maintenance
• Matches OEM thread form for correct fit where specified

• Screw

• Disconnect power and unplug the appliance before service
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and avoid cross-threading; do not overtighten
• Replace only with the exact OEM part number to ensure proper fit and function

Color: Black

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This genuine OEM screw secures appliance panels and components to keep parts aligned and stable during operation. Small replacement hardware helps stop rattles and restores proper fit where a fastener is missing or damaged. What it does:

• Fastens panels, trim, brackets or small components to the appliance frame
• Restores secure mounting when a screw is missing, stripped, or broken
• Stops vibration-related rattling and movement of parts during use
• Matches factory fit for proper thread engagement and alignment

• Use the correct screwdriver (usually Phillips) and match thread engagement; avoid cross-threading
• Tighten until snug — do not overtighten to prevent stripping or cracking surrounding material
• Disconnect power and remove any panels as needed for safe access before replacing hardware
• Keep removed fasteners organized to ensure correct reassembly

Color: White

Color: Black

Color: Black

Color: Grey

Color: White

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This water tube routes the household water supply from the inlet valve to the refrigerator's water filter. Replacing a cracked or kinked line restores proper dispenser and ice maker flow and helps prevent leaks around the filter assembly.

• Carries water from the inlet valve to the filter housing
• Helps maintain proper, unrestricted flow to the dispenser and ice maker
• Typical failure symptoms: leaks, visible cracks or kinks, reduced dispenser flow, no water at the dispenser, slow or no ice production

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve pressure and place a towel to catch residual water
• Note the routing; release the tube from retainers and fittings carefully
• Fully seat the tube in push-to-connect fittings, avoid sharp bends, restore water, and check for leaks

This replacement water tube connects at the filter outlet and carries filtered water to the refrigerator's water system. Replacing a cracked or leaking tube restores reliable, leak-free water flow to the dispenser and ice maker.

• Routes water from the filter housing outlet to downstream components
• Can restore water dispenser flow or ice maker fill when the tube is kinked or damaged
• Helps maintain proper water pressure through the line after replacement

• Disconnect power and shut off the water supply before servicing
• Depressurize the line by dispensing water; place a towel or pan to catch residual water
• Note the original routing; fully seat the tube into quick-connect fittings until it bottoms and tugs secure
• Restore water and power; check all connections for leaks and flush several cups of water

This replacement screw secures panels, brackets, or trim on compatible Whirlpool appliances to restore proper fit and reduce rattles and movement. Use it when a fastener is missing, loose, or stripped. What it does:

• Secures appliance panels, trim pieces, brackets, or small components in place
• Restores proper fit to eliminate rattling, gaps, or shifting parts
• Replaces missing, worn, or damaged screws that compromise mounting
• Matches OEM form and function when the correct screw is specified for the repair

• Turn off power to the appliance before working near controls, heating elements, or wiring
• Use the correct screwdriver or bit to avoid stripping the head; do not overtighten
• Keep removed screws in a container to ensure none are lost during reassembly

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Drain Connector is an OEM part for Whirlpool refrigerators. It is responsible for directing water and condensation from the evaporator fan coil and defrost into the drain pan.

Causes of a bad drain connector can include cracks, breaks or deformations caused by repeated thermal cycling or impact damage. Mineral or lime buildup inside the connector over many years can also restrict water flow.

Symptoms of a bad drain connector include:

• Water or condensation leaks around the connector area
• Puddles or watermarks on the floor behind the fridge
• Slow drainage of water from the evaporator fan coil
• Mold or mildew growth near the connector or drain area

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Rear Access Cover is an OEM part for Whirlpool refrigerators. It protects the rear components of the refrigerator, such as the compressor, condenser coils, and electrical connections, ensuring these vital parts are shielded from dust, debris, and potential damage while still allowing for necessary ventilation.

Causes of a bad rear access cover can include wear and tear from prolonged use, accidental impacts that cause cracks or breaks, or damage during maintenance or repairs.

Symptoms of a bad rear access cover include:

• Cracks or visible damage to the cover
• Difficulty securing the cover in place
• Excessive dust or debris around internal components
• Rattling or noise from a loose cover

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

Color: Apollo gray.

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This cam-door is the small pivoting cam that helps a washer/dryer or laundry door latch and swing smoothly. Replacing a worn or broken cam restores proper door movement and helps the door close and seal reliably. What it does:

• Acts as the pivot/latch cam that guides the appliance door during opening and closing.
• Helps the door engage the latch and maintain correct alignment.
• Commonly used to stop a door from hanging, binding, or failing to stay closed.
• Can reduce door noise or catching caused by a damaged cam.

• Disconnect power (unplug or switch off breaker) before starting any repair.
• Support the door or cabinet panel during removal to prevent dropping or damage.
• Remove the door or access panel and replace the cam using basic hand tools; keep track of fasteners.
• After reassembly, check door operation and latch engagement before returning the appliance to service.
