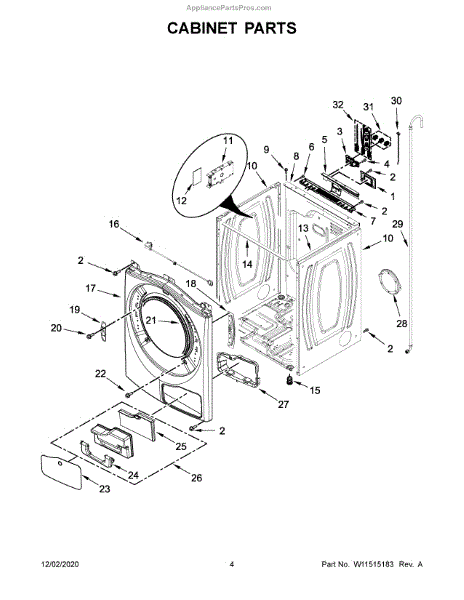

Parts for Whirlpool WHD862CHC2: Cabinet Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

10 - 16 x 1/2

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This rear bracket secures the dryer's rear panel and helps align internal components for stable operation. It restores proper fit and support when the original bracket is bent, broken, or missing. What it does:

• Secures and positions the dryer's rear panel to the cabinet frame
• Supports internal components and helps maintain proper panel alignment
• Prevents rattling, vibration, and panel separation during operation
• Helps ensure consistent airflow path by keeping the rear housing properly positioned

• Disconnect power (and gas, if applicable) before servicing the dryer
• Access typically requires removing the rear panel; keep fasteners organized for reassembly
• Inspect adjacent mounting points and replace any damaged screws or clips

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

Color: Chrome Shadow

The PAD is an OEM part crafted specifically for Whirlpool dryers. This pad plays a crucial role in the dryer's operation by providing support and cushioning for the dryer drum. Its precise design and compatibility ensure proper fitting and reduce noise during the drying cycles, contributing to smoother operation.

A worn-out or damaged dryer pad can lead to disruptions in the dryer's performance. Causes of a faulty pad might include wear over time, physical damage, or exposure to high heat, resulting in increased noise or imbalance during operation.

Symptoms of a bad PAD may include:

• Unusual or increased noise during dryer operation
• Visible signs of wear or deterioration on the pad
• Drum imbalance or wobbling during use

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Door Switch is an OEM component specifically designed for Whirlpool brand dryers. This door switch works to detect when the dryer door is open or closed and cuts power to internal components when the door is open for safety.

Causes of a bad door switch can include wear and tear over time, exposure to excessive shock or impact, or moisture damage.

Symptoms of a bad door switch include:

• The dryer operates with the door open
• Inability to start or run the dryer
• Error codes or fault messages relating to door detection

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This genuine mounting screw secures panels and components so assemblies stay aligned and rattle-free. Designed to replace worn or missing fasteners and restore proper fit and function. What it does:

• Secures panels, brackets or trim to prevent movement and vibration
• Restores proper alignment of assemblies that feel loose or shift
• Helps eliminate rattling, squeaks, or parts that fall away during use
• Matches OEM thread and head type for correct fit

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten which can strip threads or crack plastic
• Replace any additional damaged or missing fasteners for best results
• Disconnect power or follow appliance-specific safety steps before working near wiring or energized components

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

This Whirlpool Lint Screen is an OEM part for specific Whirlpool dryer models. This lint screen is essential for trapping lint and debris from clothes during the drying process, helping to prevent duct clogs and maintain efficient dryer operation.

Lint screens can become less effective or damaged over time due to lint build-up, wear, or accidental tearing. A compromised lint screen can lead to reduced dryer efficiency, longer drying times, and increased risk of lint-related safety hazards.

Symptoms of a bad lint screen include:

• Visible tears or holes in the lint screen.
• Excessive lint accumulation on clothes after drying.
• The dryer takes longer than usual to dry clothes.
• Reduced airflow in the dryer, is noticeable during operation.
• Increased lint build-up inside the dryer duct.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


This outer housing is the appliance's external cabinet panel that protects internal components and restores the unit's finished appearance. Replacing a damaged housing prevents exposure of wiring and improves structural support. What it does:

• Covers and protects internal components from dust, moisture, and impact
• Secures mounting points for controls, panels, and internal modules
• Stops rattling or vibration caused by bent or cracked cabinet sections
• Restores the appliance's exterior finish for a clean, factory look

• One outer housing

• Disconnect power and, if applicable, gas supply before starting
• Use proper fasteners and alignment when reinstalling to avoid stress on adjacent panels
• Watch for sharp edges; wear gloves and eye protection
• If clips or screws are damaged, replace them to ensure a secure fit

This replacement flexible hose restores proper fluid flow and helps stop leaks in compatible Whirlpool appliances. OEM-design ensures correct fit where the original hose connects internal components, preventing water damage and operational issues. What it does:

• Routes water or wastewater between appliance components (pump, tub or valve connections) to maintain normal operation.
• Stops leaks caused by cracked, split or hardened hose sections.
• Helps restore proper draining and prevents pooling water under or around the appliance.
• Works with factory-style clamps and fittings for a secure seal.

• Disconnect power to the appliance and shut off the water supply before starting any work.
• Remove clamps or fasteners at both ends, replace hose, then re-secure with new or existing clamps rated for the application.
• Route the hose free of kinks, pinch points and heat sources to prevent premature failure.
• Test for leaks after restoring power and water.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

Includes screws and wire connectors. For the complete terminal block kit use 279320.
