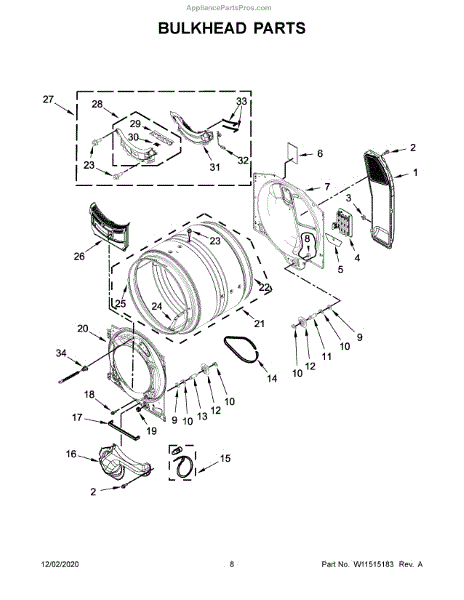

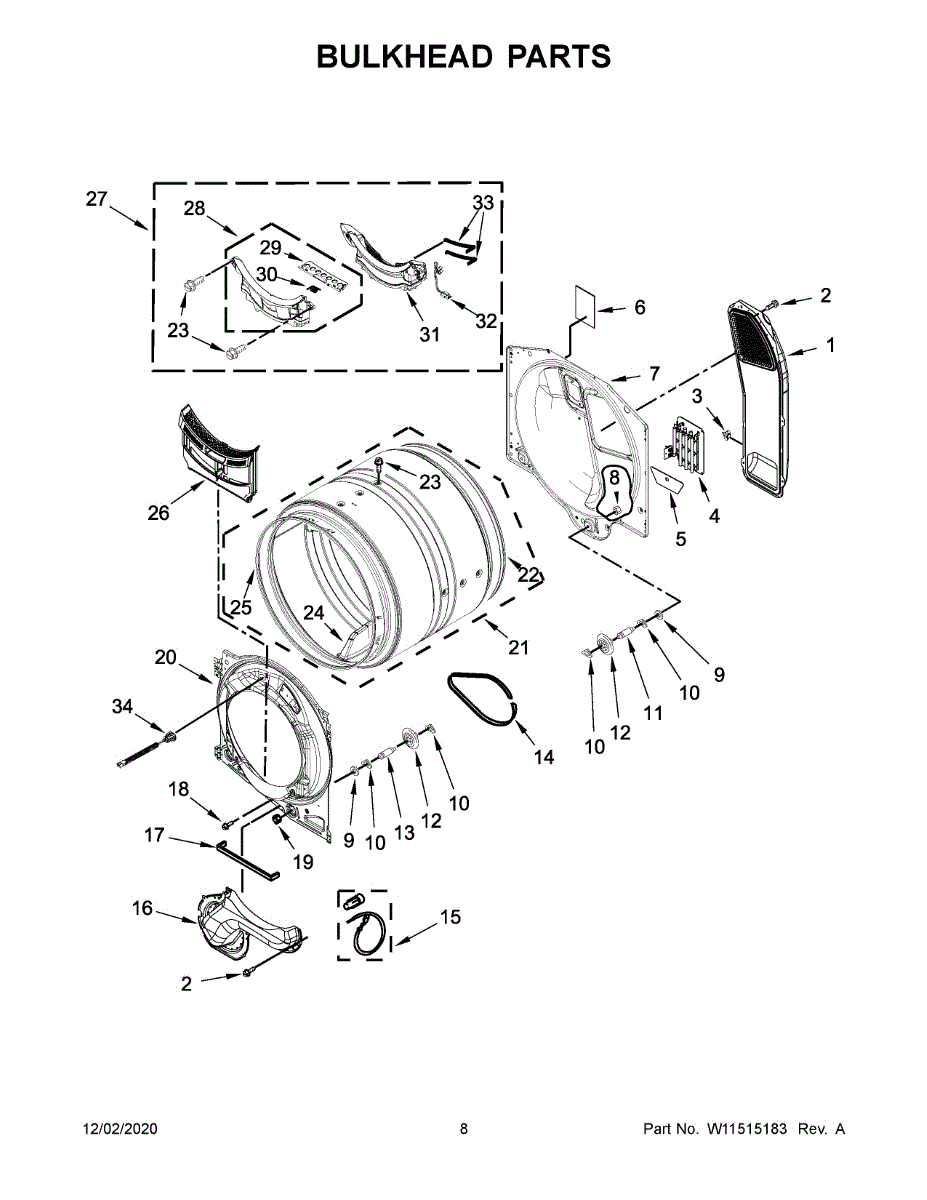

Parts for Whirlpool WHD862CHC2: Bulkhead Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Thermal cutoff is a temperature-sensing safety device that opens the circuit to stop heating when temperatures get too high. Replace a failed cutoff to restore over-temperature protection and help prevent overheating-related damage. What it does:

• Opens the electrical circuit when internal temperature exceeds safe limits to stop heating elements.
• Prevents continued operation during overheating, protecting components and reducing fire risk.
• A failed cutoff can cause no heat, intermittent heating, or an appliance that shuts off unexpectedly.
• Works as a safety interlock — do not bypass or replace with non-equivalent parts.

• Disconnect power to the appliance before accessing or replacing the cutoff.
• Located on the heater assembly or control housing; follow the model's service manual for access.
• Replace in the same orientation and wiring configuration; secure all connectors and panels before restoring power.

This oven bake element heats the lower cavity to cook and bake food evenly. It replaces a worn or broken element to restore normal oven heating and help get consistent baking results. What it does:

• Heats the oven cavity for baking and roasting when the oven is set to bake
• Restores proper temperature rise when the original element is burnt out or visibly damaged
• Commonly used to address ovens that won't heat or take a long time to reach temperature
• Works with standard electric oven bake circuits

• Disconnect power at the breaker before attempting any service
• Handle carefully to avoid bending or damaging the element tube or terminals
• Verify terminal type and mounting location match your oven before installation

The PAD is an OEM part crafted specifically for Whirlpool dryers. This pad plays a crucial role in the dryer's operation by providing support and cushioning for the dryer drum. Its precise design and compatibility ensure proper fitting and reduce noise during the drying cycles, contributing to smoother operation.

A worn-out or damaged dryer pad can lead to disruptions in the dryer's performance. Causes of a faulty pad might include wear over time, physical damage, or exposure to high heat, resulting in increased noise or imbalance during operation.

Symptoms of a bad PAD may include:

• Unusual or increased noise during dryer operation
• Visible signs of wear or deterioration on the pad
• Drum imbalance or wobbling during use

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This bulkhead is the front interior panel that supports the drum and helps direct dryer airflow for efficient tumbling and exhaust. It restores proper drum alignment and airflow when the original panel is worn or damaged. What it does:

• Provides a stable mounting surface for the drum and front bearing/glide assembly
• Helps channel air from the drum to the exhaust path for consistent drying
• Prevents drum wobble and rubbing that can cause noise or fabric wear
• Reduces air leaks and hot spots that can extend dry times or trigger heat issues

• One bulkhead panel

• Disconnect power and venting before beginning any repair
• Removing the front panel and drum is typically required to access and replace the bulkhead
• Inspect drum seals, rollers, and bearings while the dryer is open; replace any worn components
• Use appropriate tools and follow OEM instructions.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Front Drum Roller Shaft is an OEM part for Whirlpool dryers. This component provides support and stability to the drum while it rotates, ensuring smooth and quiet operation during the drying cycle. The roller shaft works in conjunction with the drum rollers to maintain proper alignment and reduce friction.

Over time, the front drum roller shaft can wear out or become damaged due to continuous use and the constant movement of the drum. Factors such as heavy loads, misalignment, and lack of lubrication can contribute to the deterioration of the shaft.

Symptoms of a bad front drum roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The drum not rotating smoothly
• Increased friction or resistance when turning the drum by hand
• Uneven or excessive wear on the drum rollers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Belt is an OEM replacement part for Whirlpool dryers. This essential component is responsible for transferring power from the dryer's motor to the drum, allowing it to spin and tumble the clothes during the drying cycle.

Symptoms of needing to replace the drive belt include:

• The dryer drum not spinning or rotating
• Loud squeaking or grinding noises during the drying cycle
• Excessive vibration or shaking from the dryer
• Clothes taking longer to dry or remaining damp

Causes of a faulty drive belt can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This genuine replacement seal restores a tight barrier between two mating surfaces in your appliance. Replacing a worn or damaged seal helps prevent leaks or air infiltration and supports proper, reliable performance. What it does

• Creates a compressible barrier to contain water or air at the joint between components
• Helps prevent drips, leaks, or unwanted moisture/condensation
• Replaces seals that are cracked, flattened, brittle, or misshapen
• Supports correct operation by maintaining proper pressure and temperature control at the seal point

• 1 seal

• Disconnect power; shut off water supply if applicable
• Note the seal's orientation before removal; match the profile to the new part
• Clean the groove and mating surfaces of residue and debris before seating the new seal
• Seat evenly without twisting or stretching; test for leaks/operation after reassembly

10 - 16 x 1/2

This bulkhead is the front structural panel that supports the dryer drum and seals the front of the cabinet to maintain proper airflow and drum alignment. Replacing a worn bulkhead restores stable drum rotation and prevents air leaks. What it does:

• Supports the drum and front bearing to keep the drum centered and turning smoothly
• Seals the front cabinet to direct exhaust airflow through the blower and vent
• Reduces rubbing and vibration caused by a damaged or warped bulkhead
• Helps eliminate airflow leaks that can extend dry times or cause overheating warnings

• One bulkhead

• Disconnect power (and gas supply if applicable) before any service
• Service typically requires removing the dryer front panel and drum for access
• Inspect and replace any worn gaskets, bearings, or fasteners while replacing the bulkhead

Replacement dryer drum that holds and tumbles clothes during the drying cycle, restoring smooth rotation and preventing fabric damage. Replaces a dented, cracked, or noisy drum to improve drying performance. What it does:

• Spins and supports laundry inside the dryer so air circulates and items tumble evenly.
• Replaces a drum that is dented, warped, cracked, or rubbing—common causes of thumping, scraping, or fabric snags.
• Helps prevent further wear by restoring the smooth inner surface that clothes contact during drying.
• Works with the dryer's belt, rollers, seals and glides; damaged related components can cause repeat noise or wear.

• Disconnect power (and shut off gas supply on gas models) before starting any repair.
• Basic removal usually requires taking off the dryer front or top panel and sliding the old drum out.
• Inspect and replace worn rollers, belt, seals or glides when installing a new drum to avoid premature failure.
• Handle the drum carefully — edges may be sharp and some drums are heavy; use gloves and a second person if needed.

The Dryer Drum Felt Seal is an OEM replacement part for Whirlpool electric dryers. Located inside the spinning dryer drum, it lines the perimeter and protects the interior surface from abrasions. This seal measures approximately 82 inches in length.

Symptoms of a bad dryer drum felt seal include:

• Scratches or scuff marks visible on the inside of the drum
• Visible wear patterns or thinning of the felt material
• Premature rusting or corrosion of the steel drum
• Chipped or delaminated areas exposing bare steel

Causes of failure can include normal wear from friction generated during high-speed spins. Mineral deposits and grit trapped between the seal and drum may accelerate wear over extended use as well.

This OEM part is also compatible with brands like Maytag, Amana and Kenmore.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement drum baffle helps lift and separate clothes as the dryer tumbles so items dry more evenly and move freely. Fits into the dryer drum to restore proper fabric circulation and reduce bunching. What it does:

• Lifts and guides clothes during tumbling to improve airflow and drying consistency
• Helps prevent items from wrapping or bunching against the drum
• Can reduce loud thumping or scraping noises caused by a loose or broken baffle
• Addresses symptoms such as uneven drying, items clumping together, or abnormal drum noises

• One drum baffle

• Disconnect power before beginning any work; follow the dryer's service manual for panel removal and reassembly
• Replacement typically requires opening the dryer cabinet or removing the drum—use proper tools and follow model-specific instructions
• Retain existing screws or fasteners unless new hardware is specified for your model

The Seal is an OEM replacement part for Whirlpool dryers. This seal helps prevent clothes from getting caught between the drum and the dryer's interior. Its high-quality construction ensures durability and long-lasting performance. Note: For Hi-Temp adhesive, order part# WPY055980

Causes of a bad dryer seal can include wear and tear from repeated use, exposure to high temperatures, or damage due to overloading the dryer. When the seal is compromised, it can lead to heat loss, increased drying times, and potential damage to clothing.

Symptoms of a faulty seal include:

• Increased Noise during operation
• Clothes becoming tangled or stuck inside drum
• Drying times longer than normal

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Outer Housing is an OEM part for Whirlpool electric dryers. It forms the durable outer shell of the dryer that protects internal components from damage.

Causes of bad housing can include dents, cracks, or deformities from impacts over time. Normal wear from daily use like opening and closing the dryer door can also weaken painted surfaces.

Symptoms of a bad outer housing include:

• Gaps that allow access to internal parts or escaping heat/air
• Loose or detaching door or side panels
• Peeling or bubbled paint exposing bare metal
• Blocked ventilation openings affecting airflow

This housing replacement assures a professionally finished look while safeguarding dryer internals from further wear.

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric dryer models.

The Lint Screen Door is an OEM replacement part for Whirlpool dryers. It is responsible for covering the lint screen area and protecting the inner components of the dryer drum. The lint screen door allows for easy access to clean out lint buildup after each load.

Over time, the door can suffer from wear and tear due to regular handling or accidental impacts. A faulty lint screen door can lead to improper lint trapping, which might cause airflow issues and potential fire hazards.

Symptoms of a bad lint screen door include:

• Difficulty opening or closing the door smoothly
• Gaps or openings that allow lint to bypass the screen
• Warping or misshapen door that no longer fits properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This Grill-out assembly replaces a damaged or worn grill component to restore the appliance's proper grill function and appearance. It fits into the grill area to secure and protect internal grill components for safe operation. What it does:

• Secures the grill area and restores proper alignment and fit
• Protects internal grill components from damage and debris
• Helps maintain correct airflow and heat direction around the grill
• Addresses symptoms such as cracked, loose, warped, or missing grill pieces and visible gaps or rattling

• One Grill-out assembly

• Disconnect power or gas to the appliance before starting any repair
• Basic hand tools (screwdriver, nut driver) are commonly required; follow your model's service manual
• Inspect surrounding parts and mounting hardware; reuse or replace fasteners as needed

This sensor wire harness links a sensor (such as a thermistor) to the appliance's control system, ensuring accurate readings and dependable operation. Replacing a damaged or corroded harness restores proper communication and stable performance.

• Carries low-voltage sensor signals between the sensor and main control
• Enables the control to respond correctly to sensor feedback for normal operation
• Typical failure signs: erratic readings, intermittent operation, nuisance sensor/error codes, or visible wire/connector damage
• A damaged harness/connector may be the cause

• Disconnect power before servicing; turn off water supply if moving the appliance requires it
• Access the harness at the sensor/control ends per your model's service information
• Match keyed connectors and seat fully without forcing; do not pull on wires
• Route along the factory path and secure away from sharp, hot, or moving parts

The Moisture Sensor Bar is an OEM replacement part for Whirlpool dryers. It is a component located inside the dryer drum that senses the moisture level of clothes during tumble drying cycles. The moisture sensor bar utilizes sensors or probes to gauge how dry clothes are getting and signals the dryer to shut off once clothes reach the desired dryness level selected by the user.

Symptoms of a bad moisture sensor bar include:

• Dryer failing to shut off automatically at the end of cycles, leaving clothes over-dried
• Cycles taking excessively long to complete
• Dryer not sensing moisture levels properly to allow automatic ending of cycles

Causes of a faulty moisture sensor bar are usually due to normal wear and tear over time. Dust or lint buildup can also affect its ability to provide accurate readings.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
