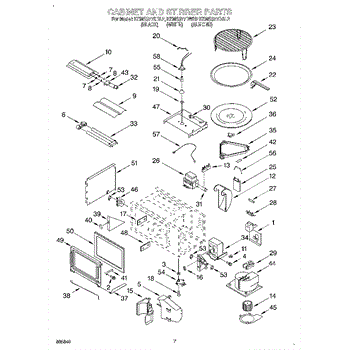

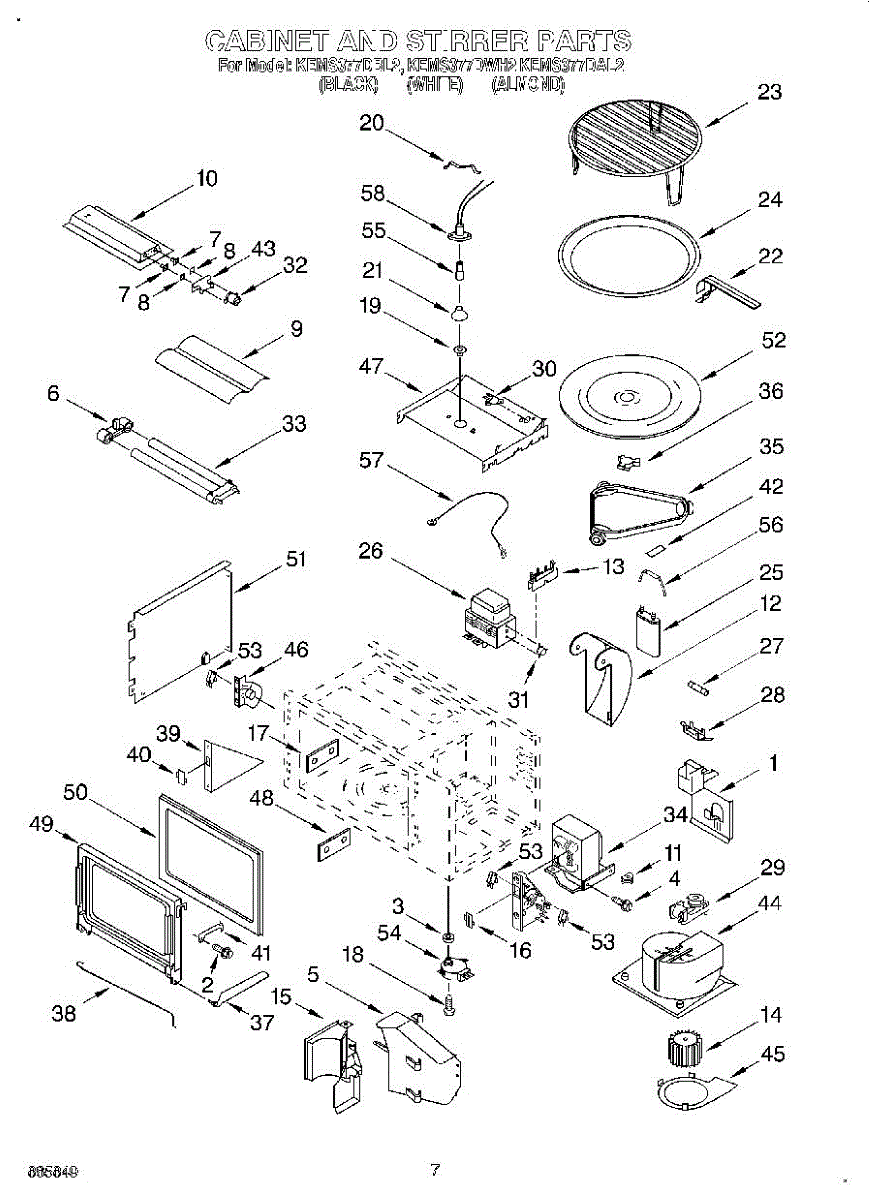

Parts for Kitchenaid KEMS377DBL2: 06 - Cabinet And Stirrer Parts

Replacement mounting screw secures exterior panels, trim, or internal components. Needed when original fastener is missing, stripped, or damaged.

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

Microwave light reflector directs bulb illumination inside cooking cavity. Replace if cracked, discolored, or missing to restore proper lighting. Confirm fit with your model number.

Replacement cookware for your microwave. Restores missing or damaged cookware pieces. Essential when original cookware is cracked, broken, or lost.

Microwave not heating? This high voltage capacitor works with the magnetron and diode to generate heat. Moderate DIY repair with proper safety precautions.

Microwave not heating but runs? The magnetron generates microwave energy for cooking. Intermediate repair requiring discharge of capacitor first.

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This Is A Blower Motor !!!! For Turntable Motor Use W10642989!!!!

This fixed thermostat protects the appliance by opening the circuit when excessive heat is detected. Replacing a failed or weak thermostat restores reliable over-temperature protection and helps prevent heat-related shutdowns.

• Opens the circuit if the protected area overheats to help prevent damage to components
• Helps with symptoms like unexpected shutdowns during operation or no power after overheating
• Can be the cause when the unit only runs again after cooling down
• Helps maintain safe operating temperatures around heat-sensitive parts

• Disconnect power before servicing; some appliances contain high-voltage components
• Access location varies by model; note wire positions before removal and transfer one lead at a time
• Reuse existing mounting hardware; ensure firm terminal connections and correct orientation
• After replacement, confirm proper airflow/venting and normal operation

This is a high-voltage transformer that steps up electrical power to the level needed to drive the magnetron in a microwave oven. It converts standard household voltage to the high voltage required for microwave energy generation. Replace this part if the microwave runs but does not heat food, makes unusual humming or buzzing sounds, or trips the circuit breaker during operation.

Per Whirlpool Kit no longer comes with the coupler. This is the Ring only. If coupler is needed order part WP8183788

Per Whirlpool Kit no longer comes with the coupler. This is the Ring only. If coupler is needed order part WP8183788

Left side door hinge for microwave ovens. Replaces broken or worn hinges causing door to drop, sag, or not close properly. Structural component.

Right side door hinge for microwave ovens. Replacement needed when hinge is cracked, broken, or worn causing door alignment issues or difficulty opening.

Fix a microwave door that won't stay open or slams shut. This torsion spring provides counterbalance for smooth door operation. DIY-friendly repair.

Fix a microwave displaying 'DOOR' error or won't start with this door switch kit. Contains 3 switches that work together to detect door closure.

Fix a microwave displaying 'DOOR' error or won't start with this door switch kit. Contains 3 switches that work together to detect door closure.

Color: Black.

Replace your microwave's broken or cracked glass turntable tray. This circular rotating plate sits on the cavity floor to hold food during cooking.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Microwave turntable won't rotate or makes rattling noise? This motor drives the glass tray for even heating. Easy 10-minute DIY fix with basic tools.

Illuminates the microwave interior for visibility during cooking. Replace when burnt out or dim. Confirm fit with your model number before ordering.

Microwave not heating or making loud humming noise? The diode converts AC to DC power for the magnetron. Moderate difficulty repair, 1-2 hours.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 1/3 oz.

Size: 25ft, 12 Ga. 150 c Black

A replacement mounting screw used to secure appliance panels and components. Restores a missing or stripped fastener so parts sit flush and stay in place for reliable operation. What it does

• Fastens panels, brackets, and trim to the appliance chassis
• Prevents rattling, loose panels, and misaligned parts when installed correctly
• Replaces missing or damaged screws to restore proper fit and function

• Disconnect power to the appliance before working on it
• Use the correct-size screwdriver or driver bit to avoid cam-out or stripping
• Install by hand until started, then snug; avoid over-tightening to prevent damage
• Keep removed hardware organized and compare to the replacement before installing

Ground wire for microwave ovens. Connects electrical components to chassis for proper grounding. Replace if wire is damaged, frayed, or missing.

This is a combination conduit that routes and protects wiring within the microwave. It ensures electrical cables are safely channeled between internal components. Replace this part if the conduit is cracked, melted, or damaged during a repair, which could expose wiring and create a safety hazard.

Specs: 25ft,14 Ga., 200 c Brown

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Non-corrosive silicone adhesive sealant for appliance repairs. Replace cracked or missing seals on door panels, trim strips, and interior edges.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Kit of 4 pins that insert into oven door hinges to safely remove the door for repairs or cleaning. Replace lost or damaged pins during door removal.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
