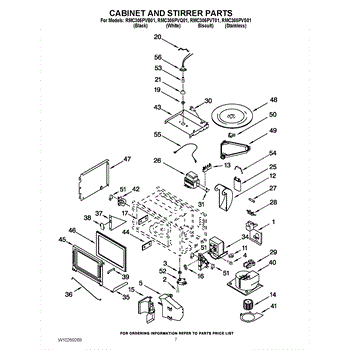

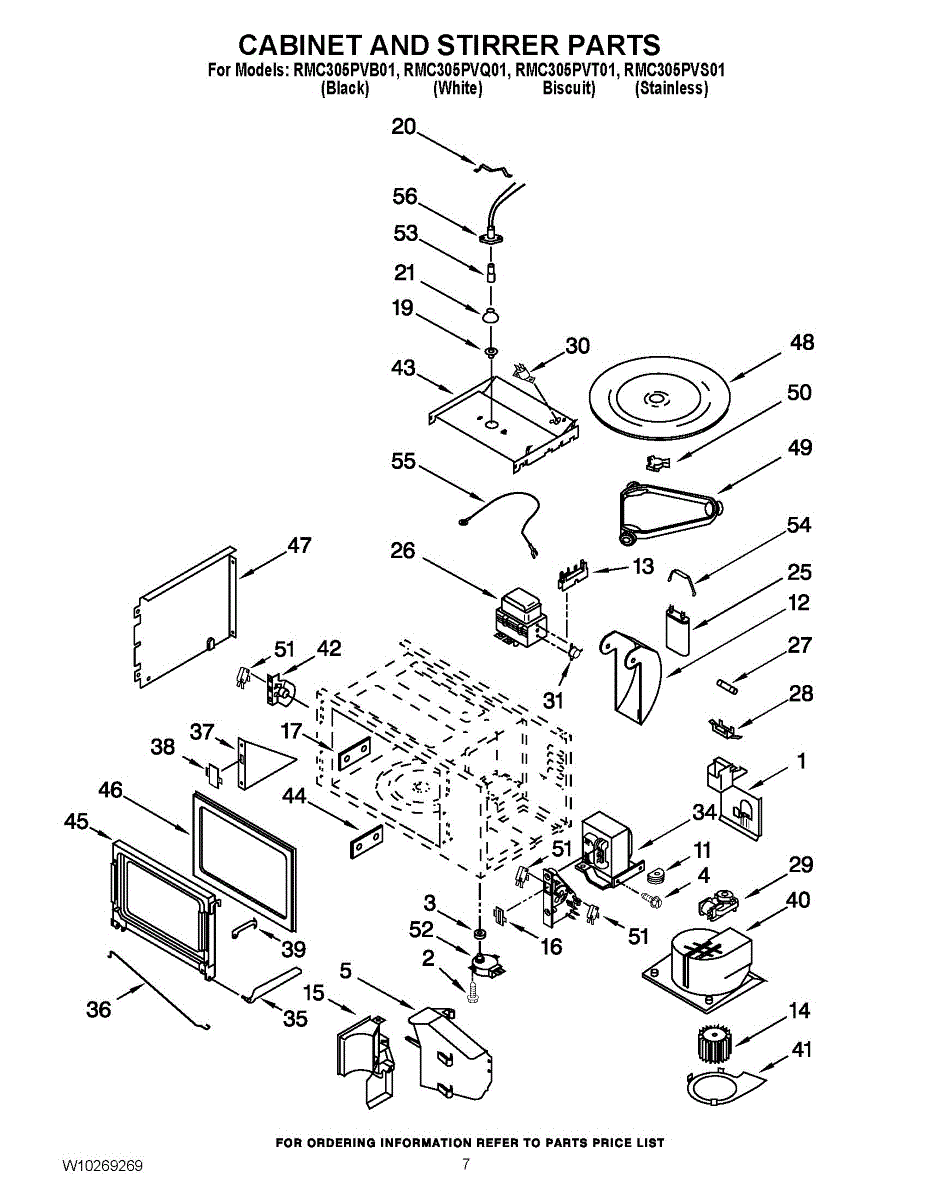

Parts for Whirlpool RMC305PVB01: 06 - Cabinet And Stirrer Parts

This replacement screw is a general-purpose fastener used to secure exterior panels, trim, or internal components on compatible Whirlpool appliances. It restores proper fit and reduces rattles or loose parts for a safer, more reliable appliance. What it does:

• Secures panels, trim pieces, or mounting brackets to keep components in place
• Prevents vibration-related noise and movement caused by missing or loose fasteners
• Helps maintain alignment of control panels and exterior housings
• Replaces stripped, corroded, or lost screws to restore original fit

• Use the correct screwdriver or bit to avoid stripping the head
• Match screw length and thread engagement with the original for a secure fit
• Tighten to snug only; over-tightening can strip threads or crack panels
• Disconnect power before performing repairs on electrical components

This lens-lamp assembly replaces a damaged or missing interior light lens and lamp, restoring clear, protected illumination inside the appliance. It provides a covered light source that reduces glare and shields the bulb from food and debris. What it does:

• Covers and protects the appliance interior light bulb from spills, splashes, and impact
• Diffuses light for more even interior illumination
• Restores proper visibility when the original lens is cracked, cloudy, or missing
• Helps prevent direct exposure to the bulb, improving safety during use

• One lens-lamp assembly

• Disconnect power to the appliance before starting any repair
• Allow the bulb to cool before handling; wear gloves to protect hands and avoid fingerprints on bulb
• Test the light function after installation to ensure proper fit and operation

This magnetron capacitor is the microwave high-voltage capacitor that helps supply the magnetron with the pulse of energy needed to produce heat. Replacing a failing capacitor restores normal heating performance and reduces arcing or loud humming. What it does

• Stores and releases the high-voltage pulse required by the magnetron so the microwave can generate heat.
• Prevents unstable magnetron operation that can cause weak or no heating.
• Common symptoms of a failing capacitor: oven runs but doesn't heat, intermittent heating, loud buzzing/humming, or visible arcing inside the cavity.
• A failed capacitor can also cause blown internal fuses or tripped circuits.

• One capacitor.

• Disconnect power and verify the appliance is completely de-energized before servicing.
• Capacitors can hold dangerous charge; discharge the capacitor safely with an insulated tool.
• Use the exact replacement part and follow the appliance service manual for routing and connections.

The Magnetron is an OEM part for Whirlpool microwaves. This part generates the microwave energy necessary for cooking and heating food.

Causes of a bad Magnetron can include normal wear and tear over time, power surges or electrical issues, or physical damage from impact or mishandling.

Symptoms of a bad Magnetron include:

• The microwave not heating or cooking food properly
• Arcing or sparking inside the microwave cavity
• Strange noises or buzzing sounds during operation
• Burning smells or smoke coming from the microwave

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This line fuse protects the appliance's incoming power circuit by opening if an overload or short occurs. Replacing a blown fuse can help restore power once the underlying issue is corrected, preventing further damage to sensitive components.

• Interrupts line voltage when excessive current or a short circuit is detected
• Typical symptoms: unit completely dead, no display or interior lights, won't start or run
• Fuse tests open/no continuity with a multimeter when blown
• A blown fuse often points to another fault that must be addressed

• Disconnect power at the breaker/unplug before servicing; microwaves contain high-voltage parts that can retain a dangerous charge even when unplugged
• Replace only with the same type and rating as the original fuse
• Ensure the fuse seats firmly in its holders; do not bypass or jumper a fuse

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This temperature sensor monitors refrigerator temperature and sends readings to the control board so the appliance can regulate cooling. Replacing a failing sensor restores accurate temperature feedback for reliable cooling performance. What it does

• Measures internal temperature and reports it to the refrigerator control board
• Helps the system cycle the compressor and fans correctly for stable temperatures
• Commonly linked to symptoms like poor cooling, frequent compressor run, or temperature-related error codes
• Works as the sensing element for automatic defrost and temperature-control routines

• One temperature sensor (thermistor) with attached lead

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the sensor and wiring gently; secure the lead per factory routing to avoid contact with moving parts
• May require basic hand tools and access to the evaporator/thermostat area

Replacement transformer that supplies the appliance's low-voltage control power so control boards and components can operate reliably. Use this transformer when the original fails to provide stable power to controls or relays. What it does:

• Converts incoming household/mains voltage into lower control voltage for the appliance's electronics.
• Provides power to control boards, timers, relays and low-voltage solenoids so operational circuits can run.
• Failing transformer can cause dead or unresponsive control panels, intermittent operation, or functions that stop working.
• Serves as a direct replacement to restore control-circuit power when the original transformer is faulty.

• One replacement transformer (quantity: 1)

• Always disconnect power to the appliance at the breaker or unplug before servicing.
• Note or photograph wiring and connector locations before removing the old transformer; reconnect exactly as found.
• Use existing mounting hardware or matched fasteners; avoid forcing connectors or bending terminals.

This is the left side door hinge. For right side use WP4375324.

This is the right side door hinge. For left side use WP4375323.

Switch kit contains 3 switches, all should be changed.

Switch kit contains 3 switches, all should be changed.

Color: Black.

The Turntable Tray is an OEM part for Whirlpool microwaves. This circular plastic tray sits atop the cavity within the microwave. The turntable tray is responsible for smoothly rotating food items during cooking cycles to ensure even heating exposure. It prevents hot and cold spots that can ruin prepared meals. The tray measures approximately 16 inches in diameter.

Causes relate to extended use over time, warping from high heat exposure, or accumulating residue that impedes free movement.

Symptoms of a worn turntable tray include:

• Inconsistent cooking results with some portions remaining underdone
• Squeaking or scraping noises emitting from below during operation
• The tray no longer spinning smoothly on its post seal track

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Per Whirlpool Kit no longer comes with the coupler. This is the Ring only. If coupler is needed order part WP8183788

This turntable coupler connects the microwave's motor shaft to the glass tray so the turntable rotates evenly for consistent cooking. It restores proper tray rotation when the turntable no longer spins. What it does:

• Transfers motor rotation to the glass turntable so food rotates during cooking
• Stops slipping or intermittent turning caused by a worn or broken coupler
• Eliminates grinding or clicking noises from a damaged drive connection
• Helps ensure even heating by maintaining steady tray movement

• One turntable coupler

• Disconnect power before servicing the appliance to avoid shock
• Remove the glass tray and roller ring to access the motor shaft; align and press the coupler onto the shaft until fully seated
• Inspect the roller ring and glass tray for damage while replacing the coupler
• Test operation after reassembly; if the coupler slips or won't seat, do not force it—verify correct orientation and condition of adjoining parts

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This microwave turntable motor drives the glass tray to rotate food for more even heating. Replacing the motor restores smooth, consistent rotation and dependable cooking performance.

• Drives the turntable during cook/defrost cycles for more uniform heating
• Turntable won't turn or only turns intermittently
• Jerky movement or tray requires a push to start
• Humming, grinding, or clicking from beneath the tray area

• Disconnect power by unplugging the microwave or switching off the breaker before servicing; microwaves contain high-voltage components that can retain a charge
• Remove the glass tray and support ring before accessing the motor
• Access is typically from the bottom panel; note wire connections and motor orientation before removal
• After installation, ensure the coupler engages properly and the tray spins freely

The Microwave Light Bulb is an OEM part for Whirlpool microwaves. It illuminates the interior of the microwave, allowing you to monitor the cooking process and ensuring visibility while using the appliance.

You should replace this light bulb if it burns out or becomes damaged. Causes of a bad light bulb can include natural burnout over time, electrical surges, or damage from accidental impact.

Symptoms of a bad light bulb include:

• The microwave interior remaining dark during operation
• Flickering light inside the microwave
• The light not turning on at all when the door is opened

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Diode is an OEM part for Whirlpool microwaves. This part convers AC power to DC power to ensure proper operation of the magnetron, which generates the microwaves for cooking.

Causes of a bad diode can include electrical surges, wear and tear over time, or damage due to excessive heat.

Symptoms of a bad diode include:

• The microwave not heating or only heating intermittently
• Unusual noises such as buzzing or humming during operation
• The microwave running but not producing heat
• Visible damage or burn marks on the diode

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
