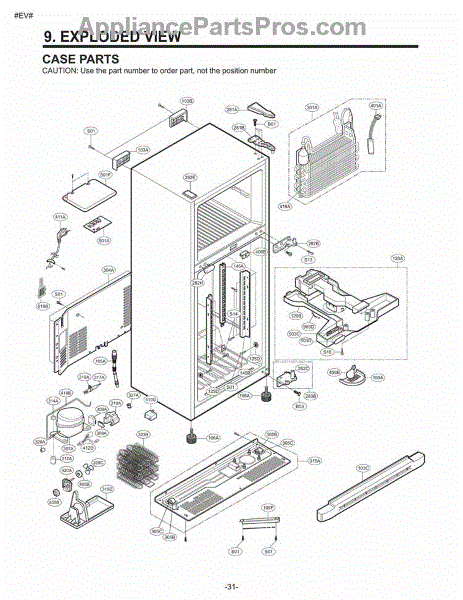

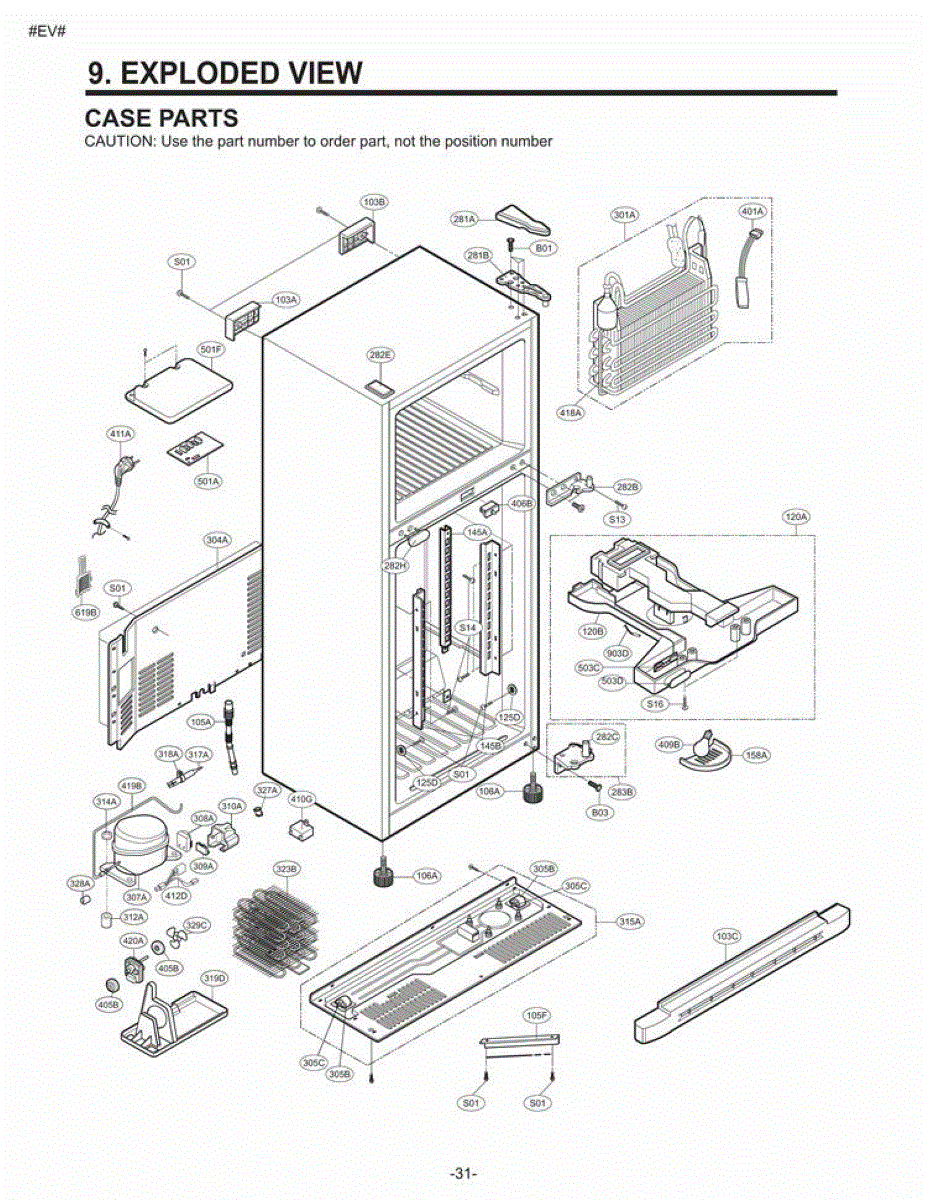

Parts for Lg LTC22350SW: Case Parts . Exploded View Parts

Plastic cap that covers the door hinge assembly on your refrigerator. Replace if cracked, broken, discolored, or missing to restore a clean appearance.

Replace your refrigerator's rear handle if it's cracked, broken, or missing. This structural support handle mounts to the back panel of your unit.

Mounting screw for refrigerator assembly. Replaces lost, stripped, or damaged screws used to secure internal components and panels. Essential hardware.

Door hinge assembly for top-mount refrigerators. Mounts between the door and cabinet to support smooth opening and closing. Replace if cracked or worn.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This holder bracket secures and positions components inside your refrigerator, typically holding items like water filters, light fixtures, or small parts. It ensures proper alignment and prevents movement during normal operation. Replace this bracket if components are loose, misaligned, or falling out of position.

Replacement mounting screw for refrigerators. Secures panels, shelves, or components inside your fridge. Order if original is stripped, missing, or lost.

Fix frost buildup and cooling issues with this refrigerator evaporator assembly. Includes defrost heater and coils for complete frost-free operation.

Replaces the back cover assembly for your refrigerator's machine compartment. Order this part if your original cover is cracked, broken, or missing.

A refrigerator controller assembly that manages cooling cycles, defrost timing, and temperature regulation. This electronic control board coordinates compressor operation and maintains proper temperatures in both fresh food and freezer compartments. Replace it when your refrigerator won't cool properly, runs constantly, or doesn't defrost automatically.

Protective cover for your refrigerator's PTC and compressor start device assembly. Replace if cracked, melted, or missing to shield components from damage.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

Refrigerator not cooling or unresponsive? This power control board regulates electronic functions and fan operation. Moderate DIY repair restores normal cooling.

This is a small retainer clip that secures the compressor in place at the base of the refrigerator. It helps prevent the compressor from shifting or vibrating excessively during operation. Replace this clip if your refrigerator produces unusual rattling or vibrating noises from the back, or if the compressor appears loose or has shifted from its mounting position.

Fridge not cooling or freezing? Compressor running constantly? This compressor set assembly restores cooling. Complex repair requiring professional tools.

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

Vibration-isolating grommet that mounts between the compressor and chassis. Replace if cracked, worn, or missing to restore proper cushioning.

Refrigerator won't power on or loses power intermittently? This power cord assembly replaces frayed or damaged cords to restore safe, reliable operation.

Door hinge screws secure the refrigerator door hinges to the cabinet frame, allowing proper door operation and alignment. Replace when doors sag, don't close properly, or screws are loose, stripped, or missing causing door misalignment.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

This is the DC motor that drives the condenser fan, typically located near the compressor at the bottom rear of the refrigerator. It circulates air across the condenser coils to dissipate heat and maintain efficient cooling. Replace this motor if the refrigerator is running warm, the compressor is overheating, or the fan is not spinning when the compressor is operating.

Secures the toe grille to the base of your refrigerator. Replace if broken, cracked, or missing to keep the lower kickplate panel firmly attached.

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

This run capacitor provides the continuous electrical boost needed to keep the refrigerator's compressor motor running efficiently. It stores and releases energy to maintain the proper phase and voltage for the compressor during normal operation. Replace this capacitor if the compressor struggles to start, hums without running, shuts off intermittently, or if the refrigerator stops cooling altogether.

Fridge won't cool or clicks on and off? The overload protector prevents compressor damage from overheating. Easy 30-minute DIY fix for most models.

Refrigerator clicking but not cooling? The compressor start relay kickstarts your compressor. Simple 30-minute DIY fix that gets your fridge cold again.
