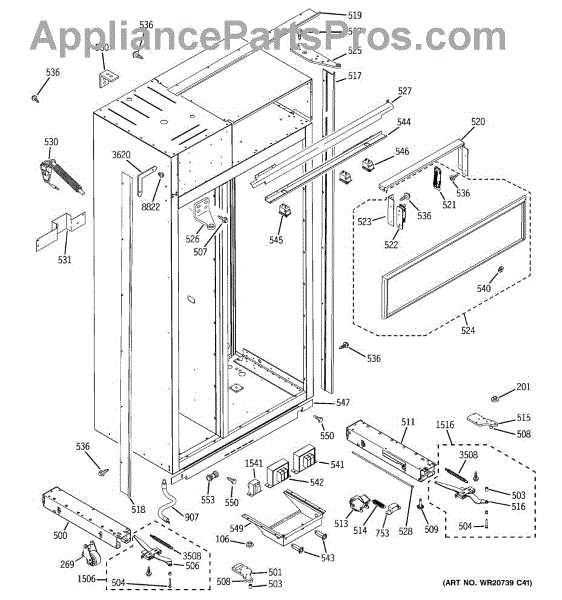

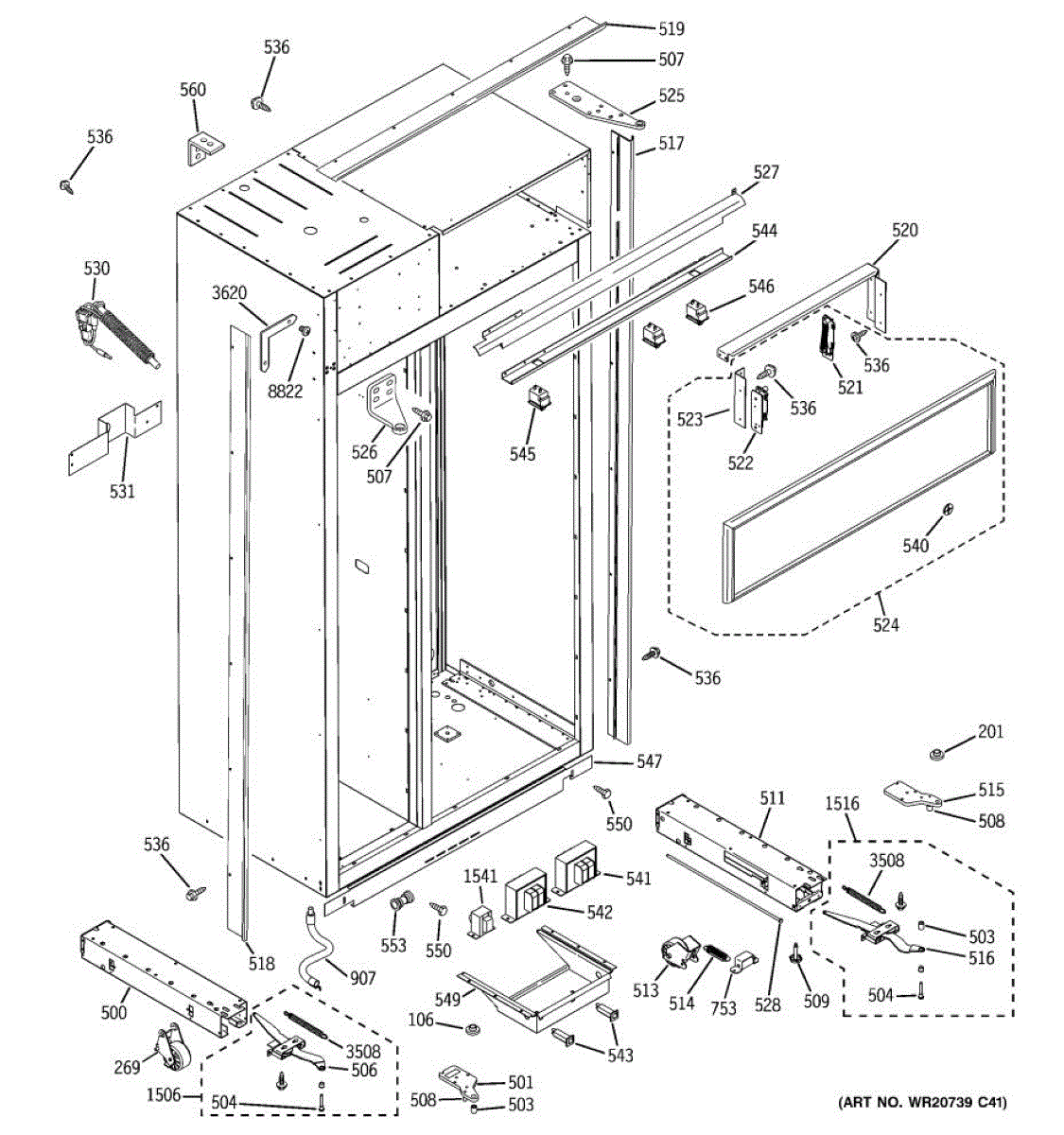

Parts for Ge ZISB480DXA: 10 - Case Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

Bottom hinge bushing for refrigerator freezer doors. Installs at the lower hinge to help the door pivot smoothly. Replace if worn, cracked, or missing.

Bottom hinge bushing guides the refrigerator door hinge pin for smooth pivoting. Replace if worn, cracked, or missing to restore proper alignment.

Left-hand base channel assembly for refrigerator. Replaces cracked, damaged, or missing base support channels. Mounts to the bottom frame for stability.

Shoulder bolt for refrigerator assembly. Secures internal components and panels. Replace if bolt is stripped, missing, or no longer holding parts firmly.

Bottom door hinge screw secures the lower hinge assembly to your refrigerator door. Replace if stripped, missing, or damaged to restore door alignment.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to t

Right-hand base channel provides lower structural support for refrigerator doors. Replace if bent, cracked, or missing to restore proper door alignment.

This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a dama

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and reta

Bottom hinge case for side-by-side refrigerators. Covers and protects the lower door hinge assembly. Replace if cracked, broken, or missing.

Replace the actuator arm in your side-by-side refrigerator. This lever controls mechanism movement and may need replacement if cracked or broken.

Right side case trim for refrigerators. Covers the side panel edge for a finished look. Replace if cracked, broken, or missing for proper appearance.

Top case trim piece for 48-inch side-by-side refrigerators. Replaces cracked, broken, or missing trim along the top edge of the refrigerator case.

Left-side grill hinge secures your refrigerator's lower access panel. Replace when bent, worn, broken, or missing to restore stable alignment and operation.

Upper case hinge for refrigerator doors. Secures and allows smooth door pivoting. Replace if cracked, broken, or worn to restore proper door alignment.

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot

Ice maker water fill tube kit for refrigerators. Replaces cracked, damaged, or leaking tubing that routes water from inlet to ice maker. Includes mounting hardware.

Replacement mounting screw that secures panels and internal components in your freezer. Replace stripped, rusted, or missing fasteners to restore stability.

Freezer light not turning on or off? This door light switch activates interior lighting when opened. Moderate DIY repair—press tab, rotate out old switch.

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

This tray transformer is a direct-replacement transformer assembly that provides the proper low-voltage power for the appliance tray assembly, restoring reliable operation and control. Use it to replace a worn or failed transformer without modifying wiring or controls. What it does

• Steps down line voltage to the tray assembly's required control voltage so tray components receive stable power
• Restores power to tray-related circuits when a failed transformer causes loss of function
• Common symptom: tray functions, lights, or heater do not operate or respond
• Designed to fit and mate with the factory tray wiring and mounting points for a clean swap

• One tray transformer assembly

• Always disconnect power to the appliance before starting work to avoid shock hazard
• Match the replacement to the original by part number and connector style before installing
• Basic hand tools are typically required; handle wiring and terminals carefully to avoid damage

Size: 10-32 GXTT FLP.595 S

Connects refrigerator water supply tubing to the appliance for dispenser and ice maker. Replace if cracked, loose, damaged, or leaking at the connection point.

Controls freezer door linkage assembly alignment. Replace if the actuator is cracked, broken, or worn, causing misaligned or sticking linkages.

Refrigerator door hinge link actuator assembly. Installs at the bottom hinge to control door closing. Replace if cracked, broken, or spring damaged.

Fix dark refrigerator interior with this LED lighting transformer. Restores consistent illumination when doors open. Challenging install, 1-2 hours.

The Spring Closure is an OEM part for GE refrigerators. This spring aids in the automatic closing of the refrigerator door, ensuring it seals tightly after each use to maintain optimal internal temperatures.

Causes of a bad spring closure can i

This corner key assembly secures and finishes a refrigerator door corner, restoring proper alignment and a clean appearance. It replaces a cracked, broken, or missing corner piece to help the door close evenly and look factory-original. What it does:

• Provides structural support at the door corner to maintain proper edge alignment
• Covers and protects the underlying corner area from damage and wear
• Helps reduce visible gaps or misalignment that can affect sealing
• Restores the cabinet's finished appearance after impact or deterioration

• One corner key assembly

• Disconnect power to the appliance before starting any repair
• Remove door or trim per manufacturer instructions to access the corner area
• Install with original fasteners or clips; do not force or over-torque plastic snaps
• If hinge or door alignment issues persist, inspect associated hinges and gaskets
