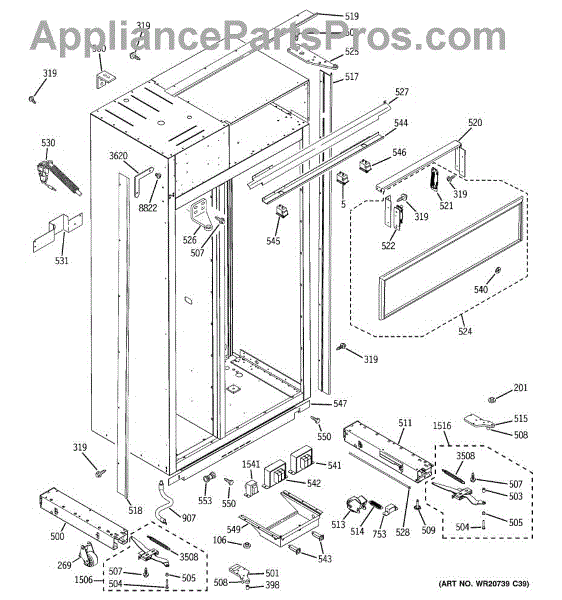

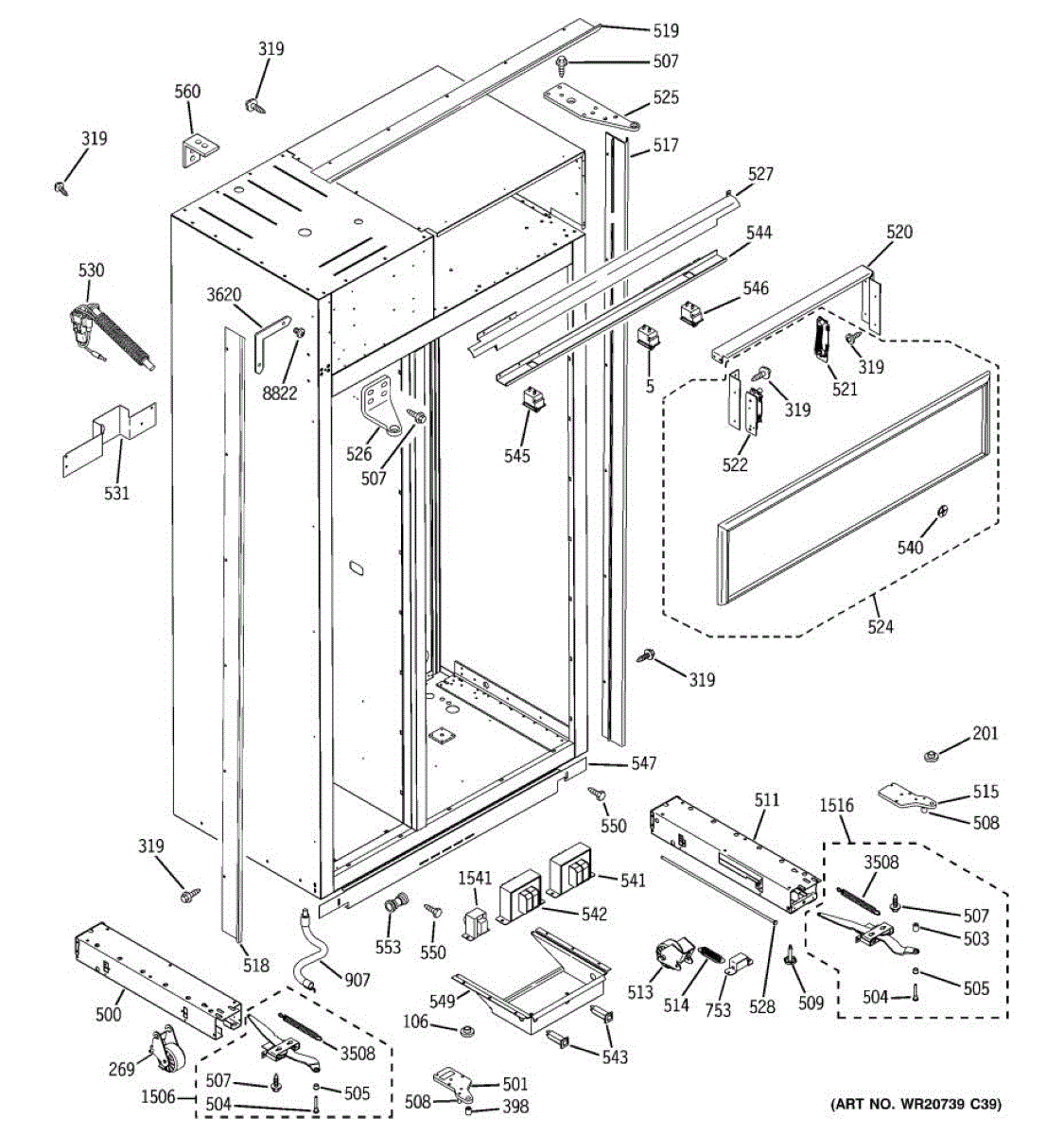

Parts for Ge ZISP420DXASS: 10 - Case Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

Bottom hinge bushing for refrigerator freezer doors. Installs at the lower hinge to help the door pivot smoothly. Replace if worn, cracked, or missing.

Bottom hinge bushing guides the refrigerator door hinge pin for smooth pivoting. Replace if worn, cracked, or missing to restore proper alignment.

This replacement key pivot is the small pivoting pin that supports the refrigerator/freezer door key or latch mechanism, restoring secure pivoting and smooth operation at the key location. A direct-fit OE-design replacement. What it does

• Provides the pivot point for the door/key mechanism so the key or latch rotates smoothly
• Restores proper alignment when the original pivot is worn, bent, or broken
• Helps prevent a loose or wobbly key or a latch that fails to engage
• Works as a simple, serviceable part of the door/lock assembly

• One key pivot

• Disconnect power to the appliance before beginning any repair
• Remove door trim or access panel as needed; keep small parts organized
• Replace the pivot and check movement; avoid forcing parts that do not align

Shoulder bolt for refrigerator assembly. Secures internal components and panels. Replace if bolt is stripped, missing, or no longer holding parts firmly.

Nylon hinge arm secures and guides refrigerator doors for smooth pivoting and alignment. Replace if cracked, broken, or worn to restore door support.

Bottom door hinge screw secures the lower hinge assembly to your refrigerator door. Replace if stripped, missing, or damaged to restore door alignment.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed

Right-hand base channel provides lower structural support for refrigerator doors. Replace if bent, cracked, or missing to restore proper door alignment.

This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a damaged rear roller so the drawer opens and closes smoothly
• Keeps the drawer aligned and prevents it from binding or tilting
• Reduces scraping and uneven wear on the drawer and track
• Supports normal load on the rear of the drawer for stable operation

• Remove drawer contents and slide the drawer out according to your appliance manual before starting
• Inspect the front and rear tracks; replace only the damaged roller(s) and test drawer movement after installation
• Use basic hand tools; avoid forcing parts
• No special wiring or electronic handling required; follow general safety precautions

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

Bottom hinge case for side-by-side refrigerators. Covers and protects the lower door hinge assembly. Replace if cracked, broken, or missing.

Right side case trim for refrigerators. Covers the side panel edge for a finished look. Replace if cracked, broken, or missing for proper appearance.

Upper case hinge for refrigerator doors. Secures and allows smooth door pivoting. Replace if cracked, broken, or worn to restore proper door alignment.

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

Ice maker water fill tube kit for refrigerators. Replaces cracked, damaged, or leaking tubing that routes water from inlet to ice maker. Includes mounting hardware.

A 2 amp replacement fuse that protects low-current appliance circuits by opening when an overcurrent occurs. Install this direct-replacement fuse to restore power to control circuits and stop damage from a blown fuse. What it does:

• Interrupts current in control or low-voltage circuits when the fuse rating is exceeded
• Prevents electrical damage by opening the circuit on overloads
• Common symptoms of a blown fuse: appliance won't power on, controls are unresponsive, or intermittent operation
• Use as a like-for-like replacement matched to the original 2 amp rating

• Disconnect power to the appliance before inspecting or replacing the fuse
• Replace only when the appliance is cool and dry; avoid touching conductive ends

Freezer light not turning on or off? This door light switch activates interior lighting when opened. Moderate DIY repair—press tab, rotate out old switch.

Interior light not working when door opens? This light switch controls refrigerator illumination. DIY-friendly install takes 30-45 minutes with video.

This 42-inch toe kick grille covers the lower front panel of your refrigerator. Replaces cracked, dented, or missing kickplates to restore appearance.

This tray transformer is a direct-replacement transformer assembly that provides the proper low-voltage power for the appliance tray assembly, restoring reliable operation and control. Use it to replace a worn or failed transformer without modifying wiring or controls. What it does

• Steps down line voltage to the tray assembly's required control voltage so tray components receive stable power
• Restores power to tray-related circuits when a failed transformer causes loss of function
• Common symptom: tray functions, lights, or heater do not operate or respond
• Designed to fit and mate with the factory tray wiring and mounting points for a clean swap

• One tray transformer assembly

• Always disconnect power to the appliance before starting work to avoid shock hazard
• Match the replacement to the original by part number and connector style before installing
• Basic hand tools are typically required; handle wiring and terminals carefully to avoid damage

Size: 10-32 GXTT FLP.595 S

Connects refrigerator water supply tubing to the appliance for dispenser and ice maker. Replace if cracked, loose, damaged, or leaking at the connection point.

Controls freezer door linkage assembly alignment. Replace if the actuator is cracked, broken, or worn, causing misaligned or sticking linkages.

Refrigerator door hinge link actuator assembly. Installs at the bottom hinge to control door closing. Replace if cracked, broken, or spring damaged.

Fix dark refrigerator interior with this LED lighting transformer. Restores consistent illumination when doors open. Challenging install, 1-2 hours.

Replaces broken or fatigued refrigerator door closure spring. Restores tension for secure door closing and proper seal. Blue torsion spring.

This corner key assembly secures and finishes a refrigerator door corner, restoring proper alignment and a clean appearance. It replaces a cracked, broken, or missing corner piece to help the door close evenly and look factory-original. What it does:

• Provides structural support at the door corner to maintain proper edge alignment
• Covers and protects the underlying corner area from damage and wear
• Helps reduce visible gaps or misalignment that can affect sealing
• Restores the cabinet's finished appearance after impact or deterioration

• One corner key assembly

• Disconnect power to the appliance before starting any repair
• Remove door or trim per manufacturer instructions to access the corner area
• Install with original fasteners or clips; do not force or over-torque plastic snaps
• If hinge or door alignment issues persist, inspect associated hinges and gaskets
