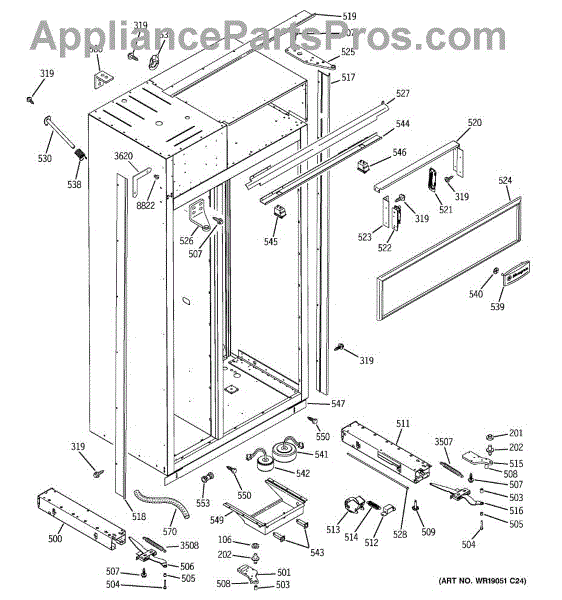

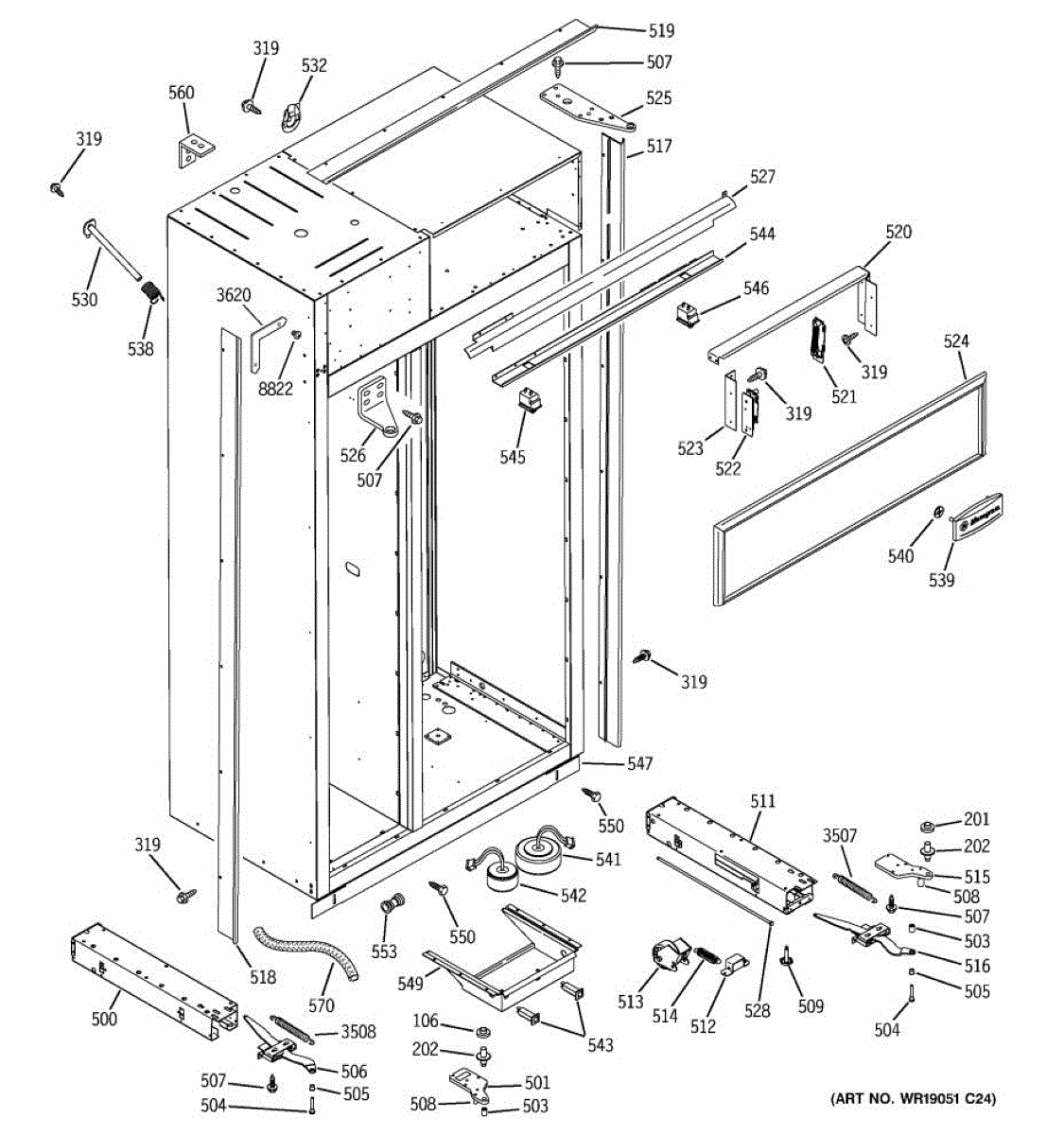

Parts for Ge ZISS420DMC: 10 - Case Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This replacement freezer bottom hinge bushing helps the freezer door pivot smoothly and maintain proper alignment, reducing rubbing and uneven wear for more reliable closing. What it does:

• Provides a smooth pivot surface for the freezer bottom hinge
• Restores proper door alignment to help ensure a tight seal
• Reduces hinge noise, sticking, and rubbing during door movement
• Helps prevent premature wear of the hinge and door components

• One freezer bottom hinge bushing

• Disconnect power to the appliance and empty or support the door before starting
• Support the door while removing hinge fasteners to prevent falling or injury
• Inspect the hinge and shaft for wear; replace the hinge assembly if damaged
• Do not overtighten fasteners; test door operation after installation

This bottom hinge bushing helps the appliance door pivot smoothly and reduces wear where the hinge pin contacts the frame. Replacing a worn or cracked bushing restores proper door movement and alignment. What it does:

• Guides the door hinge pin and keeps the door aligned while opening and closing
• Reduces metal-on-metal wear and prevents grinding or catching at the hinge
• Commonly replaced if you notice door sag, uneven closing, or visible bushing damage
• Simple, low-cost part that prevents further hinge or cabinet damage when replaced

• Disconnect power to the appliance before starting any repair
• Support or secure the door when removing hinge pins or fasteners to prevent injury or damage
• Remove the hinge pin or hinge assembly per the service diagram to access and replace the bushing
• Inspect hinge pin and surrounding components for wear; replace if damaged. Avoid petroleum-based lubricants on plastic bushings

This left hand base channel is the lower cabinet support piece that helps secure and align the appliance's front base. It restores proper fit and stability at the cabinet bottom after damage or wear. What it does

• Provides structural support for the appliance's lower front cabinet, keeping panels aligned.
• Replaces a bent, cracked or missing base channel that causes gaps or misalignment.
• Helps prevent rubbing or binding between the cabinet and kickplate or floor.
• Restores correct mounting points for adjacent trim and hardware.

• Intended for the left/front lower cabinet area; verify orientation before installing.
• Basic hand tools required; support the appliance while removing and installing to avoid strain.
• Disconnect power and water (if applicable) and follow all safety precautions before beginning work.
• If mounting hardware is damaged or missing, replace fasteners with OEM-equivalent parts.

This nylon hinge arm secures and guides a refrigerator/freezer door, providing smooth pivoting and reliable door alignment to help prevent sagging and uneven seals. Durable nylon resists wear at hinge contact points. What it does:

• Supports the door at the hinge pivot to maintain proper alignment and sealing
• Reduces metal-on-metal wear by providing a low-friction contact surface
• Helps stop door sag and uneven closing that can lead to poor sealing
• Works with the hinge assembly to enable smooth opening and closing

• Always unplug the appliance or disconnect power before starting repairs
• Support the door while removing or installing hinge components to prevent movement or injury
• Basic hand tools are typically required; avoid overtightening fasteners

This replacement link actuator controls the freezer linkage assembly to restore proper door/damper movement and component alignment. It's a direct-fit OEM-design part for affected GE refrigerators, helping stop sticking or misaligned freezer linkages. What it does:

• Engages the freezer linkage to move the damper/door linkage as intended
• Restores smooth movement when a frozen or stiff linkage causes binding
• Helps correct intermittent operation or noisy linkage movement
• Prevents further wear by replacing a worn or broken actuator

• One link actuator

• Disconnect power to the appliance before starting work
• Basic hand tools are typically required; remove any panels blocking access
• Handle the actuator and linkage gently to avoid damaging plastic gears or tabs
• Verify proper operation after installation; do not force parts into place

This is a bottom door hinge screw that secures the lower hinge assembly to the appliance door, restoring proper alignment and stable door movement. Use it to replace stripped, missing, or damaged hinge hardware. What it does

• Secures the bottom hinge to the door and helps keep the door aligned and level.
• Restores smooth, consistent opening and closing when a worn or missing screw causes sagging or misalignment.
• Prevents further wear to hinge components by maintaining correct hinge positioning.
• Works with original hinge assemblies; use the correct screw to avoid loose or unstable doors.

• Disconnect power to the appliance before performing any door or hinge repairs.
• Support the door while removing/installing the hinge screw to prevent the door from falling or causing injury.
• Use the correct screwdriver or bit to avoid stripping the screw head.
• Replace any additional worn hinge hardware as needed for proper alignment.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed

This right-hand base channel restores the lower support and alignment for a refrigerator door, helping the door sit level and operate smoothly. It replaces a bent, cracked or missing channel to improve door fit and stability. What it does:

• Provides the structural lower support the door mounts to, keeping the door aligned and stable
• Corrects door sag, uneven gaps, rubbing or difficulty closing when the channel is damaged
• Reinforces the hinge and threshold area to maintain proper door seal and operation
• Matches the OEM mounting points for a direct-fit replacement when installed correctly

• Turn off power to the appliance and remove any refrigerated contents from the door before beginning
• Installation typically requires basic hand tools; remove door and lower trim as needed for access
• Handle carefully to avoid scratching the finish and align mounting holes before securing hardware
• If hinge pins, seals or fasteners are worn or missing, replace them per manufacturer recommendations for best results

This front roller assembly supports the dryer's drum at the front, helping the drum turn smoothly and quietly. Replacing a worn roller restores proper drum alignment and reduces noise or scraping during operation. What it does:

• Supports the front of the dryer drum so it rotates evenly
• Reduces drum wobble and prevents scraping or grinding noises
• Helps eliminate squeaks and uneven tumbling caused by worn bearings
• Promotes smoother drum movement to reduce wear on the belt and other components

• Unplug the dryer before beginning service
• Remove the dryer's front panel and drum to access the roller; support the drum during removal
• Replace the worn roller with the new assembly and reassemble in reverse order

This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a damaged rear roller so the drawer opens and closes smoothly
• Keeps the drawer aligned and prevents it from binding or tilting
• Reduces scraping and uneven wear on the drawer and track
• Supports normal load on the rear of the drawer for stable operation

• Remove drawer contents and slide the drawer out according to your appliance manual before starting
• Inspect the front and rear tracks; replace only the damaged roller(s) and test drawer movement after installation
• Use basic hand tools; avoid forcing parts
• No special wiring or electronic handling required; follow general safety precautions

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

This water line cover protects and conceals the refrigerator's water supply tubing behind the lower kickplate for a finished look and reduced risk of accidental snagging. Durable plastic shields tubing from contact and helps keep the area tidy. What it does:

• Covers and protects the refrigerator water supply line from accidental pulls or abrasion
• Keeps the tubing out of sight for a neater appearance
• Helps reduce noise from loose tubing contact with other components
• Supports proper routing of the water line to the ice maker/water dispenser

• One water line cover

• Disconnect power and shut off the water supply before servicing
• Remove the kickplate or access panel per the owner's manual to reach mounting points
• Align cover with the routing area and secure with existing clips or fasteners; do not force or modify

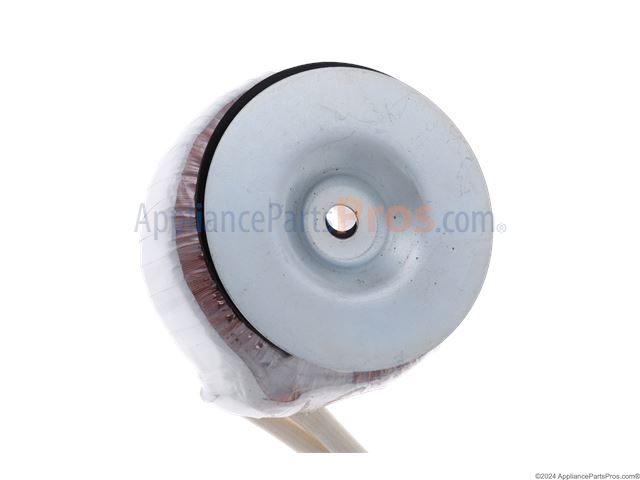

The Light Transformer is an OEM replacement part for GE refrigerators. It is responsible for supplying power to the refrigerator's lighting system, ensuring that the interior is properly illuminated.

A bad transformer can occur due to various factors, including electrical malfunctions, power surges, or general wear and tear. If you notice symptoms such as flickering lights, dim lighting, or complete failure of the refrigerator lights, it may indicate a need to replace the transformer.

Symptoms of a bad transformer include:

• Flickering lights
• Dim lighting
• Complete failure of refrigerator lights

Restore your refrigerator by replacing the faulty transformer with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


A 2 amp replacement fuse that protects low-current appliance circuits by opening when an overcurrent occurs. Install this direct-replacement fuse to restore power to control circuits and stop damage from a blown fuse. What it does:

• Interrupts current in control or low-voltage circuits when the fuse rating is exceeded
• Prevents electrical damage by opening the circuit on overloads
• Common symptoms of a blown fuse: appliance won't power on, controls are unresponsive, or intermittent operation
• Use as a like-for-like replacement matched to the original 2 amp rating

• Disconnect power to the appliance before inspecting or replacing the fuse
• Replace only when the appliance is cool and dry; avoid touching conductive ends

The GE Door Light Switch is an OEM Replacement Part that serves as the Freezer Door Fan and Light Switch. The switch is made from metal, wiring, and plastic. It plays an essential role in energy conservation by turning off the light when the refrigerator or freezer door is closed

Over time, the door light switch can wear out or fail due to frequent use, exposure to moisture, or electrical issues. When this happens, the interior light may not function correctly, which can hinder visibility inside the refrigerator.

Symptoms of a bad door light switch may include:

• Interior light not turning on when the door is opened
• Interior light not turning off when the door is closed
• Flickering or intermittent operation of the interior light

This switch is compatible with select GE and Hotpoint models.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-32 GXTT FLP.595 S

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water tube cover protects and conceals the refrigerator's external water line, helping prevent accidental damage and keeping the interior tidy. Direct replacement for a cracked, broken, or missing cover. What it does:

• Shields the water line from impacts and wear that can lead to leaks
• Keeps the water tube routed neatly to reduce snagging or pinching
• Helps maintain proper airflow around the tube to avoid contact-related issues
• Commonly replaced when the cover is cracked, broken, warped, or missing

• Always unplug the appliance and shut off the water supply before starting any repair
• Remove interior panels or door trim per OEM instructions to access the tube cover
• Use basic hand tools; avoid forcing clips or tabs to prevent damage
• If water or ice is present, dry the area and check tubing for damage before reassembly

The Spring Closure is an OEM part for GE refrigerators. This spring aids in the automatic closing of the refrigerator door, ensuring it seals tightly after each use to maintain optimal internal temperatures.

Causes of a bad spring closure can include regular wear and tear, corrosion due to moisture, or accidental damage that compromises its function.

Symptoms of a bad spring closure include:

• The refrigerator door not closing completely or staying ajar
• Difficulty in opening or closing the door smoothly
• Increased energy consumption as cold air escapes
• Frost buildup around the door seal area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This closure spring restores the return tension for a linked flap or door in the refrigerator, allowing it to close securely after use. Replacing a fatigued or broken spring helps maintain a proper seal and smooth operation.

• Provides torsion force to return the connected component to its closed/rest position
• Helps maintain sealing to reduce air leaks, frost, or moisture around the opening
• A weak, stretched, or broken spring may leave a flap/door ajar or slow to close
• Can contribute to rattling, poor sealing, or intermittent operation of the linked mechanism

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Note the spring's routing, leg orientation, and preload; take a photo before removal
• Use needle-nose pliers to control spring tension and avoid pinch points
• After installation, cycle the mechanism to ensure smooth movement and full closure

This corner key assembly secures and finishes a refrigerator door corner, restoring proper alignment and a clean appearance. It replaces a cracked, broken, or missing corner piece to help the door close evenly and look factory-original. What it does:

• Provides structural support at the door corner to maintain proper edge alignment
• Covers and protects the underlying corner area from damage and wear
• Helps reduce visible gaps or misalignment that can affect sealing
• Restores the cabinet's finished appearance after impact or deterioration

• One corner key assembly

• Disconnect power to the appliance before starting any repair
• Remove door or trim per manufacturer instructions to access the corner area
• Install with original fasteners or clips; do not force or over-torque plastic snaps
• If hinge or door alignment issues persist, inspect associated hinges and gaskets

A single replacement screw used to secure appliance panels, trim, and internal brackets so components stay aligned and reduce rattling. Simple, direct-fit fastener for restoring proper mounting and stable operation. What it does:

• Secures panels, mounting brackets, trim pieces and other appliance components
• Helps stop rattling, vibration, or loose panels caused by missing or stripped fasteners
• Restores proper alignment of doors and access panels when original screw is lost or damaged
• Matches the OEM fastening point for a straightforward hardware replacement

• Disconnect power to the appliance before working on electrical components or access panels
• Use the correct screwdriver to avoid stripping the head; match drive type to the screw
• Tighten firmly but do not overtighten—stop when snug to avoid damaging threads or parts
• Keep removed fasteners organized and compare with the replacement to ensure correct fit
