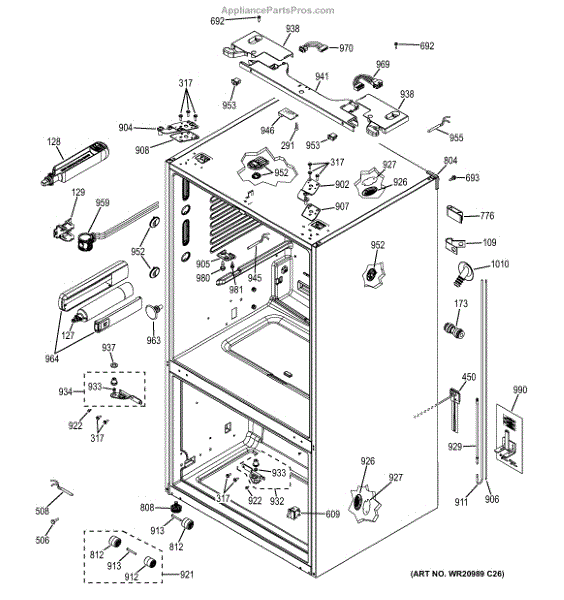

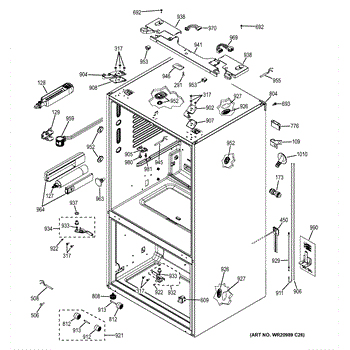

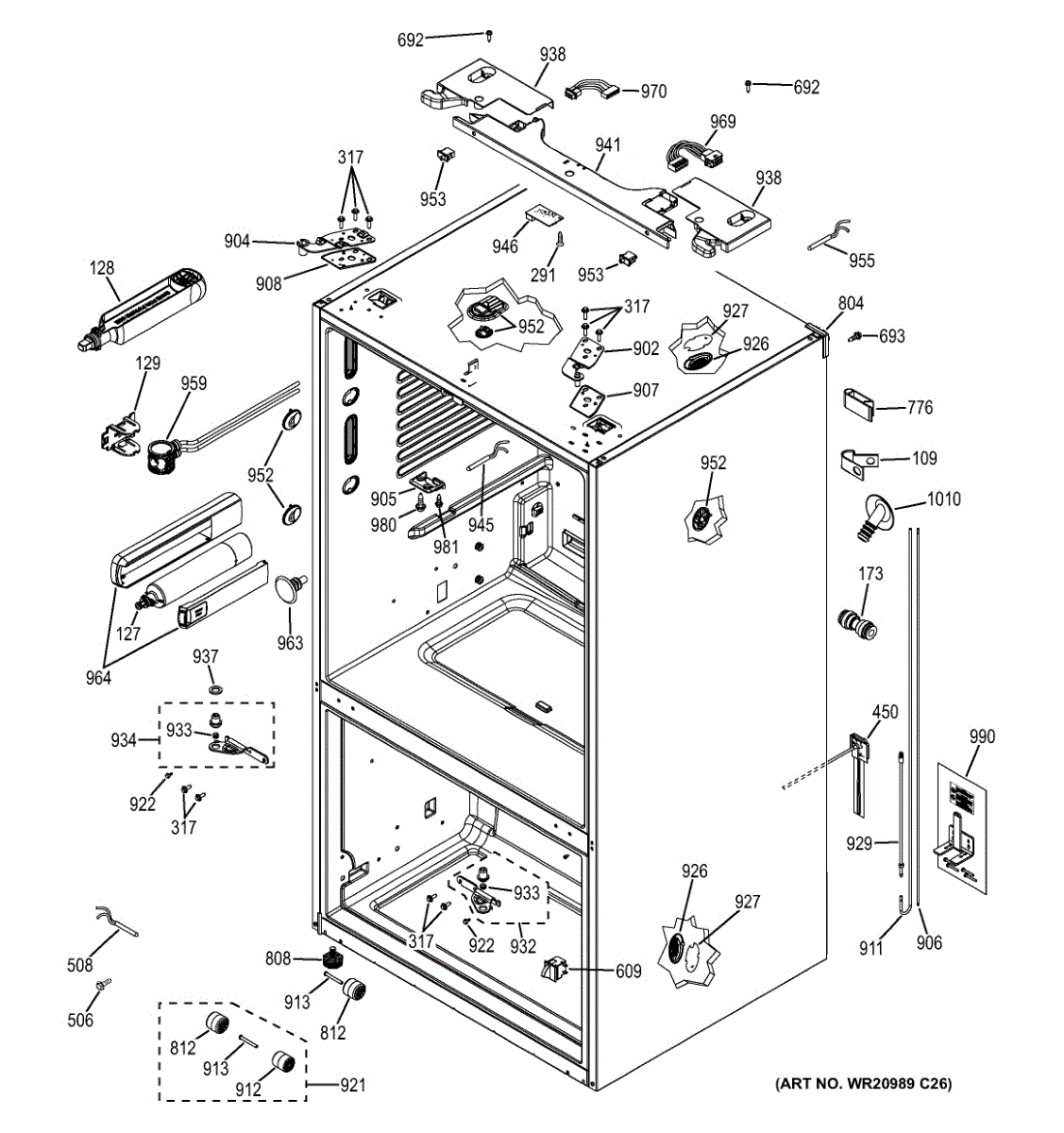

Parts for Ge PWE23KMDCES: Case Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Water Filter Bypass Plug is an OEM part for GE refrigerators. It allows the refrigerator to operate without a water filter by creating a direct connection for the water flow.

Causes of a bad Water Filter Bypass Plug can include wear and tear from regular use, damage from improper installation or removal, and degradation of the sealing components that ensure a tight fit.

Symptoms of a bad Water Filter Bypass Plug include:

• Water leaks from the filter housing
• Reduced or no water flow to the dispenser or ice maker
• Error messages related to the water filter on the control panel
• Improper fit or difficulty in installing the bypass plug

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement bracket that secures the refrigerator water-filter manifold to the cabinet, keeping the filter head stable and properly aligned so the filter seats correctly and helps reduce leaks and vibration during use. What it does:

• Secures and supports the water-filter manifold assembly to the refrigerator cabinet.
• Keeps the filter head aligned so the filter cartridge seals correctly.
• Helps prevent movement-related leaks or disconnections of the water lines.
• Replaces bent, cracked or missing brackets that can allow the filter housing to shift.

• Turn off water supply and unplug the appliance before beginning; have a towel or small container ready to catch residual water.
• Remove the filter or access panel as needed to reach the manifold; keep fasteners for reuse or replace if damaged.
• Use common hand tools (screwdriver/socket) and install bracket in the same orientation as the original; do not overtighten mounting hardware.
• After installation, restore water and power, check for leaks, and confirm the filter seats and dispenses properly.

This straight 1/4-inch water line coupler joins two sections of 1/4-inch OD refrigerator tubing, restoring a secure connection in dispenser and icemaker supply lines. Use it to splice, repair, or extend existing tubing.

• Creates an inline union for 1/4-inch OD refrigerator water tubing
• Helps address leaks, cracks, or breaks by replacing a damaged connector or splicing a cut line
• Useful when rerouting lines or adding inline components such as filters
• Common symptoms: water dripping at a tubing joint, loose/disconnected line, reduced or no water to dispenser/ice maker

• Unplug the refrigerator and turn off the water supply; dispense water to relieve pressure
• Cut tubing ends square and clean; ensure both tubes are 1/4-inch OD
• Make secure connections per the coupler design (push-to-connect or compression); ensure tubing is fully seated/assembled and gently pull to verify
• Restore water and check thoroughly for leaks

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

This 1/4-20 hex washer head screw secures panels and components in place, restoring proper fit and eliminating movement. It fits common appliance assemblies that use a 7/8" long, 1/4-20 threaded fastener. What it does:

• Fastens panels, brackets, and assemblies that use a 1/4-20 thread
• Restores secure fit when original screw is missing, stripped, or loose
• Helps stop rattling, vibration, and misalignment caused by loose hardware
• Matches common OEM head style for tool-ready installation with a socket or wrench

• Disconnect power to the appliance before servicing where applicable
• Use the correct 1/4-20 socket or wrench; install hand-tight then snug—do not overtighten
• Replace like-for-like: head style, thread size, and length before installing
• If fastener holes or threads are damaged, repair or retap before reuse

The Icemaker Fill Tube Heater is an OEM component specifically designed for GE refrigerators. Located near the icemaker assembly, this heating element plays a crucial supporting role.

Symptoms of a bad fill tube heater include:

• Irregular or inconsistent ice production amounts
• Cracked, cloudy or malformed ice cubes being generated
• The icemaker failing to operate or stop working altogether
• Water or moisture around the refrigerator icemaker area

Causes can include wear over time from powering on during each ice-making cycle. Mineral deposits may also form and insulate the heating surface, reducing effectiveness.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 8-18 x 3/4 machine screw fastens appliance panels and small brackets to keep components secure and stable. It's a direct-fit replacement screw used where the original hardware has stripped, broken, or gone missing. What it does:

• Secures access panels, mounting brackets, and small assemblies
• Restores proper alignment and reduces rattling or vibration
• Replaces stripped or damaged fasteners
• Keeps wiring and components held in place for safe operation

• Unplug the appliance or disconnect power before starting work
• Use the correct driver and size to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to parts
• Replace corroded or damaged fasteners for best results

This tube clamp secures flexible water tubing to its fitting in refrigerators. It helps maintain a tight seal to prevent leaks and keeps lines from slipping off under normal operating pressure.

• Holds plastic or rubber tubing firmly on a barbed fitting or nipple
• Helps prevent drips and leaks at tube connection points
• Addresses loose or disconnected water lines
• Useful when tubing slips off or won't stay seated

• Disconnect power and shut off the water supply before servicing
• Position the clamp over the tube and fitting; compress with pliers and release to lock in place
• Ensure the clamp is centered and fully seated; tug-test the tube
• Restore water and power; check all connections for leaks

This case corner cap is a molded corner cover that restores the finished appearance of a refrigerator cabinet and protects edges from dings and wear. It replaces a cracked, chipped or missing corner and helps keep cabinet panels aligned. What it does

• Covers and protects the cabinet/door corner from impact damage and wear
• Restores a uniform finished appearance for cosmetic repair
• Helps maintain panel alignment at the corner to reduce gaps and rubbing
• Commonly replaced when the corner is cracked, broken, loose or missing

• Disconnect power and remove food from the area before starting repairs.
• Remove any trim or fasteners securing the old cap; install the replacement by snapping or fastening into place as designed.
• Avoid forcing the cap; ensure clips or tabs align to prevent damage.
• If clips or underlying trim are damaged, replace those parts as needed for a secure fit.

This wheel overmold assembly replaces a worn front wheel to restore smooth drum rotation and reduce noise. It mounts to the dryer front support to help the drum roll evenly and prevent metal-on-metal wear. What it does:

• Provides a cushioned wheel surface that supports the dryer drum and improves rotation
• Reduces squeaking, scraping and grinding caused by a worn or damaged front wheel
• Helps maintain proper drum alignment for even tumbling and reduced wear on seals
• Extends the life of the front support by preventing direct metal contact

• Disconnect power before beginning repair to avoid electrical hazard
• Access the front support assembly per your dryer's service instructions; inspect adjacent rollers and glides for wear
• Fit the overmold onto the wheel hub and secure per OEM guidance; verify smooth drum rotation before reassembly
• If other support components show wear, replace them to prevent premature failure

This left hinge top pin assembly secures and guides the refrigerator door at the upper hinge, helping maintain proper alignment and a tight door seal for reliable cooling performance. Designed to replace a worn or damaged top hinge pin. What it does:

• Provides the pivot point for the upper edge of the refrigerator door to open and close smoothly
• Restores correct door alignment to prevent sagging or uneven gaps
• Helps the door seat fully to maintain an effective seal and consistent internal temperature
• Reduces noise or binding caused by a worn or bent hinge pin

• Unplug the appliance or disconnect power before starting any repair
• Support the door securely (use a second person or proper support) before removing the hinge to prevent falls or damage
• Tighten hinge fasteners to the manufacturer's torque specifications when reinstalling
• If other hinge components appear worn or bent, inspect and replace as needed for proper function

This PEX water line provides a flexible, durable water supply connection for compatible appliances, restoring proper water delivery for dispensers and ice makers. It resists kinking and corrosion for reliable flow. What it does:

• Carries potable water from the household supply to the appliance water valve or dispenser.
• Restores water flow when the original line is cracked, pinholed, or damaged.
• Helps prevent leaks compared with brittle or corroded rigid tubing.
• Supports normal dispenser and ice maker operation when installed correctly.

• One PEX water line.

• Turn off and disconnect the water supply and power before starting work.
• Drain remaining water from the line and fittings to avoid spills.
• Use the correct fittings and follow manufacturer torque recommendations; hand-tighten then final snug with wrench.
• After installation, slowly restore water, check all connections for leaks, and test dispenser/ice maker operation.

This top hinge assembly replaces a worn or broken left-side pad hinge to restore proper door support and alignment. It's the left-side hinge used where the door meets the cabinet top for smooth opening and secure closing. What it does:

• Replaces a cracked, warped, or missing top hinge pad assembly to stop door sag and uneven gaps
• Restores proper door alignment so the door seals and closes evenly
• Reduces rubbing or catching that can occur when the hinge pad is damaged
• Helps eliminate noise from a loose or worn hinge area during opening and closing

• Disconnect power to the appliance or unplug before starting work
• Support the door while removing or installing the hinge to prevent dropping or damage
• Use the original mounting screws or OEM-recommended fasteners; torque to manufacturer guidance
• Inspect adjoining hinge hardware and door alignment after installation; adjust as needed for an even seal

The Front/Rear Wheel & Axle is an OEM replacement part for GE refrigerators. This set includes both the front and rear wheels, along with the axle, providing a solution for movement of your refrigerator. These wheels and axle ensure easy mobility and stability when moving or repositioning your refrigerator. The front wheels allow for convenient maneuverability, while the rear wheels provide stability and support.

A bad front/rear wheel and axle can occur due to wear and tear, damage, or component failure over time. If you notice symptoms such as difficulty in moving the refrigerator, uneven or wobbly positioning, or unusual noises when the refrigerator is being moved, it may indicate a need to replace the front/rear wheel and axle.

Symptoms of a bad front/rear wheel and axle include:

• Difficulty in moving the refrigerator
• Uneven or wobbly positioning
• Unusual noises when moving the refrigerator

Restore your refrigerator by replacing the faulty front/rear wheel and axle with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This painted 8-32 x 5/8 inch screw secures trim and panels on appliances, providing a concealed, rust-resistant fastener that keeps exterior parts aligned and stable. Use it when a small painted fastener is missing or damaged. What it does

• Fastens trim, panels, and light-duty interior/exterior components
• Matches painted finish to blend with appliance surfaces
• Prevents rattling or gaps caused by missing or stripped screws
• Suitable where a 8-32 thread and ~5/8" length are specified

• Use the correct size Phillips or compatible driver to avoid cam-out
• Start threads by hand to avoid cross-threading
• Tighten snugly but avoid over-tightening to prevent stripped threads or damaged trim
• Disconnect power and move any panels/panels safely before servicing nearby components

Replacement grille thermistor. This temperature sensor monitors air at the grille location and relays the signal to the control so cooling and defrost responses stay consistent and food stays within target temperatures.

• Senses ambient air temperature at the grille and varies resistance with temperature
• Sends data to the control to help regulate compressor/fan run time and defrost intervals
• Aids in maintaining stable refrigerator and freezer temperatures
• A failing sensor may lead to temperature swings, extended run time, or irregular defrosting

• Disconnect power before servicing
• Remove the grille/kickplate to access the sensor and its connector
• Disconnect the old sensor, install the new one, and route wiring as originally; ensure the sensor is fully seated and wires aren't pinched
• Restore power and allow up to 24 hours for temperatures to stabilize

The Tube Lead is an OEM part for GE refrigerators. It is responsible for routing water through the unit.

Causes of a bad tube lead can include mineral accumulation restricting flow, loosened compression fittings, or cracked/split tubing exposing water to air.

Symptoms of an issue with the water line tube lead include:

• Slow or inconsistent water and ice production
• Water pressure or temperature fluctuations at the dispenser
• Leaks in the refrigerator's exterior bottom panel

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This hinge center assembly replaces the refrigerator's right-side hinge pivot to restore proper door alignment and smooth opening. It helps reduce door sag and improves sealing for better performance. What it does:

• Provides the central pivot point for the right refrigerator door hinge
• Restores correct door alignment and even closing when the door is sagging or crooked
• Reduces rubbing, binding, or grinding noises from the hinge area
• Helps maintain an effective door seal to prevent cold air loss

• One hinge center assembly (right side)

• Unplug the appliance and empty or support the door before starting work
• Support or brace the door while removing hinge fasteners to prevent dropping
• Reuse existing screws/bolts unless new hardware is specified by the manufacturer

This screw hinge center adjuster is a replacement hinge screw that helps align and secure the appliance door for smooth opening and a proper seal. Designed to restore correct door positioning and prevent sagging or uneven gaps. What it does:

• Replaces the center hinge screw/adjuster used in the door hinge assembly
• Helps realign the door to correct sagging, uneven gaps, or misalignment
• Secures hinge parts to maintain stable door movement and a tight seal
• Compatible with common symptom: door rubbing, dragging, or not closing evenly

• One screw hinge center adjuster

• Basic hand tools required; support the door during removal and installation
• Follow manufacturer service manual steps for hinge removal and door alignment
• Keep fasteners snug but avoid over-tightening to prevent stripping
• Turn off power to powered doors/controls and work with care around edges

A left-hand hinge center assembly that secures the refrigerator door at the center hinge to restore proper support and alignment. Replaces a worn or damaged hinge center to reduce door sagging and improve smooth opening. What it does:

• Provides a stable pivot point at the door's center hinge for correct alignment and support.
• Helps stop door binding, uneven gaps, and rubbing by restoring proper hinge geometry.
• Transfers load between upper and lower hinge halves so the door closes and seals correctly.
• Designed as a direct-replacement service part matching OEM fit and function.

• Support the door before starting—remove or brace the door to prevent it from falling.
• Disconnect power to the appliance if working near electrical components or the light switch.
• Remove hinge fasteners and replace with the new hinge center; tighten hardware securely but do not over-torque.
• Check door alignment and operation after installation; adjust hinge mounting as needed for an even gap.

The 2-pack Hinge End Cap Assembly is an OEM replacement part for GE refrigerators. This assembly is responsible for providing support and stability to the refrigerator door hinges, ensuring smooth opening and closing.

A bad hinge end cap assembly can occur due to regular wear and tear or accidental damage. If you notice symptoms such as a loose or sagging door, difficulty in opening or closing the door, or the door not staying securely in place, it may indicate a need to replace this assembly.

Symptoms of a bad hinge end cap assembly include:

• Loose or sagging refrigerator door
• Difficulty in opening or closing the door
• Door not staying securely closed

Restore your refrigerator's door by replacing the faulty hinge end cap assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This middle door cover is the molded interior trim piece that restores the refrigerator door's appearance and protects internal components and insulation. Replacing a damaged cover improves fit and looks without changing door function. What it does:

• Covers and protects internal door cavities, wiring and insulation behind the middle section
• Restores a secure mounting surface for door bins and shelves
• Replaces cracked, warped or cosmetically damaged trim that allows gaps or loose fittings
• Helps maintain a proper door seal by ensuring correct bin/shelf alignment

• One middle door cover (dark gray)

• Disconnect power to the appliance before servicing
• Remove door bins/shelves and any fasteners that secure the cover; keep hardware for reuse
• Align tabs and screw holes, then install using the original fasteners; do not force the part into place

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Pcb Asm Humidity Board is an OEM part for GE refrigerators. This humidity control board regulates the humidity levels within the refrigerator's crispers or drawers. It allows you to adjust and maintain the ideal humidity level for different types of produce, extending their shelf life and preserving their quality.

Symptoms of a bad humidity control board include:

• Inconsistent humidity levels
• Excessive moisture buildup
• Rapid spoilage of produce

A bad humidity control board can occur due to electrical issues, component failure, or other factors. If you notice symptoms such as inconsistent humidity levels, excessive moisture buildup, or produce spoiling quickly, it may be time to replace the humidity control board.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The LED Cover is an OEM part cfor GE refrigerators. It is responsible for protecting and diffusing the light from the LED bulbs inside the refrigerator. It helps create a well-lit interior, allowing you to easily see and locate your food and beverages.

A bad LED cover can be caused by accidental damage or regular wear and tear. If the cover becomes cracked, discolored, or damaged in any way, it can affect the quality and distribution of light inside the refrigerator.

Symptoms of a bad LED cover include:

• Dim or uneven lighting inside the refrigerator.
• Flickering or intermittent illumination.
• Dark spots in certain areas of the refrigerator.
• Visible cracks or damage to the cover.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Door Light Switch is an OEM part for GE refrigerators. It is located near the top of the refrigerator compartment, and it is activated by the door's movement. When the door is opened, the switch is triggered, turning on the interior light to provide visibility. When the door is closed, the switch is released, turning off the light to conserve energy.

Causes of a faulty or damaged door light switch can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as the interior light not turning on or off properly, or the light staying illuminated even when the door is closed.

Symptoms of a bad door light switch may include:

• The interior light not turning on when the door is opened
• The interior light not turning off when the door is closed
• Inconsistent or flickering operation of the interior light

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Water Filter Manifold is an OEM replacement part for GE refrigerators. Its primary function is to channel and distribute water from the external water supply to the refrigerator's water dispenser and ice maker. This manifold serves as a connection point for the water filter, ensuring that water is properly filtered before reaching the dispenser and ice maker.

Causes of a bad filter manifold can include wear and tear from repeated filter changes, cracks or breaks due to impact, or leaks from deteriorated seals.

Symptoms of a bad filter manifold include:

• Leaks around the water filter area
• Reduced water flow or pressure
• The water filter not fitting securely
• Unusual tastes or odors in the filtered water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small rubber grommet that cushions and seals the freezer liner, helping reduce vibration and prevent wear where components meet the inner cabinet. Replaces a worn or missing grommet to restore a snug fit and quieter operation. What it does

• Cushions the freezer liner and components to reduce rattling and vibration.
• Helps maintain a tight seal at the liner mounting point to limit movement and wear.
• Prevents direct metal-to-metal contact that can cause chipping or cracking of the liner.
• Commonly replaced when the liner is loose, noisy, or damaged around mounting points.

• Designed for direct replacement; remove power before accessing the freezer interior.
• Access may require removing shelves, drawers, or the liner trim; handle liner edges carefully.
• Inspect surrounding clips and fasteners; replace any damaged hardware to ensure proper fit.

This water filter cover assembly secures the refrigerator's water filter cartridge and helps direct filtered water into the dispenser/ice system, restoring proper filter seating and reducing the risk of leaks or poor water flow. What it does:

• Secures and retains the water filter cartridge in its housing
• Seals the filter area to help prevent water leaks around the filter
• Directs filtered water from the cartridge into the dispenser and ice system
• Helps restore proper filter engagement when the original cover is cracked or broken

• Turn off water supply and remove power to the appliance before servicing
• Remove the old cover and verify filter type/orientation before installing the new cover
• Push the cover into place until the filter seats and locks per the appliance design
• Re-check alignment and seals; replace damaged gaskets as needed

This door harness with switch completes door-open/close circuits so door-activated functions work reliably and the interior light responds properly. It replaces a worn or damaged door switch harness to restore normal operation. What it does:

• Provides the wiring and switch that detects door open/closed position
• Restores proper operation of interior light and other door-activated functions
• Replaces frayed, broken, or intermittently working door harnesses
• Helps stop lights from staying on or failing to turn on when the door opens

• Disconnect power to the appliance before beginning work
• Handle connectors and wiring gently to avoid damage
• Access typically requires removing the door panel or liner; retain fasteners for reassembly

This door case wiring harness connects the refrigerator door components to the main cabinet harness, restoring reliable power and signal routing for lights, dispensers, and sensors. Replaces a damaged or frayed harness to help resolve intermittent or non-working door functions. What it does:

• Transfers power and control signals between the door and cabinet wiring
• Restores operation for door-mounted lights, dispensers, and sensors affected by broken wiring
• Prevents shorts or intermittent failures caused by frayed or pinched wires
• Matches OEM routing and connector locations for a direct-replacement fit

• One door case wiring harness

• Disconnect power to the appliance before starting work to avoid shock or injury
• Handle connectors gently and route wiring per cabinet clips to avoid pinching
• Verify connector orientation and seating; secure any retained clips or screws

This silicon controlled rectifier (SCR) is a replacement power-switching semiconductor that helps control high-current flow to heating elements or motors, restoring proper power regulation and appliance function. What it does:

• Acts as a high-current electronic switch on appliance control circuits to regulate power to heating elements, motors, or similar loads
• Allows the control board to turn high-voltage circuits on and off with low-voltage signals
• Failure can cause no heat, intermittent heating, loss of power to a controlled component, or erratic operation
• Designed to handle repeated switching cycles under normal appliance operating conditions

• One silicon controlled rectifier module

• Disconnect all power before servicing to avoid shock or injury
• Handle as an electronic component; avoid static discharge and mechanical stress
• May require soldering or secure mounting to a heatsink or chassis—follow the appliance wiring diagram

A replacement 8-18 x 3/4 flanged pan-head screw used to secure panels, trim, and components. Restores proper fit and stops loose parts from rattling or shifting, helping appliances operate quietly and safely. What it does

• Fastens panels, brackets, trim pieces or assemblies that use an 8-18 thread screw
• Replaces missing or stripped screws that cause loose or vibrating parts
• Helps maintain proper alignment of panels and covers
• Prevents gaps that can allow movement or noise during operation

• One 8-18 x 3/4 flanged pan-head screw

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread the screw in by hand first, then snug; avoid over-tightening
• If underlying threads are damaged, replace the mating fastener or insert as needed
