Parts for Lg LFC22740TT: Case Parts

Parts for Lg LFC22740TT: Case Parts

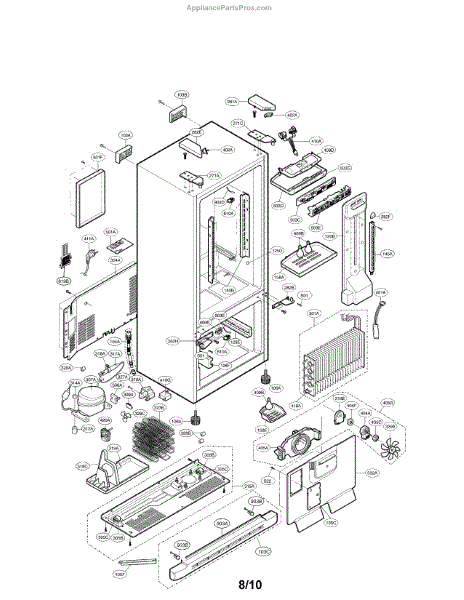

Location on Diagram
Part Description
Price & Availability
S01
Product photo
By: Lg
Part Number: 1SZZJJ3010A
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

S22
By: Lg
Part Number: J471-00001J

Replacement mounting screw for refrigerator assembly. Secures panels, brackets, or components. Needed when original screw is stripped, lost, or damaged.

More
$8.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
103B
By: Lg
Part Number: 3650JJ2003D
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

103A
By: Lg
Part Number: MEB64014304

Replace your refrigerator's rear handle if it's cracked, broken, or missing. This structural support handle mounts to the back panel of your unit.

More
$11.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
103C
Product photo
5.0 (1)
By: Lg
Part Number: 3550JJ0006D

Replacement access panel cover for refrigerators. Shields internal components and wiring from debris. Needed when original is cracked, broken, or missing.

More
$22.95

IN STOCK
Ships Today Guaranteed
Add to Cart
105F
By: Lg
Part Number: 5070JJ3002A
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

105A
Best Seller
Product photo
4.0 (1)
By: Lg
Part Number: 5251JA3003D

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

More
$28.27

IN STOCK
Ships Today Guaranteed
Add to Cart
106A
Product photo
By: Lg
Part Number: 4779JA2003A
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

120B
Product photo
By: Lg
Part Number: 5209JJ1002A

Replaces a cracked or broken air duct assembly that routes cold air from the freezer to the refrigerator compartment. Mounts on the back wall of the fridge.

More
$318.95

IN STOCK
Ships Today Guaranteed
Add to Cart
125D
Product photo
By: Lg
Part Number: 4930JJ3007A

This holder bracket secures and positions components inside your refrigerator, typically holding items like water filters, light fixtures, or small parts. It ensures proper alignment and prevents movement during normal operation. Replace this bracket if components are loose, misaligned, or falling out of position.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

128F
By: Lg
Part Number: MEG54557901

This track system guides refrigerator drawer movement and supports the weight of loaded drawers. It allows drawers to slide smoothly in and out while maintaining proper alignment and preventing binding. Replace it if drawers stick, won't close properly, or if you hear grinding noises when opening drawers.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

128E
Product photo
By: Lg
Part Number: MEG54557902

This holder rail secures and supports internal components in select LG appliances, restoring proper alignment and reducing movement or vibration. Replace a cracked, broken or worn rail to help stop rattling and improper component fit. What it does:

  • Provides a stable mounting/support surface for internal parts that rely on the rail for alignment.
  • Prevents shifting or vibration that can cause noise, wear, or misalignment.
  • Install a new rail if the original is cracked, broken, warped or missing.
  • Helps restore correct component positioning for reliable operation.
What's included: One holder rail. Install notes:
  • Disconnect power and unplug the appliance before beginning any repair.
  • Basic hand tools may be required; refer to the exploded parts list for disassembly steps.
  • Inspect surrounding mounting points and fasteners; replace any damaged clips or screws.

More
$116.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
135C
Product photo
By: Lg
Part Number: 3550JJ2030A

Protective grille cover that shields the cooling fan and directs airflow in your refrigerator. Replace if cracked, broken, or missing to restore finish.

More
$14.14

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
145A
By: Lg
Part Number: 4930JJ2003D
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

145B
By: Lg
Part Number: 4930JJ2004D
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

158E
Product photo
By: Lg
Part Number: MCK30060901

Protects and diffuses your refrigerator's interior light bulb. Replace when cracked, discolored, or missing to restore safe, even lighting. Confirm fit.

More
$33.95

IN STOCK
Ships Today Guaranteed
Add to Cart
158A
Best Seller
Product photo
5.0 (17)
By: Lg
Part Number: 3550JA1388B

Protects and diffuses refrigerator interior light. Replace if warped, melted, or cracked to restore proper lighting. Snaps into place easily.

More
$34.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
262H
Product photo
By: Lg
Part Number: AEH73856208
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

271A
Product photo
By: Lg
Part Number: AEH73856208
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

271C
By: Lg
Part Number: 4775JJ2018A
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

281A
By: Lg
Part Number: 3551JJ1018C
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

282E
By: Lg
Part Number: 3551JJ1018F
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

282F
By: Lg
Part Number: 3806JL2006F
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

282B
Product photo
By: Lg
Part Number: AEH73856208
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

301A
Product photo
By: Lg
Part Number: 5421JJ1001B

Refrigerator not cooling or freezing properly? This evaporator coil assembly absorbs heat to cool your fridge. Advanced repair requiring refrigerant work.

More
$430.95

IN STOCK
Ships Today Guaranteed
Add to Cart
304A
By: Lg
Part Number: 3551JJ2008B

Replaces the back cover assembly for your refrigerator's machine compartment. Order this part if your original cover is cracked, broken, or missing.

More
$124.01

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
305C
Product photo
By: Lg
Part Number: 4J04238A

A small pin that secures the wheels or rollers on the bottom of a refrigerator, keeping them locked in position during normal use. It holds the roller assembly together so the appliance can be moved smoothly without the wheels falling apart. Replace this part if a roller keeps falling off or the refrigerator is difficult to roll when you need to reposition it.

More
$9.65

IN STOCK
Ships Today Guaranteed
Add to Cart
305B
Product photo
By: Lg
Part Number: MHA62513601

Support roller that mounts to the refrigerator base, allowing the unit to roll for cleaning or service. Replace if worn, broken, or causing uneven positioning.

More
$18.77

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
307A
Product photo
4.0 (1)
By: Lg
Part Number: TCA35931726

Fridge not cooling or freezing? Compressor running constantly? This compressor set assembly restores cooling. Complex repair requiring professional tools.

More
$289.39

IN STOCK
Ships Today Guaranteed
Add to Cart
308A
Best Seller
Product photo
4.9 (37)
By: Lg
Part Number: 6749C-0014E

Refrigerator clicking but not cooling? The compressor start relay kickstarts your compressor. Simple 30-minute DIY fix that gets your fridge cold again.

More
$44.95

IN STOCK
Ships Today Guaranteed
Add to Cart
308AA
Best Seller
Product photo
4.9 (37)
By: Lg
Part Number: 6749C-0014E

Refrigerator clicking but not cooling? The compressor start relay kickstarts your compressor. Simple 30-minute DIY fix that gets your fridge cold again.

More
$44.95

IN STOCK
Ships Today Guaranteed
Add to Cart
309A
Best Seller
Product photo
5.0 (14)
By: Lg
Part Number: 6750C-0005P

Fridge won't cool or clicks on and off? The overload protector prevents compressor damage from overheating. Easy 30-minute DIY fix for most models.

More
$30.95

IN STOCK
Ships Today Guaranteed
Add to Cart
310A
Product photo
5.0 (2)
By: Lg
Part Number: 3550JA2042C

Protective cover for your refrigerator's PTC and compressor start device assembly. Replace if cracked, melted, or missing to shield components from damage.

More
$15.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
312A
By: Lg
Part Number: 5040JA3031A

Rubber seat bumper for refrigerator shelves and drawers. Replaces worn, cracked, or missing rubber cushions that protect surfaces and reduce noise.

More
$11.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
314A
By: Lg
Part Number: 4620JA3009A

Refrigerator door stopper bumper that prevents door from overextending. Replace if cracked, broken, or missing to protect door hinges and cabinet.

More
$11.47

IN STOCK
Ships Today Guaranteed
Add to Cart
315A
By: Lg
Part Number: 3103JJ1001Z
$179.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
317A
Best Seller
Product photo
By: Lg
Part Number: ADH73150208

Drier assembly for refrigerators. Installs in the sealed refrigerant system to remove moisture and contaminants. Replace if damaged or worn during repair.

More
$88.95

IN STOCK
Ships Today Guaranteed
Add to Cart
317AA
Best Seller
Product photo
By: Lg
Part Number: ADH73150208

Drier assembly for refrigerators. Installs in the sealed refrigerant system to remove moisture and contaminants. Replace if damaged or worn during repair.

More
$88.95

IN STOCK
Ships Today Guaranteed
Add to Cart
318A
Product photo
By: Lg
Part Number: 4930JA3034A

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

  • Secures and supports nearby components to prevent shifting or vibration.
  • Restores proper alignment where a worn or broken holder causes rattling or loose parts.
  • Helps maintain normal operation by keeping assemblies seated correctly.
  • Works behind panels or inside assemblies where a dedicated bracket is required.
What's included
  • One holder/mounting bracket as shown.
Install notes
  • Installation generally requires removing the panel or access cover where the holder is located.
  • Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
  • Disconnect power before servicing electrical appliances to reduce shock risk.

More
$9.65

IN STOCK
Ships Today Guaranteed
Add to Cart
319C
By: Lg
Part Number: 4974JJ1009A

Fan guide for refrigerators. Directs airflow from the evaporator fan. Replace if cracked, broken, or missing to restore proper air circulation.

More
$35.39

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
319E
4.8 (5)
By: Lg
Part Number: 4811JJ2002H
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

319A
By: Lg
Part Number: 3390JJ0003A
$116.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
323B
Product photo
By: Lg
Part Number: ACG73746801
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

327A
By: Lg
Part Number: 5006JA3049A
$11.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
328B
By: Lg
Part Number: 4J04328A

Rubber damper bumper for refrigerators. Installs to reduce vibration and noise. Replace if worn, cracked, or missing to restore cushioning support.

More
$11.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
328A
By: Lg
Part Number: 4J03020A
$9.65

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
329C
Product photo
By: Lg
Part Number: 5901JJ1004B
$27.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
329A
Product photo
5.0 (1)
By: Lg
Part Number: AEB74004901

Replace your broken or cracked refrigerator fan grill assembly. Protective cover that installs over the evaporator fan in the freezer compartment.

More
$190.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
332A
Product photo
By: Lg
Part Number: 3531JJ1004R
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

401A
Best Seller
Product photo
4.8 (14)
By: Lg
Part Number: 6615JB2005C

Fix ice buildup on evaporator coils or freezer not defrosting properly. This defrost thermostat monitors temperature to prevent frost. 2-hour repair.

More
$51.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
402A
Product photo
By: Lg
Part Number: 6600JB3007B

Fix unresponsive refrigerator buttons with this momentary push-button switch. Restores reliable console control when buttons stop working. Simple repair.

More
$41.65

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
404A
Best Seller
Product photo
4.9 (18)
By: Lg
Part Number: 4681JB1029H

The Evaporator Fan Motor is an OEM part for LG refrigerators. It is located in the freezer compartment, near the evaporator coil. It works to circulate cold air throughout the refrigerator, ensuring efficient cooling and proper temperature distribution.

Causes of a faulty evaporator fan motor can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as insufficient cooling, improper temperature regulation, or unusual noises coming from the refrigerator.

Symptoms of a bad evaporator fan motor may include:

  • Inadequate cooling performance in the refrigerator compartment
  • Freezer section cooling properly while the refrigerator remains warm
  • Unusual noises, such as grinding or rattling, coming from the appliance

This OEM LG part can also be used on Kenmore/Sears appliances.

More
$99.95

IN STOCK
Ships Today Guaranteed
Add to Cart
405A
4.8 (5)
By: Lg
Part Number: 4811JJ2002H
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

405G
4.8 (5)
By: Lg
Part Number: 4811JJ2002H
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

405F
Best Seller
Product photo
5.0 (15)
By: Lg
Part Number: 5040JA2004A

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

  • Unusual noises or vibrations from the back of the refrigerator.
  • The evaporator motor shifting out of place, which can affect cooling efficiency.
  • Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

More
$17.56

IN STOCK
Ships Today Guaranteed
Add to Cart
405C
Best Seller
Product photo
5.0 (20)
By: Lg
Part Number: 5040JA2009B

This is a rubber or elastomer damper that supports and isolates the evaporator fan motor inside the refrigerator. It absorbs vibration from the motor to reduce noise during normal operation. Replace this part if you hear excessive buzzing, rattling, or vibration coming from the freezer section, which often indicates the damper has hardened or deteriorated.

More
$17.56

IN STOCK
Ships Today Guaranteed
Add to Cart
406B
Best Seller
Product photo
4.9 (217)
By: Lg
Part Number: 6600JB1010A

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.

More
$24.68

IN STOCK
Ships Today Guaranteed
Add to Cart
406BA
Best Seller
Product photo
4.9 (217)
By: Lg
Part Number: 6600JB1010A

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.

More
$24.68

IN STOCK
Ships Today Guaranteed
Add to Cart
409B
Product photo
By: Lg
Part Number: 6912JK2002E
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

409BA
Product photo
By: Lg
Part Number: 6912JK2002E
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

409BB
Product photo
By: Lg
Part Number: 6912JK2002E
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

409D
Product photo
By: Lg
Part Number: 3034JJ1002B

Reflector lamp housing directs and diffuses interior bulb light for brighter refrigerator illumination. Replace if cracked, discolored, or missing.

More
$89.39

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
410G
Best Seller
Product photo
5.0 (7)
By: Lg
Part Number: 0CZZJB2014L

This run capacitor provides the continuous electrical boost needed to keep the refrigerator's compressor motor running efficiently. It stores and releases energy to maintain the proper phase and voltage for the compressor during normal operation. Replace this capacitor if the compressor struggles to start, hums without running, shuts off intermittently, or if the refrigerator stops cooling altogether.

More
$51.95

IN STOCK
Ships Today Guaranteed
Add to Cart
410A
Best Seller
Product photo
4.9 (18)
By: Lg
Part Number: EAG62831801

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

  • Holds the bulb securely and supplies electrical power
  • Restores consistent interior lighting for visibility
  • Replaces sockets with heat damage, cracks, or worn contacts
  • Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose
What's included: 1 lamp socket Install notes:
  • Disconnect power before servicing and allow the area to cool
  • Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
  • Transfer wires one at a time to the new socket; ensure tight, correct connections
  • Use only the bulb type and wattage specified for your model; test before reassembly

More
$94.67

IN STOCK
Ships Today Guaranteed
Add to Cart
411A
Product photo
By: Lg
Part Number: 6411JB1042Y
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

418A
Product photo
4.7 (3)
By: Lg
Part Number: 5300JB1100Q

Fix error code ER DH, frost buildup, or warm refrigerator temps with this defrost heater. Restores airflow and prevents ice-clogged coils. Moderate DIY.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

420A
Product photo
4.0 (2)
By: Lg
Part Number: 4680JK1001B

Refrigerator running hot or not cooling? A failed condenser fan motor prevents heat removal from the compressor. DIY repair in under an hour.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

501F
Product photo
By: Lg
Part Number: 3550JJ1042B
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

501A
Product photo
5.0 (1)
By: Lg
Part Number: EBR36222901

This Main PCB Power Control Board Assembly manages the appliance's electronic control and power distribution so cycles run as programmed and functions respond to user commands. Replacing a faulty board restores proper control operation. What it does:

  • Regulates power to motors, valves, sensors and user interface circuitry
  • Interprets control inputs and runs timed cycles and functions
  • Helps prevent erratic behavior caused by failed board components
  • Common symptom link: unit won't start, touchpad unresponsive, random resets or error codes indicating control faults
What's included: One main PCB power control board assembly (single complete board) Install notes:
  • Disconnect power before accessing electrical components to avoid shock
  • Ground yourself and handle the PCB by edges to reduce static risk
  • Inspect connectors and harnesses for damage; seat plugs fully during reassembly

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

503G
By: Lg
Part Number: 3806JL1049A

Decorative control panel cover that installs over refrigerator user controls. Replace if cracked, faded, or damaged to restore finished appearance.

More
$56.95

IN STOCK
Ships Today Guaranteed
Add to Cart
503E
By: Lg
Part Number: 3550JJ2031A

Outer housing cover for refrigerator control panel. Replaces cracked, damaged, or missing panel. Restores finished look and protects internal components.

More
$36.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
503C
5.0 (1)
By: Lg
Part Number: ABQ33905301

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

  • Dimming or blank display lacking visibility
  • Unresponsive touch controls with miscalibrated inputs
  • Insecure mounting losing calibration on door
  • Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

503D
Product photo
5.0 (14)
By: Lg
Part Number: 3110JA1096A

Molded housing that supports and aligns your refrigerator's control panel components. Replace when the original case is cracked, broken, melted, or warped.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

610A
By: Lg
Part Number: 3550JJ2020A
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

619B
By: Lg
Part Number: 3550JJ2024A
$63.10

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
903A
Product photo
5.0 (1)
By: Lg
Part Number: 3550JJ0006D

Replacement access panel cover for refrigerators. Shields internal components and wiring from debris. Needed when original is cracked, broken, or missing.

More
$22.95

IN STOCK
Ships Today Guaranteed
Add to Cart
903B
Product photo
4.9 (7)
By: Lg
Part Number: 4930JJ2021A

Secures the toe grille to the base of your refrigerator. Replace if broken, cracked, or missing to keep the lower kickplate panel firmly attached.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

903E
Best Seller
Product photo
5.0 (7)
By: Lg
Part Number: 6500JB2002T

This is a temperature sensor that monitors the internal temperature of the refrigerator compartment and sends readings to the main control board. The control board uses this data to regulate the compressor and cooling cycles. Replace this sensor if the refrigerator is too warm, too cold, runs continuously, or displays incorrect temperature readings.

More
$25.95

IN STOCK
Ships Today Guaranteed
Add to Cart
903D
Best Seller
Product photo
4.9 (10)
By: Lg
Part Number: 6500JB2001B

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

  • Inconsistent refrigerator or freezer temperatures
  • Food spoiling faster than usual
  • Refrigerator running continuously or not running at all
  • Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

More
$43.95

IN STOCK
Ships Today Guaranteed
Add to Cart
  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
