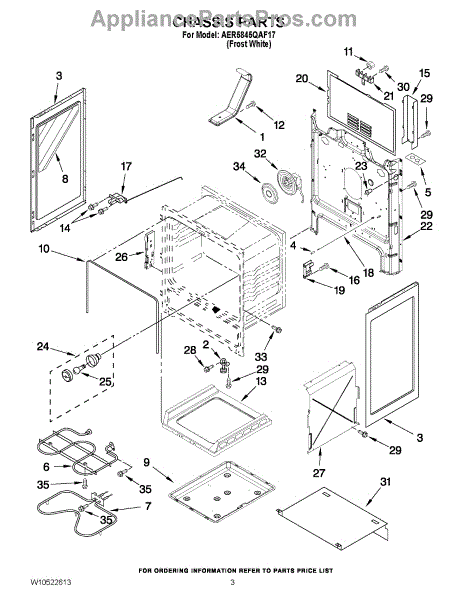

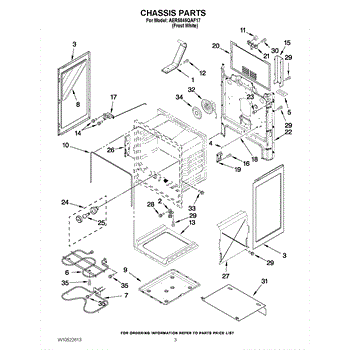

Parts for Amana AER5845QAF17: 03 - Chassis Parts

Parts for Amana AER5845QAF17: 03 - Chassis Parts

Location on Diagram
Part Description
Price & Availability
2
Best Seller
Product photo
4.5 (13)
By: Whirlpool
Part Number: W11665456

Adjustable leveling leg that stabilizes and balances your range. Replace if cracked, broken, bent, or threads are stripped from wear or impact damage.

More
$23.61

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
3
Product photo
By: Whirlpool
Part Number: WP2618F172-58

White

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
By: Whirlpool
Part Number: 3605F146-51
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Best Seller
Product photo
4.9 (91)
By: Whirlpool
Part Number: WPW10276482

Oven not heating or heating slowly? Your bake element likely failed. Located at the bottom of the oven cavity, this part restores even baking. Easy DIY fix.

More
$125.63

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
8
By: Whirlpool
Part Number: W10182346

Insulation pad for range side panel. Replace if cracked, torn, or missing. Installs inside side panel to provide thermal protection and sound dampening.

More
$61.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
9
By: Whirlpool
Part Number: 3401F084-45
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP7103P027-60

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

  • Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
  • Restores proper clamping force when the original nut is stripped, corroded, or missing
  • Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
  • Suitable for terminal block and similar 10-32 stud applications on compatible appliances

What's included: One 10-32 nut Install notes:

  • Disconnect power at the breaker or unplug the appliance before servicing
  • Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
  • Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
  • If the stud turns while tightening, hold it with an appropriate tool to protect the block

More
$5.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
12
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP489491

Replacement screw secures appliance panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

More
$7.56

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
13
Product photo
5.0 (7)
By: Whirlpool
Part Number: WPW10211368

Replaces cracked, stained, or warped oven bottom panel in gas ranges. Covers burner assembly and provides smooth, cleanable floor surface. Easy install.

More
$193.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
14
Product photo
By: Whirlpool
Part Number: W11169708

Replacement mounting screw for ranges. Secures panels, trim pieces, control boards, and brackets. Order when original screws are missing, stripped, or damaged.

More
$12.13

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP3196557

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

  • Fastens brackets, panels, trim, or components to the appliance chassis
  • Helps correct loose or missing hardware after vibration or service
  • Replaces stripped, rusted, or broken screws
  • Can reduce rattling noises or misaligned parts caused by missing fasteners
What's included: One screw Install notes:
  • Disconnect power; for gas appliances, also shut off the gas supply
  • Support the part being fastened; start threads by hand to avoid cross-threading
  • Use the correct driver size; tighten snugly without overtightening
  • Replace hardware with the exact part number to ensure proper fit

More
$7.56

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
19
By: Whirlpool
Part Number: 3801P798-51
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20
By: Whirlpool
Part Number: 4005F754-51
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21
Best Seller
Product photo
4.8 (36)
By: Whirlpool
Part Number: WPW10245259

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

  • Burnt or scorched connections
  • Intermittent power loss to the range
  • Difficulty in the range heating up properly
  • Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$27.37

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
24
Product photo
4.9 (15)
By: Whirlpool
Part Number: WP74011278

Illuminates oven interior for monitoring cooking without opening the door. Replace if light fails, socket cracks, or bulbs blow frequently. Verify fit.

More
$79.26

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
25
Product photo
5.0 (11)
By: Whirlpool
Part Number: WP9781049

Color: clear. Measures about 3 inches in diameter.

More
$57.39

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
27
By: Whirlpool
Part Number: 3804F311-51
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28
Product photo
4.0 (1)
By: Whirlpool
Part Number: WP98008545

Color: Black. For biscuit order 98008169. For white order WP98008544.

More
$8.94

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
29
Product photo
4.9 (18)
By: Whirlpool
Part Number: W11233072

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

  • Fastens panels, brackets, covers, or internal parts to the chassis or frame
  • Helps maintain alignment and support, reducing rattle, vibration, or looseness
  • Replaces missing or damaged screws that have backed out, broken, or stripped
  • Restores secure mounting after service when original hardware is lost
What's included: 1 screw Install notes:
  • Disconnect power; shut off water or gas supplies before servicing
  • Use the correct driver; start threads by hand to avoid cross-threading
  • Match length and thread to the original location; do not substitute with longer hardware
  • Tighten snugly; do not overtighten into plastic or thin metal

More
$21.46

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
30
Product photo
By: Whirlpool
Part Number: WP3400016

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

More
$7.56

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
31
By: Maytag
Part Number: 3604F396-45
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33
Product photo
By: Whirlpool
Part Number: WPW10067840

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

  • Fastens panels, brackets, or trim to the appliance cabinet/frame
  • Replaces damaged, rusted, or missing hardware
  • Helps eliminate vibration noises, gaps, and loose-fitting parts
  • Supports proper alignment of adjoining components
What's included: Includes one screw. Installation notes:
  • Disconnect power; turn off gas/water supplies where applicable.
  • Match to the original screw from your model's parts diagram before installation.
  • Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
  • Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

More
$7.56

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
34
Product photo
By: Whirlpool
Part Number: 3605F305-19
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

35
Product photo
By: Whirlpool
Part Number: WP3196174

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

More
$7.56

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
NI
By: Whirlpool
Part Number: WP7002P361-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI
By: Whirlpool
Part Number: WP7002P362-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
