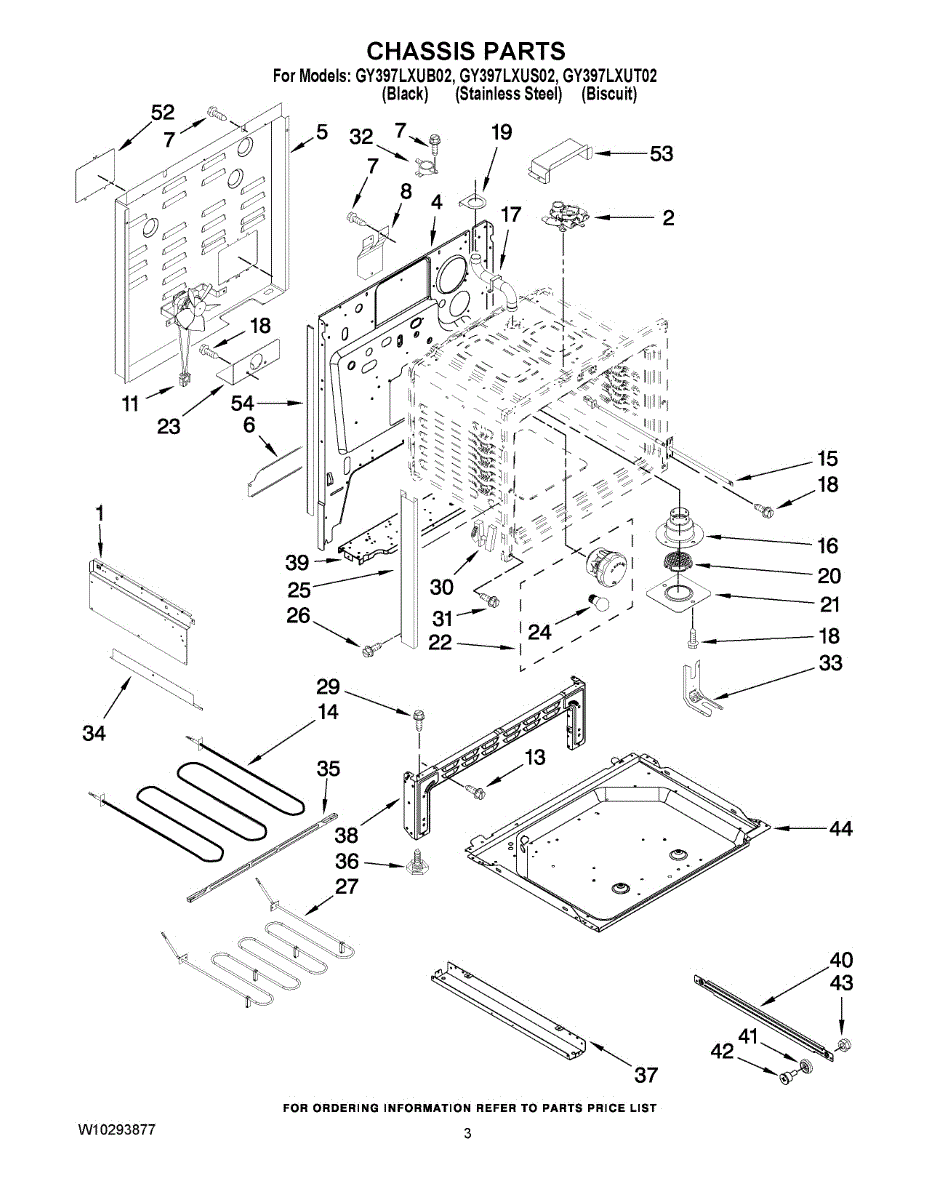

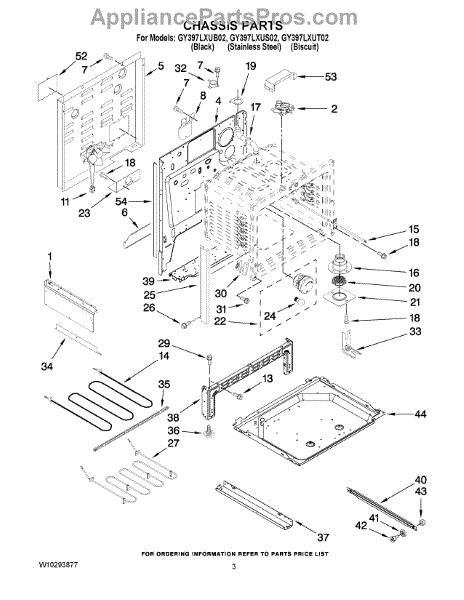

Parts for Whirlpool GY397LXUS02: 03 - Chassis Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This electric broil element sits at the top of the oven cavity and provides the high, direct heat needed for broiling. Replace it to restore reliable top-down heating when the broiler won't heat or browns food unevenly. What it does:

• Delivers intense radiant heat from the top of the oven during Broil
• Engages for searing/browning; may also cycle during preheat on some models
• Common failure signs: no broil heat, weak or uneven browning, element doesn't glow, or visible blisters/cracks on the coil

• 1 broil element

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks, take out mounting screws, and gently pull the element forward
• Transfer wires one at a time; support leads so they don't slip back behind the liner
• Ensure terminals are fully seated, secure the element, restore power, and test broil

The Oven Temperature Sensor Kit is an OEM part for Whirlpool ovens. This sensor is essential for monitoring the oven's internal temperature, ensuring that it reaches and maintains the correct temperature for baking and cooking. The sensor is approximately 7 inches long.

Over time, the oven temperature sensor can fail due to repeated heating and cooling cycles, exposure to spills or grease, or electrical issues. When the sensor malfunctions, it can result in inaccurate temperature readings, affecting cooking performance and food quality.

Symptoms of a bad oven temperature sensor include:

• The oven not reaching the set temperature
• Food cooking unevenly or not fully
• The oven overheating or underheating
• Error codes related to temperature issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This snap-in indicator light assembly mounts in the control panel and illuminates when a function is active. Replace a failed or damaged indicator to restore clear status feedback on your range or wall oven.

• Provides visual indication that a selected function is active
• Restores at-a-glance status on the control panel
• Common symptoms: indicator won't light, flickers, stays on constantly, or the lens/housing is damaged
• Direct replacement for the original snap-in lamp assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; note wire locations or take a photo
• Depress the retaining tabs to release the old light; transfer wires to the new assembly and snap it fully into place
• Restore power and verify indicator operation

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

The Oven Bake Element is an OEM part for Whirlpool ovens. It is responsible for providing the heat required for baking by generating radiant heat at the bottom of the oven cavity. This element ensures that the oven reaches and maintains the desired baking temperature, contributing to consistent and even cooking results.

Causes of a bad bake element can include regular wear and tear, overheating, or physical damage such as cracks or breaks in the element itself. A malfunctioning bake element can lead to uneven cooking and longer preheat times.

Symptoms of a bad oven bake element include:

• Oven not heating or taking a long time to preheat
• Uneven baking results
• Visible damage or burning on the element
• The element not glowing red when in use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This left-side oven door hinge supports the door and controls its spring-loaded movement so it opens smoothly and closes firmly, helping maintain a tight seal and consistent cooking performance.

• Provides spring tension and a pivot point for controlled opening and closing
• Aligns and pulls the door fully closed against the gasket
• Restores smooth, even door movement
• Common symptoms of a worn hinge: door won't close fully or sags; slams/falls open; feels loose or stiff; heat escaping or oven light staying on

• Disconnect power and let the oven cool completely before servicing
• Support the door; engage hinge locks or remove the door at the stop position per your model
• Springs are under tension—use gloves and caution
• After installation, verify alignment and that the door closes and seals properly

Size: 10-24X5/16-NI

This high-limit thermostat is a temperature safety switch that helps prevent overheating by opening the circuit when temperatures exceed safe limits. It restores normal operation once the temperature cools, protecting the appliance and reducing fire risk. What it does:

• Monitors internal temperature and opens the circuit if heat gets too high
• Prevents overheating that can cause damage or burn odors
• Commonly replaces a failed or intermittently tripping thermal safety switch
• Works as part of the appliance's temperature-safety system, not a primary temperature control

• Disconnect power to the appliance before attempting replacement
• Observe proper wiring orientation and secure terminal connections
• Replace only with the exact part specified for your appliance

For screws order: WP7101P485-60.

This leveling leg screw threads into the appliance base to raise or lower the chassis, helping you stabilize the unit on uneven floors. Replace a missing, bent, or stripped screw to restore solid, level footing.

• Provides fine height adjustment when paired with the leveling leg/bracket
• Helps eliminate rocking, rattling, or vibration caused by an unlevel appliance
• Restores adjustability when original screw is stripped, bent, or missing
• Helps maintain proper alignment with cabinets/countertops by keeping the unit level

• Disconnect power; for gas units, shut off the gas supply before beginning
• Pull the appliance forward and carefully lift or tip to access the leveling hardware—use a helper to prevent tipping
• Remove the old screw; start the new screw by hand to avoid cross-threading, then adjust height with a wrench until level
• Verify all corners contact the floor and recheck level after repositioning the appliance

This Support is a replacement mounting bracket that holds and stabilizes a component inside the appliance, helping prevent movement and maintain proper alignment for reliable operation. Use when the existing support is cracked, bent, or missing. What it does:

• Secures internal components to the cabinet or frame to prevent sagging or vibration
• Restores proper alignment for doors, panels, or assemblies that rely on fixed supports
• Helps reduce rattling or noise caused by loose or damaged supports
• Reinforces the original mounting point to ensure parts remain in position during use

• One support mounting bracket

• Disconnect power (and water, if applicable) before starting any repair
• Inspect surrounding hardware; reuse OEM screws if undamaged or replace as needed
• Basic hand tools typically required; avoid over-tightening fasteners to prevent cracking

This drawer roller supports and guides the lower range drawer so it slides smoothly on its track. Replacing a worn or broken roller restores easy operation and helps prevent the drawer from binding, sagging, or coming off the track.

• Supports the storage/warming drawer as it opens and closes
• Helps keep the drawer aligned on the rails to prevent tilting or popping off
• Reduces friction for smoother movement and less noise
• Typical failure signs: sticking drawer, rough/grinding movement, sagging front, or a cracked/flat-spotted wheel

• Disconnect power and allow the appliance to cool completely
• Remove the lower drawer to access the rollers
• Detach the fastener or retainer, install the new roller in the same orientation, and secure it
• Reinstall the drawer and verify smooth travel and proper engagement on both tracks

Size: 8-32
