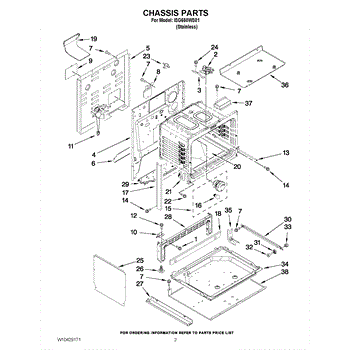

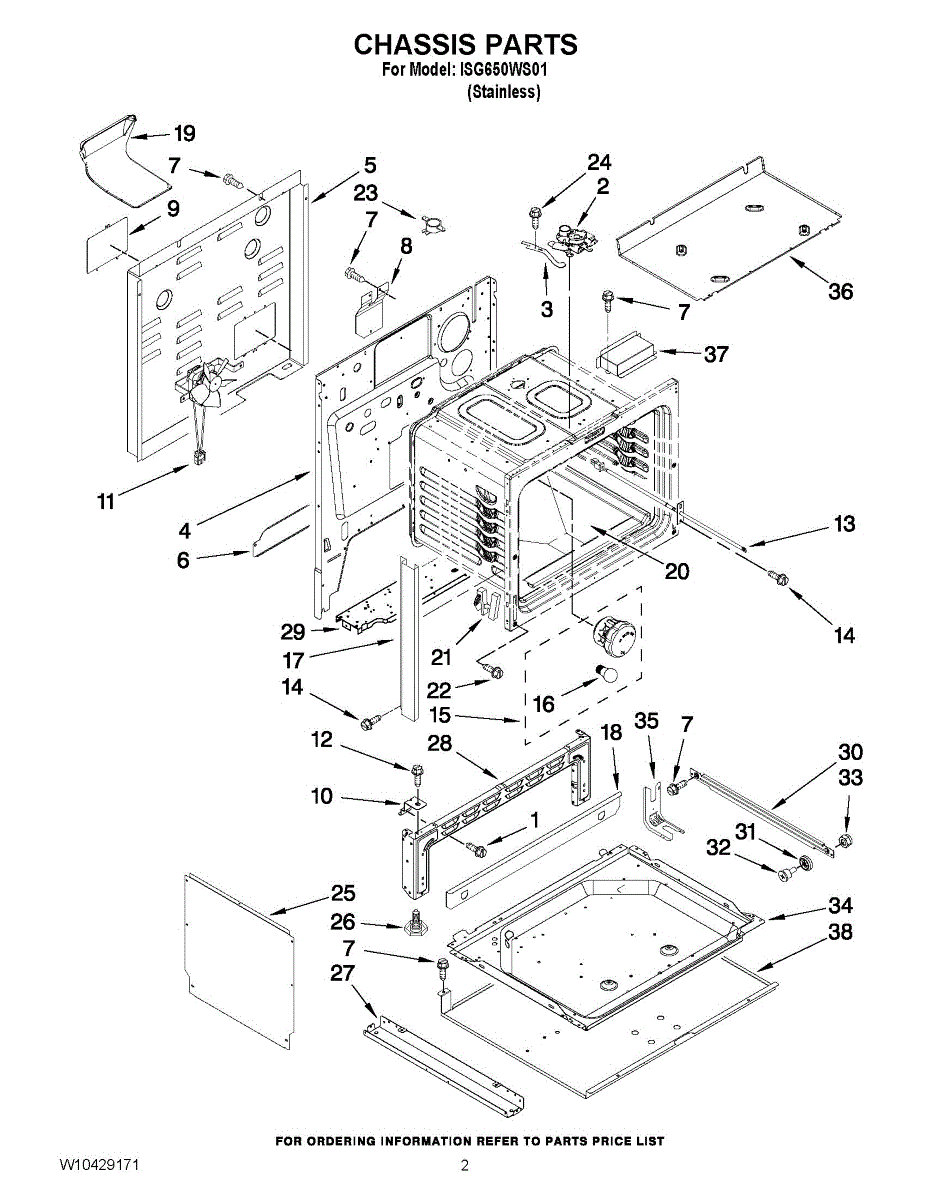

Parts for Whirlpool ISG650WS01: 02 - Chassis Parts

The Oven Temperature Sensor is an OEM part for Whirlpool ovens. It measures the oven's internal temperature and sends this information to the control board to maintain the desired cooking temperature.

Causes of a bad temperature sensor can include exposure to high temperatures over long periods, electrical issues such as short circuits, or physical damage due to impact or mishandling.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• Oven not heating to the set temperature
• Oven overheating
• Error codes displayed on the oven control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the long 6-inch sensor order 12001656.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This snap-in indicator light assembly mounts in the control panel and illuminates when a function is active. Replace a failed or damaged indicator to restore clear status feedback on your range or wall oven.

• Provides visual indication that a selected function is active
• Restores at-a-glance status on the control panel
• Common symptoms: indicator won't light, flickers, stays on constantly, or the lens/housing is damaged
• Direct replacement for the original snap-in lamp assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; note wire locations or take a photo
• Depress the retaining tabs to release the old light; transfer wires to the new assembly and snap it fully into place
• Restore power and verify indicator operation

This left-side oven door hinge supports the door and controls its spring-loaded movement so it opens smoothly and closes firmly, helping maintain a tight seal and consistent cooking performance.

• Provides spring tension and a pivot point for controlled opening and closing
• Aligns and pulls the door fully closed against the gasket
• Restores smooth, even door movement
• Common symptoms of a worn hinge: door won't close fully or sags; slams/falls open; feels loose or stiff; heat escaping or oven light staying on

• Disconnect power and let the oven cool completely before servicing
• Support the door; engage hinge locks or remove the door at the stop position per your model
• Springs are under tension—use gloves and caution
• After installation, verify alignment and that the door closes and seals properly

Size: 10-24X5/16-NI

This temperature limiter switch stops heat buildup by opening the circuit when temperature exceeds safe limits. It restores proper thermal protection for the appliance's heating system and helps prevent overheating-related damage. What it does:

• Opens the heating circuit if internal temperature rises above the thermostat's limit to prevent overheating.
• Commonly used as a safety cutoff for dryers, ovens or other appliance heating systems.
• Symptoms of a failing limiter: no heat, intermittent heating, or an appliance that won't start its heating cycle.
• Works with the appliance's control and heating elements to maintain safe operating temperatures.

• Disconnect power before inspecting or replacing this part to avoid shock or injury.
• Replace with the exact part number to maintain proper temperature protection.
• If the limiter has tripped, inspect heating element, venting and related components for root causes before reassembly.

Size: 10-24X5/16-NI

This Support is a replacement mounting bracket that holds and stabilizes a component inside the appliance, helping prevent movement and maintain proper alignment for reliable operation. Use when the existing support is cracked, bent, or missing. What it does:

• Secures internal components to the cabinet or frame to prevent sagging or vibration
• Restores proper alignment for doors, panels, or assemblies that rely on fixed supports
• Helps reduce rattling or noise caused by loose or damaged supports
• Reinforces the original mounting point to ensure parts remain in position during use

• One support mounting bracket

• Disconnect power (and water, if applicable) before starting any repair
• Inspect surrounding hardware; reuse OEM screws if undamaged or replace as needed
• Basic hand tools typically required; avoid over-tightening fasteners to prevent cracking

For screws order: WP7101P485-60.
