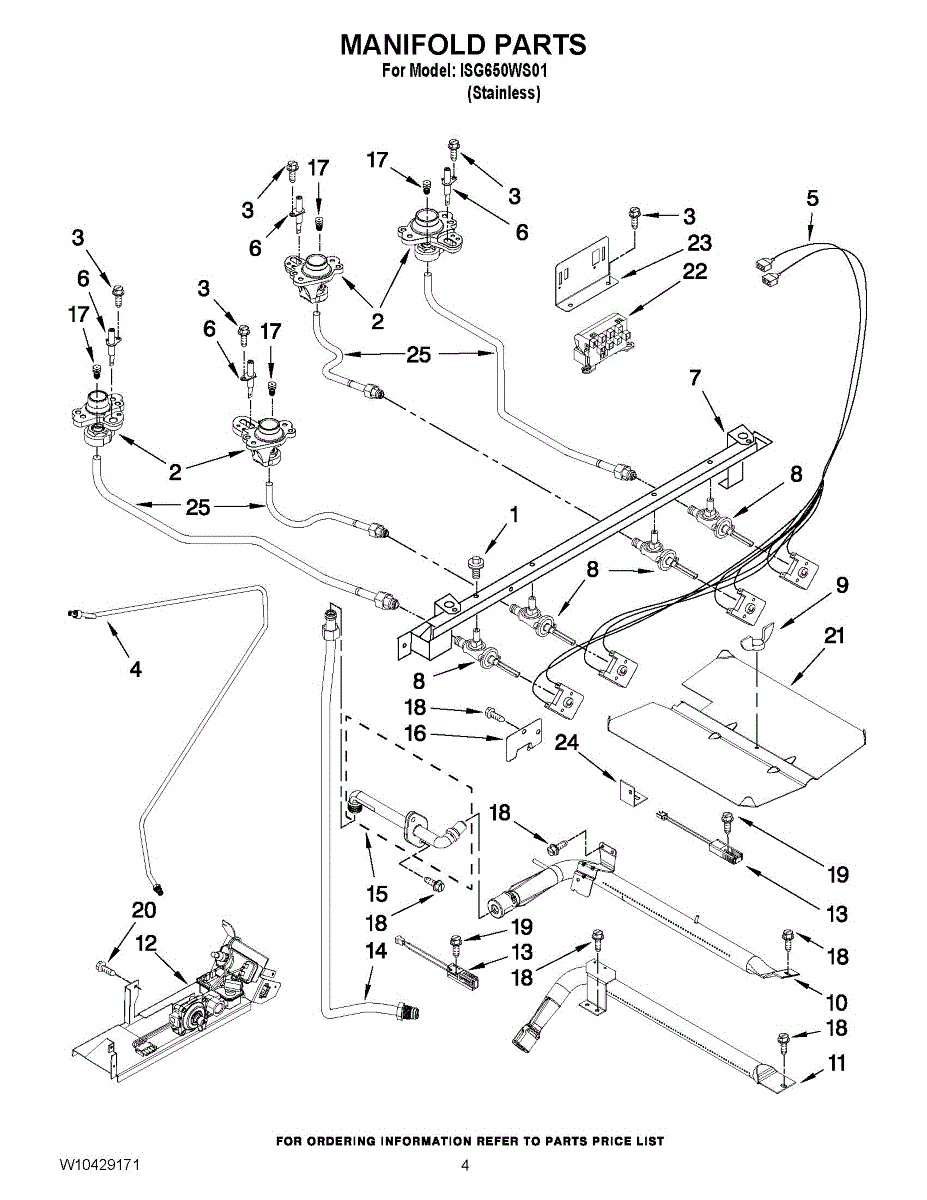

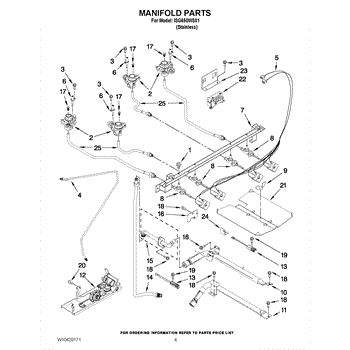

Parts for Whirlpool ISG650WS01: 03 - Manifold Parts

This top burner igniter is a genuine Whirlpool part, sold individually. This top burner igniter can be used as a replacement part in a gas range. This part fits into the surface burner orifice holder to connect to the spark module such that the gas can be turned on to heat up the burner.A top burner igniter might have to be replaced at some point in the lifespan of a gas range. A top burner igniter can be subject to damage if the connection between the igniter and the spark module is severed or is malfunctioning. The primary symptom of a malfunctioning top burner igniter is a gas burner that will not start or ignite properly. If this occurs, the top burner igniter should be removed and replaced with this genuine OEM replacement part before using that burner of the gas range again.This is an OEM part sourced directly from the manufacturer. This top burner igniter is compatible with the following appliance brands: Whirlpool, Amana, Jenn Air, KitchenAid, Ikea, and Maytag.

This surface burner valve controls gas flow to a single cooktop burner so the burner lights and adjusts heat reliably. It replaces a worn or failed valve to restore proper fuel delivery and burner operation. What it does:

• Regulates gas flow to the burner so flame size matches the control knob setting
• Stops or reduces gas to the burner when set to off, helping prevent unwanted flow
• Commonly used when a burner won't light, won't stay lit, or won't produce heat at expected settings
• Works as the in-line control between the manifold and the individual burner

• Turn off the gas supply and disconnect power to the appliance before starting work
• Use proper fittings and tighten connections to manufacturer torque; check all joints for leaks after installation

This surface burner valve controls the gas flow to a single cooktop burner, providing smooth flame adjustment and positive shutoff. Replacing a worn valve restores safe operation and consistent, controllable burner performance.

• Regulates and meters gas to one surface burner as the control knob is turned
• Provides complete shutoff when the knob is set to Off
• Common symptoms of a failing valve include a stiff/hard-to-turn knob, gas odor at the valve, a burner that won't light even with spark, or a flame that won't adjust or shut off
• Intended for the surface burner manifold

• Disconnect power and shut off the gas supply; allow the appliance to cool before service
• Access the manifold, note/label tube and wire positions, and match the valve's orientation before removal
• Tighten fittings securely; do not overtighten; leak-test all connections with an approved leak-detection solution before restoring gas and power
• After reassembly, verify proper burner operation and flame control

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Size: 10-24X5/16-NI

Size: 10-24X5/16-NI

This 4-spark ignition module controls the spark for gas burners so your cooktop or range lights reliably. It replaces a worn or failed module to restore consistent ignition and reduce click/no-spark issues. What it does:

• Sends timed spark to up to four burner electrodes for ignition
• Enables safe ignition sequence when burner control is turned on
• Helps eliminate symptoms like intermittent sparking, no spark, or continuous clicking
• Works with the range/cooktop's control system to coordinate ignition

• One 4-spark ignition module

• Disconnect power and shut off gas before attempting service
• Handle module and wiring harnesses carefully to avoid damage to connectors
• Verify proper electrode gap and burner alignment when reassembling
