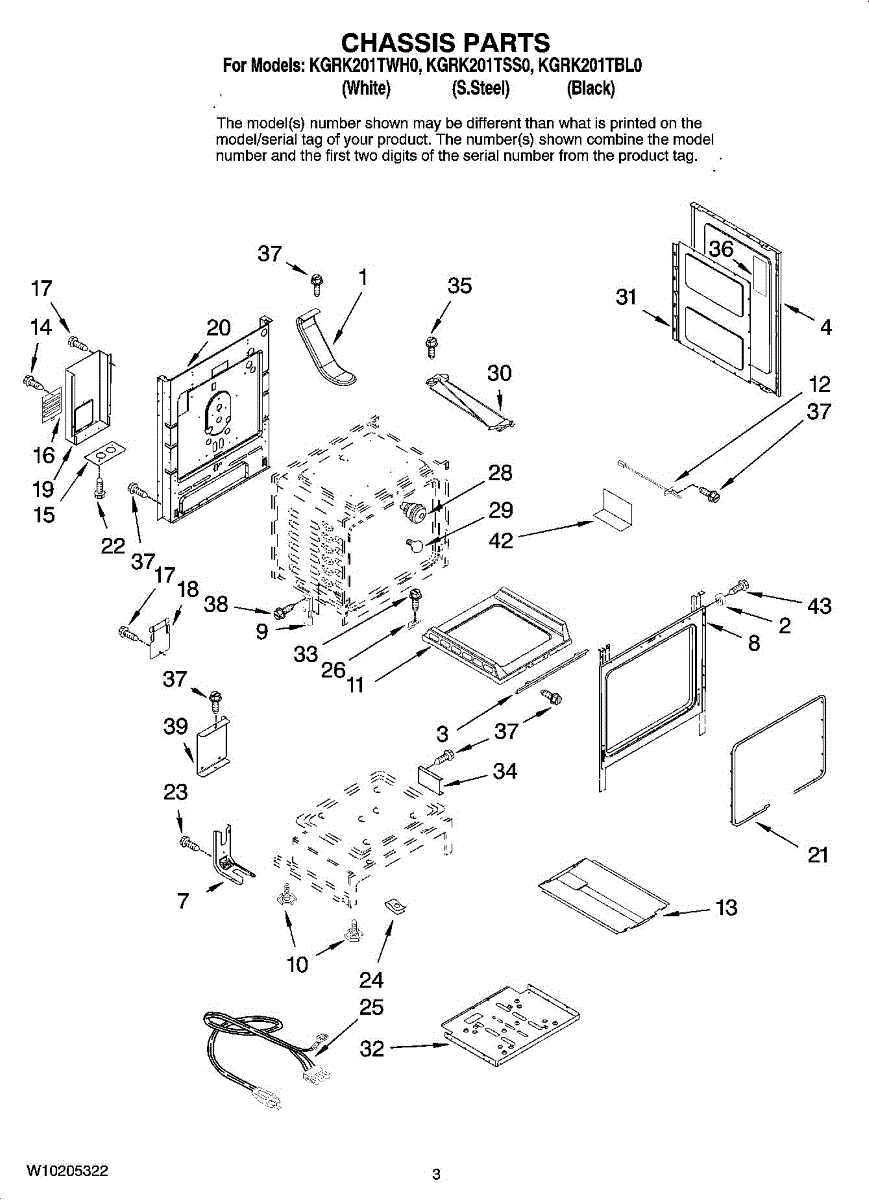

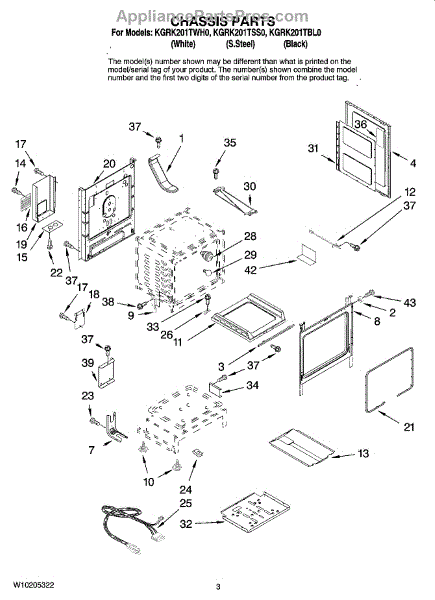

Parts for Kitchenaid KGRK201TBL0: 03 - Chassis Parts

Black

White

For screws order: WP7101P485-60.

The hinge receiver mounts to the range or wall-oven frame and forms the pocket that the door hinge arm slides into. Replacing a worn receiver restores smooth door action and helps the door close fully for a proper heat seal.

• Secures the door hinge arm to the oven chassis for proper pivoting
• Maintains door alignment so it closes flush and seals correctly
• Wear or damage can lead to door sagging or misalignment
• Can produce binding, popping, or grinding at the hinge area

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Remove the door per your model's instructions (engage hinge locks or insert hinge pins)
• Remove the receiver's mounting screws; transfer any reusable hardware to the new part
• Install the new receiver, rehang the door, and verify smooth operation and a tight seal

The Leveling Leg is an OEM replacement part for Whirlpool ranges. These adjustable legs help balance and stabilize the range.

Causes of a bad leveling leg commonly involve wear over time, thread or weld failures from supporting heavy loads, as well as damage due to impact or drops during installation.

Symptoms of a faulty leveling leg include:

• Instability such as rocking motions felt while cooking
• Uneven heating
• Doors that do not close properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This Oven Bottom forms the floor of a gas oven cavity. Positioned above the bake burner, it shields the burner/igniter from spills while providing a smooth, removable surface that helps direct heat and is easier to clean.

• Covers and protects the bake burner and igniter assembly
• Helps channel heat and airflow across the oven cavity
• Catches drips and debris; removes for periodic cleaning
• Typical failure signs: warped or rusted panel, flaking finish, burnt-through spots, or persistent smoke from baked-on spills

• Allow the oven to cool completely; wear cut-resistant gloves—edges may be sharp
• Disconnect power and turn off gas supply before servicing
• Remove racks; release rear screws or tabs per your model, lift and slide the old panel out; seat the new panel under the front lip and secure
• Restore power and gas, then verify proper fit and clearance

The Oven Temperature Sensor is an OEM part for Whirlpool ovens. It measures the oven's internal temperature and sends this information to the control board to maintain the desired cooking temperature.

Causes of a bad temperature sensor can include exposure to high temperatures over long periods, electrical issues such as short circuits, or physical damage due to impact or mishandling.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• Oven not heating to the set temperature
• Oven overheating
• Error codes displayed on the oven control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the long 6-inch sensor order 12001656.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Lower

The Door Gasket is an OEM part for Whirlpool ovens. This part creates a tight seal around the oven door, preventing heat from escaping during cooking. This part ensures that the oven maintains a consistent temperature, leading to more efficient cooking and energy use.

A damaged gasket might also allow hot air to escape, potentially causing heat damage to surrounding kitchen cabinetry and increasing energy consumption.

Symptoms of a bad Door Gasket include:

• The oven takes longer to preheat
• You notice heat escaping from the edges of the oven door
• Uneven cooking or baking results
• Increased energy bills due to the oven working harder to maintain temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 10-24X5/16-NI

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

Used for the Rear

The Oven Light Assembly is an OEM part for Whirlpool ranges. This part lights up the interior of the oven, allowing you to monitor the cooking process without opening the oven door.

Over time, the oven light assembly can fail due to normal wear and tear, exposure to extreme heat, or electrical issues.

Symptoms of a bad oven light assembly include:

• The light not turning on when the oven door is opened or when the light switch is activated
• Flickering or dim lighting inside the oven
• A broken or missing protective cover

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Size: 8abx3/8 - blk)

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 10-24X5/16-NI

Size: No. 8
