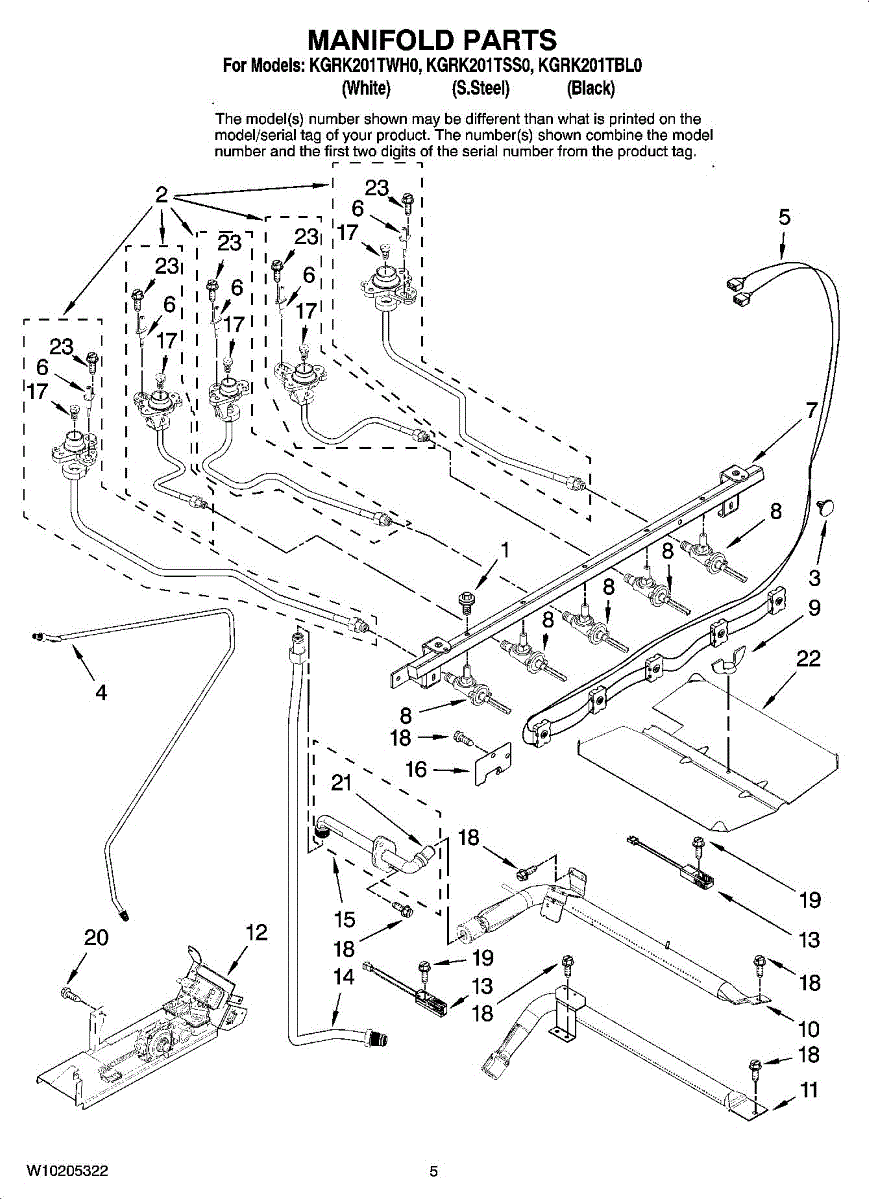

Parts for Kitchenaid KGRK201TBL0: 04 - Manifold Parts

This orifice holder secures the burner orifice to the gas manifold so the burner stays aligned and maintains proper gas flow. It helps keep burner assembly components positioned for consistent ignition and flame performance. What it does:

• Holds the burner orifice in place on the manifold to prevent misalignment
• Keeps the orifice correctly positioned for steady gas flow and stable flames
• Can address symptoms like uneven flame, intermittent ignition, or poor burner performance when the orifice is loose
• Works as a direct replacement part for the factory-mounted orifice support

• Turn off gas supply and electrical power before servicing any gas appliance
• Inspect surrounding gaskets and fittings; replace damaged parts as needed
• Tighten to manufacturer torque specs and check for gas leaks after installation

This switch harness links the five valve-mounted ignition switches to the spark system so the surface burners light when you turn a knob. Replacing a damaged harness restores consistent, reliable ignition across all burners.

• Provides the electrical path from the valve/knob-activated switches to the spark module to ignite the burners
• Failure can cause no click/spark on one or more surface burners
• Stuck or shorted switches may cause constant clicking even with knobs off
• Intermittent ignition or burners lighting only when the knob is positioned just right
• Visual clues include cracked switch bodies, brittle insulation, or burned/broken wires

• Disconnect power and shut off gas supply before servicing
• Remove grates and knobs; lift the cooktop or top panel to access the valve switches
• Note wire routing and valve order; seat each switch on its valve stem and connect leads securely away from heat
• Restore power and test each burner for proper spark before reassembly

This top burner igniter is a genuine Whirlpool part, sold individually. This top burner igniter can be used as a replacement part in a gas range. This part fits into the surface burner orifice holder to connect to the spark module such that the gas can be turned on to heat up the burner.A top burner igniter might have to be replaced at some point in the lifespan of a gas range. A top burner igniter can be subject to damage if the connection between the igniter and the spark module is severed or is malfunctioning. The primary symptom of a malfunctioning top burner igniter is a gas burner that will not start or ignite properly. If this occurs, the top burner igniter should be removed and replaced with this genuine OEM replacement part before using that burner of the gas range again.This is an OEM part sourced directly from the manufacturer. This top burner igniter is compatible with the following appliance brands: Whirlpool, Amana, Jenn Air, KitchenAid, Ikea, and Maytag.

A direct-replacement manifold pipe that routes gas from the valve assembly to the burners, restoring proper fuel delivery for safe, consistent ignition and cooking performance. What it does

• Channels gas from the control valve to individual burners so they can ignite.
• Helps maintain steady burner flames for even heating.
• Failsafe symptoms: burners not lighting, weak/uneven flames, or persistent gas odor near the range.
• Works with the range's valve and burner assembly to support normal operation.

• One manifold pipe

• Turn off the gas supply and electrical power before starting work.
• Use appropriate fittings and thread sealant rated for gas; tighten to manufacturer torque specs.
• After installation, check all connections for leaks with a soap solution or a gas leak detector.

This replacement burner valve controls gas flow to a single cooktop burner, restoring proper ignition and flame adjustment for safe cooking performance. What it does:

• Regulates gas flow to the burner so the flame can be adjusted from low to high
• Replaces a worn or damaged valve that causes a weak or uneven flame
• Can fix burners that will not light reliably or that sputter during operation
• Interfaces with the range's gas manifold and burner orifice for normal operation

• Turn off the appliance power and gas supply before starting work
• Use proper tools and follow OEM instructions
• Check all gas connections for leaks after installation using a leak-detection solution

This gas valve controls fuel flow to the range/oven burner, restoring reliable ignition and heat control. Precision operation helps maintain even cooking and safe burner performance when the valve is faulty. What it does:

• Regulates gas flow to the burner assembly so the oven/range heats correctly
• Works with the appliance's safety and ignition systems to enable reliable lighting
• Commonly replaced for symptoms like no heat, intermittent ignition, or gas smell during operation
• Designed as a direct-fit valve for compatible Whirlpool-built ranges using Copreci 16k valves

• Turn off gas supply and disconnect power before attempting service
• Follow the appliance service manual for proper valve removal and gas line reconnection
• Check all fittings for leaks after installation and before returning the appliance to service

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

The Oven bake Igniter is an OEM part for Whirlpool ovens. It is a crucial component that ignites the gas to create the flame needed for baking and broiling. By heating up to the necessary temperature, it allows the gas valve to open and ignite the gas, ensuring the oven reaches and maintains the desired cooking temperature.

Causes of a bad igniter can include electrical failures, wear and tear over time, or damage due to repeated heating cycles. An igniter can also degrade if exposed to food spills or cleaning chemicals.

Symptoms of a bad igniter include:

• Oven not heating up
• Delayed ignition or no ignition at all
• Weak or intermittent flame
• The smell of gas without ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Igniter is an OEM part for Whirlpool ovens, designed to ignite the gas in the oven burner, allowing it to heat. This crucial component is responsible for creating the spark that starts the combustion process, enabling your oven to reach the desired temperature for baking or broiling.

Causes of a bad oven igniter include wear and tear from regular use, a buildup of residue that can inhibit the igniter's ability to heat properly, or electrical issues that prevent the igniter from drawing enough current.

Symptoms of a bad Oven Igniter include:

• Oven not heating up at all
• Oven takes longer than usual to heat up
• Gas smell when the oven is turned on, indicating gas is not igniting

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This broil burner tubing routes gas/heat to the oven's broil element for consistent broiling performance. It replaces damaged or rusted tubing to restore proper broil operation and help maintain safe oven function. What it does:

• Channels the broil burner flame/heat toward the oven cavity for even broiling
• Replaces corroded, cracked, or bent tubing that can disrupt broil performance
• Helps prevent gas leaks and improper flame spread when installed correctly
• Works with the oven's broil assembly to maintain intended cooking results

• One broil burner tubing (single piece as pictured)

• Disconnect power and shut off gas supply before servicing; follow all safety procedures
• Inspect surrounding fittings, brackets, and gaskets and replace if worn to ensure a proper seal
• Tighten connections to manufacturer torque/spec recommendations and check for leaks after installation

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 10-24X5/16-NI

Size: 10-24X5/16-NI

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.
