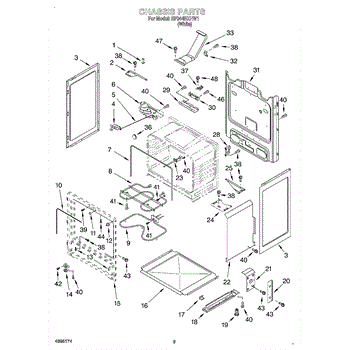

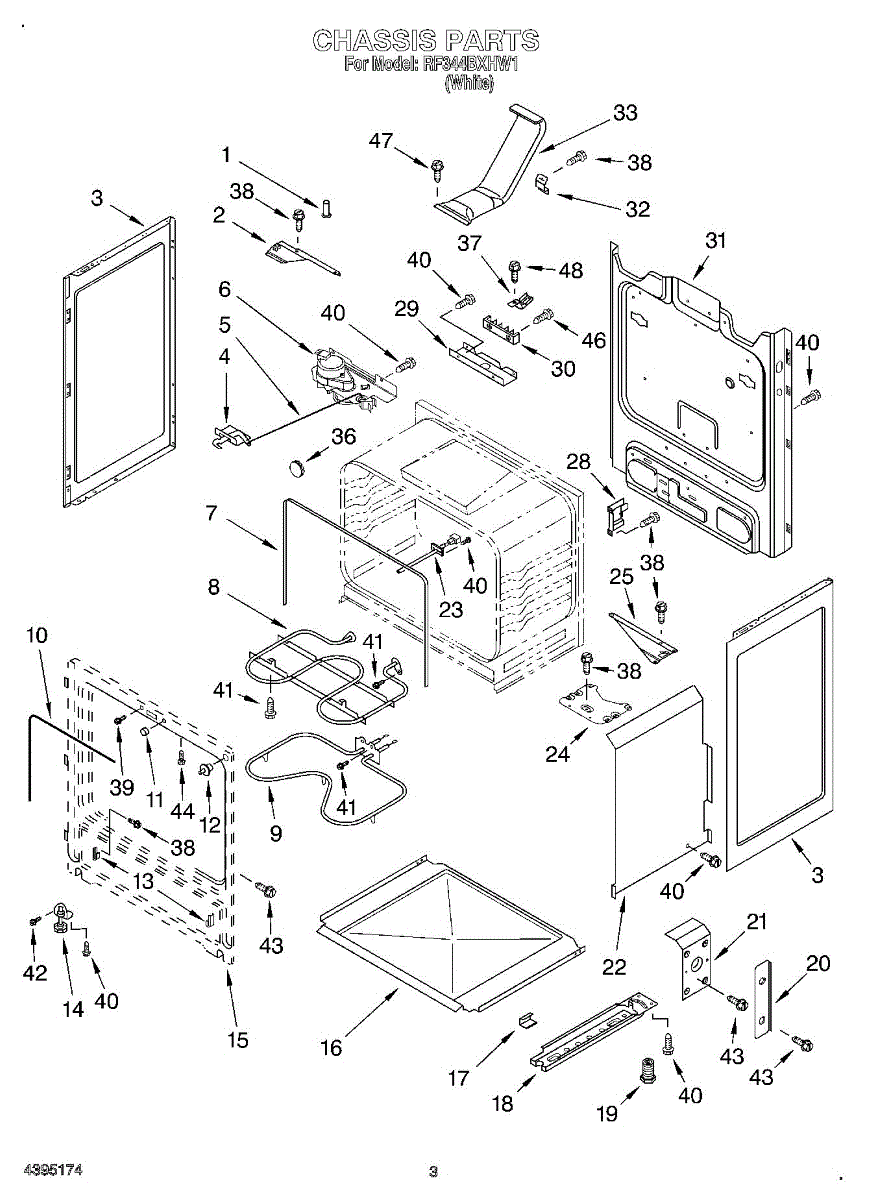

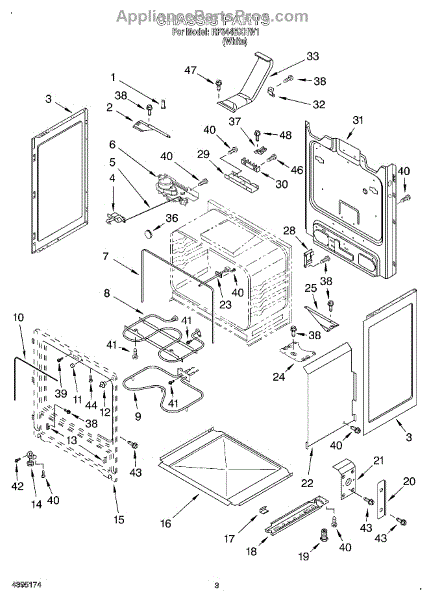

Parts for Whirlpool RF344BXHW1: 03 - Chassis Parts

This latch mechanism secures the oven door in the closed position on electric and gas ranges. It engages when the door is shut to hold it firmly against the gasket for proper heat retention. Replace when the oven door won't stay closed, pops open during cooking, or the latch handle feels loose or broken.

Replacement door latch rod that connects the latch assembly to the mechanism. Needed when the original rod is bent, broken, or missing from your range door.

This assembly includes the motorized latch mechanism and integrated switches that lock and unlock the oven door during the self-cleaning cycle. It secures the door shut when the oven reaches high temperatures and signals the control board when the door is properly latched. Replace this part if the oven door won't lock or unlock, the self-clean cycle won't start, or you receive a door lock error code.

Seals the gap between your oven door and frame to maintain consistent heat and prevent moisture loss. Replace if worn, cracked, or causing heat escape.

Broil element burnt out or not heating? This top heating element provides intense direct heat for broiling. Takes 15-20 minutes to replace yourself.

Oven won't heat or bakes unevenly? The bake element likely failed. Located at oven bottom, this part restores proper baking heat. 10-minute DIY fix.

Replace your range oven door gasket when torn or worn to restore an airtight seal and improve heating efficiency. Easy 5-15 minute install. Confirm fit.

Replacement mounting spacer for ranges. Maintains proper alignment and clearance between components. Replace if missing, cracked, or worn to restore spacing.

This replacement door light switch controls the oven interior light so it turns on and off with the door, restoring expected visibility when checking food or performing maintenance. Ideal for ovens with a pyrolytic/self-clean cycle. What it does:

• Opens and closes the circuit to the oven interior light when the door is opened or closed
• Stops the light from staying on or not turning on when the door is operated
• Helps restore normal oven-light operation after a failed or worn switch
• Matches OEM function and mounting for direct-fit replacement on compatible pyro ovens

• Disconnect power to the appliance before starting any repair
• Access may require removing the oven door or inner door panel—handle glass panels carefully
• Verify correct switch position and wiring before reassembly; test operation after restoring power

Front drawer glide for range broiler or storage drawer. Replace when drawer sags, won't slide smoothly, or glide is broken. Confirm fit with your model.

Adjustable front leveling leg threads into the base corner of your range to raise or lower the unit. Replace if broken, cracked, or missing to level your range.

Metal tray that secures insulation beneath the oven cavity. Replaces damaged, warped, or missing retainers to restore proper insulation support.

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

Oven won't reach set temperature or runs too cold? This temperature sensor monitors heat levels and signals the control board to regulate cooking.

Secures and stabilizes range components to reduce movement and maintain alignment. Replace if cracked, broken, or missing to stop rattling and restore support.

Service bracket for electric and gas ranges. Mounts internal components securely. Replace if bent, broken, or missing to restore proper structural support.

Replacement hex nut for dryer terminal blocks and electrical connections. Secures terminal components. Needed when original is stripped, missing, or damaged.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

Size: 5/16 inch.

Size: 8-18 x 1/2 inch.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Size: 8-18 x 1/4 inch. Self tapping.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Self-tapping screw secures panels, brackets, and trim to range frames and housings. Replace worn, missing, or stripped fasteners to restore fit.

Replacement screw secures appliance panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

Insulation that wraps around the range vent assembly to dampen sound and reduce heat transfer. Replace if torn, compressed, or missing for proper noise control.

Fastens panels, brackets, and trim pieces on ranges and vacuums. Replace this screw if missing, stripped, or damaged to secure loose components and prevent rattling or misalignment.

Insulation batting installs between inner and outer oven walls to retain heat. Replace if damaged, cracked, infested, or missing for proper temperature.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Wire harness that connects electrical components inside your range oven cavity. Replace if wires are frayed, damaged, or connectors are broken or melted.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Size: 25ft, 12 Ga. 150 c Black

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Made specifically for oven bottoms, this foil helps catch spills in your oven. Perfect for BBQ grills as well.

Insulation that wraps around the range vent assembly to dampen sound and reduce heat transfer. Replace if torn, compressed, or missing for proper noise control.

Ground wire clip for ranges and ovens. Secures grounding wire to chassis. Replace if clip is broken, bent, or missing to ensure proper electrical ground.

Specs: 25ft,14 Ga., 200 c Brown

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification

Color: White. Size: 13 oz. Spray paint primer. can.

Ground wire screw secures grounding conductor to range chassis for electrical safety. Simple 5-minute repair with basic tools. Fits most models.

White touch-up paint for covering minor scratches, chips, and blemishes on oven liners. Restores appearance of damaged oven interior surfaces.

Secures your range to the wall or floor to prevent tipping when the oven door is opened. Replace if missing, broken, or during new installation.

White porcelain touch-up paint for repairing chipped, scratched, or worn surfaces on ranges, ovens, and refrigerators. Restores appearance on exterior panels and trim. 2 oz. can.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

Kit of 4 pins that insert into oven door hinges to safely remove the door for repairs or cleaning. Replace lost or damaged pins during door removal.

Insulation batting installs between inner and outer oven walls to retain heat. Replace if damaged, cracked, infested, or missing for proper temperature.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
