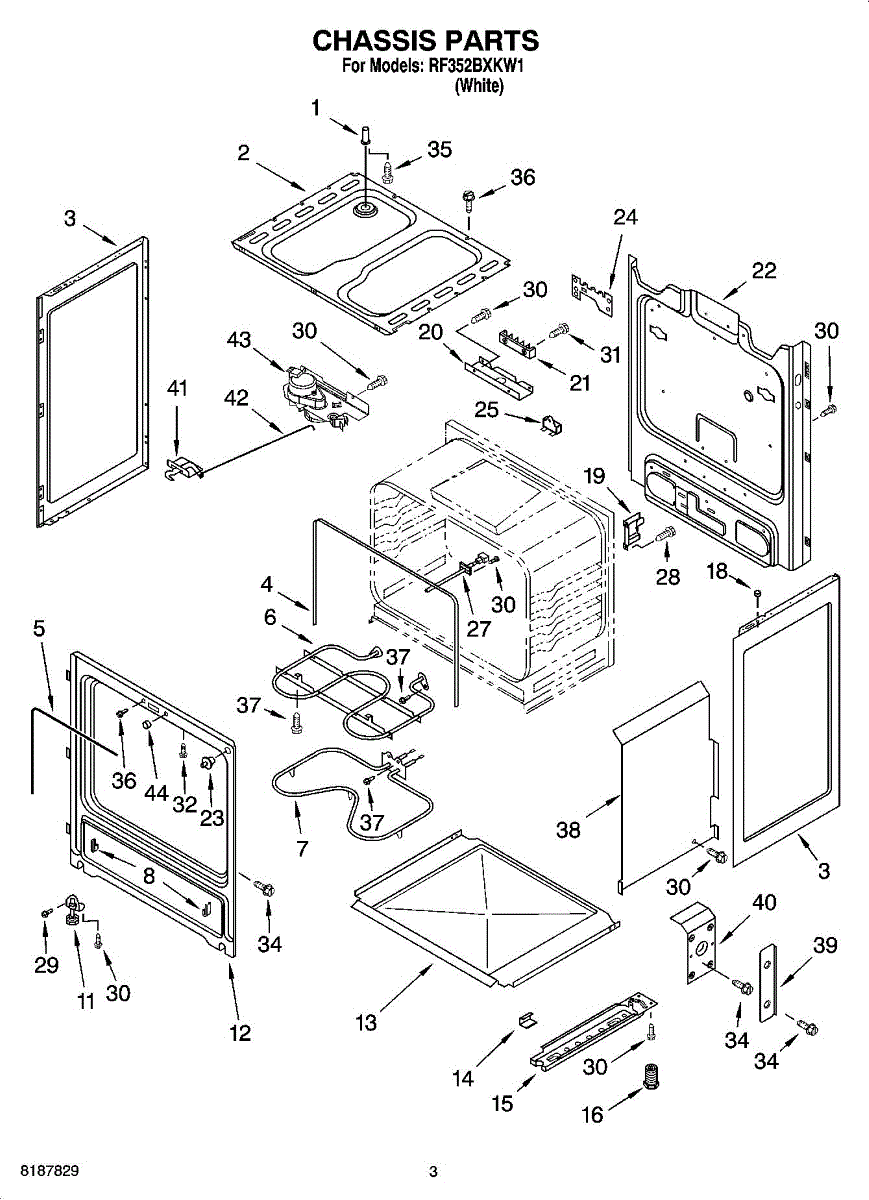

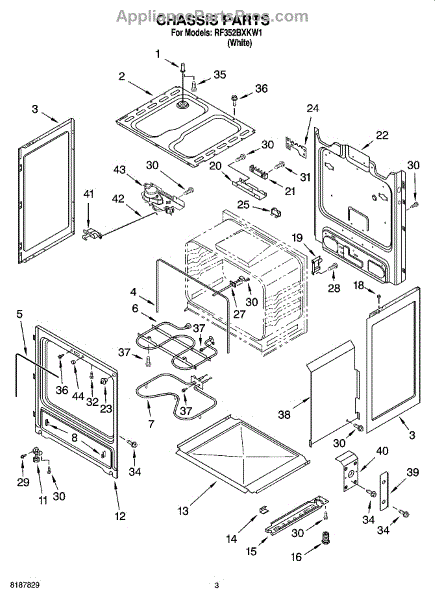

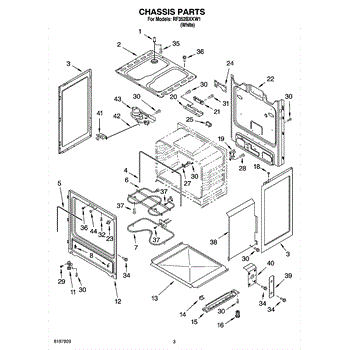

Parts for Whirlpool RF352BXKW1: 03 - Chassis Parts

This vent tube directs exhaust airflow from the appliance to the vent outlet, helping maintain proper ventilation and reduce leaks. Replace a damaged or crushed tube to restore safe exhaust routing and steady airflow. What it does:

• Channels exhaust air from the appliance to the vent outlet to prevent backflow into the cabinet
• Helps maintain consistent ventilation for efficient operation
• Prevents leaks and reduces the chance of moisture or lint buildup in the appliance cavity
• A worn or damaged vent tube can contribute to poor venting or unusual odors

• One replacement vent tube

• Disconnect power and unplug the appliance before beginning work
• Remove any access panels or obstructions to reach the existing tube; note routing before removal
• Secure the new tube with appropriate clamps or retainers; ensure there are no kinks or sharp bends
• If lint or debris is present, clean the vent path before installing the new tube

This burner box is the under-top housing for an electric cooktop or range. It supports the surface heating elements and mounting hardware, restoring proper element alignment, stability, and safe operation when the original housing is bent, corroded, or damaged.

• Supports and positions the surface heating elements beneath the cooktop
• Provides mounting points for element brackets and component supports
• Helps keep elements level and secure for consistent heating performance
• Common symptoms: loose or sagging elements, rattling/vibration from the cooktop area, visible warping or corrosion, difficulty fastening element hardware

• Disconnect power at the breaker before servicing
• Lift/remove the cooktop to access the burner box; sheet-metal edges can be sharp—wear cut-resistant gloves
• Transfer elements, brackets, and wiring to the new box in their original locations; take photos for reference
• Ensure wiring is routed clear of hot surfaces and all fasteners are secure before reassembly and testing

This oven flange seal creates a tight weatherstrip between the oven door and cabinet to help keep heat and moisture inside the cooking cavity for more consistent baking and reduced heat loss around the door. What it does:

• Seals the gap between the oven door and the oven frame to help maintain internal temperature.
• Reduces heat and smoke escaping from the oven during use.
• Helps prevent spills and crumbs from entering the flange area.
• Common symptom indicators: visible gaps, torn or brittle seal, heat felt at the door edge, or uneven cooking.

• Disconnect power (unplug or shut off circuit breaker) before servicing the appliance.
• Inspect the door and flange channel for debris or damage; clean before installing the new seal.
• Press the seal evenly into the retaining channel around the flange; replace any fasteners if required by OEM instructions.

The Oven Door Seal is an OEM part specifically designed for Whirlpool wall ovens. It provides an airtight barrier between the door and oven interior during cooking and baking. Made of heat-resistant materials, the door seal withstands high oven temperatures.

Causes of a bad door seal can include normal wear and tear from repeated use over many years of cooking. Exposure to extremely high heat cycles may also degrade the seal prematurely.

Symptoms of a bad door seal include:

• Excess heat loss from the oven when cooking
• Visible cracks, tears, or looseness in the seal material
• Hot or warm air leaking from the sides or bottom of the closed oven door
• Difficulty maintaining optimal oven temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore wall ovens.

The Broil Element is an OEM part for Whirlpool ovens. It is located at the top of the oven interior and is responsible for providing intense, direct heat for broiling.

The broil element should be replaced if it becomes damaged or fails to heat properly. Causes of a bad broil element can include regular wear and tear, electrical malfunctions, or physical damage such as cracking or breaking.

Symptoms of a bad broil element include:

• The broil element not heating up
• Uneven cooking or browning when broiling
• Visible damage or blistering on the element
• Sparking or electrical shorts when the broiler is in use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Bake Element is an OEM part for Whirlpool ovens. It is a component responsible for providing the heat necessary for baking and cooking. This element is located at the bottom of the oven and heats up when electricity is applied, allowing for consistent cooking temperatures.

Symptoms of a bad Oven Bake Element include:

• Uneven baking results or undercooked food
• Lack of heat generation even though the oven is turned on
• Visible damage to the element such as blistering, cracks, or breaks

Causes of a bad element can stem from natural wear and tear, excessive cooking temperatures overextending the element's capacity, or electrical issues causing the element to fail prematurely.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Oven broiler drawer glide mounts to front of the drawer. For the rear drawer glide that mounts to the body order WP8053334.

This front leveling leg adjusts the height at the front of your appliance to keep it level and steady. Replacing a worn or missing foot helps eliminate rocking, protect floors, and make fine leveling adjustments simple.

• Threads into the base at the front corner to raise or lower the unit for accurate leveling
• Stabilizes the appliance to minimize rocking and vibration when opening the door or using the cooktop
• Restores proper adjustment when the original foot is stripped, bent, or missing
• Common signs include a wobbling appliance, difficulty leveling, or metal-to-floor contact/scuffing

• Disconnect power; turn off the gas supply
• Protect the floor and use an assistant to carefully slide and tip the appliance
• Start the new leg by hand to avoid cross-threading; finish adjustment with a wrench
• Level front-to-back and side-to-side, then verify stability before restoring service

This oven insulation retainer holds the insulation beneath the oven cavity to help maintain proper heat shielding and support. It replaces damaged or missing retainers to restore correct insulation positioning and reduce heat transfer to surrounding components. What it does:

• Secures oven cavity insulation in place so insulation can't shift or sag
• Helps maintain proper heat shielding around the oven cavity
• Commonly replaced when the retainer is cracked, broken, or missing

• Intended for use with the oven insulation area; fits your model before installing
• Turn off power to the appliance at the breaker before servicing to avoid shock hazard
• Handle gently to avoid damaging surrounding insulation; wear gloves and eye protection
• Use existing mounting hardware when possible; replace any stripped or damaged fasteners

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Rubber bumper. Color: Grey.

This support bracket secures and stabilizes appliance components to reduce movement and maintain proper alignment. A simple replacement that helps stop rattling and supports panels or assemblies so the appliance operates quietly and reliably. What it does

• Provides a stable mounting point to hold panels, housings or internal assemblies in place
• Restores proper alignment to reduce vibration, noise, and rubbing against adjacent parts
• Prevents sagging or movement that can lead to wear on connected components
• Useful when a bent, cracked or missing bracket causes loose panels or intermittent contact

• Turn off power to the appliance and unplug before starting work
• Use appropriate tools and retain all fasteners; replace any damaged clips or screws
• Compare the bracket to the original to confirm orientation and fit before final installation

Size: 10-32 inch.

The Terminal Block is an OEM part for Whirlpool ranges and ovens. It is designed to provide a secure connection point for the appliance's electrical wiring, ensuring the safe transmission of power to the heating elements and other components.

You should replace the terminal block if it becomes damaged or faulty. Causes of a bad terminal block can include electrical arcing, loose connections, or damage from overheating. A compromised terminal block can lead to electrical issues, affecting the performance and safety of the appliance.

Symptoms of a bad terminal block include:

• The oven or range not heating up properly
• Visible damage or burning around the terminal block
• Intermittent power issues or flickering display
• Unusual electrical smells or sparks from the terminal area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement door light switch controls the oven interior light so it turns on and off with the door, restoring expected visibility when checking food or performing maintenance. Ideal for ovens with a pyrolytic/self-clean cycle. What it does:

• Opens and closes the circuit to the oven interior light when the door is opened or closed
• Stops the light from staying on or not turning on when the door is operated
• Helps restore normal oven-light operation after a failed or worn switch
• Matches OEM function and mounting for direct-fit replacement on compatible pyro ovens

• Disconnect power to the appliance before starting any repair
• Access may require removing the oven door or inner door panel—handle glass panels carefully
• Verify correct switch position and wiring before reassembly; test operation after restoring power

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening so panels and parts stay aligned and stable during normal use. What it does:

• Fastens appliance panels, trim or internal components in place
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop panel vibration and maintain proper component alignment
• Matches OEM fit where specified for a secure installation

• One replacement mounting screw

• Verify screw size and fit before installation; use the correct screw location from your parts diagram
• Turn off and disconnect power to the appliance before accessing internal components
• Hand-start the screw to avoid cross-threading; tighten until snug—do not over-tighten
• Wear safety glasses and follow manufacturer service instructions when applicable

The Thermal Fuse is an OEM replacement part for Whirlpool ovens. This safety device is designed to prevent the oven from overheating by cutting off electrical power if the internal temperature exceeds a safe level.

The thermal fuse can fail due to normal wear and tear, prolonged exposure to high temperatures, or electrical surges. Accumulation of grease and debris around the fuse can also cause it to malfunction.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off during use
• No power to the oven
• Error codes related to temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Sensor Assembly is an OEM part for Whirlpool ovens, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.

Causes of a bad Oven Sensor Assembly can include exposure to high temperatures for prolonged periods, affecting the sensor's accuracy, electrical malfunctions like short circuits or wiring issues impacting its performance, and physical damage from cleaning or moving the oven compromising the sensor's integrity.

Symptoms of a bad Oven Sensor Assembly include:

• The oven does not heat to the set temperature
• Over or undercooking of food
• Error codes displayed on the oven's control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 1/2 inch.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing

Size: 8-18 x 1/4 inch. Self tapping.

Screw for side trim.

This machine-thread screw secures brackets, panels, and trim inside your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces rattles, and keeps assemblies properly aligned. What it does:

• 10-32 machine-thread screw used to fasten metal components
• Maintains alignment and stability of panels, brackets, and trim
• Replace if threads are stripped, head is damaged, corroded, or missing
• Common symptoms: loose panel/handle, vibration noises, gaps or misalignment

• 1 screw

• Disconnect power (and gas, if applicable) before servicing
• Support the component and start threads by hand to avoid cross-threading
• Use the correct driver; do not overtighten to prevent stripping
• Match thread size and length specified for your model

Replacement front door assembly that restores proper door closure and exterior appearance on compatible Whirlpool appliances. Use this assembly when the original front door is cracked, dented, or no longer secures or aligns properly. What it does:

• Replaces a damaged or warped front door to restore proper fit and appearance.
• Helps resolve doors that won't latch, sit flush, or rub against the cabinet.
• Aligns with original mounting points so the latch and hinges operate correctly.
• Matches the original exterior finish for a consistent look after repair.

• Disconnect power to the appliance before beginning any repair.
• Support the door during removal and installation to prevent drops or damage.
• Handle any glass or trim carefully to avoid breakage and injury.
• Follow the OEM service manual or manufacturer instructions for proper alignment and fastening.

A replacement latch rod that connects and secures the door latch assembly so the appliance door stays closed during use. Restores proper engagement of the latch for safe, reliable operation. What it does

• Links the door latch to the latch mechanism so the door can lock and release correctly
• Helps prevent the door from popping open during operation
• Common fix when the door latch feels loose or the door won't stay closed
• Works with the existing latch assembly to restore normal door function

• One rod-latch

• Disconnect power (or unplug) before starting any repair to avoid electrical or injury risk
• Basic hand tools may be needed; follow the appliance's service manual for access and removal steps
• Inspect the latch and strike for wear; replace any damaged components to ensure proper operation

Includes lock latch motor and switch

This spacer provides a precise gap for proper alignment and clearance between components, helping maintain correct part positioning for reliable operation. It's a simple replacement that restores intended spacing and reduces wear. What it does:

• Positions and separates adjoining parts to maintain correct clearance
• Helps prevent rubbing, misalignment, or binding of moving components
• Restores factory spacing after maintenance or part replacement
• Fits where the original spacer was used to support assembly alignment

• One spacer as shown

• Inspect surrounding components and mounting surfaces for damage before installing
• Remove power to the appliance and follow manufacturer service instructions
• Install in the same orientation as the original spacer and verify proper clearance
• If fasteners or adjacent parts are worn, replace them to ensure a secure fit

The INSULATION is an OEM component specifically designed for Whirlpool electric ranges. Positioned between inner and outer wall cavities, it efficiently buffers heat.

Fiberglass batting material keeps internal temperatures elevated for cooking while preventing harmful temperatures from spreading outside. Stable temperature control is essential for consistent results.

Causes of damaged insulation could be high heat exposure over time weakening fibers, moisture ingress deteriorating integrity, or physical punctures allowing heat leakage.

Symptoms of insufficient insulation include:

• Oven unable to effectively retain or distribute set temperatures
• Door and exterior surfaces becoming too warm to safely touch
• Higher energy bills from frequent recovery heating cycles

This Whirlpool insulation is also compatible with electric ranges by GE, Frigidaire, Samsung, and some LG kitchen models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
