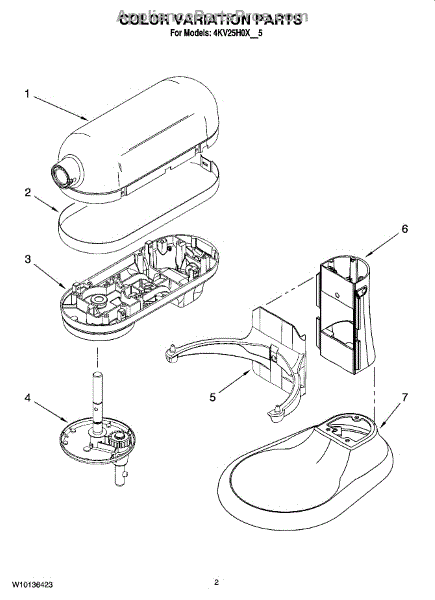

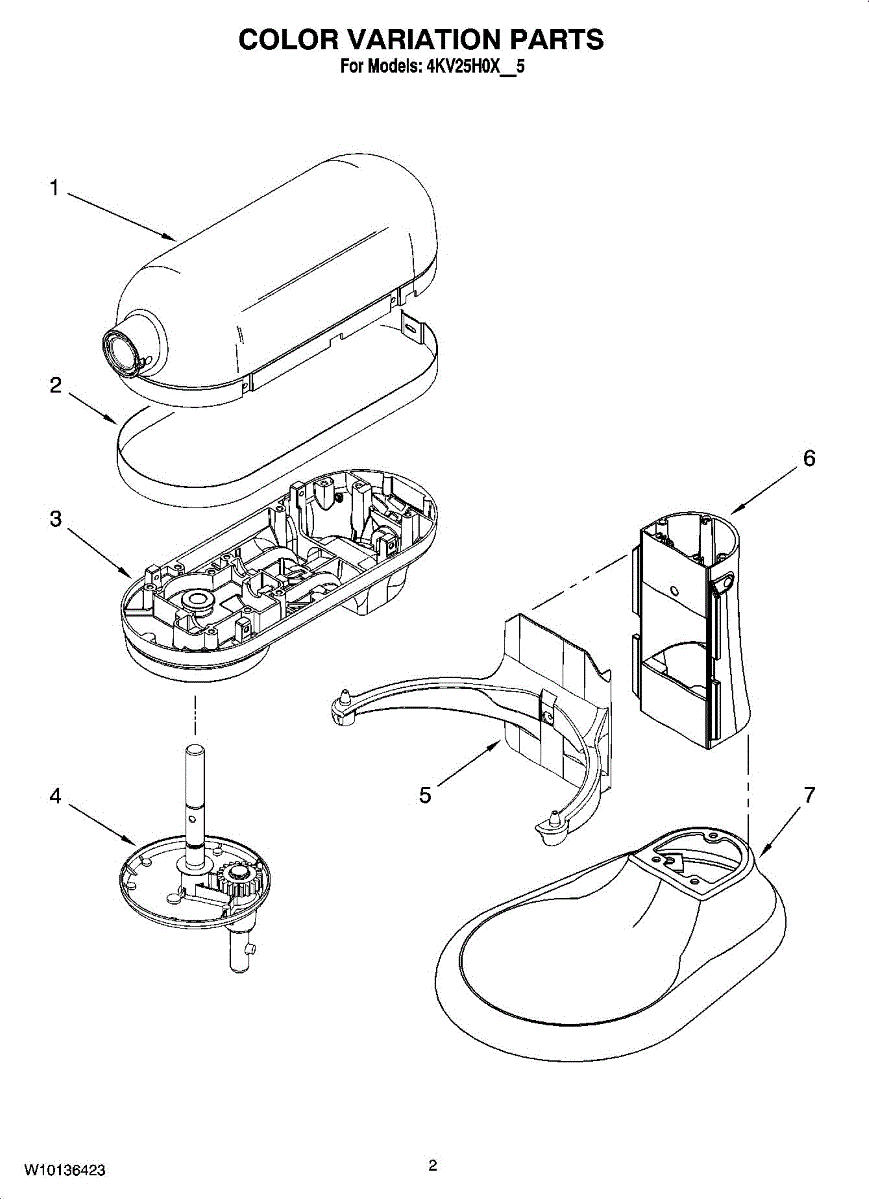

Parts for Whirlpool 4KV25H0XMC5: 01 - Color Variation Parts

This porcelain enamel finish restores the factory color and smooth, glossy surface to compatible ranges and cooktops, improving appearance and protecting underlying metal from wear and staining. What it does

• Replaces worn, chipped, or faded enamel finish to make the appliance look like new
• Provides a durable, heat-resistant surface that resists stains and everyday wear
• Matches the OEM "Empire Red" color for a cohesive, factory-correct appearance
• Helps protect the underlying metal from corrosion and further cosmetic damage

• One porcelain enamel finish (Empire Red)

• Disconnect power and gas before starting any repair
• Removal of trim, screws, or panels may be required; follow the appliance's OEM service instructions
• Handle with care to avoid chipping the enamel during installation

This motor housing is the outer mounting and protective enclosure for the appliance motor, finished in white to match the cabinet. It provides a secure support for the motor and helps isolate noise and vibration. What it does:

• Supports and secures the motor assembly in the appliance
• Protects the motor from debris and contact with moving components
• Helps reduce motor noise and vibration through stable mounting
• Resolves symptoms like excessive vibration, rubbing noises, or misaligned motor mounting

• One motor housing (white)

• Disconnect power to the appliance before starting any repair
• Typical installation requires removing panels and either the drum or motor access components; follow OEM instructions
• Handle housing edges carefully and retain all mounting hardware for reassembly

This lower gearcase transfers motor power to the washer's transmission, driving the agitator and drum movement. Replacing a worn gearcase restores proper agitation and reduces grinding or slipping during cycles. What it does:

• Drives the agitator/drum by housing gears that transfer motor torque to the transmission
• Fixes symptoms like no agitation, weak agitation, loud grinding or gear-noise during spin/agitate
• Helps restore consistent wash action and proper load handling when gears are damaged or worn
• Works as the lower gearbox assembly in compatible top-load washers

• One lower gearcase assembly (Imperial Black)

• Disconnect power and water supply before starting; drain washer tub to avoid spills
• Follow the washer's service manual for disassembly steps; removing the agitator and transmission access may be required
• Inspect surrounding seals, bearings and fasteners during replacement and replace if damaged
• Use proper tools and torque specifications

This gearcase is the main transmission assembly that transfers motor torque to the washer's tub and agitator, restoring normal agitation and spin performance when the original gearcase fails. What it does

• Converts motor rotation into the gear reductions needed for agitation and spin cycles.
• Commonly replaced for symptoms like no agitation, slow or failed spin, grinding or clunking noises during cycles.
• Contains internal gears and bearings that can wear or break, causing irregular movement or loss of drive.
• Works with the washer's motor coupling and drive components to re-establish reliable drum motion.

• One gearcase (transmission) assembly.

• Disconnect power and water supply before beginning any repair.
• Support the washer cabinet and tub when removing the old gearcase to avoid damage or injury.
• Gearcase assemblies are heavy and contain grease—expect some lubricant exposure; clean hands and work surfaces after installation.
• Use model-specific service manual or exploded parts diagram for proper alignment and reassembly; replacement may require transfer of seals or mounting hardware.

This lower gearcase housing encloses and supports the planetary and lower gear train in a stand mixer. Replacing a damaged housing restores alignment and helps contain lubrication for quieter, consistent mixing performance.

• Houses the lower gear train and planetary shaft to maintain alignment
• Provides a sealed cavity to help retain grease around gears
• Replaces cracked, stripped, or warped housings that cause wobble or noise
• Helpful when you see grease seepage or cosmetic damage to the lower case

• Unplug the mixer and remove bowl and attachments before service
• Open the motor head and remove the planetary/gear stack as required
• Transfer components to the new housing; renew food-grade mixer grease if servicing gears
• Reassemble and verify beater-to-bowl clearance and smooth operation

This planetary is the replacement internal gear assembly that helps transfer motor motion to the agitator/impeller for proper wash action. It restores drivetrain engagement so the washer can agitate and spin more effectively. What it does:

• Replaces a worn or damaged planetary gear assembly that causes weak or no agitation/spinning
• Transmits motor torque to the transmission and agitator/impeller for normal wash cycles
• Can address symptoms like intermittent agitation, loud grinding noises, or slipping during cycles
• Fits into the transmission/gearcase as a direct replacement when the original planetary fails

• Inspect surrounding seals and gears during replacement
• Disconnect power and water supply before beginning any repair
• Use proper tools and follow OEM diagram for correct orientation and torque; avoid forcing parts to prevent damage
• Replace any worn fasteners or gaskets found during installation

The Planetary is an OEM part for Whirlpool stand mixers. This part holds the beater and ensures it rotates around the bowl to mix ingredients thoroughly. The planetary mechanism allows for consistent and even mixing by moving the beater in a planetary motion, which covers the entire bowl.

Causes of a bad planetary can include regular wear and tear, heavy use, or mechanical failure within the gears.

Symptoms of a bad planetary include:

• Beater not rotating properly
• Unusual noises during operation
• The mixer head wobbling or shaking
• Inconsistent mixing results

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Metallic Chrome

The Planetary Assembly is an OEM part for Whirlpool stand mixers. This component is responsible for holding the mixer attachments and rotating them around the bowl, ensuring thorough and even mixing of ingredients.

Over time, the planetary assembly can become worn out or damaged due to frequent use, heavy mixing loads, or lack of proper maintenance. If the planetary assembly is not functioning correctly, it can result in poor mixing performance and uneven results.

Symptoms of a bad planetary assembly include:

• Unusual noises during operation
• Attachments not rotating properly or wobbling
• Inconsistent mixing or ingredients not being fully incorporated
• The mixer head not locking into place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Empire red touch-up paint restores the original appliance finish to cover chips, scratches, and small blemishes for a clean, uniform look. Ideal for maintaining the appliance's appearance between larger repairs or panel replacements. What it does:

• Matches the Empire Red appliance color to conceal chips and surface scratches
• Prevents small bare spots from showing and improves overall cosmetic appearance
• Helps maintain consistent color on exterior panels and trim
• Useful for spot repairs after minor impacts or wear

• Clean and dry the surface thoroughly; remove grease and loose paint before applying
• Apply in thin coats, allowing recommended dry time between coats for best results
• Test on an inconspicuous area first to confirm color match
• Follow all product label warnings; use in a well-ventilated area and keep away from heat and open flame

A white replacement bowl support that centers and stabilizes the appliance bowl or glass tray to reduce wobble and noise, helping restore smooth rotation and reliable operation. What it does:

• Centers and supports the bowl or glass tray to prevent off-center rotation and rubbing.
• Keeps the tray steady to reduce vibration and noisy operation.
• Helps the tray rotate smoothly for even heating or proper function.
• Common symptoms it can address: wobbling or off-center bowl/tray, noisy rotation, scraping or unstable tray movement.

• Disconnect power to the appliance before starting any work.
• Remove the bowl or glass tray and lift out the old support; inspect the drive hub or shaft for damage.
• Align the support over the hub/shaft and press into place until fully seated; do not force broken or warped plastic.

This bowl and foot assembly replaces a cracked or worn support bowl used to stabilize and support the appliance's internal component, restoring proper alignment and quiet operation. Durable molded construction suits direct-replacement needs. What it does:

• Supports and centers internal components to maintain smooth rotation and balance
• Replaces damaged, cracked, or warped bowl/foot that can cause rattling or uneven operation
• Restores correct spacing to prevent contact between moving parts and the cabinet
• Matches factory fit and finish for a secure, stable installation

• Disconnect power before beginning any repair to avoid electrical hazard
• Handle with care to avoid cracking the plastic; use gentle force when seating into place
• Basic hand tools may be needed to access the mounting area; model-specific diagram for access
