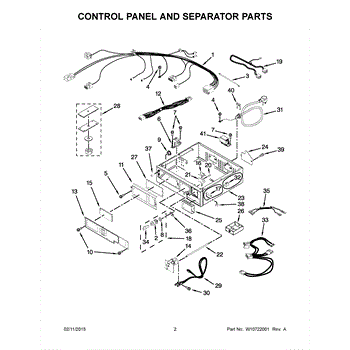

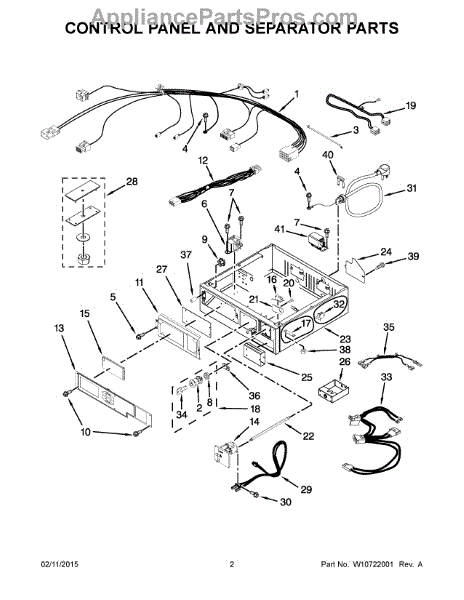

Parts for Maytag MLG26PDBWW0: 02 - Control Panel And Separator Parts

This wire harness is the factory-style electrical assembly that connects multiple components so your appliance receives power and control signals reliably. Replacing a damaged harness restores proper electrical connectivity and helps prevent shorts. What it does:

• Routes and connects power and signal wires between controls, motors, switches, and sensors
• Replaces frayed, melted, or corroded wiring that can cause intermittent operation or no power
• Restores proper connections that may eliminate burning smells or visible arcing at terminals
• Ensures plug-and-play fit when the original harness is removed and the new one is installed

• One complete wire harness assembly as pictured

• Disconnect all power (unplug or switch off breaker) before starting work
• Take photos or label connectors to ensure correct reassembly
• Route the harness along original clips and fasteners; avoid pinching or contact with hot surfaces
• If you see damaged connectors or melted insulation on other parts, inspect and replace those components as needed

This condenser tie is a small plastic wire tie used to secure the condenser assembly or related wiring and tubing in place. It helps prevent rubbing, vibration noise, and loose routing that can cause wear or interference. What it does:

• Secures condenser coils, wiring harnesses, or drain/tubing to the appliance frame
• Prevents rubbing and vibration that can cause noise or premature wear
• Keeps wiring and tubing routed away from moving parts and hot surfaces
• Helps maintain tidy component placement for reliable operation

• Disconnect power to the appliance before servicing.
• Use pliers or a tie tool to snug the tie; trim excess tail flush to avoid sharp edges.
• Single-use plastic ties may need replacement if cut for removal.
• Route tied components clear of fans, sharp edges, and heating elements.

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.

Dryer won't power on or controls aren't responding? This control transformer converts line voltage to power timers, relays, and sensors. Moderate DIY repair.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

Secures internal dryer components to the frame for stable alignment. Replace this mounting bracket if yours is cracked, broken, or missing to eliminate rattling.

The Coin Drop Assembly is an OEM replacement part for Whirlpool washers. It allows users to insert coins and activate the machine on commercial or coin-operated washers.

A bad coin drop assembly can be caused by wear and tear over time or damage due to excessive use or mishandling. If you notice issues such as the coin mechanism not working, coins getting stuck, or the machine not starting when coins are inserted, it may be time to replace the coin drop assembly.

Symptoms of a faulty coin drop assembly include:

• Coins not being accepted or not registering
• Coins getting jammed or stuck in the mechanism
• Inability to start the washer with the coin insertion

Restore the function of your Whirlpool commercial washer by replacing the old or damaged coin drop assembly with this genuine OEM part.

This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Cracked or faded control panel display? This dryer display cover protects the touchpad and display lens while restoring a clean, readable appearance.

This service access switch is the OEM-style replacement switch that detects and secures the appliance's service or control access point, helping technicians safely access internal components during diagnostics and repair. What it does:

• Detects whether the service/access panel or console is opened and signals the control board accordingly
• Helps prevent operation while the access panel is open for safer service
• Restores proper access-sensing when a worn or failed switch causes service-mode or control interlock issues
• Compatible where the appliance uses a dedicated access/service switch for control-board interlock functions

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove necessary panels or console to access and replace the switch
• Handle near control boards with care to avoid ESD damage; reconnect all wiring securely
• After installation, restore power and verify the switch correctly senses panel position and that the appliance operates normally

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

This wire harness is the factory-style electrical connector assembly that routes power and signals between your appliance's components, restoring reliable electrical connections for controls and motors. What it does:

• Carries power and control signals between modules and components
• Replaces damaged or frayed wiring that can cause intermittent operation
• Restores proper connections when controls, lights, or motors lose power
• Helps eliminate loose or corroded connector symptoms and poor contact

• Disconnect power to the appliance before starting any work.
• Visually inspect connectors and harness routing; match connector shapes before reconnecting.
• Secure the harness along the original routing and use existing clips or ties to prevent chafing.
• If you find burned or melted connectors, replace the harness and inspect mating parts for damage.

A short self-tapping screw used to fasten appliance panels and trim so components stay secure and aligned. Replacing a worn or missing screw restores proper fit and reduces rattling or loose parts. What it does

• Fastens panels, trim, and small assemblies to the appliance frame
• Keeps control panels, access panels, and bezels securely mounted
• Replaces stripped, rusted, or missing fasteners that cause vibration or rattling
• Helps maintain proper alignment of removable panels and covers

• One short self-tapping screw

• Disconnect power before working on the appliance to avoid shock or injury
• Use the correct screwdriver and hold parts in place while installing to avoid cross-threading
• Do not overtighten — stop when the panel is snug to prevent stripping or cracking
• Replace with the exact part number to ensure proper fit and function

This metal mounting bracket secures a switch in place inside the dryer. It ensures the switch stays properly aligned and makes reliable electrical contact during operation. Replace this bracket if it is bent, broken, or missing, which can cause the switch to become loose or the dryer to malfunction.

10-32 threaded bolt secures panels, brackets, and assemblies in dryers. Replace stripped, missing, or damaged fasteners to keep components held firmly.

This is the outer cover that protects the electrical terminal block on the back of a dryer. It shields the power cord connection point from accidental contact and helps prevent dust or debris from reaching the wiring terminals. Replace this cover if it is cracked, broken, or missing to ensure safe operation and protect the electrical connections.

This is a coin box used in commercial or coin-operated dryers. It collects coins deposited by users to activate the drying cycle. Replace this coin box if it is damaged, jammed, not accepting coins properly, or if the locking mechanism is broken.

6-20 screw secures panels, brackets, and internal components. Replace stripped, missing, or damaged screws to restore proper fit and eliminate rattling.

If your dryer won't turn on or has no power, a faulty power cord may be the cause. This line cord restores electrical connection to your appliance.

Dryer won't heat or ignites inconsistently? Faulty wire harness between gas valve and igniter disrupts ignition signals. Simple connector replacement.

This access door key operates the factory lock on select appliances. It replaces a lost or worn key so you can securely lock or unlock the access door and restore normal, controlled access to the compartment.

• Locks or unlocks the access door via the built-in lock cylinder
• Restores function when the original key is missing, bent, or broken
• Helps resolve situations where the door can't be opened or secured due to a worn key
• Maintains restricted access to the compartment when needed

• Verify this key matches your model's lock; keys are not universal
• Insert fully and turn gently—do not force a stuck lock
• If the lock cylinder is damaged or seized, replace the lock assembly
• Disconnect power if removing the door or servicing internal components

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information
