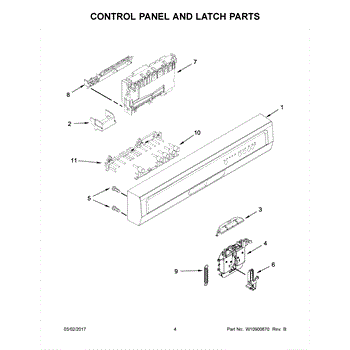

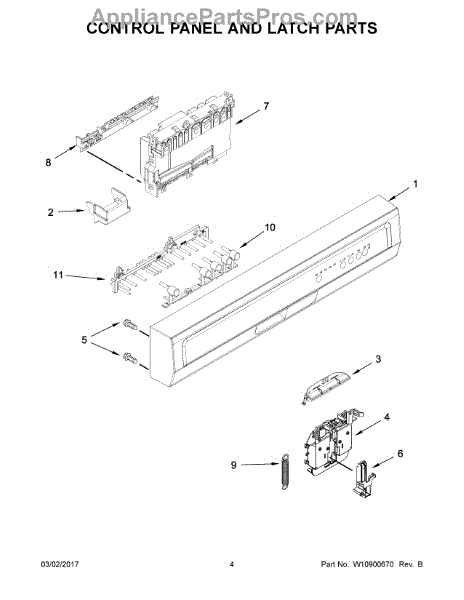

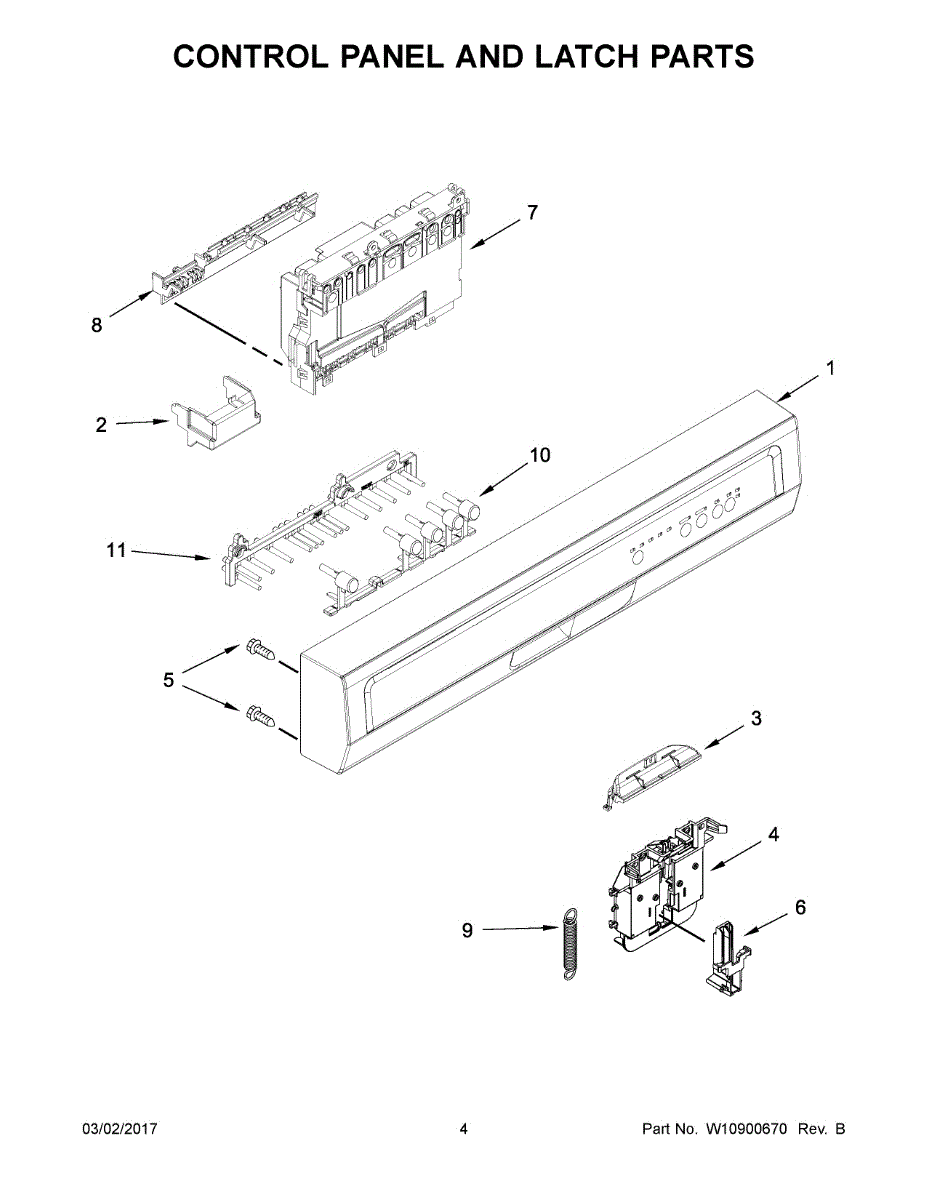

Parts for Whirlpool WDF320PADD3: 03 - Control Panel And Latch Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: Black

Color: Black


This mounting bracket holds and aligns the door interlock switch(es) so the control can accurately detect when the door is closed. Replacing a cracked or warped bracket restores reliable door recognition and consistent operation.

• Secures the door switch(es) in the correct position behind the front panel
• Maintains latch-to-switch alignment for proper door-closed detection
• Can address incorrect interior light behavior tied to door switch alignment

• Disconnect power before servicing
• Access the bracket by removing the necessary front/console panels
• Transfer existing switches and wiring to the new bracket; note wire positions
• Align and tighten fasteners; confirm switches click and door closes properly before reassembly

This replacement screw secures appliance panels and components so they stay tight and aligned. Replace a missing, rusty, or stripped fastener to restore a solid hold and reduce vibration or rattling during operation. What it does:

• Fastens and secures panels, brackets, trim, or internal components as specified for your model
• Replaces missing, corroded, or stripped hardware to restore a proper fit
• Helps prevent vibration, rattling, and misalignment caused by loose fasteners
• Addresses issues like a loose panel/handle or a screw head that's rounded off

• 1 screw

• Disconnect power; if applicable, shut off gas and water before servicing
• Use the correct driver size; start by hand to avoid cross-threading
• Tighten snugly—do not overtighten into plastic or thin sheet metal
• Keep track of original screw locations and lengths during reassembly

The Door Latch Actuator is an OEM part for Whirlpool dishwashers. This part securely latches the dishwasher door, ensuring that it stays closed during operation and that the wash cycles run smoothly. The actuator interacts with the door latch to activate the locking mechanism, providing a secure seal to prevent leaks.

Causes of a bad door latch actuator can include regular wear and tear, mechanical failure, or damage from accidental impacts.

Symptoms of a bad door latch actuator include:

• Dishwasher door not staying closed
• Dishwasher not starting because the door isn’t securely latched
• Difficulty latching or unlatching the door
• Leaks around the door during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This Electronic Control Board is the appliance's main control module. It interprets user inputs and manages cycle timing and power to components, restoring normal operation when a failed board causes no power, no start, or erratic behavior.

• Serves as the central "brain," processing inputs and controlling key functions
• Directs power to motors, pumps, valves, fans, and heaters as programmed
• Oversees cycle timing and monitors sensors/switches for proper operation
• Failure symptoms include dead display/no power, won't start, unresponsive buttons, random resets, or error codes

• Disconnect power to the appliance before servicing.
• Use ESD protection and handle the board by the edges.
• Photograph connectors; transfer any jumpers or mounting clips from the original board.
• After installation, restore power and run diagnostics or calibration if required.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This push button is a replacement control panel button that restores a responsive tactile switch on your appliance. It provides a simple, user-facing interface for selecting cycles or options. What it does:

• Replaces a worn, broken, or missing control panel button so selections can be made reliably
• Restores tactile feedback for accurate button presses
• Helps resolve symptoms such as unresponsive or stuck buttons and cosmetic damage to the panel
• Designed to fit the original button location and align with the underlying switch mechanism

• One (1) push button

• Install by removing the appliance control panel or trim per your model's service instructions
• Ensure power is disconnected before attempting replacement to avoid shock or damage
• Handle the button and surrounding bezel carefully to avoid bending clips or scratching the panel

This miniature door switch is the snap-action interlock that tells the appliance when the door is closed. Replacing a worn or sticking switch restores reliable start/stop and proper door-status sensing for safe, consistent operation. What it does:

• Acts as the latch/interlock sensor for door open/closed status
• Signals the control to allow or prevent operation based on door position
• Typical symptoms include: won't start or shows a door message, stops when the door is bumped, or light/fan behavior doesn't match door position

• 1 miniature door switch

• Disconnect power before servicing. If working on a microwave, high voltage may be present even when unplugged—properly discharge the capacitor.
• Access the latch/interlock area; note wire positions and transfer one lead at a time to the new switch.
• Use a multimeter to confirm the switch changes continuity when pressed before reassembly.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
