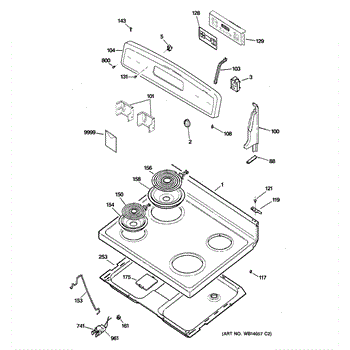

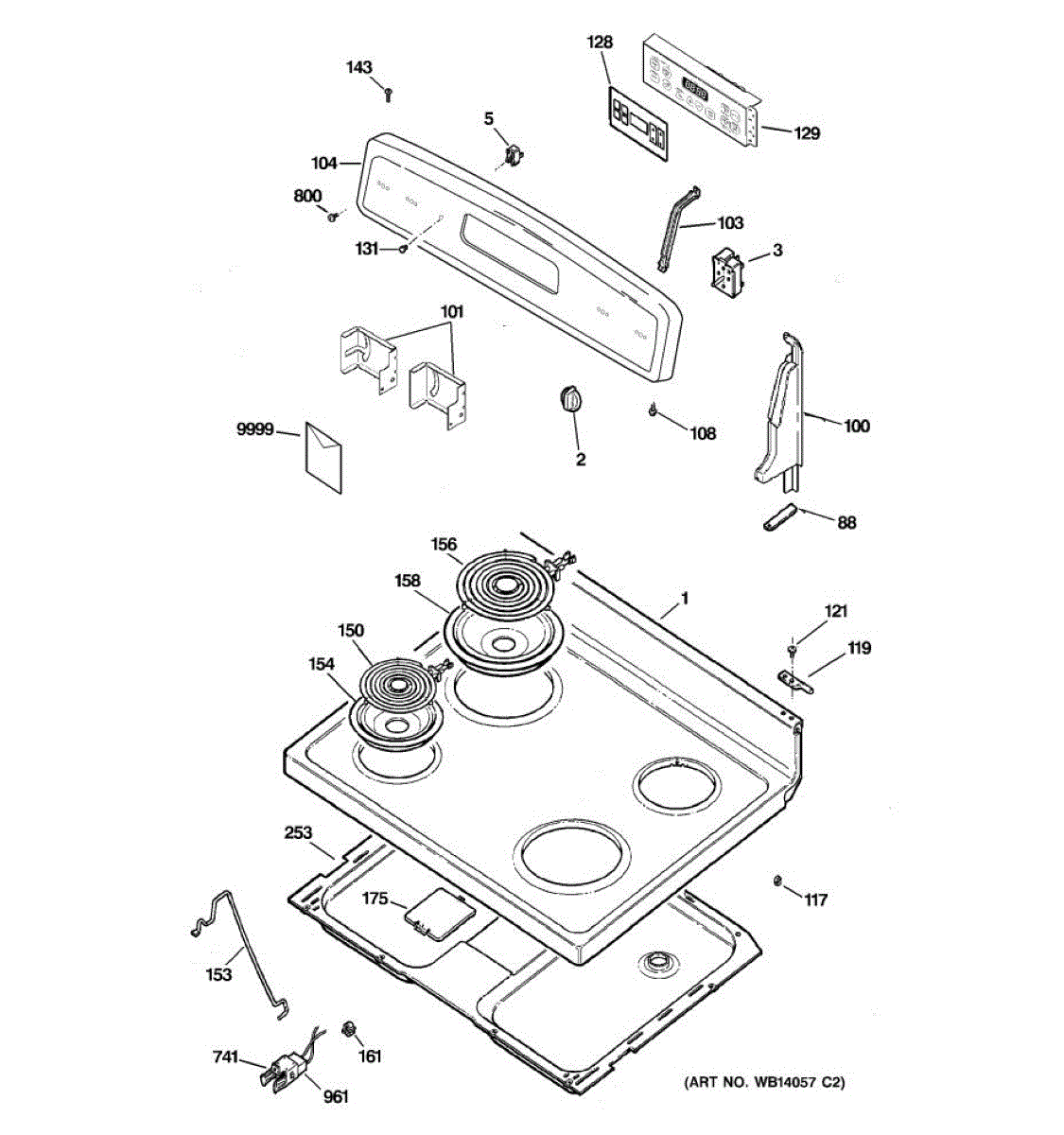

Parts for Ge JBP27DM1CC: 01 - Control Panel & Cooktop Parts

This main top is the cooktop surface that supports burners and cookware, restoring a flat, stable surface for safe cooking and easy cleanup. It replaces damaged, warped, or rusted tops to improve burner alignment and appliance appearance. What it does:

• Provides the flat surface that holds burners, grates, and cookware in correct position
• Protects internal components from spills, grease, and debris
• Restores proper burner alignment and spacing for even heating
• Improves appearance by replacing scratched, dented, or corroded tops

• Disconnect power to the range; shut off gas supply before servicing gas ranges
• Handle the top carefully to avoid cuts or damage; use two people for heavy or awkward tops
• Remove burner grates, knobs, and any retaining screws or clips per your model's service instructions
• Reinstall all removed components and test burners for proper operation after replacement

A replacement black cooktop glass surface that restores the smooth, easy-to-clean top on select GE electric cooktops. Replaces damaged or worn glass to help maintain a flat, stable surface for burners and cookware. What it does

• Replaces cracked, chipped, deeply scratched or otherwise damaged cooktop glass
• Restores an even, heat-resistant surface for electric burners and cookware
• Helps prevent debris from falling into the cooktop cavity through damaged areas
• Improves cooktop appearance and makes cleaning easier

• One black cooktop glass surface

• Disconnect power to the appliance before beginning any work
• Handle carefully — glass edges can be sharp and the part is fragile; use two people if needed
• Reuse existing trim, brackets or gaskets unless those components are also damaged

This replacement control knob presses onto the range/cooktop's infinite switch shaft to turn a surface element on/off and adjust heat levels. It restores smooth, dependable temperature selection and a finished look when the original knob is cracked, stripped, or missing.

• Mounts on the surface burner's infinite switch to select Low-to-High settings and Off
• Provides direct, smooth control of the surface heating element
• Typical symptoms: broken or missing knob, stripped hub that won't turn the switch, loose/wobbly fit
• Replacing the knob alone will not resolve the issue

• Disconnect power at the breaker before servicing
• Pull the old knob straight off the switch shaft—avoid prying on the control panel
• Align the new knob with "Off" and press straight on until fully seated
• Verify smooth rotation and proper pointer alignment with the panel markings

Color: White

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This right-side end support secures and aligns a refrigerator shelf/rail or drawer track so slides operate smoothly and stay in place. Replacing a damaged support restores proper shelf alignment and prevents drawers or bins from sagging. What it does

• Holds the end of a shelf rail or drawer track to keep sliding parts aligned
• Prevents shelves or drawers from sagging, binding, or falling out
• Reduces wobble or uneven movement when loading or sliding shelves/drawers
• Helps restore proper operation after a cracked, broken, or worn end bracket

• Disconnect power before working inside the refrigerator and remove food/items from affected area
• Remove the shelf, drawer, or rail to access the end support; note orientation for reassembly
• Require basic hand tools (screwdriver, nut driver) and light prying to release tabs or fasteners
• Reinstall components and test sliding action; discard damaged parts before reuse

This end support secures and aligns the appliance drum/shaft assembly so the tub spins smoothly and quietly. Replacing a worn support restores proper drum position and reduces rubbing or wobbling during operation. What it does:

• Holds the drum/shaft in the correct position at the left front to maintain smooth rotation
• Provides a mounting surface and bearing area that prevents metal-on-metal contact
• Common symptom: loud scraping, grinding or thumping noises during spin
• Common symptom: visible drum wobble, rubbing or uneven rotation

• Disconnect power before any disassembly
• Remove outer panels and drum as needed to access the support; follow your model's service manual for steps
• Keep track of fasteners and note part orientation for correct reassembly
• Inspect adjacent parts for wear and replace if needed

This left-side cooktop bracket secures the cooktop to the range frame, restoring a solid, stable fit and preventing movement or misalignment. Durable stamped metal bracket designed to replace a worn or damaged mounting point. What it does:

• Anchors the left side of the cooktop to the range frame so the cooktop sits flush and stable
• Stops rocking, shifting, or gaps between the cooktop and the range while using the appliance
• Restores proper alignment after impact or corrosion of the original bracket

• One left-side cooktop mounting bracket

• Disconnect power to the appliance before beginning any repair
• Remove the cooktop or control panel per service instructions to access the bracket
• Use basic hand tools; replace only the damaged bracket and retain original fasteners unless corroded
• Tighten fasteners snugly but avoid over-torquing to prevent striping or damage

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

Color: Bisque

Color: White

Color: Black

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Color: White. Mounting screw for end caps.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This Surface Heating Element is an OEM replacement part for GE ranges. It is responsible for generating heat on the stovetop surface, allowing you to cook or heat food in pots or pans. The range surface heating element is located on the cooktop, beneath the burner bowl or drip pan.

Causes of a bad surface heating element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface heating element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

This part fixes the following symptoms:

• Insufficient or no heat produced by the burner
• Uneven heat distribution across the element
• Visible damage or signs of wear, such as cracks or breaks, on the heating element
• Sparks or electrical arcing occurring during use

The GE 6-inch range surface heating element can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6-Inch Burner Bowl is an OEM part compatible with GE ranges and cooktops. This component serves as the base for the burner assembly, housing the burner head and providing a stable platform for cooking utensils.

Symptoms of a faulty burner bowl include:

• Cracks, chips, or visible damage to the bowl itself
• Uneven or inefficient heating due to a warped or damaged bowl
• The bowl becoming loose or detached from the cooktop surface

Causes of needing to replace the burner bowl can include physical impact or mishandling, exposure to extreme temperatures or spills, or general wear and tear from extended use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

The 6 Inch Small Burner Bowl is an OEM part for GE stoves and ranges. It is a durable and heat-resistant bowl that sits beneath the heating element of the small burner, providing a stable and level surface for your cookware. The small burner bowl helps distribute heat evenly and protects the cooktop from spills, stains, and other messes. For the matching 8-inch large burner bowl order WB31T10011.

A bad small burner bowl can be caused by regular use, accidental damage, or it may become discolored, warped, or rusted over time.

Symptoms of a bad small burner bowl include:

• Difficulty in cleaning or removing stubborn stains.
• A loose or wobbly heating element.
• Visible damage such as cracks or chips on the bowl.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Large Surface Element is an OEM part for GE ranges and cooktops. This part provides the heat needed for cooking on the range's surface. This large element ensures even heat distribution and consistent cooking temperatures, making it ideal for boiling, frying, and other high-heat cooking methods.

Over time, surface elements can burn out or become less efficient, leading to uneven cooking or failure to heat up at all. This can be due to a variety of reasons, including prolonged use, overheating, or physical damage.

Symptoms of a bad Large Surface Element include:

• The element does not heat up
• It heats unevenly or only partially
• Visible damage to the element, such as blistering or cracks
• The element takes longer than usual to heat up

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. This part sits beneath the heating element to catch spills, drips, and crumbs that fall during cooking. Not only does it facilitate easier cleanup, but it also plays a role in reflecting heat back to the cookware, enhancing cooking efficiency.

Causes of a bad 8-inch burner bowl can include the accumulation of cooked-on spills and debris, rust and corrosion from moisture exposure, as well as warping or physical damage that affects fit and function.

Symptoms of a bad 8 Inch Burner Bowl include:

• Poor fit on the stove, affecting stability of pots and pans
• Difficulty in cleaning due to excessive staining or corrosion
• Reduced heating efficiency if the bowl no longer reflects heat effectively

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 8 Inch Large Burner Bowl is an OEM replacement part for GE ranges and cooktops. This component is designed to accommodate the larger burners on the cooking surface, providing a stable and safe platform for pots and pans during cooking.

Symptoms of needing to replace the 8 inch large burner bowl include:

• Cracks, chips, or damage to the bowl's surface
• Warping or deformation due to excessive heat
• Difficulty in properly positioning pots and pans on the burner

Causes of a faulty burner bowl can include normal wear and tear over time, exposure to extreme temperatures or thermal shocks, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

This small retainer secures the surface element receptacle in a range or cooktop so the element plugs in straight and stays seated. Replacing a bent or missing clip helps restore a stable, reliable connection.

• Holds the surface element receptacle firmly to the cooktop or bracket
• Keeps the element plug aligned and fully seated
• Helps prevent arcing, heat damage, and intermittent burner performance from a loose receptacle
• Useful when the element feels wobbly or the receptacle shifts during use

• Disconnect power before servicing
• Lift the cooktop or access panel to reach the receptacle area
• Support the receptacle, release the old clip, and snap the new clip into place
• Ensure the receptacle is secure and aligned before reinstalling the element

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.
