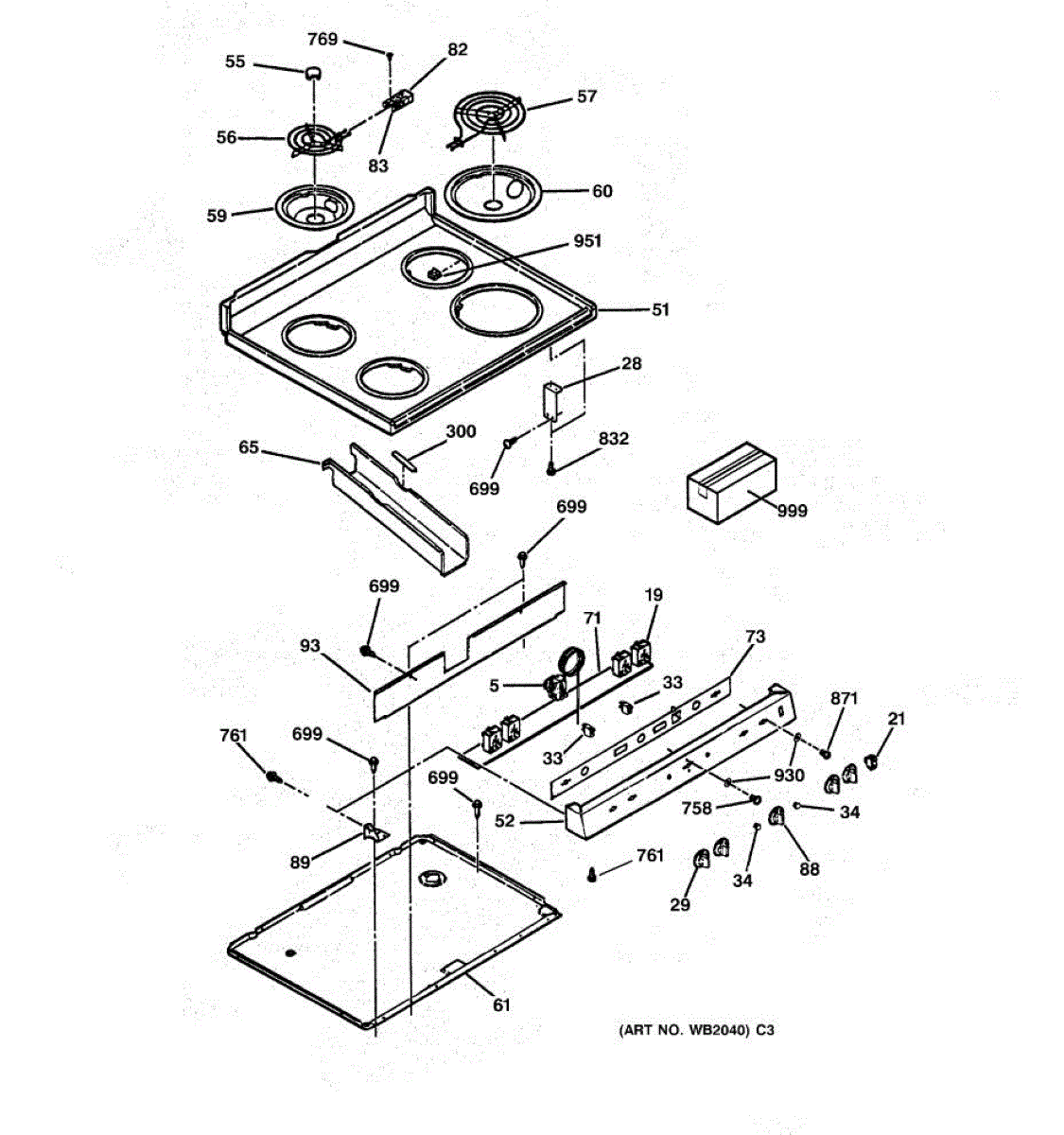

Parts for Ge JBS05Y2WH: 02 - Controls & Cooktop Parts

This thermostat regulates oven temperature to maintain consistent cooking heat and help restore accurate bake and broil performance. Fits select ranges and ovens; replaces a failed or inaccurate temperature control. What it does:

• Senses oven temperature and cycles the heating elements to maintain the set temperature.
• Restores correct oven temperature when the appliance is running too hot, too cold, or has uneven baking.
• Works as the control linkage between the oven temperature knob/selector and the heating system.
• Commonly replaced when the oven won't reach set temperatures or temperature readings are erratic.

• Disconnect power to the appliance before starting any repairs to avoid shock or injury.
• Accessible from the oven control panel or rear of the range; some models require removing the back panel or control console.
• Handle the thermostat carefully to avoid bending the sensing element; improper handling can affect accuracy.

6" element switch

The Infinite Switch is an OEM replacement part for GE ranges. This switch controls the operation of the large heating elements on the cooktop. The element switch is responsible for regulating power delivery to the various heating elements based on temperature and function settings. It allows for precise heating control to maintain optimal cooking temperatures. Over time, element switches can wear down from repeated use and heat exposure.

Causes of a bad switch include burned-out or loose internal connections, damaged terminals, or defects in the electronic components.

Symptoms of a bad element switch include:

• Inability to turn elements on or off
• Elements not heating properly or unexpectedly shutting off
• Inconsistent or fluctuating oven or surface temperatures
• Electronic display or control issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This replacement control knob fits onto the range/cooktop infinite switch shaft to turn a surface element on/off and select heat levels. A fresh knob restores clear, positive control when the original is cracked, stripped, or missing. What it does:

• Interfaces with the infinite switch to control a surface element's power level
• Enables smooth on/off operation and precise heat selection
• Helps resolve issues like a loose or falling-off knob, difficulty turning the control, or inability to set temperature
• Refreshes worn or damaged control surfaces for easier readability and use

• 1 control knob

• Disconnect power at the breaker before servicing
• Pull the old knob straight off the switch shaft—do not pry against the panel
• Align the new knob with the shaft and push straight on until fully seated
• Reconnect power and verify proper burner operation through all settings

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

Restore reliable heat on your range's small burner with this 6-inch surface coil element. Replacing a worn or burned-out coil brings back consistent temperature response and dependable everyday cooking performance.

• Supplies direct electric heat to a 6-inch cooktop burner
• Replaces a coil that is warped, cracked, or has an open/burned-out section
• Common symptoms include: burner won't heat, heats unevenly, or works intermittently
• Visible damage, hot spots, or arcing at the terminals can indicate failure

• Disconnect power by unplugging the range or switching off the circuit breaker
• Lift the old coil and pull straight out from the receptacle to remove
• Inspect the element receptacle/terminal block for discoloration or pitting; replace if damaged
• Align terminals and support, insert fully, and ensure the element sits level in the drip bowl

The 8" Surface Element is an OEM part for GE ranges. It is an 8-inch heating element that fits into the cooktop to provide heat for cooking.

Causes of a bad surface unit include wear and tear from regular use, damage due to heavy cookware, or electrical issues that prevent the element from heating correctly.

Symptoms of a bad surface unit include:

• The burner not heating up
• Uneven heating or hotspots
• Visible damage or burn marks on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drip Pan is an OEM part for GE ranges. This part is located under the burner to catch spills, drips, and crumbs during cooking. The drip pan helps maintain cleanliness by containing messes, making it easier to keep the cooktop clean and preventing spills from reaching the internal components of the appliance. Note: This is the drip pan used with the 6-inch element. For the drip pan used with 8-inch element, order WB31K5025.

Causes of a bad drip pan can include regular wear and tear, discoloration from repeated use, or damage from heavy pots and pans.

Symptoms of a bad drip pan include:

• Visible cracks or holes in the pan
• Rust or significant discoloration
• Difficulty in cleaning the pan
• The pan not fitting securely under the burner

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drip Pan is an OEM part for GE ranges. It sits underneath the burners to catch spills, drips, and splatters during cooking, preventing these residues from reaching the internal components of the appliance. This helps in maintaining cleanliness and safety, while also making it easier to clean the stovetop.

Causes of a bad drip pan can include prolonged exposure to high heat, which can cause warping or discoloration, and the accumulation of food debris and grease, which can lead to corrosion or foul odors.

Symptoms of a bad Drip Pan include:

• Visible rust or corrosion
• Warping or misalignment with the burners
• Persistent stains or burnt-on food that cannot be cleaned
• Unpleasant odors emanating from the stove area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.

This thermostat knob replaces a worn or broken control knob and restores a positive grip for adjusting oven temperature. Designed to match original fit and appearance for straightforward control access. What it does:

• Fits onto the oven/stove thermostat shaft to allow manual temperature selection.
• Provides a secure grip for precise setting and control.
• Replaces cracked, stripped, or missing knobs that prevent proper adjustment.
• Helps stop slipping or spinning that keeps the control from engaging.

• Turn power to the appliance off before servicing to avoid injury.
• Typically pulls straight off the control shaft; align splines and push knob fully onto shaft to install.
• Inspect the shaft and retaining features for damage; replace control assembly if shaft is bent or excessively worn.

ST10-16 X 7/16"

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This panel clip secures a trim or control panel to the appliance cabinet, keeping the panel aligned and preventing movement or rattling. It's a small replacement clip used when the original clip is cracked, broken or missing. What it does:

• Fastens a trim or control panel to the appliance cabinet to maintain a flush fit
• Helps prevent panel vibration, noise and gaps that can expose internal components
• Replaces worn, cracked or broken clips that no longer hold the panel securely
• Restores proper panel alignment after panel removal or repair

• Disconnect power to the appliance before attempting any repair to avoid shock
• Remove trim or panel per service instructions to access the clip location
• Clip installs by snapping into the panel or cabinet slot; avoid forcing to prevent damage
• Replace any additional damaged clips for even alignment and secure fit
