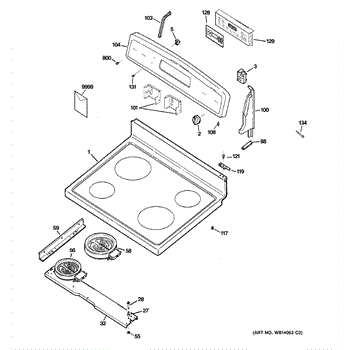

Parts for Ge JBS56DM2WW: 01 - Control Panel & Cooktop Parts

Color: White

Color: White

The Infinite Control Switch is an OEM replacement part for GE electric ranges. It controls the heat output of the surface burners.

Causes of a faulty switch can include failures in the circuitry from extended and repetitive use over time. Exposure to liquid splatters or spills can also impact component wiring.

Symptoms of a bad infinite control switch include:

• Unresponsive or incorrectly functioning control buttons/dials
• Inability to turn on desired cooking elements
• Erratic temperature regulation and heating performance
• Repeated resetting or power intermittence issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This 6" surface radiant element replaces a damaged or non-heating cooktop burner so your range heats evenly and cooks reliably. It fits into the cooktop opening and connects to the existing terminal block for standard operation. What it does

• Heats cookware by radiating heat from the glass-ceramic cooktop surface
• Restores a single 6" cooking zone that won't heat, cycles, or shows visible damage
• Works with standard cooktop terminal block connections and mounting clips
• Helps eliminate uneven cooking, no-heat, or intermittent heat symptoms

• One 6" surface radiant element

• Disconnect power at the breaker before servicing to avoid shock
• Remove the glass cooktop and access the element terminals per OEM instructions
• Verify terminal connections and element size/fit before final assembly

This 8-inch Haliant radiant surface element mounts beneath the glass of a smooth-top range to heat a single cooking zone. Replacing a failed element restores proper heating response and consistent performance on that burner. What it does:

• Heats the 8-inch cooking zone by converting electrical energy to radiant heat beneath the glass
• Helps provide even heating and smooth simmer-to-boil control
• Works with the surface control to cycle and maintain the set temperature
• Typical failure symptoms: no heat, very slow heating, or inconsistent/uneven heating on that burner

• 1 Haliant 8-inch radiant surface element

• Disconnect power at the breaker; allow the cooktop to cool fully
• Lift/remove the glass top per your model's procedure to access the element
• Note wire locations and transfer any mounting clips/brackets from the old element if needed
• After reassembly, test the burner; if it still won't heat, the surface element switch/control may be at fault

This right-side end support secures and aligns a refrigerator shelf/rail or drawer track so slides operate smoothly and stay in place. Replacing a damaged support restores proper shelf alignment and prevents drawers or bins from sagging. What it does

• Holds the end of a shelf rail or drawer track to keep sliding parts aligned
• Prevents shelves or drawers from sagging, binding, or falling out
• Reduces wobble or uneven movement when loading or sliding shelves/drawers
• Helps restore proper operation after a cracked, broken, or worn end bracket

• Disconnect power before working inside the refrigerator and remove food/items from affected area
• Remove the shelf, drawer, or rail to access the end support; note orientation for reassembly
• Require basic hand tools (screwdriver, nut driver) and light prying to release tabs or fasteners
• Reinstall components and test sliding action; discard damaged parts before reuse

This end support secures and aligns the appliance drum/shaft assembly so the tub spins smoothly and quietly. Replacing a worn support restores proper drum position and reduces rubbing or wobbling during operation. What it does:

• Holds the drum/shaft in the correct position at the left front to maintain smooth rotation
• Provides a mounting surface and bearing area that prevents metal-on-metal contact
• Common symptom: loud scraping, grinding or thumping noises during spin
• Common symptom: visible drum wobble, rubbing or uneven rotation

• Disconnect power before any disassembly
• Remove outer panels and drum as needed to access the support; follow your model's service manual for steps
• Keep track of fasteners and note part orientation for correct reassembly
• Inspect adjacent parts for wear and replace if needed

This left-side cooktop bracket secures the cooktop to the range frame, restoring a solid, stable fit and preventing movement or misalignment. Durable stamped metal bracket designed to replace a worn or damaged mounting point. What it does:

• Anchors the left side of the cooktop to the range frame so the cooktop sits flush and stable
• Stops rocking, shifting, or gaps between the cooktop and the range while using the appliance
• Restores proper alignment after impact or corrosion of the original bracket

• One left-side cooktop mounting bracket

• Disconnect power to the appliance before beginning any repair
• Remove the cooktop or control panel per service instructions to access the bracket
• Use basic hand tools; replace only the damaged bracket and retain original fasteners unless corroded
• Tighten fasteners snugly but avoid over-torquing to prevent striping or damage

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

Color: White

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Color: White. Mounting screw for end caps.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
