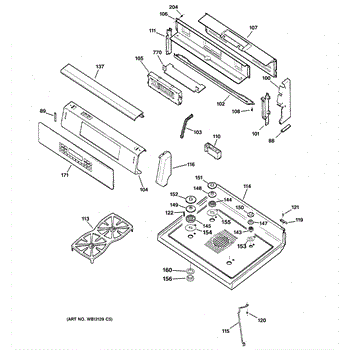

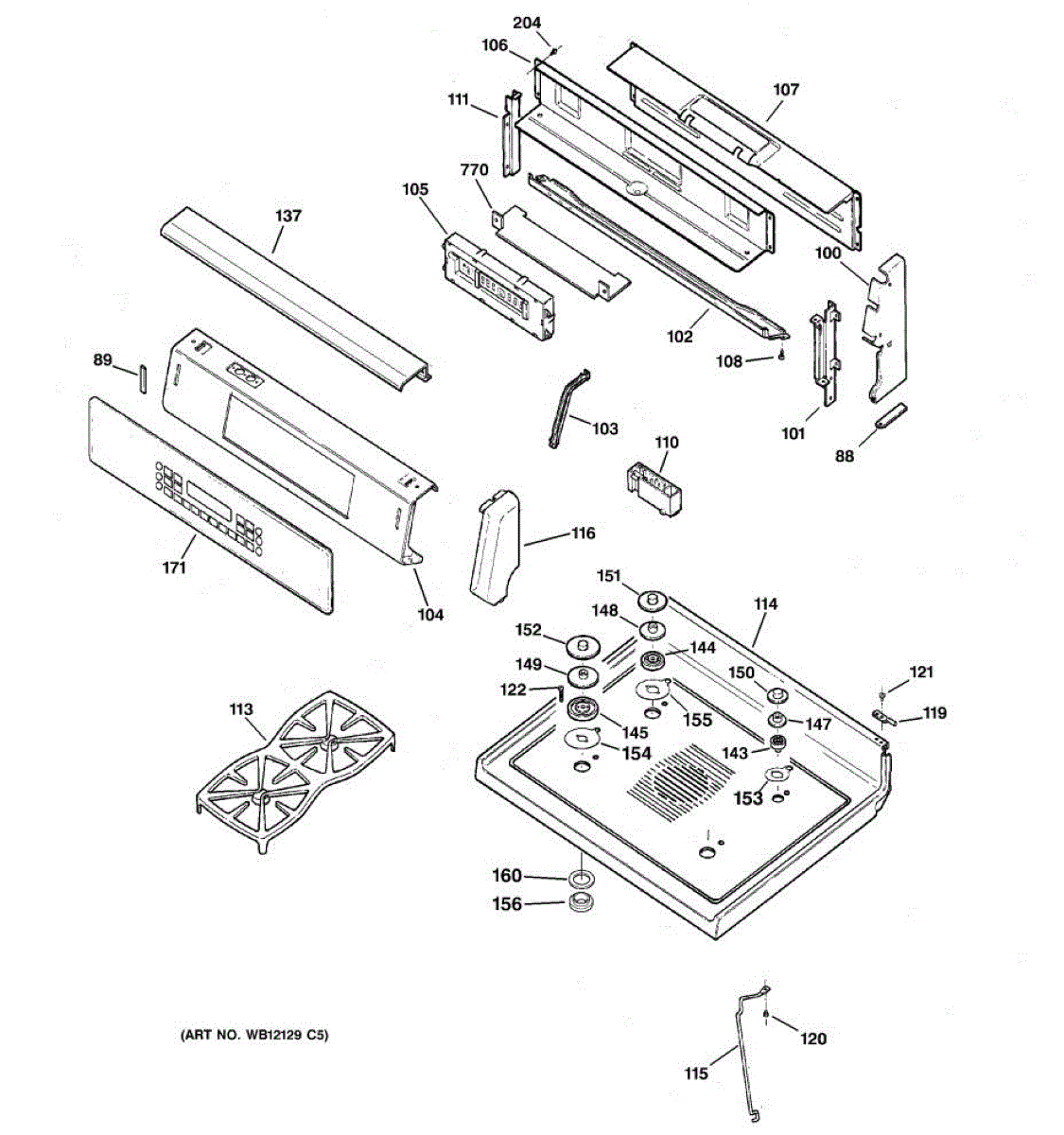

Parts for Ge JGB920SEC4SS: 02 - Control Panel & Cooktop Parts

Color: Black

This right-hand end plate is a direct-replacement body panel that restores proper support and alignment to the appliance's exterior components. It helps maintain a secure fit and appearance after damage or wear. What it does:

• Replaces a bent, cracked, or corroded right-side end plate to restore panel alignment
• Provides mounting/support for adjacent trim and components to prevent gaps or sagging
• Stops rattling or vibration caused by a loose or damaged end plate
• Helps maintain a finished exterior look and proper sealing where panels meet

• One right-hand end plate

• Disconnect power (and water, if applicable) before beginning any repair
• Use appropriate hand tools; avoid overtightening fasteners to prevent panel distortion
• Handle edges carefully — panels and sheet metal can be sharp
• Test fit and align panels before fully tightening all screws

Color: Black

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Color: Black. Dual.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

Approx 1-1/2 inches in diameter

Color: Black. This medium burner cap is used to ensure the gas burner's heat is evenly distributed for cooking on gas stoves. The burner cap sits under the burner grate and covers the exposed flame, acting as a sort of hot plate. As the flame heats the cap, the heat is distributed upwards. The amount of heat is determined by temperature control which adjusts the gas flow. This burner cap is designed for the medium burners on the stove and should not be used for other size burners. Over time, the burner cap may become damaged due to food spills or simply due to the stove's age. If the cap is damaged, it should be replaced before cooking on the burner.Make sure the stove is completely cool before removing and replacing the burner cap. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Line the new burner cap up and place it over the burner spreader. Put the grate back on the stove.This medium burner cover is made of heat-tempered metal and is sold individually. It is an authentic OEM part sourced directly from the manufacturer. It is designed for use on gas stovetops manufactured by General Electric.

This burner cap is an authentic OEM replacement part sourced directly from the manufacturer. It is used on gas ranges to distribute the burner's heat evenly. There are various size burners on gas stovetops, with each size having a specific size of burner cap. This cap is for large burners and should not be used on other size burners. Over time, the burner cap may become rusted from being washed or having liquids spilled on it. If the cap is damaged, it should be replaced before cooking on the burner.To start, disconnect the gas and ensure that the grate and burner are completely cool before touching the parts. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Align the new burner cap up with the grooves on the burner and set it flush. Restore the grate and turn the gas back on to operate the stove. Test the burner to make sure it is seated correctly.This large burner cover is made of heat-tempered metal and is sold individually. It is designed for use on gas stovetops manufactured by General Electric.

Small

Note: The part is approximately 3" in diameter.

Note: The part is approximately 2-3/8" in diameter.

This small cooktop gasket seals and cushions the edge of a stovetop glass or ceramic surface to help keep out spills and debris and reduce vibration. It restores a proper seal around the cooktop for safer, cleaner operation. What it does:

• Provides a protective seal between the cooktop and surrounding trim or countertop
• Cushions the cooktop edge to reduce glass-to-frame contact and rattling
• Helps prevent food, liquid and debris from entering gaps under the cooktop
• Can reduce moisture-related issues around the cooktop perimeter

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the cooktop or trim to access the gasket channel
• Clean and dry the mounting surface before installing the new gasket for best fit
• Press the gasket into place evenly; replace any retaining clips or hardware removed during disassembly

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold
