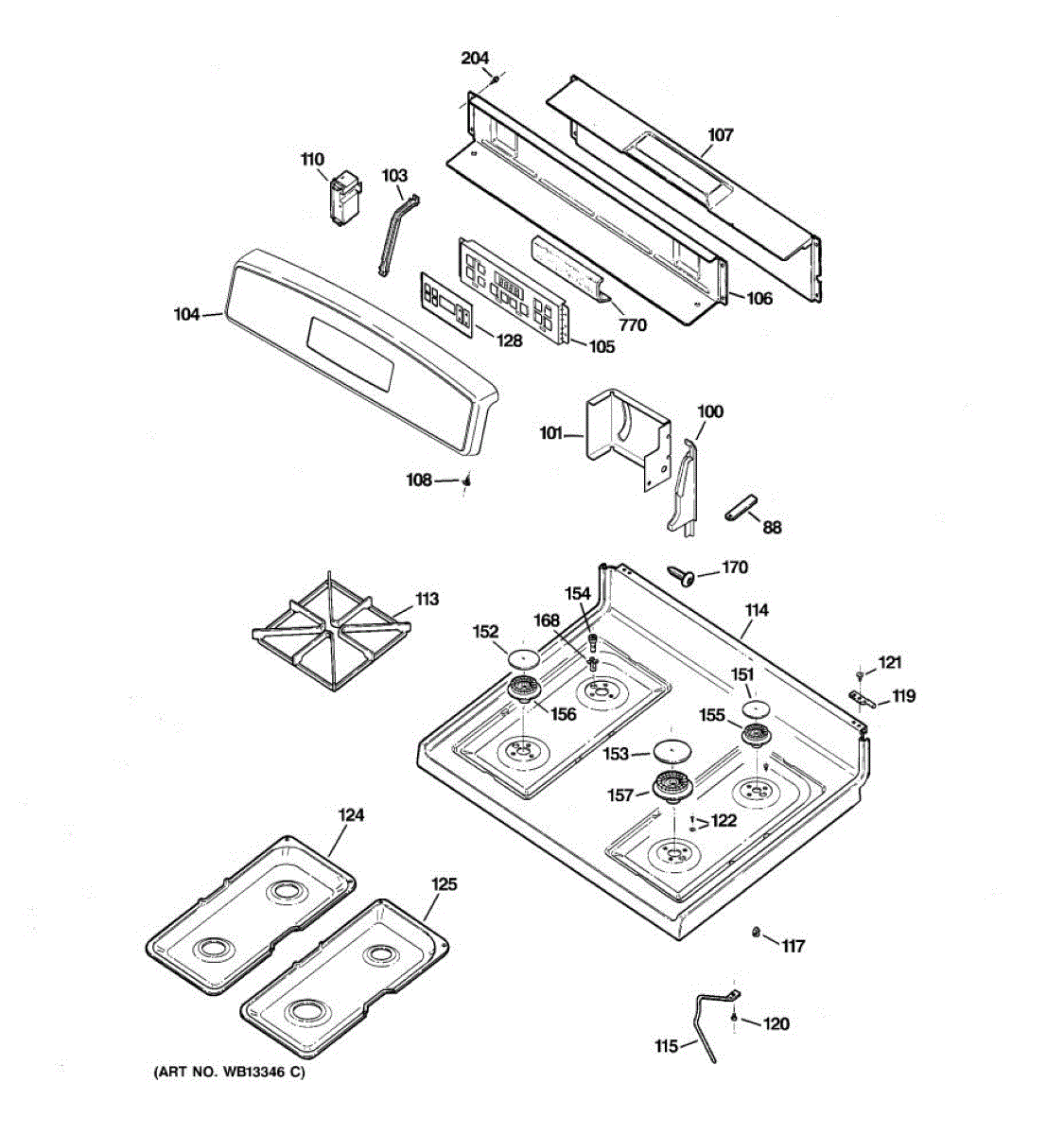

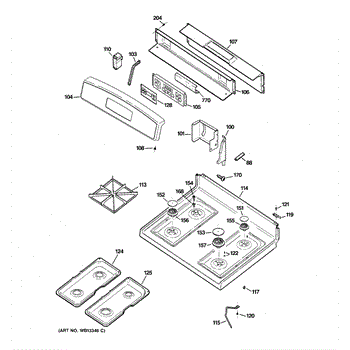

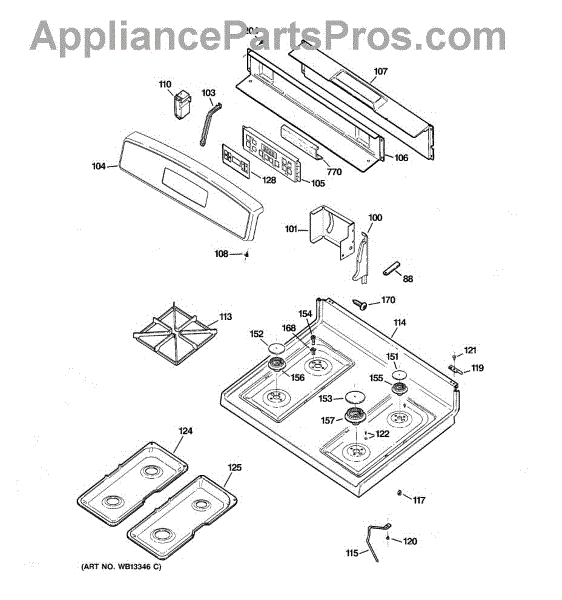

Parts for Ge JGBP30BEH3WH: 02 - Control Panel & Cooktop Parts

Black left-hand endcap for electric and gas ranges. Replaces cracked, broken, or missing endcaps on the side of your range for a complete finished look.

Black plastic endcap for the right side of your range control panel. Replace this cosmetic trim piece if it's cracked, broken, or missing.

Right hand side

Left hand side

The control trim panel is the decorative and protective frame that surrounds the controls on your appliance's console. It gives the control area a finished look while also protecting the edges of the control panel from wear and damage. Replace this part if the trim is cracked, broken, discolored, or has separated from the console.

Range won't heat or display is blank? This electronic control board manages temperature and oven functions. DIY-friendly repair, typically 10 minutes.

Replace the upper back cover on your gas range. This housing panel protects internal components and completes the exterior finish. Order now if cracked or missing.

Replaces the lower back cover panel on your range. Install this protective housing if your original is cracked, broken, or missing. Secures to rear.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Harness connects spark module to burner igniters on gas ranges. Replace if wires are frayed, cracked, burned, or damaged to restore reliable ignition.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Burner grate for gas ranges. Holds cookware over burners. Replace if cracked, warped, rusted, or missing. Sold individually, not as a set.

Color: White

Top support plate for gas ranges. Mounts beneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Cooktop mounting screw secures the cooktop to frame or brackets. Replace if stripped, missing, or rusty to eliminate wobble, rattling, or lifted corners.

Double drip pan installs beneath range burners to catch spills and cooking residue. Replace when cracked, stained, or coated with burnt-on grease.

Replace cracked, stained, or worn drip pans that sit beneath burner elements. Catches spills and crumbs during cooking. Easy cosmetic upgrade.

Color: Black

Black burner cap sits on top of your gas range burner head. Replace if cracked, chipped, stained, or missing to restore your cooktop's appearance.

Black burner cap sits atop the burner head on gas ranges and cooktops. Replace if cracked, chipped, discolored, or missing to restore appearance.

Black burner cap for gas range cooktops. Replaces cracked, stained, warped, or missing caps. Sits atop burner base for proper flame distribution.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Insulation shield that installs behind the range control panel. Protects control board and wiring from oven heat. Replace if cracked, damaged, or missing.
