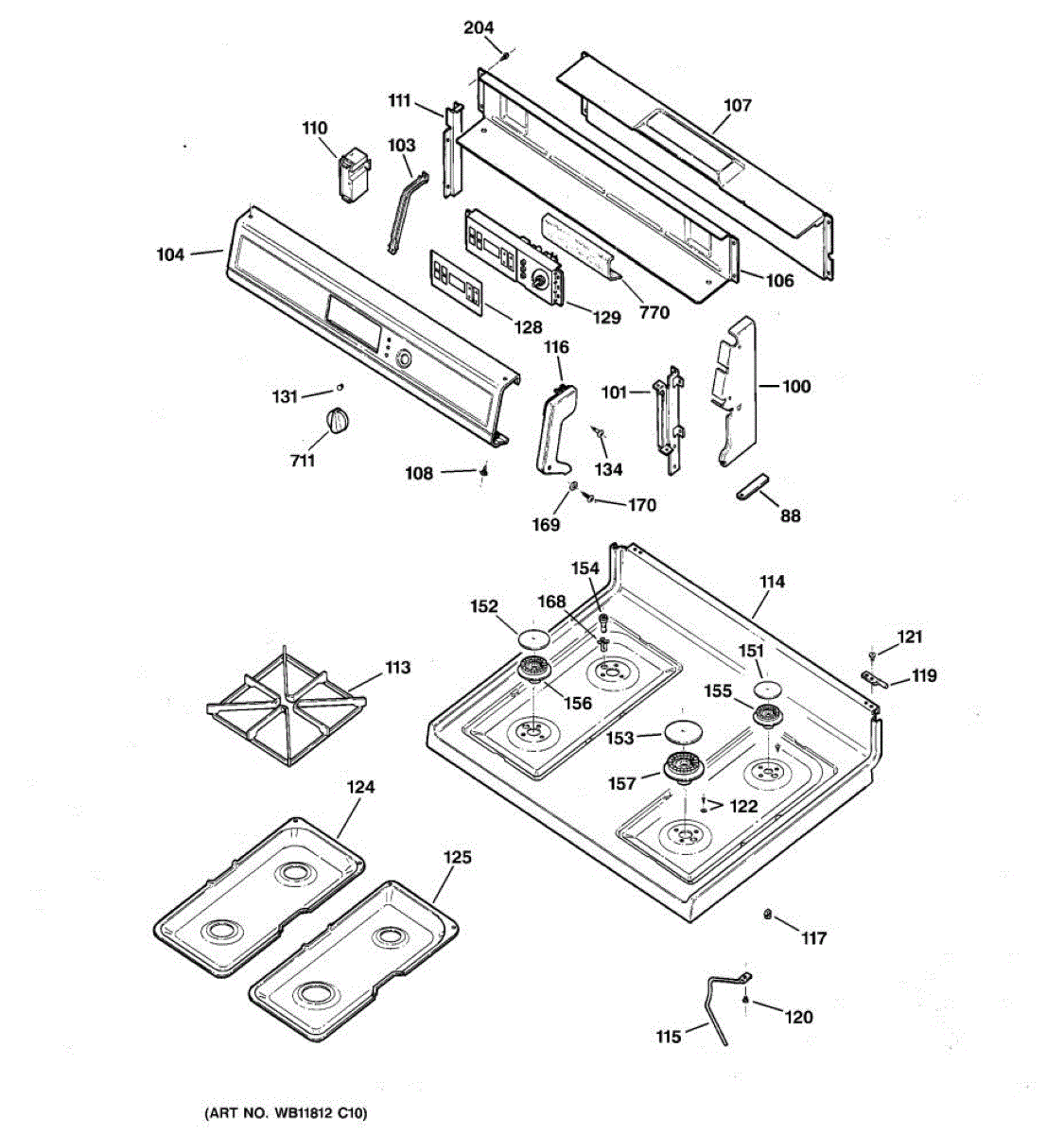

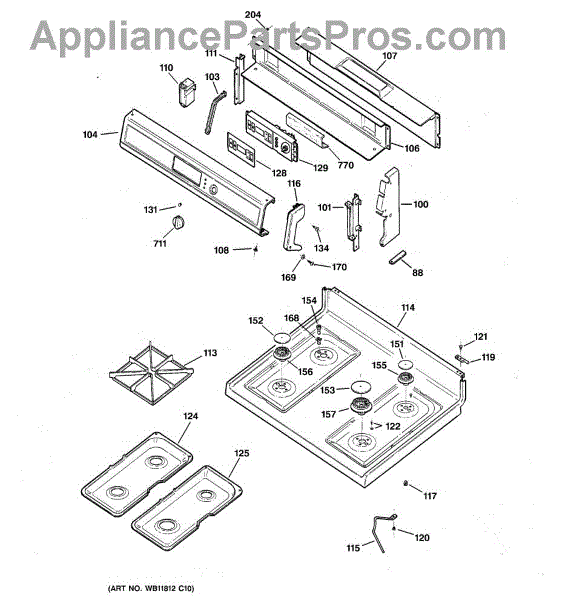

Parts for Ge JGBP30CEA3CC: 02 - Control Panel & Cooktop Parts

Replace worn felt pad gasket to prevent heat loss and reduce noise in your range. Cushions components and ensures proper sealing. Confirm fit with model number.

Right-hand end plate for electric ranges. Replaces cracked, bent, or corroded exterior panel. Restores proper support and alignment to side components.

Left side end plate for electric ranges. Replaces cracked, broken, or missing end panels that provide structural support and finished appearance.

Replace the upper back cover on your gas range. This housing panel protects internal components and completes the exterior finish. Order now if cracked or missing.

Harness connects spark module to burner igniters on gas ranges. Replace if wires are frayed, cracked, burned, or damaged to restore reliable ignition.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Protective wire cover for range burner igniter wires. Replaces cracked, broken, or missing covers. Shields wiring from damage inside the range cabinet.

The Grate Replacement Kit is an OEM part for GE ranges. This kit includes all necessary grates and supports to fully outfit the main oven cavity. Properly placed grates are important for optimal food placement and heat circulation during baking.

Symptoms of needing a new grate kit include:

• Warped or misshapen grates that no longer lay flat
• Broken welds or detached grate supports
• Missing sections or grates that have completely broken apart

Causes involve the harsh temperatures and food cleanings taking their toll over years of use. Natural wear and cumulative stress weaken metal parts.

Color: Bisque

This authentic GE grate replacement kit restores like-new functionality. The heavy-duty grates and supports promote even baking and easy cleanup. Upgrading with this kit maintains your oven's quality cooking performance.


Color: Biscuit

Top support plate for gas ranges. Mounts beneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Cooktop mounting screw secures the cooktop to frame or brackets. Replace if stripped, missing, or rusty to eliminate wobble, rattling, or lifted corners.

Color: Taupe. Left hand side

Color: Taupe. Right hand side

If your oven clock is blank, won't heat, or the display is unresponsive, this control board manages the interface and temperature outputs. Moderate DIY.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

Mounting screw for range end cap installation. Replace if screw is stripped, missing, or damaged during disassembly. Secures end cap trim piece.

Small size. Color: Taupe, used for Bisque models. Measures about 2-1/2 inches in diameter.

Medium. Color: Taupe, used for Bisque models. It measures about 3 inches in diameter.

Black burner cap kit for gas cooktops. Replaces cracked, worn, or corroded caps. Restores appearance and protects burner assembly. Includes caps only.

Electrode

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Clear washer for range assembly and mounting applications. Replaces worn, cracked, or missing washers in your range. Essential hardware component.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.
