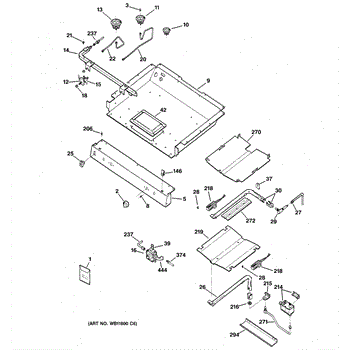

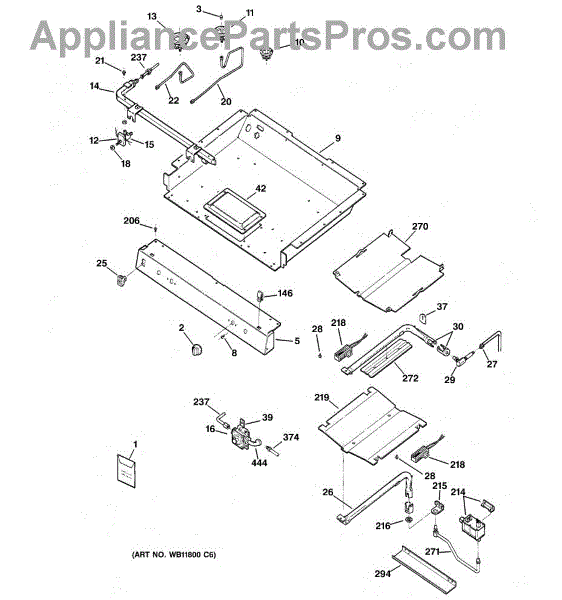

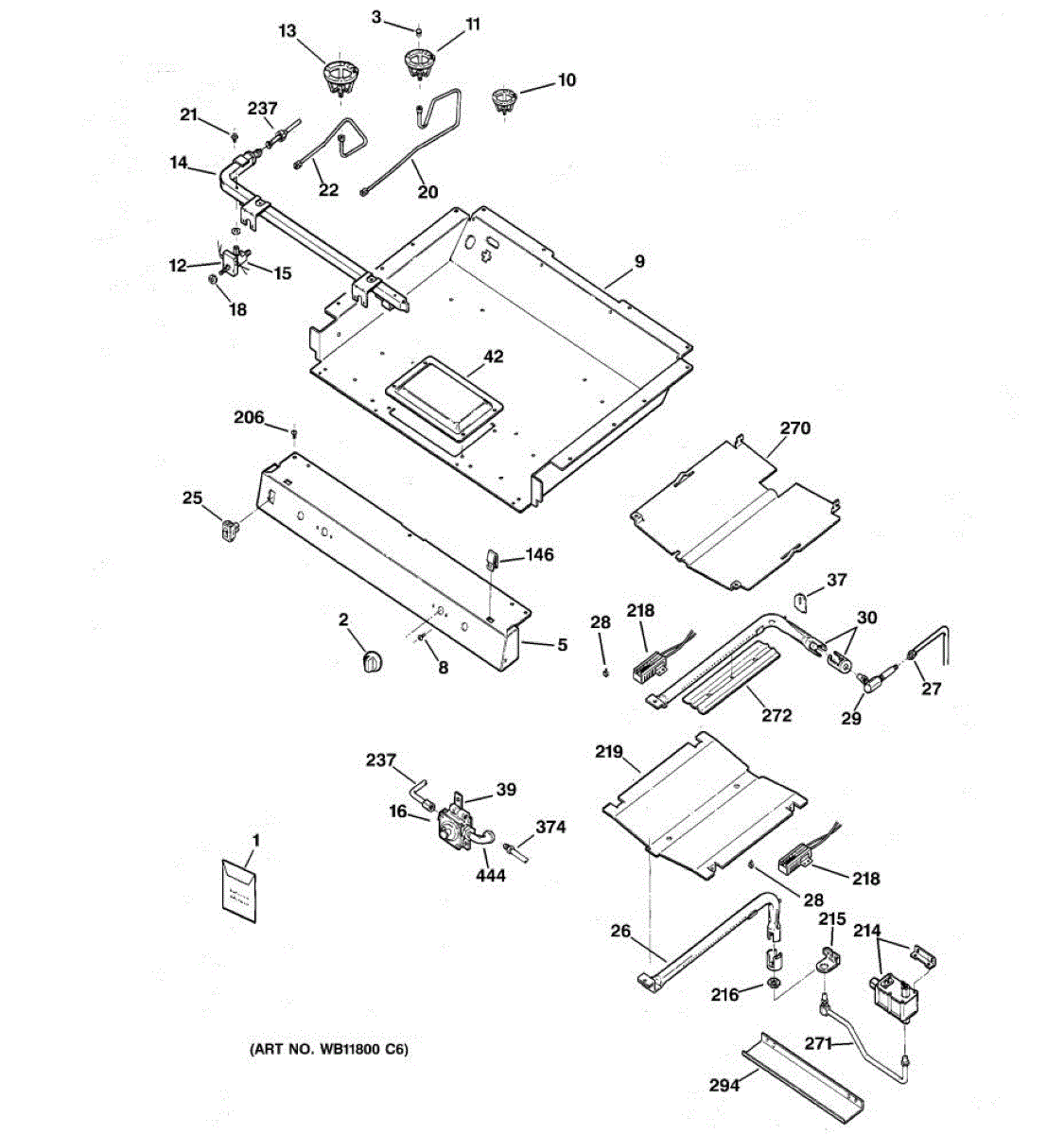

Parts for Ge JGBP30CEA3CC: 01 - Gas & Burner Parts

Anti-tip bracket kit installs to the floor behind your range or wall oven to prevent tipping. Replace if missing, damaged, or moving to a new home.

Replace your worn, cracked, or missing range control knob. This knob installs on the control panel to operate burners. Essential cosmetic part.

Natural gas. Med 1.50mm

Gas burner orifice spud for range cooktop conversion between LP and natural gas. Replace when converting fuel types or if missing or damaged.

Burner orifice spud for gas range conversion between natural gas and LP. Replace broken, missing, or incorrect size orifices when converting fuel type.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Burner orifice spud for gas ranges. Controls gas flow to each burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

Size: 8 - 32 inch.

Small

This valve switch includes a gray hub and sparks at the 7 o'clock position. For the orange hub valve switch order WB24K10002.

Fix a burner that won't light, leaks gas, or has a broken control stem. This gas valve regulates flow to one cooktop burner. Moderate DIY repair.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Rear Burner Tube

Left rear

Secures the burner valve assembly to your gas range. Replace this mounting screw if worn, missing, or stripped to restore proper valve alignment and support.

Replaces cracked, bent, or broken left front burner tube on gas ranges. Delivers gas from valve to burner head. Common wear part needing replacement.

Delivers gas to your range's right front burner. Replace if cracked, bent, or leaking. Installs between valve and burner with wrench. Quick DIY fix.

This is a bisque-colored rocker switch used on ranges and ovens. It controls the on/off function of a specific burner or feature on the cooktop or oven panel. Replace this switch if it feels loose, won't stay in position, or fails to activate the associated heating element when toggled.

Fix an oven that won't heat, takes too long to preheat, or makes a whoosh sound when lighting. This bake burner assembly includes the igniter. DIY repair.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Replace your damaged or missing range burner box cover. This protective housing installs over the burner assembly. Ideal for cracked or broken covers.

Size: 10-32 GXTT FLP.595 S

Oven won't heat or ignite? A faulty gas control valve prevents gas flow to the burner. Moderate DIY repair restores reliable baking in 1-2 hours.

Secures the gas safety valve to the chassis. Replace if worn, bent, broken, or missing to maintain proper valve alignment and stable positioning.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

Tube burner supply for gas ranges. Connects the orifice to the burner assembly. Replace if cracked, damaged, or when converting between fuel types.

Broil shield for gas ranges. Mounts inside the oven cavity to protect components from direct heat. Replace if cracked, warped, or damaged.
