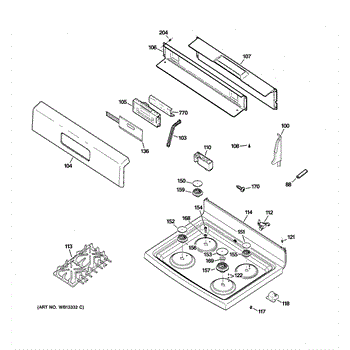

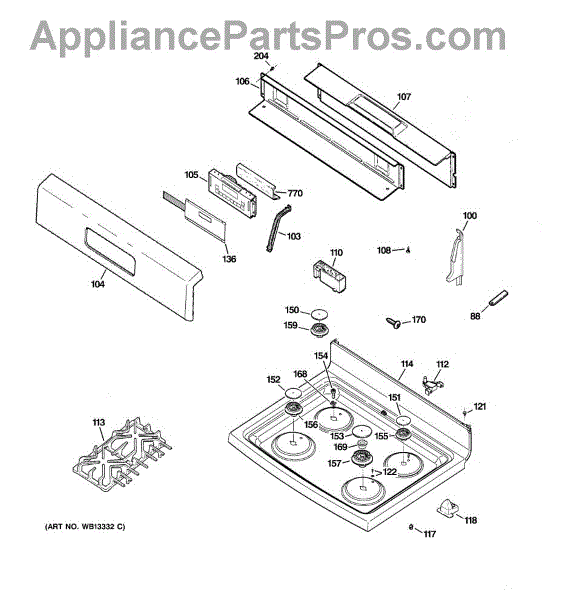

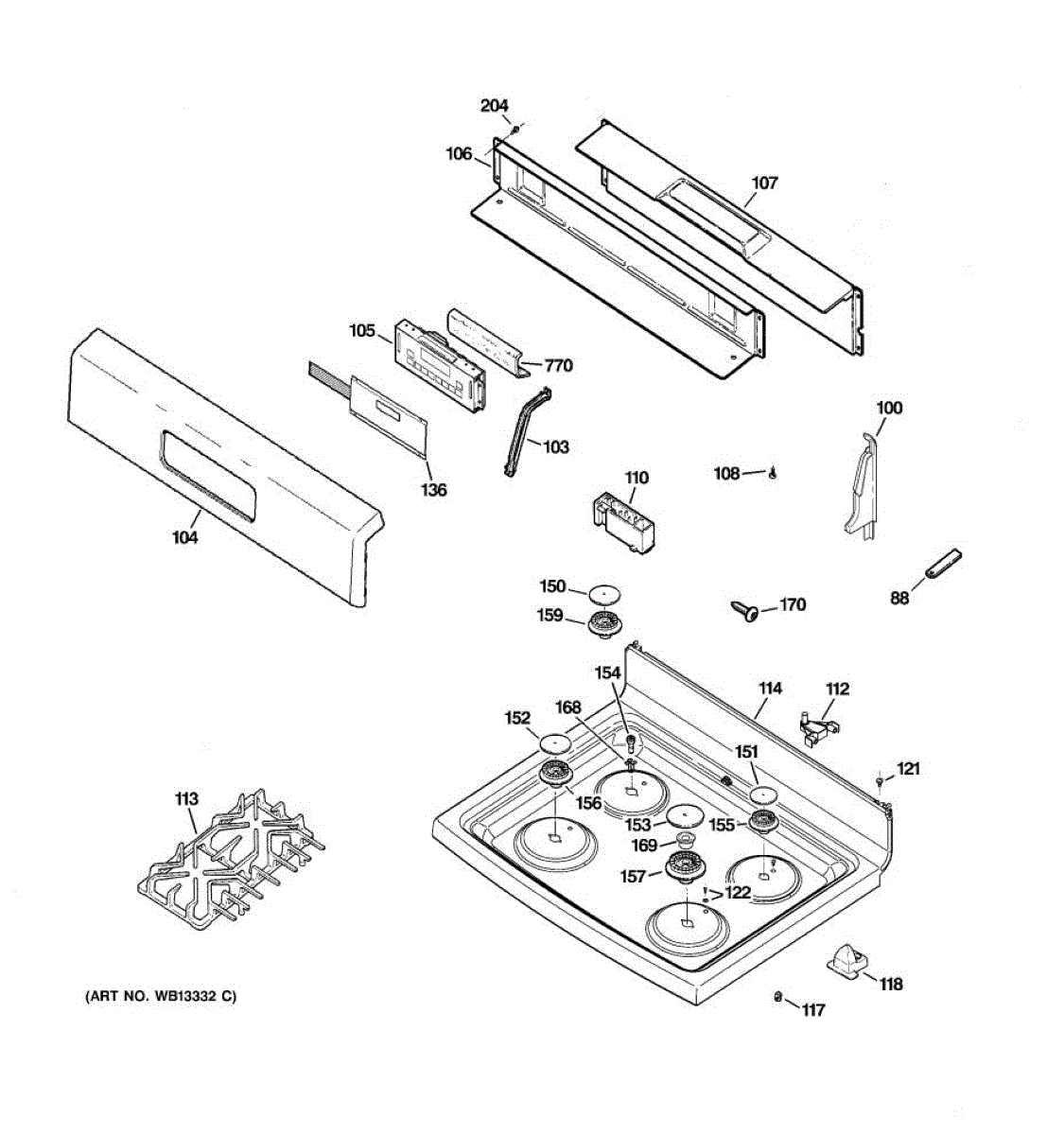

Parts for Ge JGBP85WEJ1WW: 02 - Control Panel & Cooktop Parts

Replace worn felt pad gasket to prevent heat loss and reduce noise in your range. Cushions components and ensures proper sealing. Confirm fit with model number.

White touch pad for your range control panel. Replaces cracked, discolored, or worn touch pads. Installs on the control console assembly.

This genuine replacement part is a GE range oven control board. The oven control board is the main circuit board that controls the ovens' essential functions. If the oven isn't heating properly, not turning on, or showing an error code on the digital display, it might be time to replace the control board. Replacing a control board may seem like a difficult task, but it is a relatively simple process. First, unplug the power to the stove. Move the appliance back to gain access to the back. Remove the upper back panel, and locate the control board. Take note of the order of the wires using a phone camera. Then detach the wire harness from the old control board. Remove any individual wires with needle-nose pliers. Then reattach the wires to the new control board in the correct terminals. Snap the new control board into place and reinstall the upper back panel of the range.This OEM part is compatible with GE, Hotpoint, and RCA range ovens.

Replace the upper back cover on your gas range. This housing panel protects internal components and completes the exterior finish. Order now if cracked or missing.

Replaces the lower back cover panel on your range. Install this protective housing if your original is cracked, broken, or missing. Secures to rear.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.

Harness connects spark module to burner igniters on gas ranges. Replace if wires are frayed, cracked, burned, or damaged to restore reliable ignition.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Replacement oven door hinge for gas and electric ranges. Secures and supports the oven door for smooth opening and closing. Needed when hinge is bent, broken, or door sags. Direct fit replacement part.

This part is grey in color.

This part is grey in color.

Color: White

Pin locator for gas ranges. Secures and aligns burner components in proper position. Replace if broken, missing, or worn to restore proper burner assembly.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Cooktop mounting screw secures the cooktop to frame or brackets. Replace if stripped, missing, or rusty to eliminate wobble, rattling, or lifted corners.

Grey medium burner cap for gas ranges and cooktops, 3 inches in diameter. Replaces chipped, cracked, worn, or missing caps to restore appearance.

Replaces chipped, cracked, or missing burner cap on your gas range cooktop. This grey cap sits atop the burner base to direct and shape the flame properly.

Grey burner cap for gas range cooktops. Measures 3-1/2 inches diameter. Replace chipped, worn, cracked, or missing burner caps for a complete look.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Surface burner element for cooktops and ranges. Installs on cooktop surface. Replace when burner is cracked, painted finish is damaged, or worn.

Replace your cracked, warped, or missing medium surface burner. Ensures even heat distribution for cooking tasks. Installs on gas range cooktops.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Color: White. Mounting screw for end caps.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.
