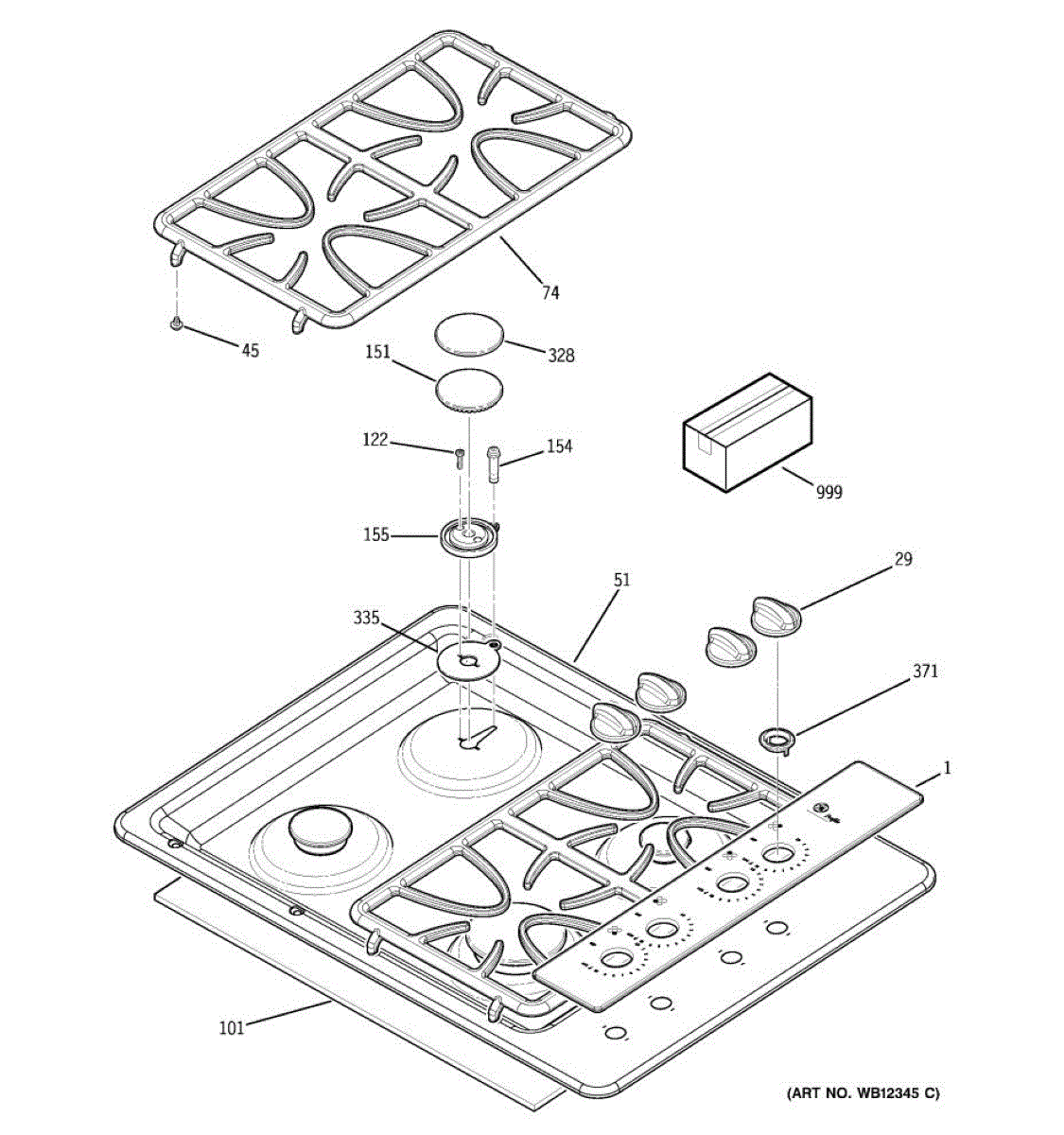

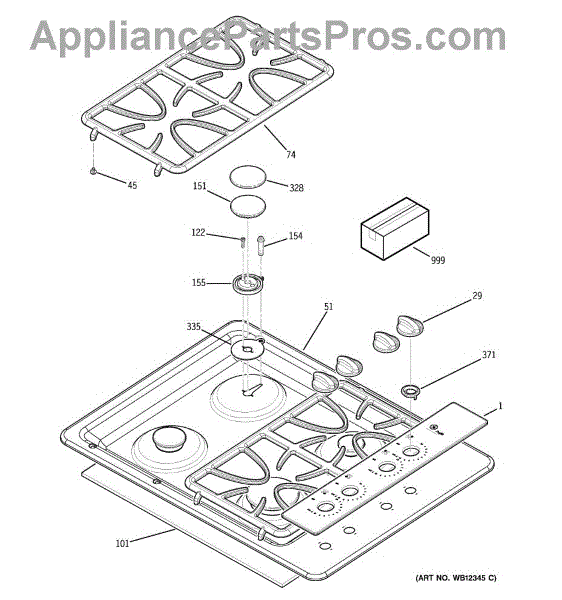

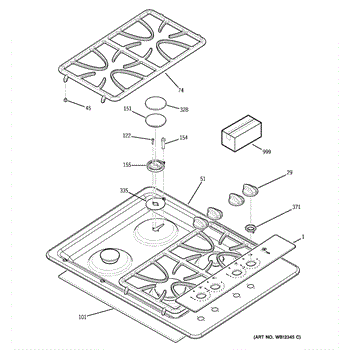

Parts for Ge JGP933BEC2BB: 01 - Control Panel & Cooktop Parts

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. Dual.

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it should be replaced. For safety reasons, the burner should not be used until this screw is replaced; the burner head could shift during cooking and lead to a fire. To start, disconnect the gas and power from the stove to prevent accidental ignition of the burner. Make sure the burners are not hot. Remove the burner grate and burner cap from the burner that is missing a screw. Install the new screw in the hole and tighten it with a screwdriver. Put the burner cap and burner grate back on the stove and reconnect the gas and power. Periodic inspection of the burner heads and all associated screws and parts on the stovetop will prevent accidents and keep the stove working correctly. This screw is a silver, metal part that is sold individually. It is designed for use in gas rangetops manufactured by General Electric and Hotpoint.

Approx 2-3/4 inches in diameter

Approx 2 inches in diameter

This igniter lights the gas at a burner. Replacing a worn or cracked igniter restores quick, consistent ignition so your gas range or cooktop lights reliably and heats as expected without repeated tries.

• Provides the ignition source to light burner gas when heat is selected
• Supports consistent flame start-up for reliable cooking performance
• Common symptoms include: burner won't ignite, delayed or intermittent ignition, or needing to light manually
• Visual clues can include a cracked insulator or damaged igniter tip/element

• Disconnect power and shut off gas before servicing; allow the appliance to cool completely
• Access the igniter per your model; note wire routing and mounting before removal
• Transfer any reusable mounting clip/grommet from the old part to the new one
• Handle the igniter carefully and avoid touching the element/tip; ensure secure connections and test ignition before reassembly

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 4 inches in diameter

Approx 3 inches in diameter

Color: Black. Approx 3-1/2 inches in diameter

Color: Black. Approx 2 inches in diameter

Color: Black. Approx 2-3/4 inches in diameter

Color: Black. Approx 4-1/4 inches in diameter

Small

Note: The part is approximately 2-3/8" in diameter.

Note: The part is approximately 4" in diameter.

Note: The part is approximately 3" in diameter.

Black
