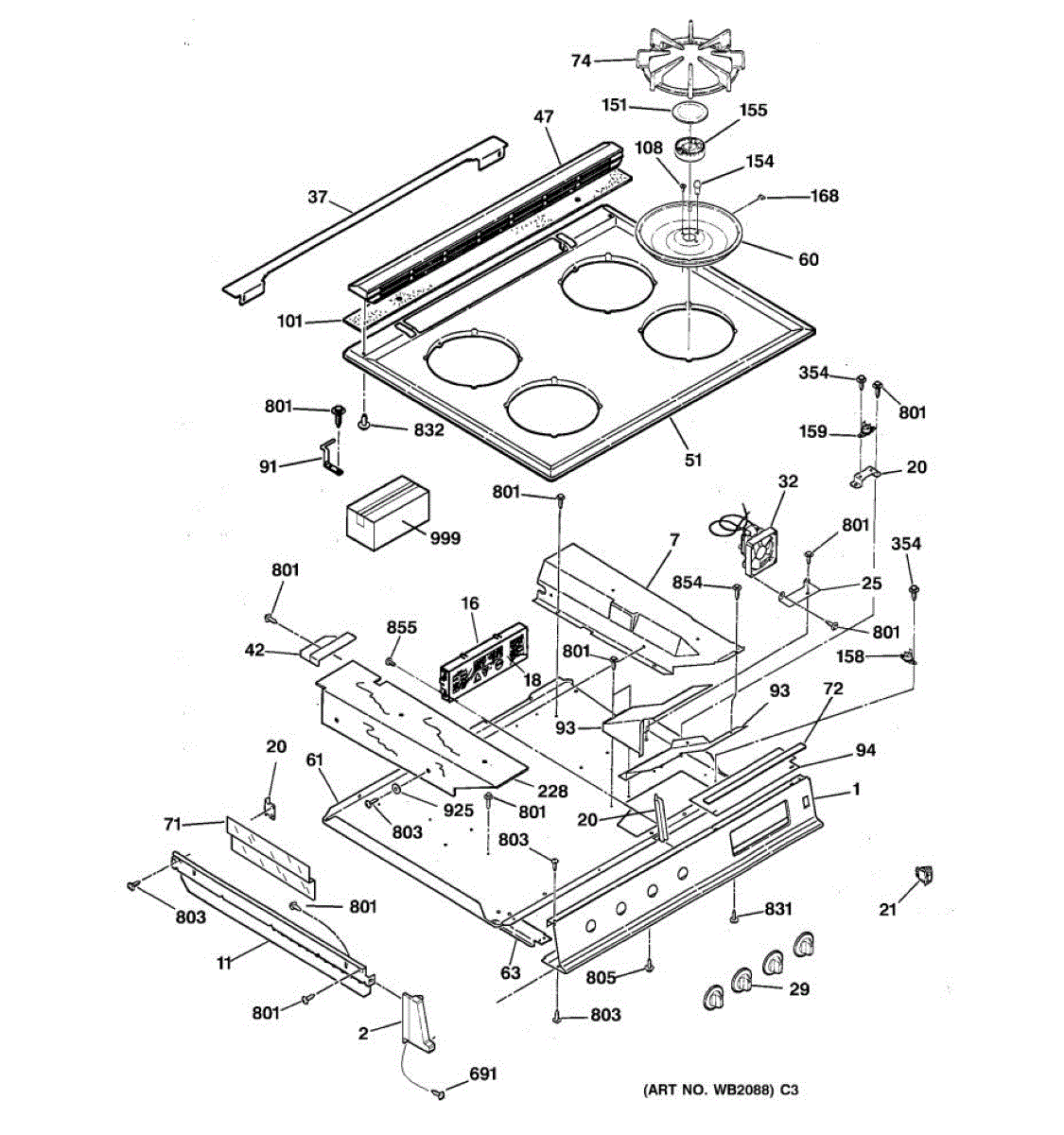

Parts for Ge JGSP23BEW1BB: 01 - Control Panel & Cooktop Parts

This black clock plate is the trim and mounting plate for the range or wall oven clock/timer in the control panel/backguard. It restores a clean, finished look and helps position and support the clock assembly securely.

• Provides the mounting sur

Color: Black

This fan bracket is the mounting support that secures a range/vent/evaporator blower assembly so the fan stays aligned and operates quietly. It restores proper fan placement to reduce wobble and intermittent contact. What it does

• Holds the fan or blower motor assembly in the correct position to maintain stable rotation.
• Prevents the fan from rubbing or vibrating against the housing, which can cause noise.
• Helps restore airflow path when a damaged bracket allows the fan to shift.
• Addresses symptoms such as noisy or rubbing fan operation, intermittent fan contact, or reduced airflow due to misalignment.

• One fan bracket as shown.

• Disconnect power to the appliance before starting any work.
• Access typically requires removing panels or the blower housing—keep fasteners organized.
• Inspect surrounding mounting points and replace any damaged screws or clips for a secure fit.

Trim cover for range vent openings. Replaces cracked, broken, or missing vent covers. Restores finished appearance around ventilation areas.

This right-side burner-box stiffener reinforces the cooktop's burner box to help maintain alignment and structural stability. It restores proper support for burners and associated components for safe, reliable operation. What it does:

• Reinforces the right side of the range/oven burner box to reduce flexing or distortion
• Helps keep burners, igniters and gas line fittings properly aligned
• Commonly replaced when the burner box is bent, damaged or producing rubbing/vibration noises
• Supports long-term fit and seal of the cooktop assembly to help prevent gaps or misalignment

• One right-side burner-box stiffener

• Disconnect power and gas supply before beginning any service
• Requires removing the cooktop/burner box access panels; basic hand tools are typically needed
• Handle carefully to avoid bending the replacement part or damaging adjacent components

Color: Black.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Felt pad cushions and protects oven components from vibration and heat damage. Replace if worn, compressed, or damaged to prevent noise and part wear.

Oven door won't lock for self-clean cycle? This door latch assembly secures the door during cleaning and reports lock status. Moderate DIY repair.

Fix burners that won't light or click continuously. This igniter electrode sparks to light gas burners. Easy 5-10 minute repair with a screwdriver.

If your oven won't heat but the igniter glows, the thermal limit switch may have tripped. This safety cutoff prevents overheating. DIY-friendly repair.

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

Insulation sleeve for range oven fan duct system. Replaces worn, damaged, or missing insulation that wraps around the ventilation ductwork.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it co

Replacement trim screw for securing exterior trim pieces and panels on ovens and ranges. Restores proper fit when original screw is missing or stripped.

ST10-16 X 7/16"

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or con

Nickel

Replacement screw for securing panels, trim, and mounting brackets on appliances. Use when original fastener is lost, stripped, or damaged.

Black. 8-18 AB HXW 3/8

Mounting screw for range or cooktop installation. Secures components during assembly. Replace if lost, stripped, or corroded. Essential hardware piece.

Nickel

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing

Igniter wire harness for gas ranges. Connects the igniter to the oven control. Replace if wires are frayed, damaged, or connections are loose or corroded.
