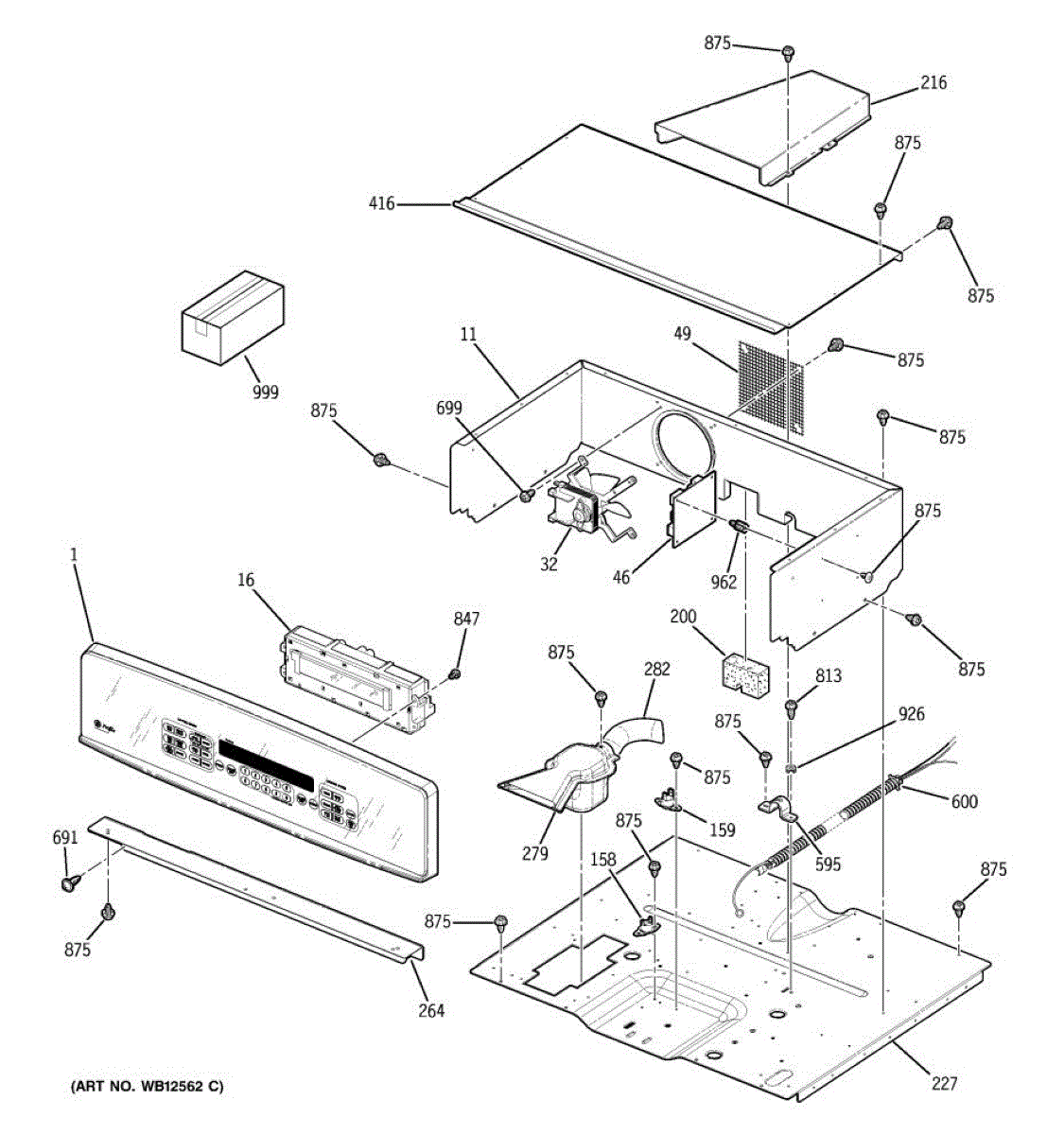

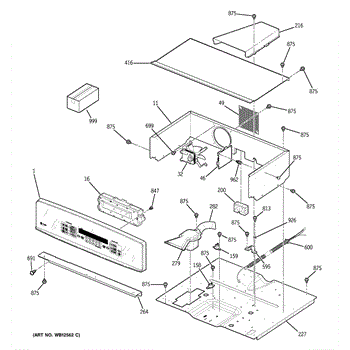

Parts for Ge JK955BF2BB: 01 - Control Panel & Cooktop Parts

This electronic oven control (ERC3DD) replaces the oven's main control board to restore timed functions, temperature management, and front-panel controls. It helps return reliable bake/broil operation and display responsiveness. What it does:

• Replaces the oven's electronic control that regulates bake, broil, timer and clock functions.
• Manages user inputs from the front control panel and sends commands to heating elements and relays.
• Addresses common symptoms like unresponsive or blank control display, erratic oven cycles, or inability to set time and modes.
• Works as the central logic board coordinating safety and temperature signals.

What's included:

• One oven control board (ERC3DD / WB27T10428)

Install notes:

• Disconnect power to the appliance at the breaker before beginning work to avoid electrical shock.
• Handle the control board and display gently; avoid touching contacts or components with bare hands.
• Verify the part number on your original control board matches WB27T10428 before installation.

This control cooling fan assembly circulates air through the oven's control compartment to remove heat. By keeping the console and electronics cool during and after cooking, it helps prevent overheating and protects sensitive components.

• Moves a

Cooling fan screen filter for ovens and wall ovens. Replace if clogged with debris or damaged to maintain proper airflow. Verify fit with your model.

This lower limit switch is the replacement lock-position switch used on the appliance door/lock assembly to restore proper lock sensing and control operation. Replaces a worn or failed lower lock switch to help the unit recognize door lock position. What

Oven won't heat or shuts off during baking? A faulty thermal fuse cuts power when detecting excessive heat. This safety device protects your range.

Protective cover that shields wiring at the top of your oven. Replace if cracked, broken, or missing to protect electrical connections and components.

Middle trim assembly for ovens and wall ovens. Replaces cracked, broken, or missing trim pieces. Installs around the control panel or door frame area.

Oven vent box assembly that routes hot air and steam from the cooking cavity. Replace if cracked, damaged, or missing to restore proper ventilation.

Duct vent inlet for wall ovens. Channels air from the oven cavity to the exhaust system. Replace if cracked, damaged, or broken to restore proper ventilation.

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

Conduit wire assembly for wall ovens. Routes electrical connections between components. Replace if wiring is damaged, frayed, or exposed.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or con

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Nickel

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Circuit board standoff for ovens. Mounts between the control board and housing to provide proper spacing. Replace if broken, cracked, or missing.
