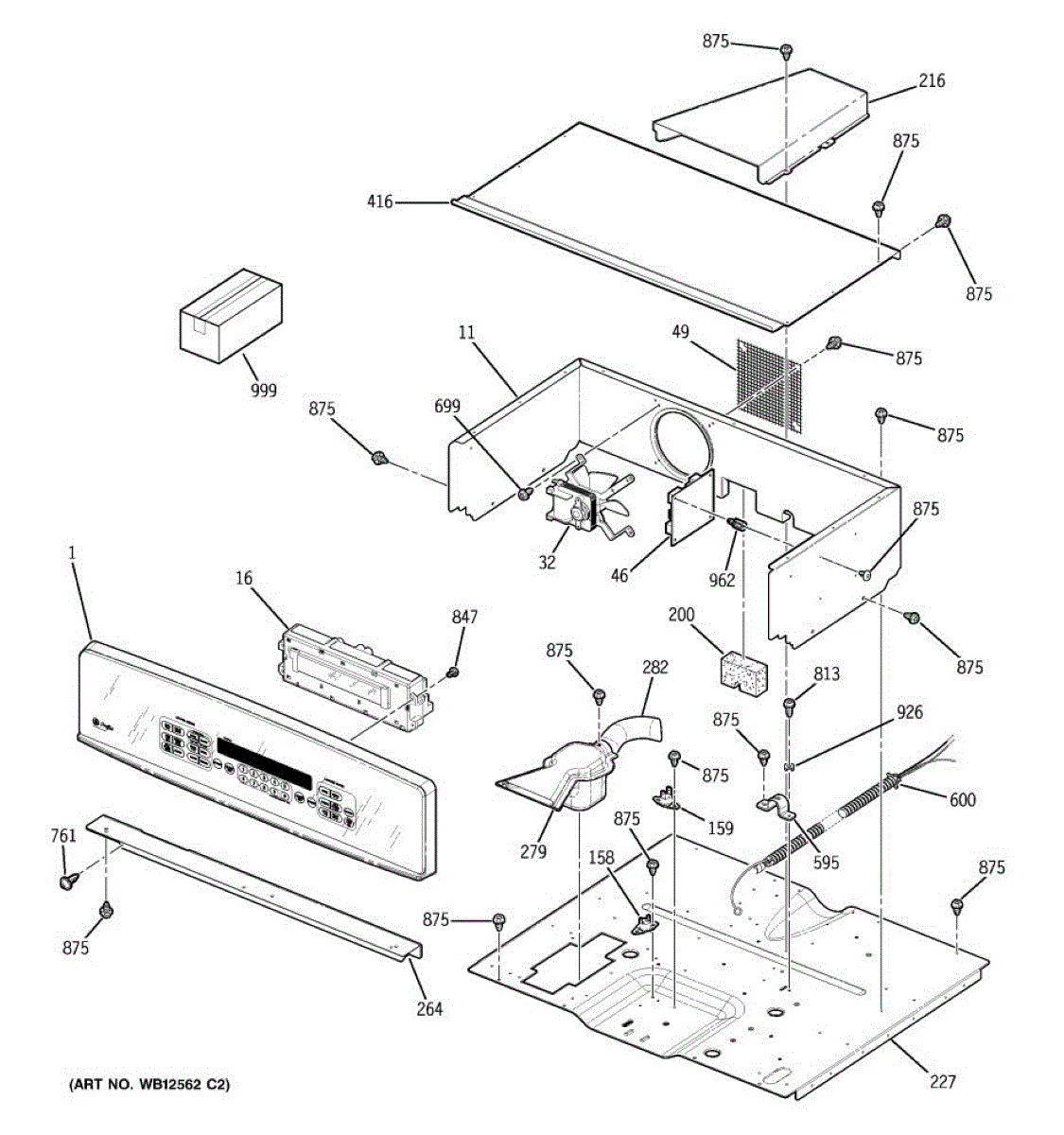

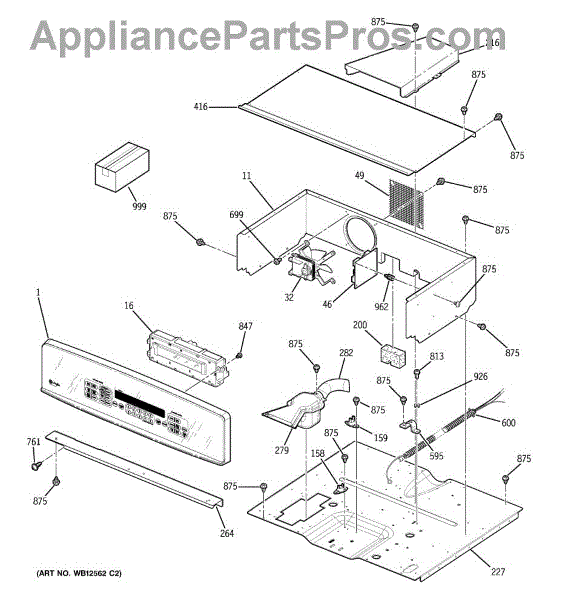

Parts for Ge JK955BF7BB: 01 - Control Panel & Cooktop Parts

Fix a noisy or non-working convection fan with this motor assembly. Restores even heating and airflow in your oven. Takes about 30 minutes to install.

Fix a blank display, unresponsive buttons, or oven not heating with this electronic control board. Controls bake/broil cycles and timing functions.

Cooling fan screen filter for ovens and wall ovens. Replace if clogged with debris or damaged to maintain proper airflow. Verify fit with your model.

This lower limit switch is the replacement lock-position switch used on the appliance door/lock assembly to restore proper lock sensing and control operation. Replaces a worn or failed lower lock switch to help the unit recognize door lock position. What it does

• Detects the lower/locked position of the door latch so the control can allow oven/cook functions
• Stops appliance operation or shows lock-related faults when the door isn't secured
• Commonly fails after wear, leading to lock faults, inability to start, or door-lock errors
• Works as the electrical sensor portion of the door/lock mechanism

• One lower limit switch (lock)

• Disconnect power to the appliance before starting any service
• Replacement may require removing the door or access panel and detaching the lock/latch assembly
• Handle small fasteners and electrical connectors carefully; note connector locations before removal

Oven won't heat or shuts off during baking? A faulty thermal fuse cuts power when detecting excessive heat. This safety device protects your range.

Protective cover that shields wiring at the top of your oven. Replace if cracked, broken, or missing to protect electrical connections and components.

Oven vent box assembly that routes hot air and steam from the cooking cavity. Replace if cracked, damaged, or missing to restore proper ventilation.

Duct vent inlet for wall ovens. Channels air from the oven cavity to the exhaust system. Replace if cracked, damaged, or broken to restore proper ventilation.

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

Conduit wire assembly for wall ovens. Routes electrical connections between components. Replace if wiring is damaged, frayed, or exposed.

ST10-16 X 7/16"

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Nickel

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Circuit board standoff for ovens. Mounts between the control board and housing to provide proper spacing. Replace if broken, cracked, or missing.

Flat multi-conductor ribbon connector links control assemblies to the main wiring harness. Replace when connector is broken, corroded, or missing.
