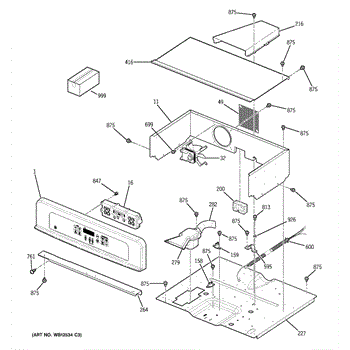

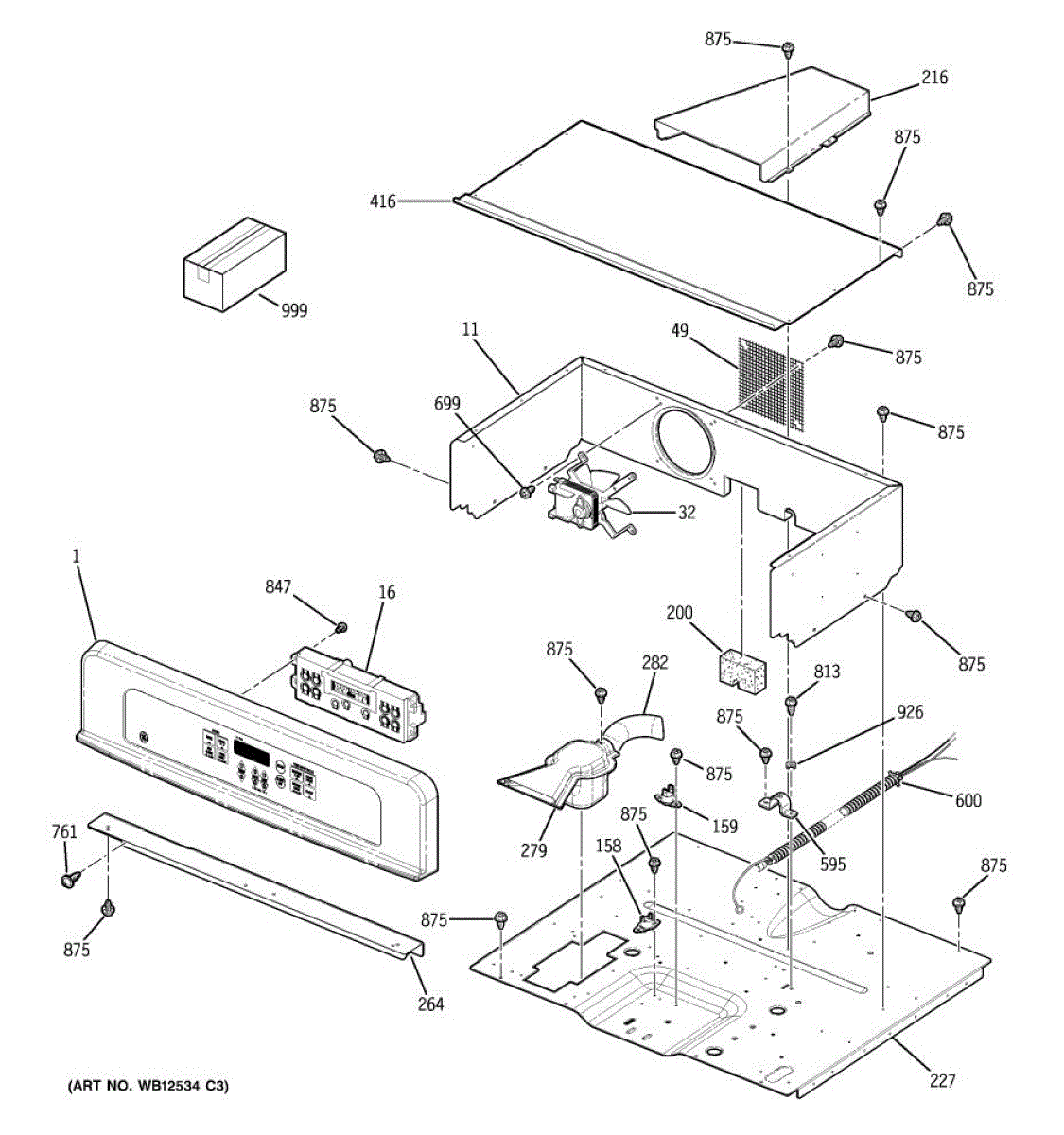

Parts for Ge JKP20BF6BB: 01 - Control Panel & Cooktop Parts

This OEM replacement part is an oven control board. The control board serves as the main computer to the oven and controls all its essential functions such as baking, maintaining temperature, as well as turning it on and off. If the oven is no longer turning on, or there is an error code on the digital display, this could mean that the control board is no longer operable. If this is the case, the control board will need to be replaced.To replace this part, start by unplugging the oven. After the power has been shut off, proceed to remove the upper back panel of the range. Once removed gain access to the old control board and snap it out of the locking tabs holding it in place. Take note of the orientation of the wires by taking a photo with a phone camera. Remove the wire harness and individual wires from the old board and place them into the correct terminals of the new board. Snap the new board back in place and re-install the upper back panel.This genuine replacement part is sold individually and is compatible with General Electric, Hotpoint, and RCA brand ovens.

This convection fan assembly circulates heated air inside the oven cavity for more even baking and roasting. Replacing a worn or noisy fan restores proper airflow and helps maintain stable temperatures during convection cooking.

• Moves hot air across the cavity during convection modes for uniform results
• Helps the oven recover heat faster and reduces hot/cold spots
• Common symptoms of failure: loud humming, squealing, or rattling; fan not spinning; poor or uneven convection performance
• Can cause longer cook times or inconsistent browning when not working properly

• Disconnect power at the breaker and allow the appliance to cool completely
• Access the convection fan from the rear panel or interior back cover, depending on model; retain all screws and shielding
• Note wire locations and mounting orientation; install the new assembly in the same position
• Before restoring power, ensure the blade spins freely and does not contact the shroud or liner

The Thermal Fuse is an OEM part for GE ranges. This component is a safety device to protect the range from overheating. It is located in the electrical circuit and acts as a fail-safe to cut off the power supply to the range if it detects excessive heat.

Causes of a faulty thermal fuse can include power surges, overheating due to prolonged use, or other electrical issues. When the fuse blows, it interrupts the electrical flow, preventing potential damage to the range's sensitive components and ensuring user safety.

Symptoms of a bad fuse may include:

• The range not turning on or functioning at all.
• The oven not heating up or not reaching the desired temperature.
• The range displaying error codes related to temperature issues.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Nickel

Package of 12

Black. 8-18 AB HXW 3/8
