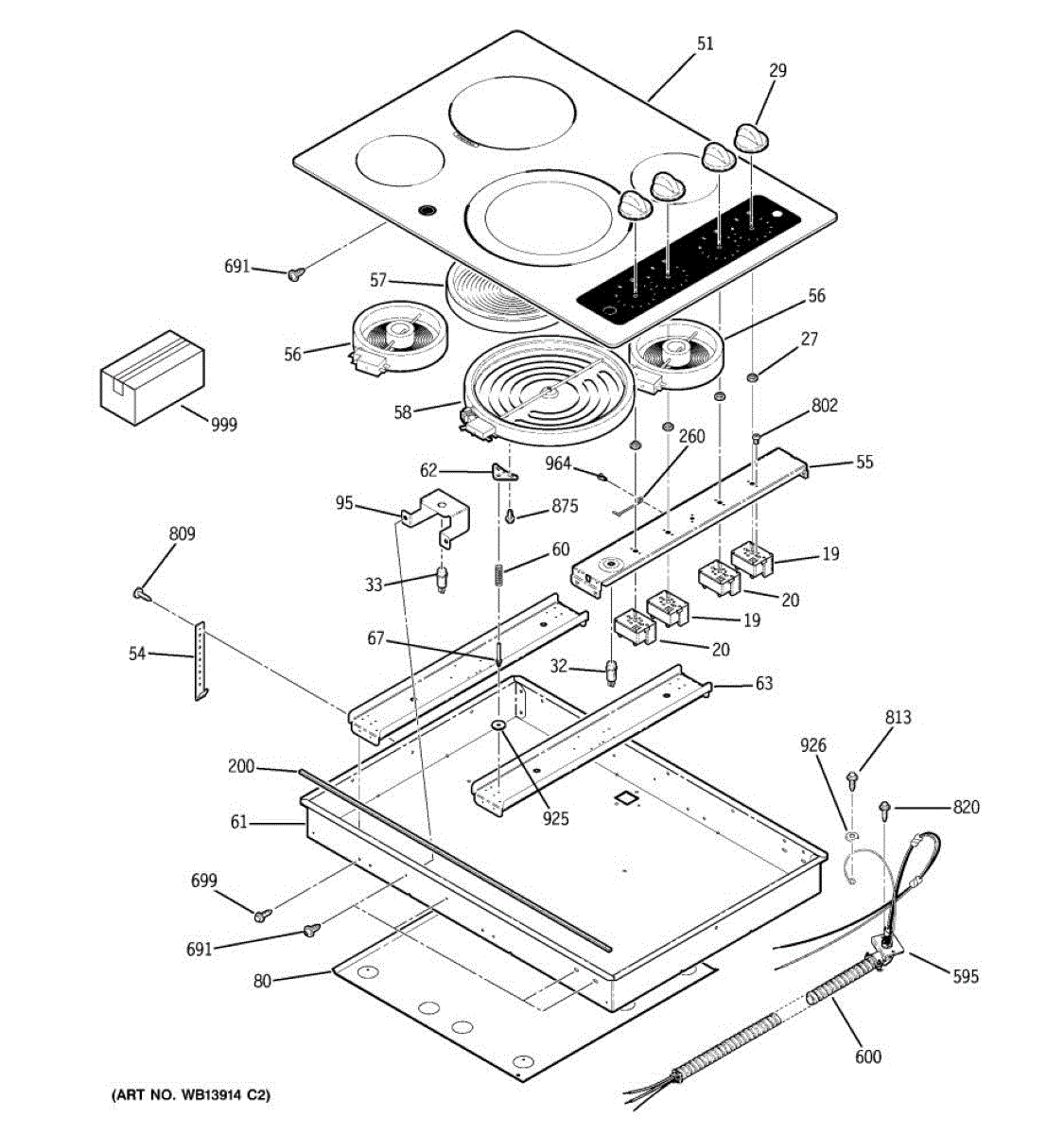

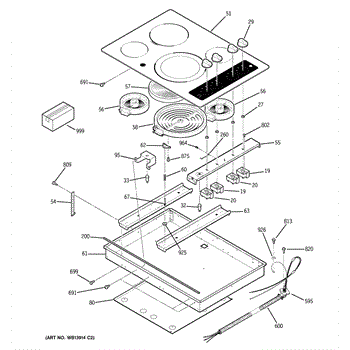

Parts for Ge JP346CM2CC: 01 - Control Panel & Cooktop Parts

1200W Element Control

The Infinite Control Switch is an OEM part for GE ranges and cooktops. This switch regulates the heat levels of the burners, allowing users to adjust the cooking temperature to their desired setting. It ensures that each burner provides consistent and controllable heat for precise cooking.

Causes of a bad infinite control switch can include regular wear and tear, electrical surges, or damage from spills and splashes. Over time, these factors can lead to the switch malfunctioning, which may result in poor temperature control or complete failure of the burner.

Symptoms of a bad infinite control switch include:

• The burner not heating up or heating inconsistently
• The burner staying on high heat regardless of the setting
• Difficulty adjusting the burner temperature
• The switch feeling loose or unresponsive

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This infinite control knob assembly replaces a worn, broken, or missing control knob on electric ranges and cooktops, restoring safe and accurate user control of the infinite switch. Easy to snap onto the control shaft for quick cosmetic and functional repair. What it does:

• Fits over the infinite control shaft to allow user adjustment of temperature/power settings
• Replaces cracked, stripped, or missing knobs that slip or won't turn
• Restores tactile control and clear pointer alignment for consistent setting selection
• Helps prevent accidental shaft damage from using improvised controls

• One knob assembly

• Disconnect power to the appliance before servicing. For gas units, also turn off the gas supply if applicable.
• Remove the old knob by pulling straight off the control shaft; push the new knob straight on until it seats.
• Ensure the knob pointer aligns with the control detents; do not force or overtighten.
• If the knob does not fit securely, verify the part number and shaft type before proceeding.

The Infinite Knob is an OEM part for GE ranges and cooktops. It allows the user to control the heat settings of the burners, providing a precise and adjustable way to manage cooking temperatures.

You should replace the infinite knob if it becomes damaged or worn out. Causes of a bad infinite knob can include frequent use leading to wear, exposure to high temperatures, or physical damage from accidental impact. A defective knob can hinder the ability to accurately control burner settings, affecting cooking performance.

Symptoms of a bad Infinite Knob include:

• Difficulty in turning the knob or selecting settings
• The knob slipping or not staying in place
• Inconsistent or unresponsive heat adjustments

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light replaces a failed pilot light on a range or cooktop. Mounted in the control area, it illuminates to show when a burner or function is on, restoring clear visual status and everyday safety.

• Lights when the associated heating element or oven function is active
• Provides a visible "on" cue to help prevent accidental contact
• Common symptoms: won't light, flickers/intermittent, or stays on when controls are off
• Restores proper visual feedback when the original light has failed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; remove back cover/trim as needed
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely and reuse existing mounting hardware; ensure wires are not pinched

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8-inch Haliant Element is an OEM replacement part for GE ranges. This component is located beneath the glass surface of the stove and is responsible for heating up the cooking area. It glows bright red at its highest setting, providing the necessary heat for cooking or boiling. The 8-inch size indicates its diameter, making it suitable for larger pots and pans.

Symptoms of a bad 8-inch Haliant Element include:

• The element not heating up or only heating intermittently
• Uneven cooking results due to inconsistent heat
• Visible damage to the element, such as burns or breaks
• Error codes on the range’s display indicating a heating issue

Causes for a malfunctioning 8-inch Haliant Element can include a burnt-out element, electrical issues like faulty wiring or connections, or problems with the control board that regulates its operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 12-inch Haliant surface element sits beneath the glass of smooth-top ranges and cooktops, providing heat for the large burner. Replacing a failed element restores reliable, even heating and full-size cooking performance.

• Generates radiant heat for the 12-inch cooking zone under the glass-ceramic top
• Works with the control to cycle power and maintain set temperatures
• Common symptoms: large burner won't heat, only part of the ring glows, or heating is weak/erratic

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift or remove the glass top to access the elements; support the top to avoid stress or cracking
• Note wire locations; move connections one at a time to the new element and secure using existing mounts
• Ensure all terminals are tight and clear of the frame before reassembly

This support spring secures a stove/oven radiant heating element in place to keep the element aligned and stable during use, helping maintain reliable heating and prevent sagging or poor contact. What it does:

• Holds the radiant heating element firmly to the oven/range chassis for consistent heat distribution
• Prevents the element from shifting, sagging, or losing electrical contact
• Helps reduce arcing or intermittent heating caused by a loose element
• Common symptom: oven or burner element not staying seated, heating inconsistently, or visibly loose

• Disconnect power to the appliance before starting any repair to avoid shock.
• Remove oven racks and the heating element as needed for access; handle the element carefully to avoid damage.
• Replace only with the exact part; ensure the spring is seated correctly to secure the element.

This bracket element support holds and stabilizes the oven's bake/heat element so it stays properly positioned for reliable heating and safe operation. Durable replacement for a sagging or loose element mounting point. What it does:

• Secures the oven heating element to prevent sagging or contact with the oven cavity
• Helps maintain consistent element placement for even heating
• Reduces stress on the element that can cause buzzing, arcing, or premature failure
• Restores proper element alignment after impact or wear

• One bracket element support

• Disconnect power to the appliance before inspecting or replacing the part
• Handle the heating element and mounting area carefully—sharp edges may be present
• Follow the appliance service manual for step-by-step removal and reassembly

This is a replacement bracket that secures the cooktop/range hot surface indicator lamp so you can see when a surface is hot. It restores proper positioning and support for the indicator light assembly. What it does

• Holds the hot surface indicator lamp in the correct position for visible, reliable indication
• Keeps the lamp aligned and stable to prevent rubbing or disconnection during use
• Helps maintain the cooktop's visual hot-surface warning so users avoid accidental contact
• Compatible with the original indicator lamp assembly design and mounting points

• One hot light bracket (mounting bracket) as shown

• Disconnect power to the appliance before starting any work to avoid shock or injury
• Handle indicator lamp and wiring gently; avoid pulling on wires or touching bulb glass with bare hands
• Retain original screws and clips unless replacement fasteners are specified

The Clear Tape is an OEM part for GE cooktops. This specialized tape is used to secure and protect various components of the cooktop, including glass panels and control assemblies. It ensures that these components stay in place during operation and helps maintain the cooktop's structural integrity.

Causes of a bad cooktop clear tape can include exposure to high temperatures over time, wear and tear from regular use, or accidental damage during cleaning or maintenance.

Symptoms of a bad cooktop clear tape include:

• Loose or shifting glass panels
• Parts of the cooktop not staying securely in place
• Visible deterioration or peeling of the tape
• Difficulty in maintaining a stable cooktop surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
