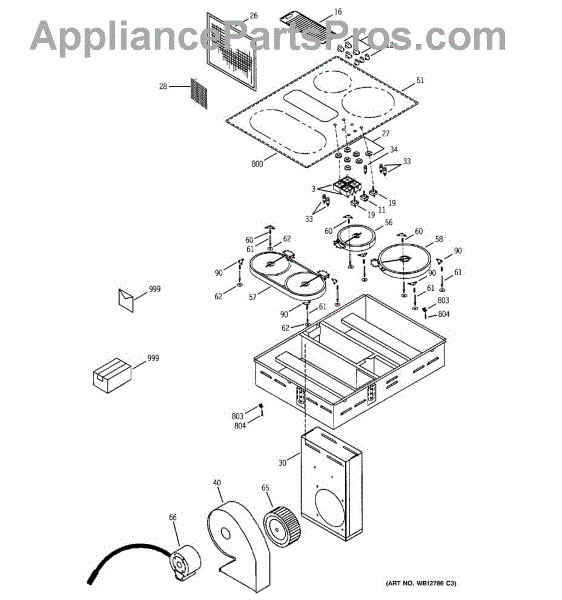

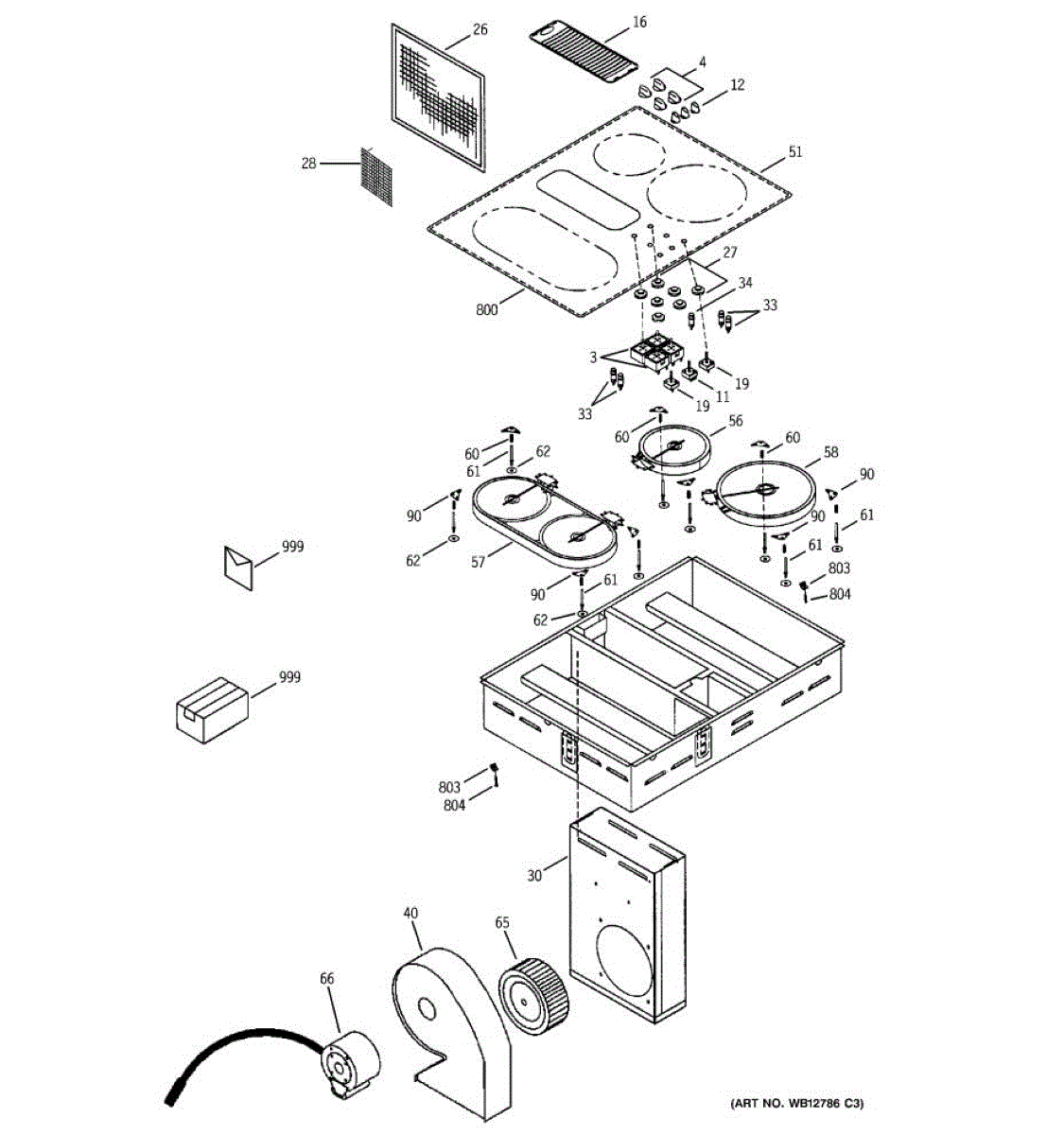

Parts for Ge JP989KD4CC: 01 - Control Panel & Cooktop Parts

The Infinite Control Switch is an OEM part for GE ranges and cooktops. This switch regulates the heat levels of the burners, allowing users to adjust the cooking temperature to their desired setting. It ensures that each burner provides consistent and controllable heat for precise cooking.

Causes of a bad infinite control switch can include regular wear and tear, electrical surges, or damage from spills and splashes. Over time, these factors can lead to the switch malfunctioning, which may result in poor temperature control or complete failure of the burner.

Symptoms of a bad infinite control switch include:

• The burner not heating up or heating inconsistently
• The burner staying on high heat regardless of the setting
• Difficulty adjusting the burner temperature
• The switch feeling loose or unresponsive

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 3-speed blower switch controls the exhaust fan in your range hood, allowing you to select low, medium, or high airflow. Replacing a worn switch can restore dependable ventilation and proper speed control. What it does:

• Selects low, medium, or high fan speed by routing power to the blower motor
• Helps resolve a fan that will not run, runs only on one speed, or will not change speeds
• Can address a switch that feels loose, sticks, or works intermittently

• 1 three-speed blower switch

• Disconnect power at the breaker before servicing
• Access the control area; note wire locations (or take a photo) and transfer wires to the new switch one at a time
• Ensure push-on terminals are fully seated and secure
• Test all fan speeds before reassembly

This selector switch lets you choose the oven's operating mode from the front control knob. Replacing a worn switch restores reliable mode selection so power is routed correctly to the cooking function you select. What it does

• Connects the control knob to the proper circuit to engage the selected oven function
• Restores consistent operation when the oven won't start or won't stay in certain modes
• Addresses issues like only one function working or intermittent mode changes
• Helps when the knob turns but doesn't change functions or the selector shaft feels loose

• 1 selector switch

• Disconnect power at the breaker or fuse panel before servicing; allow the appliance to cool
• Pull off the control knob and remove the control panel/backguard to access the switch
• Move wires to the new switch one at a time, matching positions (take a photo or label leads)
• Secure the switch, reassemble, reinstall the knob, and test each oven function

Replacement bridge heating element kit that restores consistent heat across two adjacent cooktop terminals for large cookware and griddles. Replaces a damaged or worn bridge element so your cooktop can heat evenly and reliably. What it does:

• Bridges two adjacent surface element terminals to provide an expanded cooking zone for griddles and large pans.
• Heats the cooking surface where a single element can't cover wide cookware.
• Common symptoms it can fix: one side of a bridged zone not heating, intermittent heat, or visible element damage.
• Works as the direct replacement component to restore normal cooktop heating functionality.

• One bridge heating element replacement kit.

• Disconnect power (unplug or switch off breaker) before inspecting or replacing the element.
• Handle element carefully to avoid bending; use basic hand tools and note terminal connections for reassembly.
• Reconnect wiring securely and verify proper operation after restoring power.

This dual radiant surface element kit restores two-size heating on your glass-ceramic cooktop or range, delivering even, controllable heat when the original element fails or when only the inner or outer ring works.

• Provides two selectable heating zones so you can match the burner size to your pan
• Replaces a failed surface burner that won't heat or only one ring heats
• Helps resolve slow, inconsistent, or uneven heating on that cooktop zone
• Ideal when the dual function no longer engages or cycles properly

• Disconnect power at the breaker and let the cooktop cool completely before servicing
• Lift the glass top per your model's procedure to access the element
• Move wires one at a time to the new element to maintain correct connections; transfer mounting hardware as needed
• Reassemble and test both inner and outer ring settings for proper operation

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement thumb screw that secures panels and components without tools for quick hand-tightening. Ideal for small appliance access points where frequent removal or adjustment is needed. What it does:

• Provides a hand-tightened fastening point for removable panels and brackets
• Replaces stripped or lost thumb screws to restore secure, tool-free access
• Helps stop rattling or looseness caused by missing or damaged screws
• Fits 10-24 threaded holes with a 2.0" length for proper engagement

• Hand-tighten; avoid using pliers or power tools to prevent stripping threads
• Confirm thread size and length match your application before installing
• If metal fatigue or thread damage is present, replace mating fastener or insert as needed
• Disconnect power to the appliance when working near electrical components

This scraper blade replaces a worn or damaged cleaning scraper to help remove baked-on food and residue from appliance surfaces, restoring the tool used for safer, easier cleanup. Ideal when the existing scraper is dull or broken. What it does:

• Provides a sharp edge to lift and remove stubborn, baked-on spills and residue from glass and smooth appliance surfaces
• Helps restore proper scraping action when the original blade is nicked, bent, or missing
• Reduces the need for excessive scrubbing or abrasive cleaners that can damage surfaces
• Commonly used to address poor cleaning results or an unusable scraper tool

• Disconnect power to the appliance and allow all surfaces to cool fully before handling
• Handle the blade carefully; edges may be sharp—wear cut-resistant gloves
• Replace only the damaged scraper blade; follow OEM instructions for securing the blade if required
• Test scraping action gently after installation to ensure proper fit and avoid surface damage

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
