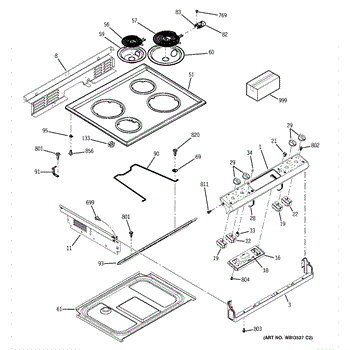

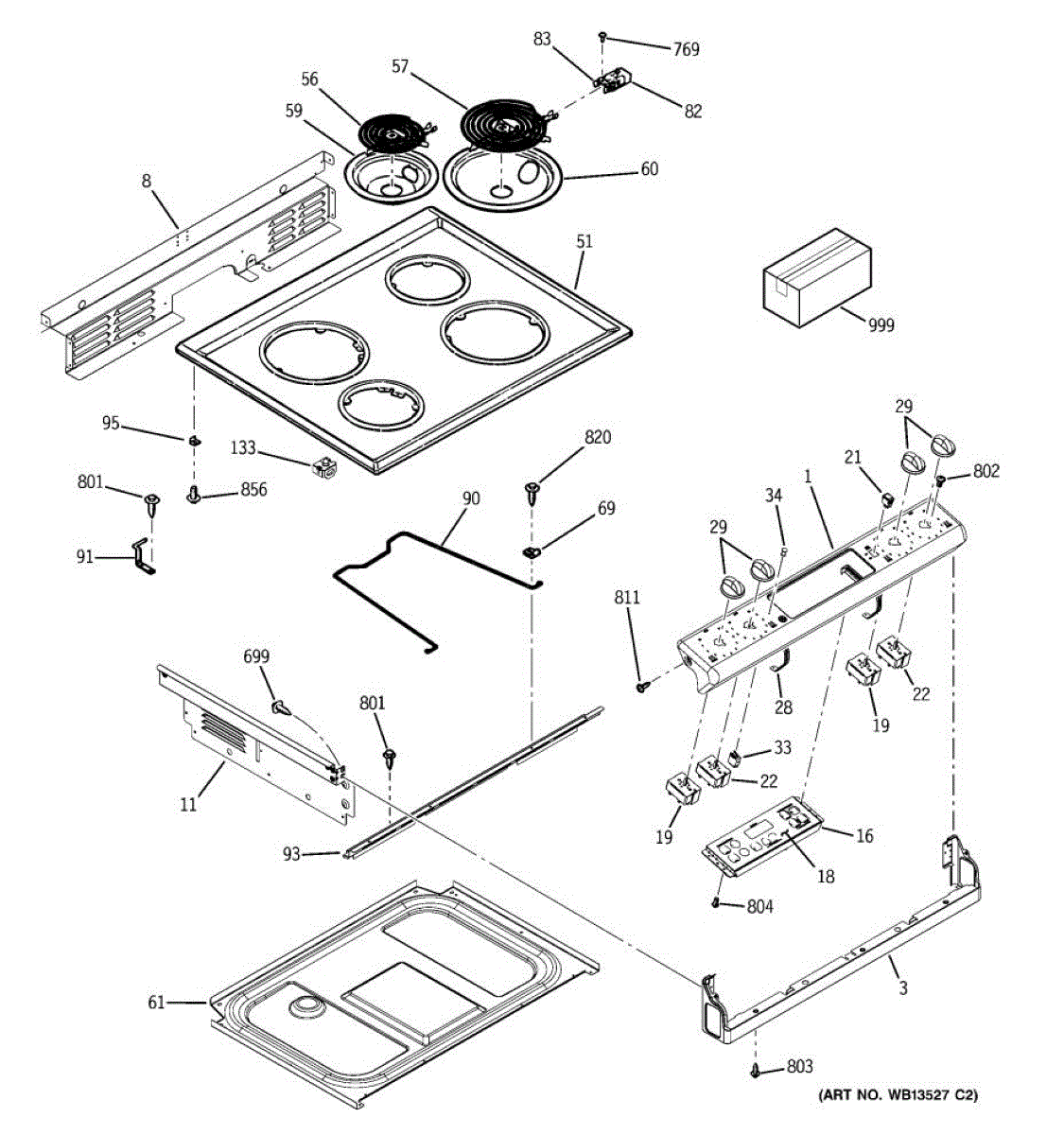

Parts for Ge JSS28CK1CC: 01 - Control Panel & Cooktop Parts

Color: Bisque

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Bisque.

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This control bracket secures and positions the range/oven control assembly so the console stays stable and the control board is properly aligned. Replacing a damaged bracket restores firm mounting and reliable button/knob operation. What it does:

• Mounts and supports the control board/console to the appliance cabinet
• Keeps the control panel aligned to prevent rubbing, vibration, or mispositioned buttons
• Prevents the control assembly from shifting during use, which can cause intermittent controls
• Helps maintain consistent button/knob actuation and overall console stability

• Disconnect power to the appliance before starting any repair
• Access usually requires removing the console or control panel; keep or note screw/hardware locations
• Handle the control board and wiring gently to avoid connector or component damage

This indicator light installs in the control panel of compatible ranges/cooktops and illuminates to show when a heating element or function is active. Replacing a failed lamp restores clear, at-a-glance status feedback during use.

• Provides visual confirmation when a surface element or function is turned on
• Common failure symptoms include no light, intermittent flicker, or very dim illumination
• May also be referred to as a pilot light or panel indicator
• Visual indicator only; does not control heating performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely
• Access the console/backguard area; note wire positions and move them to the new light one at a time
• Seat and secure the light, restore power, and test operation before reassembly

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

This oven light lens protects the oven light bulb and helps diffuse light for clearer visibility inside the cavity. It's a direct-fit replacement that restores the light cover's protective and light-diffusing function. What it does

• Covers and protects the oven light bulb from spills, splatter, and heat exposure
• Diffuses oven light for more even interior illumination
• Helps maintain safe operation by keeping glass or plastic shield in place
• Replaces cracked, cloudy or missing light lens that reduces visibility

• One replacement oven light lens

• Disconnect power to the appliance before servicing to avoid shock hazard
• Allow the oven to cool completely before removing or installing the lens
• Handle the lens carefully to avoid scratching or chipping; use gloves if needed
• Support the lens during removal; follow appliance manufacturer instructions for reassembly

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

This Surface Heating Element is an OEM replacement part for GE ranges. It is responsible for generating heat on the stovetop surface, allowing you to cook or heat food in pots or pans. The range surface heating element is located on the cooktop, beneath the burner bowl or drip pan.

Causes of a bad surface heating element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface heating element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

This part fixes the following symptoms:

• Insufficient or no heat produced by the burner
• Uneven heat distribution across the element
• Visible damage or signs of wear, such as cracks or breaks, on the heating element
• Sparks or electrical arcing occurring during use

The GE 6-inch range surface heating element can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Large Surface Element is an OEM part for GE ranges and cooktops. This part provides the heat needed for cooking on the range's surface. This large element ensures even heat distribution and consistent cooking temperatures, making it ideal for boiling, frying, and other high-heat cooking methods.

Over time, surface elements can burn out or become less efficient, leading to uneven cooking or failure to heat up at all. This can be due to a variety of reasons, including prolonged use, overheating, or physical damage.

Symptoms of a bad Large Surface Element include:

• The element does not heat up
• It heats unevenly or only partially
• Visible damage to the element, such as blistering or cracks
• The element takes longer than usual to heat up

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6 Inch Small Burner Bowl is an OEM part for GE stoves and ranges. It is a durable and heat-resistant bowl that sits beneath the heating element of the small burner, providing a stable and level surface for your cookware. The small burner bowl helps distribute heat evenly and protects the cooktop from spills, stains, and other messes. For the matching 8-inch large burner bowl order WB31T10011.

A bad small burner bowl can be caused by regular use, accidental damage, or it may become discolored, warped, or rusted over time.

Symptoms of a bad small burner bowl include:

• Difficulty in cleaning or removing stubborn stains.
• A loose or wobbly heating element.
• Visible damage such as cracks or chips on the bowl.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 8 Inch Large Burner Bowl is an OEM replacement part for GE ranges and cooktops. This component is designed to accommodate the larger burners on the cooking surface, providing a stable and safe platform for pots and pans during cooking.

Symptoms of needing to replace the 8 inch large burner bowl include:

• Cracks, chips, or damage to the bowl's surface
• Warping or deformation due to excessive heat
• Difficulty in properly positioning pots and pans on the burner

Causes of a faulty burner bowl can include normal wear and tear over time, exposure to extreme temperatures or thermal shocks, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

The Element Receptacle and Wire Kit is an OEM part for GE ranges and ovens. It serves as a crucial component in connecting the heating element to the power source, ensuring that electricity can flow to the element for heating.

This kit typically includes a receptacle, wires, and possibly other connectors or hardware needed for installation. Proper connection via this kit is essential for the heating element to function correctly and efficiently.

Symptoms of a bad Element Receptacle and Wire Kit include:

• Heating element not heating properly or at all
• Burn marks or corrosion on the receptacle
• Visible damage or wear on the wires
• Intermittent heating, indicating a loose connection

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

ST10-16 X 7/16"

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Package of 12

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
