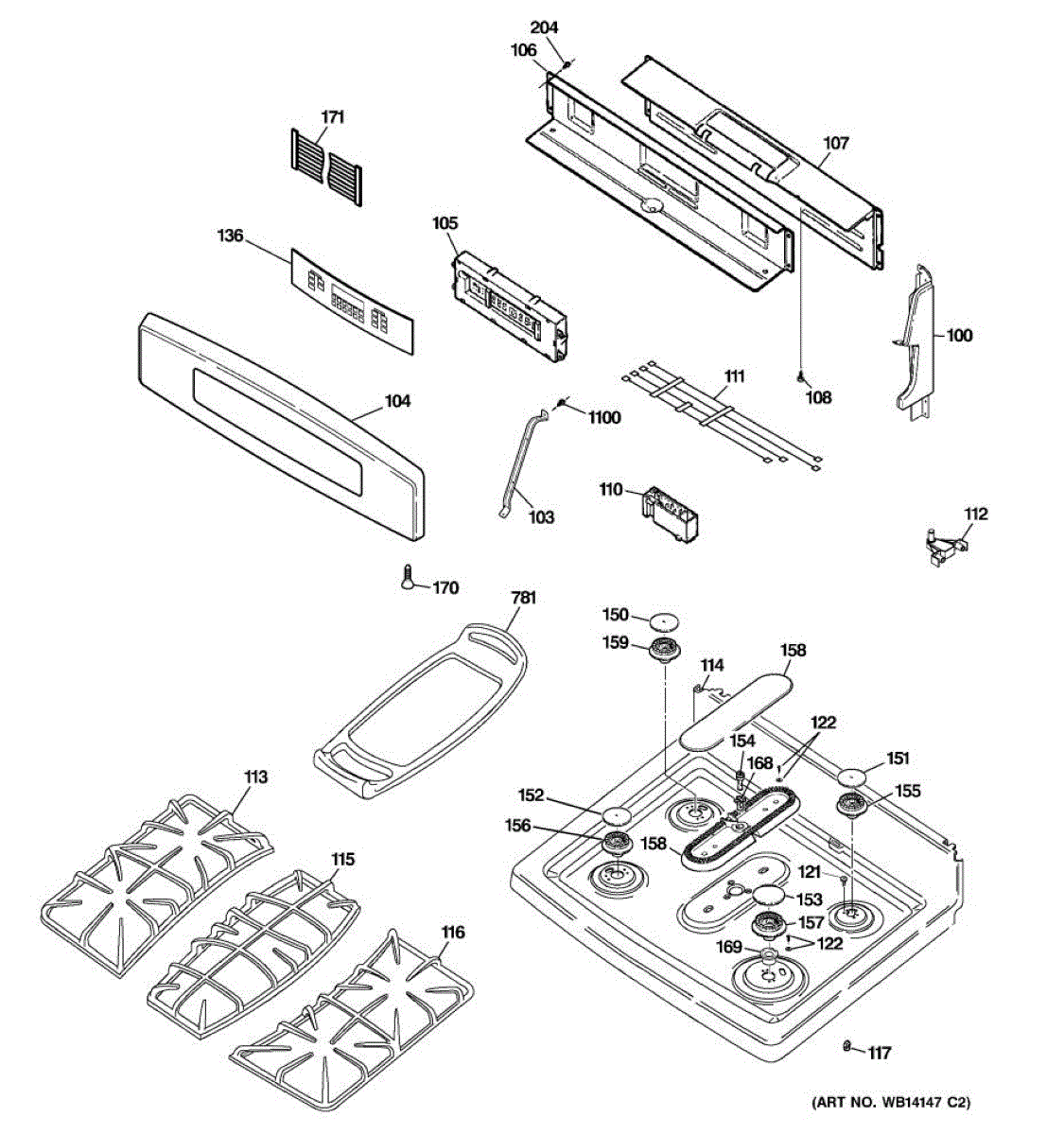

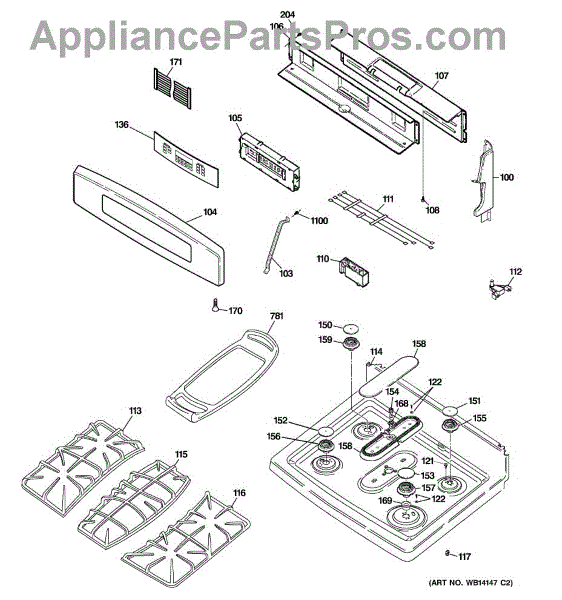

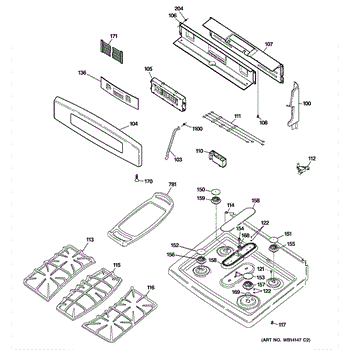

Parts for Ge PGB918DEM4BB: 02 - Control Panel & Cooktop Parts

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The GE spark module kit is an OEM replacement part for GE stoves and ranges. It generates the spark needed to ignite the gas burners. The kit includes the spark module and associated wiring harness. When the burner control knob is turned to the "ignite" position, the spark module receives a signal and activates. It then produces an electrical spark that ignites the gas as it flows from the burner orifice, allowing the burner to light.

Over time, spark modules can fail due to electrical issues, wear and tear from frequent use, or exposure to moisture. A malfunctioning spark module can disrupt the ignition process, making it difficult to light the burners.

Symptoms of a bad spark module include:

• Burners not igniting
• No clicking sound when turning the burner knob
• Intermittent sparking
• Only some burners igniting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. Double burner grate. Left hand side. Includes the rubber feet.

This cast iron cooktop grate supports cookware over the left-front burner and restores a level, stable cooking surface. Durable cast construction resists high heat and helps keep pots and pans steady while cooking. What it does:

• Provides a stable, heat-resistant surface for cookware on the left-front burner
• Replaces cracked, chipped, warped or missing grates that cause pots to wobble
• Helps maintain correct clearance and airflow around the burner for consistent heating
• Restores safe, even support for pans so cooking performance is predictable

• Allow the cooktop to fully cool before removing or installing the grate
• This is a simple drop-in replacement — no special tools required
• Inspect surrounding burner components for damage or heavy residue and clean before installing
• If burners still perform poorly after replacing the grate, check burner caps/heads and electrical/gas supply per manufacturer guidance

This cast mid cooktop grate replaces a damaged or worn center grate to restore stable support for cookware on the cooktop. Durable cast construction keeps pots and pans level for safer, more consistent cooking. What it does:

• Replaces the center grate to provide stable support for cookware on the cooktop surface
• Restores proper clearance and alignment so burners heat cookware evenly
• Commonly used when the original grate is cracked, chipped, warped or no longer sits flat
• Matches OEM fit and form for compatible cooktop configurations

• One cast mid cooktop grate

• Allow cooktop to cool completely before removing or installing the grate
• Typically installs by lifting the old grate out and seating the new grate into place — no special tools required
• Use gloves to avoid sharp edges and protect finish during handling

Color: Black. Double burner grate. Right hand side. Includes the rubber feet.

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

Medium. Color: Grey. It measures about 3 inches in diameter.

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Small. Color: Grey. It measures close to 3 inches in diameter.

Color: Black. Small

Large. Color: Grey. It measures about 3-1/2 inches in diameter.

Color: Black. This large cap measures about 3-1/2 inches in diameter.

15K

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Mounting screw for end caps.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

The Griddle Assembly is an OEM part for GE ranges. This griddle is designed to fit over the burners, providing a flat and even cooking surface ideal for preparing foods like pancakes, eggs, and grilled sandwiches.

Causes of a bad griddle can include regular wear and tear, warping from high heat exposure, or physical damage from dropping or mishandling. A compromised griddle can lead to uneven cooking and potential safety hazards.

Symptoms of a bad griddle assembly include:

• Warping or bending of the griddle surface
• Uneven heating or hot spots during cooking
• Cracks or chips on the griddle
• Food sticking excessively despite proper maintenance

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8 - 18 ab hxw 5/8 s
