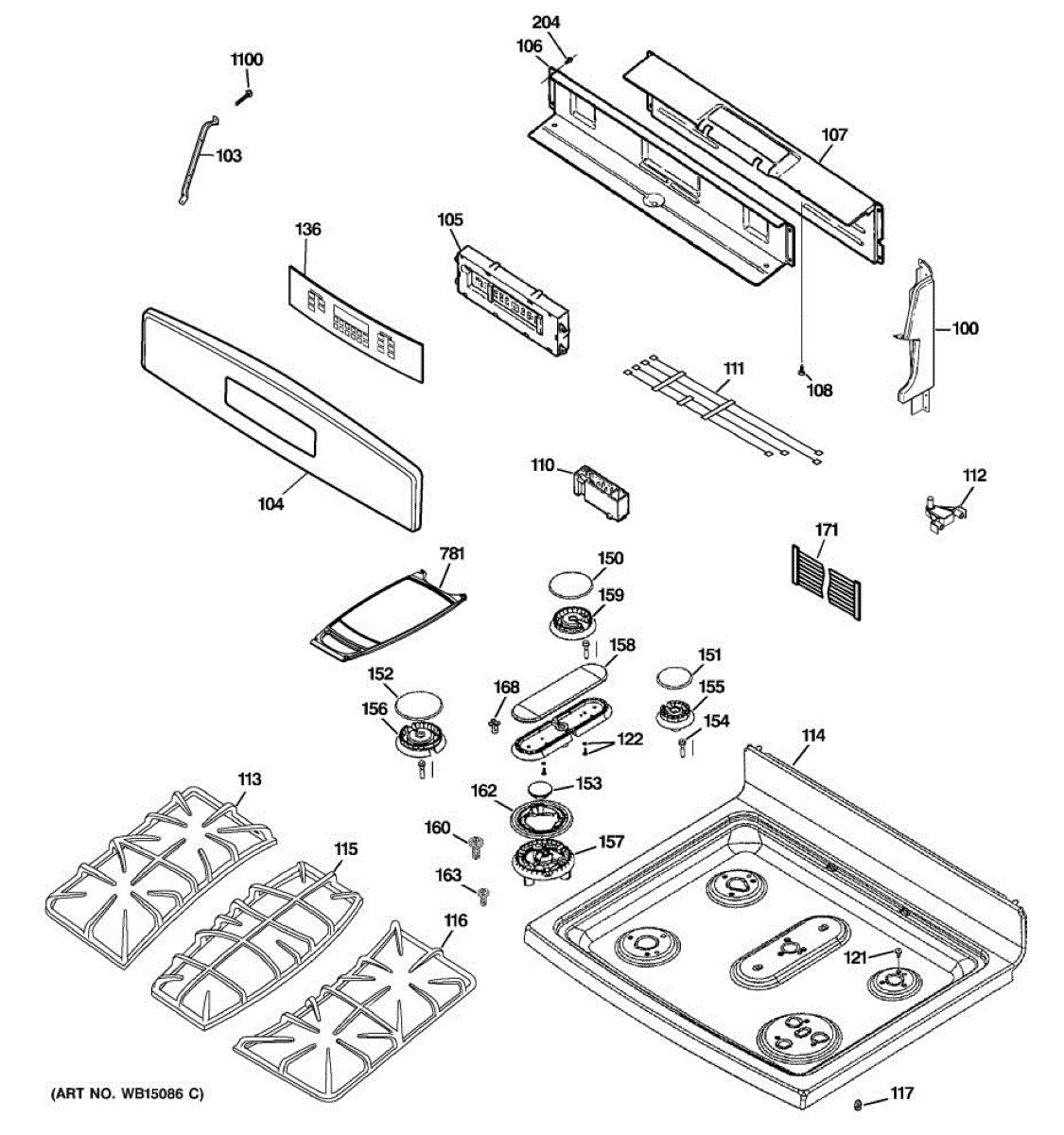

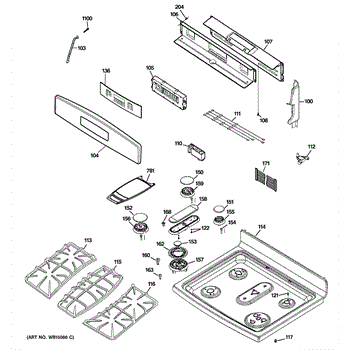

Parts for Ge PGB930SET1SS: 02 - Control Panel & Cooktop Parts

This control trim is the replacement decorative bezel that fits around the appliance control area to restore a finished appearance and cover mounting hardware. It helps keep the control area looking clean and undamaged. What it does

• Replaces cracked, dented or missing control bezel trim to restore the appliance's exterior finish
• Covers control hardware and gaps to improve appearance and reduce dirt buildup
• Provides a snug fit around the control assembly so adjacent panels line up correctly
• Compatible with the original control mounting locations to maintain proper panel alignment

• One control trim piece as shown

• Disconnect power to the appliance before performing any service
• Remove nearby knobs and fasteners as needed; trim typically snaps or screws into place
• Handle trim carefully to avoid scratching the finish during installation

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The GE spark module kit is an OEM replacement part for GE stoves and ranges. It generates the spark needed to ignite the gas burners. The kit includes the spark module and associated wiring harness. When the burner control knob is turned to the "ignite" position, the spark module receives a signal and activates. It then produces an electrical spark that ignites the gas as it flows from the burner orifice, allowing the burner to light.

Over time, spark modules can fail due to electrical issues, wear and tear from frequent use, or exposure to moisture. A malfunctioning spark module can disrupt the ignition process, making it difficult to light the burners.

Symptoms of a bad spark module include:

• Burners not igniting
• No clicking sound when turning the burner knob
• Intermittent sparking
• Only some burners igniting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cast cooktop grate provides a sturdy, heat-resistant surface to support pots and pans over a gas burner, restoring safe and stable cooking performance on compatible gas ranges. What it does

• Supports cookware above the burner so pots and pans sit level during cooking
• Directs and disperses heat from the burner while resisting high temperatures
• Replaces cracked, warped or broken grates that cause wobbling or instability
• Helps protect the cooktop surface from direct flame contact and spills

• One cast cooktop grate

• Allow the range to cool completely before removing or installing the grate
• Lift the grate straight up and set the replacement in place so burner caps align
• Inspect burner caps and openings for debris; clean if needed for proper flame pattern
• Use caution: cast grates are heavy and can chip if dropped

This cast-iron middle grate replaces the center grate on a gas cooktop, restoring a stable, level cooking surface for pots and pans. Durable cast construction provides even support and resists high-heat wear. What it does:

• Replaces a cracked, chipped or missing center grate to stabilize cookware
• Restores proper spacing and support over the middle burner for safe cooking
• Withstands high temperatures and daily use without deforming under normal conditions
• Helps prevent pans from wobbling or tipping on the cooktop

• One cast-iron middle grate

• Position grate over the cooktop so it sits flat and stable on the cooktop ledges
• No tools typically required; lift the old grate straight up and set the replacement in place
• Allow the cooktop to cool completely before handling; use gloves to avoid pinches or sharp edges
• Clean with mild detergent and a non-abrasive pad; avoid harsh chemicals that can damage the finish

A cast cooktop grate that supports pots and pans over a burner and restores a stable cooking surface. Replaces a worn, cracked, or missing grate so cookware sits level for safer, more consistent stovetop use. What it does:

• Supports cookware above the burner for stable heating and safer cooking
• Replaces cracked, broken, or warped grates that let pots wobble or slide
• Restores proper spacing for burner caps and cookware contact
• Durable cast construction resists heat and everyday wear

• Always turn off burners and allow the cooktop to cool completely before handling
• Remove the old grate and set the replacement grate in place, aligning feet over the burner ports
• No special tools typically required; inspect for proper seating and any cracked pieces before use
• Clean grease and debris from the cooktop surface before reinstalling to ensure a stable fit

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions

This factory screw secures components in your appliance for a tight, reliable fit. Replacing a missing or damaged screw helps stop rattles, restore alignment, and keep panels or brackets firmly attached. What it does:

• Acts as a mounting fastener for appliance components such as panels, brackets, or assemblies
• Maintains proper alignment and stability of secured parts
• Helps reduce vibration, rattling, or looseness caused by worn or missing hardware
• Replaces stripped, rusted, or lost screws to restore secure attachment

• One screw

• Disconnect power; shut off gas supply before servicing
• Replace screws one at a time to match length and location
• Start threads by hand to avoid cross-threading; use the correct driver/bit
• Tighten snugly—do not overtighten; inspect mating clip or bracket if threads are damaged

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This central burner cap covers the center of a gas burner to shape the flame and protect the burner head. Replacing a worn or missing cap restores proper ignition, even flame, and clean cooktop performance.

• Directs the center flame for more even heat distribution
• Shields the burner head/igniter area from spills and drafts
• Helps ensure consistent ignition when properly seated
• Common symptoms: uneven or yellow flames, delayed ignition, sooting, or a chipped/warped cap

• Turn all burner controls off and let the surface cool completely
• Lift off the old cap; clean and dry the burner head surface
• Center the new cap on the burner head so it sits flat with no rocking or gaps
• Test the burner; if the flame is uneven or lifting, re-seat the cap until level

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tri-Ring Burner Assembly is an OEM part for GE gas cooktops and ranges. It contains the three front right burners, grates, and supporting brackets.

Causes of a bad burner assembly can include cracked or warped burner heads from prolonged heat exposure. Deterioration of internal gas pipes and orifices may also diminish flame and heating performance.

Symptoms of a bad Tri-Ring Assembly include:

• Unstable, yellowish, or excessively large flames that cannot be adjusted
• Burners that cannot be ignited or controlled independently
• Improper alignment causing imbalanced pans or spills
• Leakage or gas smells detected around the burner cavities

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore branded appliances.

The Oval Burner Assembly is an OEM part for GE ranges. This part provides an even heat distribution across the cooktop, facilitating efficient cooking with its distinctive oval shape.

Common causes of a bad burner assembly include normal wear and tear, clogging due to food debris, or damage from overheating or impact.

Symptoms of a bad Oval Burner Assembly include:

• Inconsistent flame or uneven heating
• Burner not igniting or maintaining a flame
• Visible damage or deformities on the burner
• Unusual odors or gas leaks when the burner is in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the outer burner cap for a sealed gas burner. It covers the burner's outer ring to shape a steady flame, protect the burner head from spills, and help ensure consistent ignition and even cooking results.

• Shapes and distributes the flame around the outer ring for balanced heating
• Promotes reliable ignition when properly centered and seated
• Shields burner head and ports from spills and debris that can affect performance
• Replace if the cap is chipped, warped, or missing; symptoms can include yellow/uneven flames, sooting, or repeated clicking/delayed ignition

• Disconnect power and allow the cooktop/range to cool before servicing
• Lift off the old cap; clean the burner head and seating surface
• Position the new cap flat and centered; it should sit level and not rock
• Light the burner to verify a steady, blue flame; reposition if needed

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This reversible griddle provides a flat cooking surface on one side and a ridged grill surface on the other, restoring full griddle/grill functionality for compatible ranges. It lets you cook pancakes, sear meats, and grill vegetables with one easy-to-flip plate. What it does

• Replaces a damaged or worn griddle so food cooks more evenly across the cooktop surface
• Flat side delivers a smooth surface for pancakes, eggs and sautéing
• Ridged side creates grill marks and helps drain fats when searing meats
• Corrects symptoms like uneven heating, warped or chipped cooking surface, and difficulty achieving consistent browning

• One reversible griddle

• Allow range to fully cool and disconnect power before removing or installing the griddle
• Position the griddle so it sits securely on the cooktop supports; avoid forcing it into place
• Use cookware-safe cleaning methods; follow OEM cleaning recommendations to preserve finish
