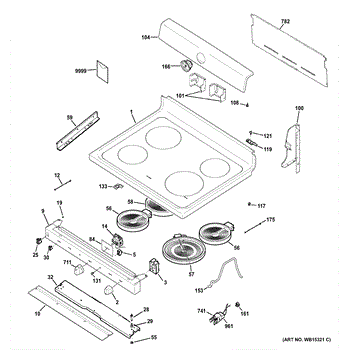

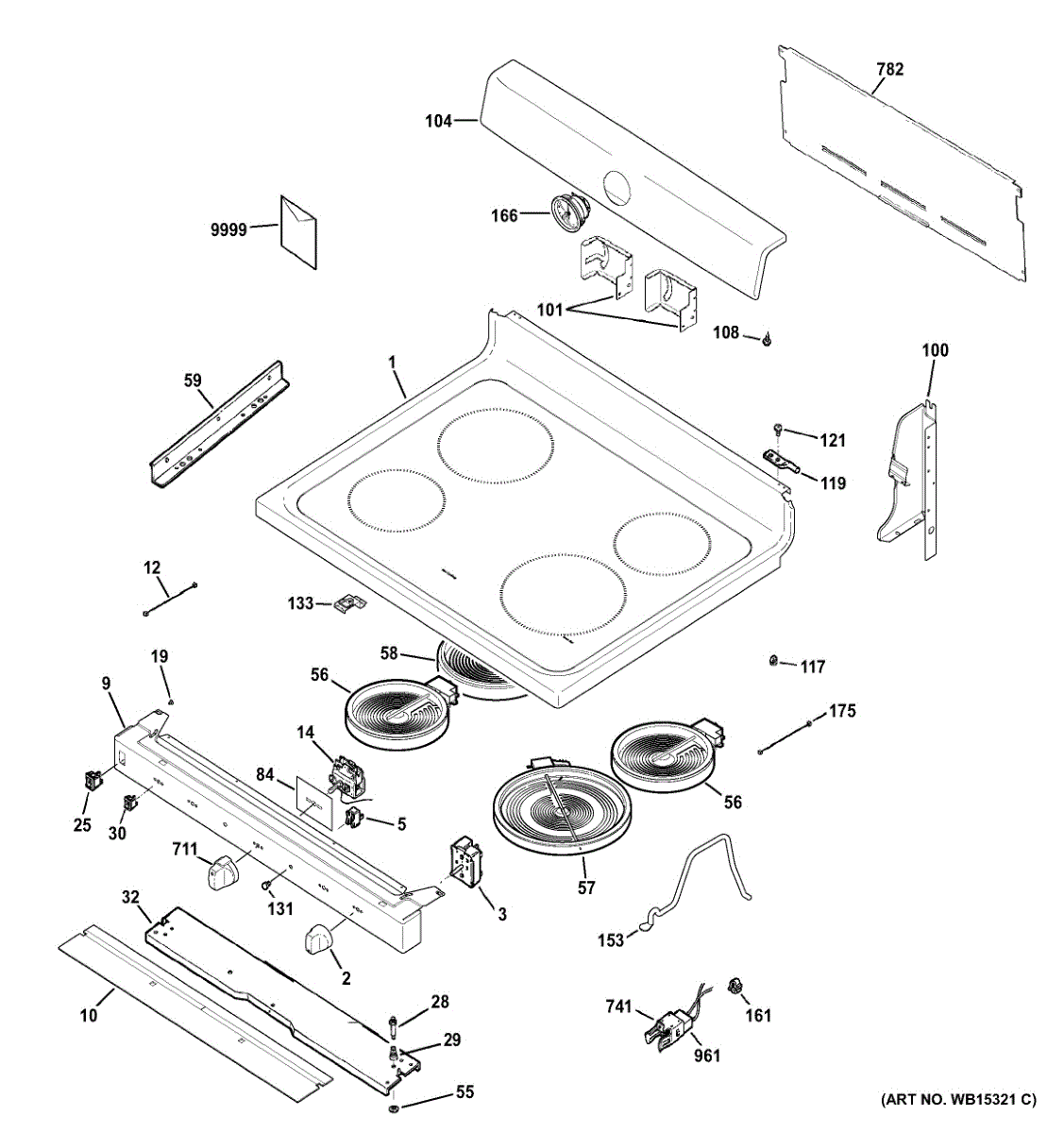

Parts for Ge ABS45DF1WS: Control Panel & Cooktop Parts

The Infinite Control Switch is an OEM replacement part for GE electric ranges. It controls the heat output of the surface burners.

Causes of a faulty switch can include failures in the circuitry from extended and repetitive use over time. Exposure to liquid splatters or spills can also impact component wiring.

Symptoms of a bad infinite control switch include:

• Unresponsive or incorrectly functioning control buttons/dials
• Inability to turn on desired cooking elements
• Erratic temperature regulation and heating performance
• Repeated resetting or power intermittence issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

The Electric Thermostat is an OEM replacement part for GE ovens. This component is responsible for monitoring and regulating the temperature inside the oven. When you set a desired temperature, the electric thermostat ensures the oven heats to that specific temperature and maintains it throughout the cooking process.

Causes for a malfunctioning Electric Thermostat can include electrical issues, such as faulty wiring or connections, calibration problems, or wear and tear from regular use.

Symptoms of a bad Electric Thermostat include:

• Oven not reaching the set temperature
• Overheating or under-heating of the oven
• Inconsistent temperature fluctuations during cooking
• Error messages related to temperature or heating

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

A sealed rocker switch that replaces a failed control rocker on appliance panels to restore reliable on/off switching. Designed for direct-fit replacement of the original sealed rocker switch to help stop intermittent or non-working controls. What it does

• Provides user on/off control for the corresponding circuit or function on the appliance control panel.
• Sealed design helps resist moisture and grease common around cooking surfaces.
• Replaces worn, cracked, or unresponsive rocker mechanisms that cause inconsistent operation.
• Can resolve symptoms such as a switch that does not click, fails to make contact, or works only intermittently.

• One sealed rocker switch.

• Disconnect power to the appliance before beginning any repair to avoid shock hazard.
• Access usually requires removing the control panel or overlay—retain all screws and fasteners for reassembly.
• Match switch orientation and wiring connections exactly; note wire locations or take a photo before removal.
• Test function after reassembly and restore power only when panels and fasteners are securely replaced.

This 6" surface radiant element replaces a damaged or non-heating cooktop burner so your range heats evenly and cooks reliably. It fits into the cooktop opening and connects to the existing terminal block for standard operation. What it does

• Heats cookware by radiating heat from the glass-ceramic cooktop surface
• Restores a single 6" cooking zone that won't heat, cycles, or shows visible damage
• Works with standard cooktop terminal block connections and mounting clips
• Helps eliminate uneven cooking, no-heat, or intermittent heat symptoms

• One 6" surface radiant element

• Disconnect power at the breaker before servicing to avoid shock
• Remove the glass cooktop and access the element terminals per OEM instructions
• Verify terminal connections and element size/fit before final assembly

The 8-inch Haliant Element is an OEM replacement part for GE ranges. This component is located beneath the glass surface of the stove and is responsible for heating up the cooking area. It glows bright red at its highest setting, providing the necessary heat for cooking or boiling. The 8-inch size indicates its diameter, making it suitable for larger pots and pans.

Symptoms of a bad 8-inch Haliant Element include:

• The element not heating up or only heating intermittently
• Uneven cooking results due to inconsistent heat
• Visible damage to the element, such as burns or breaks
• Error codes on the range’s display indicating a heating issue

Causes for a malfunctioning 8-inch Haliant Element can include a burnt-out element, electrical issues like faulty wiring or connections, or problems with the control board that regulates its operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 8-inch Haliant radiant surface element mounts beneath the glass of a smooth-top range to heat a single cooking zone. Replacing a failed element restores proper heating response and consistent performance on that burner. What it does:

• Heats the 8-inch cooking zone by converting electrical energy to radiant heat beneath the glass
• Helps provide even heating and smooth simmer-to-boil control
• Works with the surface control to cycle and maintain the set temperature
• Typical failure symptoms: no heat, very slow heating, or inconsistent/uneven heating on that burner

• 1 Haliant 8-inch radiant surface element

• Disconnect power at the breaker; allow the cooktop to cool fully
• Lift/remove the glass top per your model's procedure to access the element
• Note wire locations and transfer any mounting clips/brackets from the old element if needed
• After reassembly, test the burner; if it still won't heat, the surface element switch/control may be at fault

This left-side cooktop bracket secures the cooktop to the range frame, restoring a solid, stable fit and preventing movement or misalignment. Durable stamped metal bracket designed to replace a worn or damaged mounting point. What it does:

• Anchors the left side of the cooktop to the range frame so the cooktop sits flush and stable
• Stops rocking, shifting, or gaps between the cooktop and the range while using the appliance
• Restores proper alignment after impact or corrosion of the original bracket

• One left-side cooktop mounting bracket

• Disconnect power to the appliance before beginning any repair
• Remove the cooktop or control panel per service instructions to access the bracket
• Use basic hand tools; replace only the damaged bracket and retain original fasteners unless corroded
• Tighten fasteners snugly but avoid over-torquing to prevent striping or damage

Size: 8 - 18 ab hxw 5/8 s

Color: White. Mounting screw for end caps.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

This electronic clock control assembly displays time and provides front-panel clock/timer functions for compatible ranges and ovens. It restores visible time/timer operation and front-panel control feedback for affected units. What it does:

• Replaces a cracked, non-responsive, or dim clock/display module
• Restores the built-in clock and timer readout for normal timekeeping
• Helps return front-panel touch/press functions when the display/control is the faulty component
• Can clear erratic or blank clock displays caused by a failed control module

• Disconnect power at the breaker or unplug the appliance before beginning work
• Remove the control panel or trim according to the service manual to access the clock assembly; keep all mounting hardware
• Handle the display and ribbon/connectors gently to avoid damage; ensure connectors seat fully on reassembly
• After installation, restore power and verify clock, timer and front-panel functions

The Knob Assembly is an OEM replacement part for GE electric ranges. It provides a knob to select cooking functions and accurately set temperatures.

Causes of a bad knob assembly typically include long-term wear and tear. The internal mechanisms experience years of constant rotation required for control. Exposure to high heat during cooking cycles also contributes to degradation over time.

Symptoms of a bad knob assembly include:

• Loose, gritty, or difficult movement of the knobs
• Faded or unreadable indicator markings
• Detached components or collapsed knob assemblies
• Inability to properly engage heating elements

This GE replacement part is compatible with some Hotpoint and RCA electric range models as well.

This back cover protects the appliance's rear components and wiring, keeping internal parts secure and reducing exposure to dust and debris. It restores the cabinet's finished appearance and helps maintain safe operation. What it does:

• Covers and shields rear-mounted electrical components and connections from dust and accidental contact
• Helps reduce vibration noise and prevents loose parts from rubbing or striking internal components
• Prevents debris and small objects from entering the appliance chassis
• Visible cracks, missing tabs, or warping can allow rattling or expose wiring — replacing the cover restores protection

• One back cover (rear panel) as shown

• Disconnect power (and gas, if applicable) before beginning any work
• Typical installation uses screws or retaining tabs; keep removed fasteners for reassembly
• Be careful of sharp sheet-metal edges; wear gloves and eye protection
