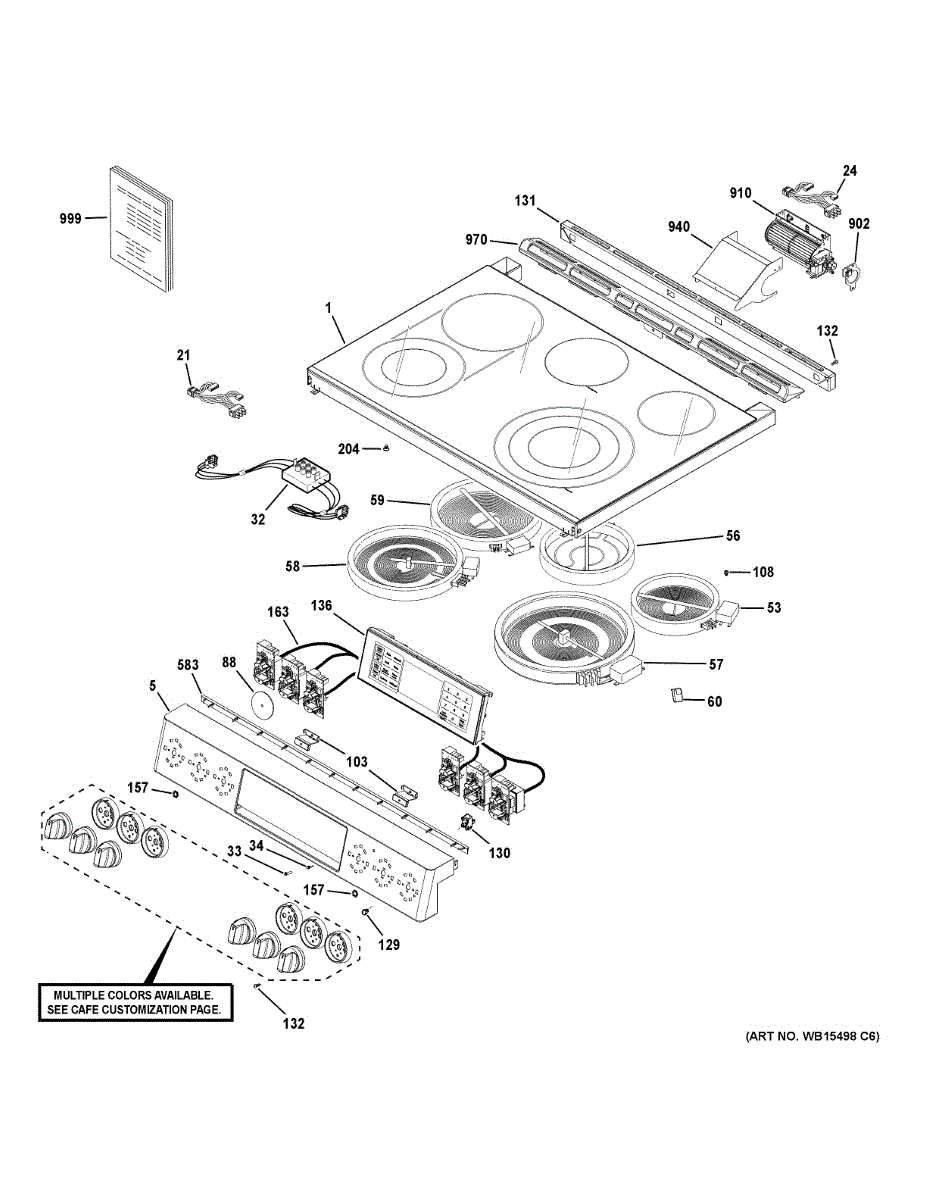

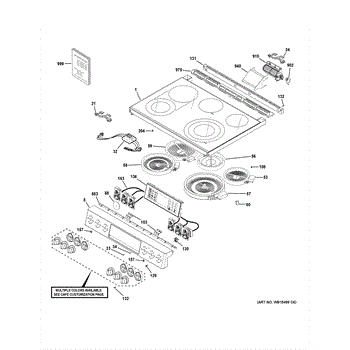

Parts for Ge CES700P3M1D1: Control Panel & Cooktop Parts

This rangetop and glass assembly replaces the complete cooking surface on your range. It restores a smooth, level top and helps protect internal components when the original glass is cracked, shattered, or excessively worn. What it does:

• Forms the upper cooking surface and supports top-side components
• Helps contain spills and shields components below from debris and heat
• Maintains proper alignment for control and burner/element openings
• Replace if the glass is cracked, shattered, deeply scratched, chipped, or mounting points are damaged

• 1 rangetop and glass assembly

• Disconnect power; shut off the gas supply and allow the appliance to cool completely
• Handle the glass carefully; wear cut-resistant gloves and eye protection
• Transfer any attached components and hardware from the old top to the new assembly as required by your model's service information
• After reassembly, restore utilities and test; check all connections for leaks using an approved method

This indicator sleeve is a small control-knob marker that restores a clear position marker and snug fit on the control shaft for reliable setting selection. It improves dial visibility and stabilizes the knob during use. What it does:

• Covers and centers the control shaft so the knob sits straight and turns smoothly
• Provides a visible pointer for selecting temperature or power settings
• Replaces cracked, worn or missing sleeves that make knob position hard to read
• Helps eliminate wobble or looseness between the knob and control shaft

• One indicator sleeve

• Disconnect power to the appliance before servicing
• Remove the control knob (pull straight off) to access the sleeve
• Press the sleeve onto the shaft by hand until fully seated; no special tools generally required
• If the knob or shaft is damaged, inspect and replace as needed for secure fit

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 6 Warmer is an OEM component specifically designed for GE electric ranges. This element plays an important role in warming plates and keeping cooked foods hot until serving.

Symptoms of a bad radiant warmer element include:

• Inability to maintain an elevated temperature on the warmer oven surface
• Fluctuating or uncontrolled warming temperatures
• Burning or scorching of foods left on the warmer for extended periods

Causes of failure can be cracking or breakage of the heating coils over time, insulation damage allowing shorts or arcing, or issues with the electronic temperature controls.

This OEM GE replacement element is also compatible with Hotpoint, RCA, and some Kenmore models.

The Triple Haliant Element is an OEM part for GE cooktops and ranges, designed to provide versatile and powerful heating options. This element features a triple-ring design that allows for three different sizes of cookware to be heated efficiently on the same burner. It's ideal for situations requiring precise temperature control and flexibility, such as when cooking with large pots or pans that need even heat distribution.

Causes for a Triple Haliant Element to fail can include prolonged use leading to wear and tear, overheating that damages the internal components, or electrical issues such as short circuits.

Symptoms of a bad Triple Haliant Element include:

• The element does not heat up
• Only parts of the element heat up
• Unusual fluctuations in heat levels

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This dual radiant surface element sits beneath the glass cooktop and provides two heating zones to match your pan size. Replacing a failed element restores fast, even heating and proper control on the affected burner.

• Heats cookware via two concentric radiant circuits beneath the glass-ceramic surface
• Lets you select inner, outer, or both rings for small or large pans (via the burner control)
• Cycles with its internal limiter to maintain the temperature you set
• Common symptoms: no heat, only one ring heats, uneven or slow heating

• Disconnect power at the breaker before servicing
• Lift/remove the glass cooktop to access elements; support the glass to prevent stress or cracks
• Transfer wiring and any mounting brackets from the old element to the new one, moving one connection at a time and documenting positions
• Test the burner for proper operation before reassembly

This 8-inch Haliant radiant surface element mounts beneath the glass of a smooth-top range to heat a single cooking zone. Replacing a failed element restores proper heating response and consistent performance on that burner. What it does:

• Heats the 8-inch cooking zone by converting electrical energy to radiant heat beneath the glass
• Helps provide even heating and smooth simmer-to-boil control
• Works with the surface control to cycle and maintain the set temperature
• Typical failure symptoms: no heat, very slow heating, or inconsistent/uneven heating on that burner

• 1 Haliant 8-inch radiant surface element

• Disconnect power at the breaker; allow the cooktop to cool fully
• Lift/remove the glass top per your model's procedure to access the element
• Note wire locations and transfer any mounting clips/brackets from the old element if needed
• After reassembly, test the burner; if it still won't heat, the surface element switch/control may be at fault

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

This is a stainless-steel machine screw used to secure components in appliances. Its #8-18 thread and 3/8" length provide a reliable, corrosion-resistant fastening where a short machine screw is required. What it does:

• Fastens panels, brackets, or small assemblies with a #8-18 threaded hole
• Resists rust and corrosion in humid appliance compartments
• Provides a short, secure hold where space is limited
• Compatible with standard #2 Phillips or compatible driver bit for installation

• Power off and unplug the appliance before servicing
• Use the correct driver to avoid stripping the head
• Do not overtighten; stop when snug to avoid thread or component damage
• If replacing multiple fasteners, reuse only the same size and type

This glass and touch board control panel assembly replaces the front glass and integrated touch interface to restore control response and provide a clean, intact user surface. Ideal for ranges or ovens with unresponsive touch keys or damaged glass. What it does:

• Provides the front glass and integrated touch-sensor circuit for the control panel
• Restores responsive touch buttons and input when the original panel is cracked or stops responding
• Replaces visibly cracked, chipped, or scratched control glass
• Can resolve intermittent or non-working control inputs tied to a faulty touch board

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the glass carefully to avoid cuts and protect the touch-sensor surface from fingerprints or damage
• Removing the control housing may be required; keep fasteners organized for reassembly

This replacement switch assembly restores control of the appliance's heating or power circuit, letting a specific function respond correctly when selected. Designed as a direct-fit service part to replace a worn or failed switch. What it does

• Completes or interrupts the electrical circuit to the targeted heating or control function.
• Restores reliable on/off or stepped control when the original switch is worn or intermittent.
• Helps resolve symptoms such as no power to the element/function, intermittent operation, or inability to change settings.
• Matches OEM mounting and terminal layout for straightforward replacement.

• One switch assembly as shown

• Disconnect power to the appliance at the breaker or unplug before starting work.
• Verify exact terminal layout and orientation before removing the old switch; take a photo for reference.
• Use insulated tools and avoid touching live terminals; replace any damaged wiring or connectors.
• After installation, restore power and verify proper operation of the function controlled by the switch.

This is a replacement 8-18 x 5/16 machine screw used to secure appliance panels and components. It restores proper fastener fit so parts stay mounted and operate safely. What it does:

• Fastens panels, brackets, and small components where an 8-18 x 5/16 screw is specified
• Prevents loose parts, rattling, and misalignment caused by missing or worn screws
• Provides the correct thread size and length for reliable reattachment
• Works wherever the OEM calls for this specific 8-18 x 5/16 screw

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or mounting surfaces
• If replacing multiple fasteners, use matching screws to maintain proper fit and function

The Front Gasket Assembly is an OEM replacement part for GE electric ranges. As the seal between the range body and control panel, the front gasket plays a critical role in containing heat and preventing spills from entering internal components.

Symptoms of a bad front gasket include:

• Excess heat visible escaping around the control panel
• Drips or spills entering behind the control panel
• Visible cracks, splits, or openings in the gasket seal

Causes of a bad gasket can be normal wear from repeated cleaning and high-heat cooking. Hard impacts or forced openings may also damage the integrity of the seal over time.

This OEM GE part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

The Cooling Fan Sensor is an OEM replacement part for GE ovens and ranges. It is a critical component that monitors and regulates the operation of the cooling fan, ensuring proper ventilation and temperature control within the appliance.

Symptoms of a bad cooling fan sensor:

• Overheating issues, with the oven or range becoming excessively hot
• Failure of the cooling fan to turn on or operate correctly
• Error codes or warning lights related to temperature or ventilation problems
• Potential safety hazards due to inadequate cooling and heat buildup

Causes of a faulty cooling fan sensor can include exposure to high temperatures over time, electrical malfunctions, or physical damage to the sensor or its wiring.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ovens and ranges.

The Blower Tangential is an OEM component designed specifically for GE ranges. Located near the top of the oven cavity, this tangential blower circulates exhaust air out of the oven and above the cooktop during and after cooking cycles.

Symptoms of a faulty blower include:

• Excessive heat buildup inside the oven and around the cooktop surfaces
• Steam or smoke failing to properly vent outdoors from the oven
• Abnormal noises coming from the blower motor

Causes usually involve failures of the electric motor from years of sustained usage. Physical obstructions blocking the fan housing could also lead to issues.

This genuine GE part is compatible with Hotpoint, RCA, and select Kenmore models as well.
