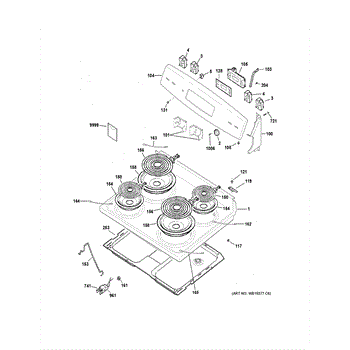

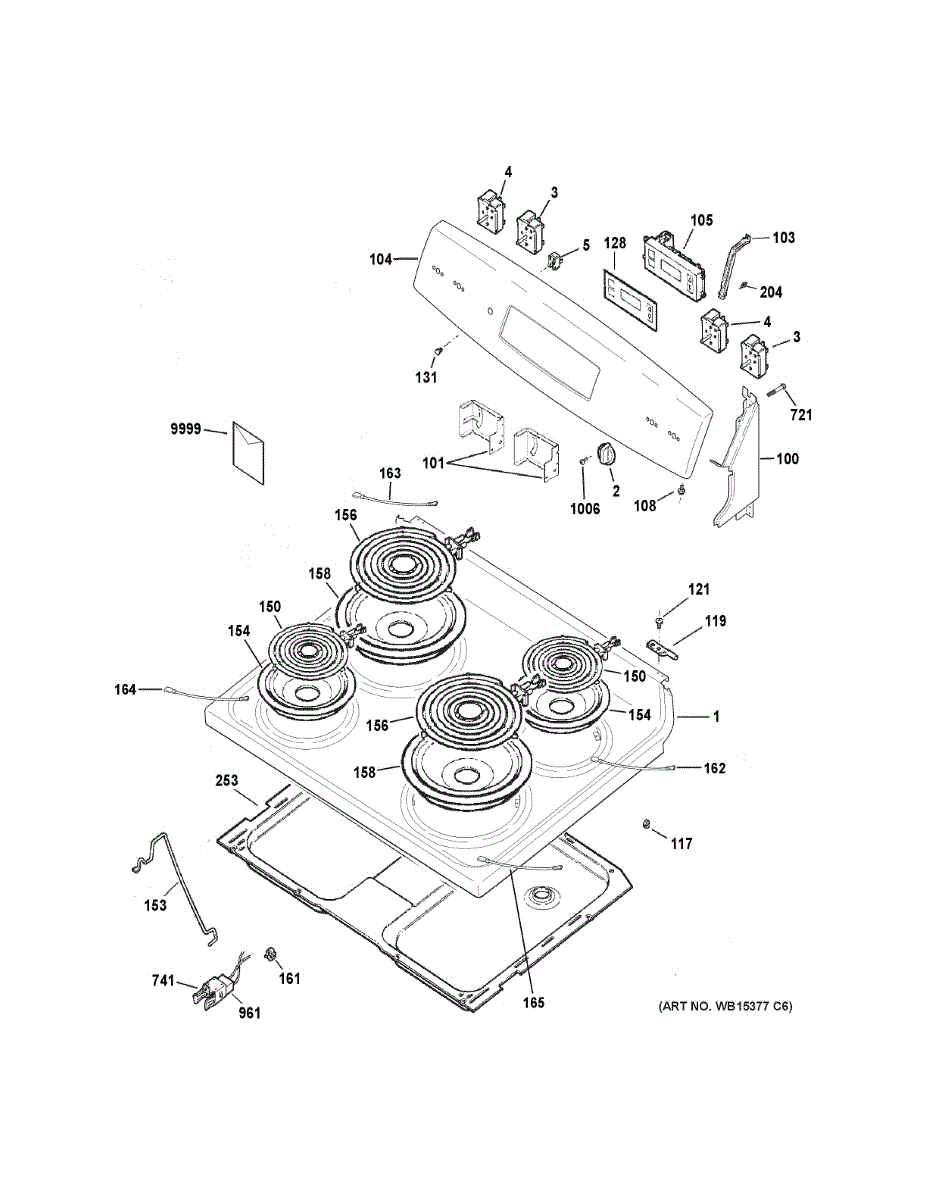

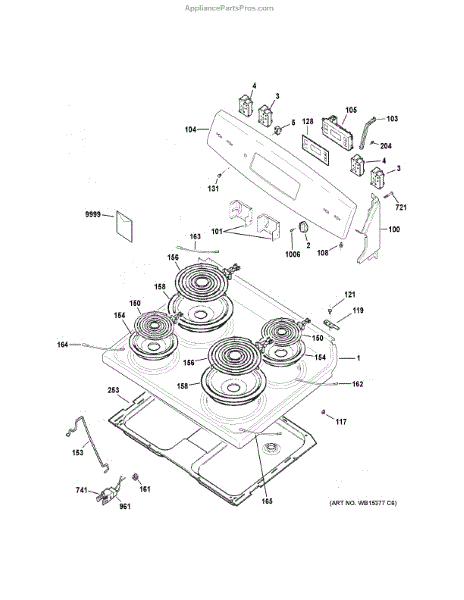

Parts for Ge JBS30DK1WW: Control Panel & Cooktop Parts

Replace a damaged main top with this factory replacement upper surface panel. It supports the surface burner components and provides a stable, easy-to-clean cooking surface so burners sit level and your range looks and works right.

• Forms the cooking surface and provides mounting points for surface components
• Keeps burners and grates properly aligned for consistent heating
• Helps contain minor spills for easier cleanup
• Replace if dented, warped, heavily chipped, rusted, or if burners/grates no longer sit level

• Disconnect power; shut off gas supply if applicable before servicing
• Remove surface components per your model (grates/burner parts or elements/trim), keeping hardware organized
• Remove retaining screws/clips and transfer any reusable parts or gaskets to the new top
• Reassemble and test; if gas, check all connections for leaks with a soapy-water solution

This replacement control knob fits the surface burner valve on many ranges and cooktops. It restores smooth on/off operation and flame adjustment when the original knob is cracked, stripped, wobbly, or missing.

• Press-fits onto the valve stem to turn the surface burner on/off and set flame level
• Replaces knobs that are cracked, stripped (spins or slips), loose, melted, or missing
• Helps restore accurate feel and alignment so settings match the dial
• Common signs: knob rotates without engaging the valve or does not stay seated

• Ensure all burners are off and the appliance is cool before servicing
• Pull the old knob straight off the valve stem; do not pry against the control panel
• Align the new knob with the stem flats/notch and press firmly until fully seated
• If the knob won't seat, inspect the stem for debris or damage before reattempting

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This end support secures and aligns the dryer drum so it turns smoothly and reduces wear. It replaces a worn or broken support to restore proper drum rotation and quiet operation. What it does:

• Supports the drum edge and maintains proper drum alignment during rotation
• Helps reduce rubbing, scraping, wobble, and abnormal noise from a loose drum
• Prevents uneven wear on the drum and neighboring components
• Works with rollers/bearings and rear support to keep the drum turning smoothly

• Disconnect power (and gas supply if applicable) before beginning any repairs
• Access typically requires removal of the dryer front or bulkhead; follow your model-specific service manual
• Inspect adjacent rollers, bearings, and mounting hardware; replace any worn parts to prevent repeat failures
• Use hand tools and avoid forcing components; secure fasteners to OEM torque specs when available

This end support holds and aligns the dryer drum shaft, helping the drum spin smoothly and quietly. Replace a worn end support to reduce squeaks, wobbling, or drum misalignment for safer, more reliable operation. What it does:

• Supports the drum shaft at the rear of the dryer to keep the drum centered and rotating evenly
• Maintains proper drum-to-drum seal and clearance to prevent rubbing and excess wear
• Helps reduce noise and vibration caused by a loose or damaged rear support
• Works with the drum bearing/shaft assembly to preserve smooth drum rotation

• One end support

• Disconnect power before starting work to avoid electrical shock
• Inspect surrounding drum bearings, rollers, and seals; replace any worn components for best results
• Moderate mechanical skill required; follow OEM disassembly steps and torque recommendations
• Use proper alignment during reassembly to prevent premature wear

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Mounting screw for end caps.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

Package of 12

Control panel overlay (T09) replaces a worn or damaged control-panel face so buttons and labels are clear and the underlying controls stay protected from spills and wear. It restores legibility and helps prevent accidental input from a degraded surface. What it does:

• Replaces faded, cracked, or peeling control-panel graphics so settings and icons are readable
• Protects the underlying membrane switches and circuit board from spills, grease, and everyday wear
• Improves tactile clarity of button areas for more reliable user input

• Always disconnect power to the appliance before servicing to avoid shock or injury
• Access typically requires removing the console or control panel; keep screws and fasteners organized
• Align the overlay carefully and press evenly to seat it; avoid touching circuit board contacts

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Note: 6" surface element

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

This 8-inch coil surface element restores consistent stovetop heating on electric ranges. Replace a warped or burned-out burner so pots heat evenly and your everyday cooking temperatures are easy to reach and maintain.

• Converts electrical power into heat for the 8-inch cooking zone
• Plugs into the surface-element receptacle for a secure power connection
• Common fix for a burner that won't heat or heats slowly/unevenly
• Replace if the coil is blistered, warped, or the terminals are burnt/pitted

• Disconnect power at the breaker or unplug the range; allow the element to cool completely
• Lift the old element slightly and pull straight from the receptacle; remove from the support
• Inspect the receptacle; replace the block if terminals are burnt or loose
• Align the new element in the drip pan/support and push terminals fully into the receptacle until seated

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
