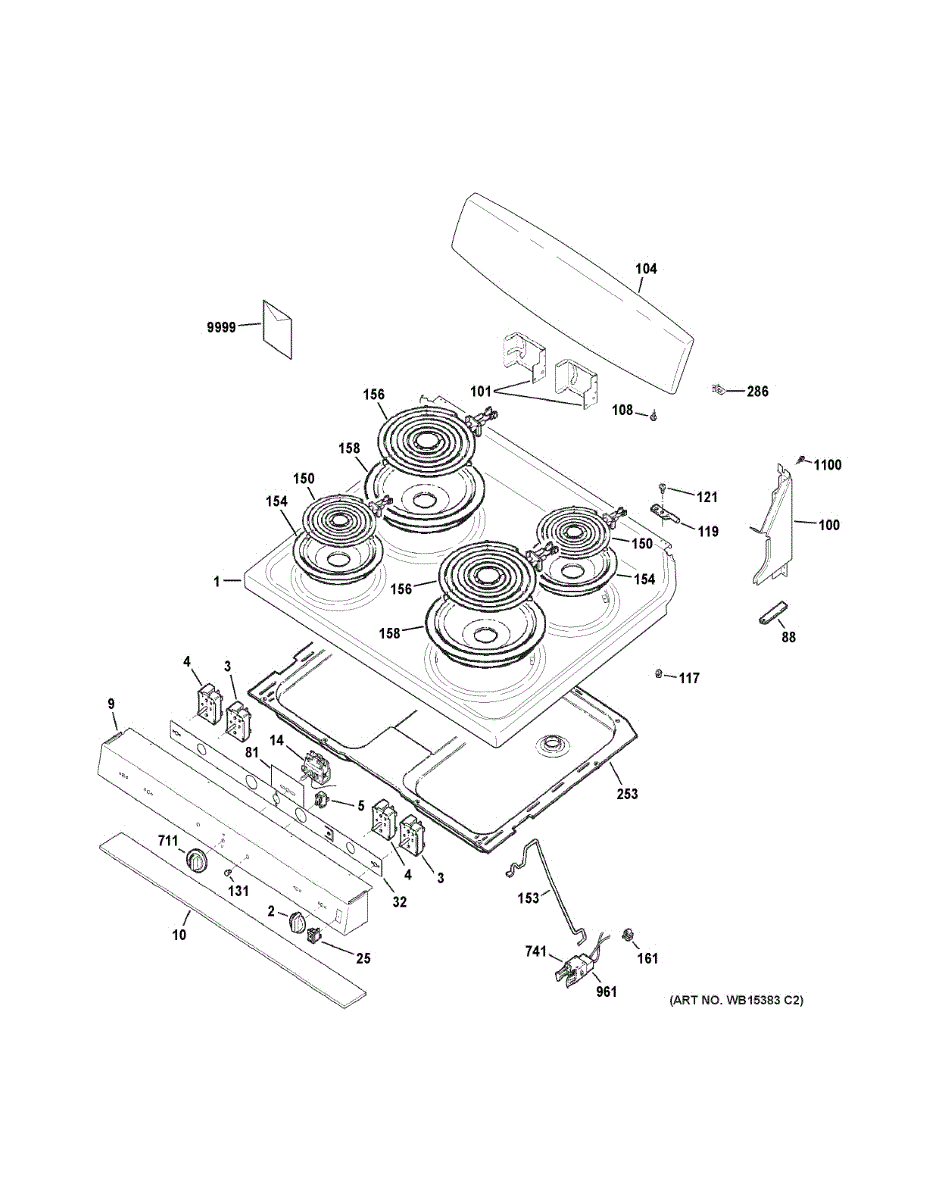

Parts for Ge JBS45DF2BB: Control Panel & Cooktop Parts

This replacement range top restores the flat surface that supports burners and cookware, renewing appearance and providing a stable cooking platform. Fits compatible GE ranges and helps keep the cooktop area sealed and serviceable. What it does:

• Provides the cooktop surface that supports burners, grates, and cookware
• Replaces a warped, dented, corroded, or cosmetically damaged top
• Helps maintain proper alignment of burner assemblies and trim
• Can prevent debris from falling into the range interior around burners

• One range top

• Disconnect power and gas supply before beginning service
• Remove burner grates, burner caps and assemblies as required to access mounting fasteners
• Handle carefully to avoid scratching the finished surface; use two people for larger tops

The Knob Valve is an OEM part compatible with GE ranges. Precisely machined brass components regulate propane or natural gas flow through each control valve.

Causes of failure are often normal wear on precision valve internals restricting fuel intake over thousands of adjustment cycles. Cracks or contaminant buildup can occur from prolonged use.

Symptoms include:

• Burners failing to ignite consistently or at all
• Inability to adjust/maintain proper flame height or temperature
• Fuel leaks discernible by smell around knob shafts

This GE replacement returns full functionality to fuel delivery. Compatible with select Hotpoint and RCA appliances as well, it prevents future repair costs.

This surface element control switch regulates power to an electric cooktop burner in timed cycles so the heat matches your knob setting. Replacing a failed switch restores reliable temperature control and resolves no-heat or stuck-on-high symptoms.

• Regulates the on/off cycling of a single surface element at the selected heat setting (also called an infinite heat switch)
• Restores smooth Low-to-High adjustment of burner temperature
• Common failure signs: burner only heats on high, won't shut off, no heat, or erratic temperature changes
• Useful when the switch shaft is stripped or the internal contacts are worn

• Disconnect power at the breaker before servicing; this is a high-voltage repair
• Remove the control/backsplash panel to access the switch; pull off the knob and mounting hardware
• Transfer wires one at a time from the old switch to the same terminals on the new switch; secure connections
• Reassemble, reinstall the knob, and test the burner through all settings

This surface element control switch regulates power to a cooktop/range burner. Replacing a failed switch restores smooth, adjustable heat and corrects issues such as a burner stuck on high, not heating, or cycling erratically.

• Regulates power cycling to the surface burner to achieve the selected heat level
• Provides variable low-to-high settings via the control knob
• Typical failure symptoms: burner won't heat, only heats on high, won't turn off, or heat is inconsistent
• Helps restore precise temperature control on the affected burner

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Pull off the burner knob and open the control panel to access the switch
• Note wire positions and transfer them to the new switch one at a time
• Secure the switch, reassemble the panel/knob, and test all heat settings

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

The Electric Thermostat is an OEM replacement part for GE ovens. This component is responsible for monitoring and regulating the temperature inside the oven. When you set a desired temperature, the electric thermostat ensures the oven heats to that specific temperature and maintains it throughout the cooking process.

Causes for a malfunctioning Electric Thermostat can include electrical issues, such as faulty wiring or connections, calibration problems, or wear and tear from regular use.

Symptoms of a bad Electric Thermostat include:

• Oven not reaching the set temperature
• Overheating or under-heating of the oven
• Inconsistent temperature fluctuations during cooking
• Error messages related to temperature or heating

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A sealed rocker switch that replaces a worn or failed control switch to restore reliable on/off or selector operation. Designed to keep contacts protected from moisture and debris for consistent performance. What it does:

• Provides a user-facing rocker control to open/close electrical circuits for the appliance function.
• Replaces switches that cause intermittent operation, no response, or stuck on/off conditions.
• Sealed design helps protect internal contacts from moisture, spills, and dirt that can cause failures.
• Matches the OEM form and mounting for a direct-fit replacement when the original switch is damaged.

• Disconnect power or unplug the appliance before starting any repair.
• Note or photograph wire locations before removing connectors to ensure correct reinstallation.
• Basic hand tools (screwdriver, pliers) are typically required; avoid forcing wiring or terminals.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

This 6-inch coil surface element restores the small burner on your electric range. It plugs into the burner receptacle to deliver dependable heat for everyday cooking when the original coil is damaged or no longer heating.

• Heats the 6-inch cooktop position by converting electrical energy into heat
• Direct plug-in coil design for the element receptacle; no rewiring when replacing like-for-like
• Common fix for a burner that won't heat, heats unevenly, or works intermittently
• Replaces coils with visible hot spots, blisters, breaks, or corrosion

• Disconnect power at the breaker and allow the surface to cool completely
• Lift the old element straight up and out of the receptacle; remove the drip bowl if present
• Inspect the receptacle and wiring for discoloration or looseness; replace if damaged
• Align and firmly seat the new element's terminals; ensure the coil sits level in the bowl

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6-Inch Burner Bowl is an OEM part compatible with GE ranges and cooktops. This component serves as the base for the burner assembly, housing the burner head and providing a stable platform for cooking utensils.

Symptoms of a faulty burner bowl include:

• Cracks, chips, or visible damage to the bowl itself
• Uneven or inefficient heating due to a warped or damaged bowl
• The bowl becoming loose or detached from the cooktop surface

Causes of needing to replace the burner bowl can include physical impact or mishandling, exposure to extreme temperatures or spills, or general wear and tear from extended use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

Restore reliable heat on your coil-top range with this 8-inch surface coil element assembly. It replaces a burned-out or damaged large burner so pots and pans heat evenly and respond predictably.

• Provides the electric heating surface for the 8-inch burner position
• Common fix for a burner that won't heat or heats intermittently
• Replaces a coil that is broken, blistered, or visibly burned
• Resolve uneven heating or hot spots on the element

• Disconnect power and let the appliance cool completely before servicing.
• Access and procedure vary by model; your product documentation.
• Handle the element carefully; avoid bending the coil or terminals.
• Inspect the burner receptacle and wiring for heat damage; replace if worn or loose.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. This part sits beneath the heating element to catch spills, drips, and crumbs that fall during cooking. Not only does it facilitate easier cleanup, but it also plays a role in reflecting heat back to the cookware, enhancing cooking efficiency.

Causes of a bad 8-inch burner bowl can include the accumulation of cooked-on spills and debris, rust and corrosion from moisture exposure, as well as warping or physical damage that affects fit and function.

Symptoms of a bad 8 Inch Burner Bowl include:

• Poor fit on the stove, affecting stability of pots and pans
• Difficulty in cleaning due to excessive staining or corrosion
• Reduced heating efficiency if the bowl no longer reflects heat effectively

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

Knob thermostat assembly that replaces the temperature-control knob and thermostat interface so you can accurately set and maintain oven or range temperatures. Restores reliable, responsive temperature adjustments. What it does:

• Provides the user-control knob and thermostat interface for selecting oven/range heat settings.
• Engages the temperature control mechanism to help maintain set cooking temperatures.
• Commonly used when the knob is cracked, loose, or fails to turn when adjusting temperature.
• Resolves symptoms like uneven cooking, inability to change temperature, or unresponsive knob control.

• One knob thermostat assembly.

• Disconnect power (and gas if applicable) before beginning any repair.
• Remove the range/oven control panel or access cover to reach the shaft; align the assembly on the control shaft and secure per OEM orientation.
• Restore power and test the control through its settings.

This small retainer secures the surface element receptacle in a range or cooktop so the element plugs in straight and stays seated. Replacing a bent or missing clip helps restore a stable, reliable connection.

• Holds the surface element receptacle firmly to the cooktop or bracket
• Keeps the element plug aligned and fully seated
• Helps prevent arcing, heat damage, and intermittent burner performance from a loose receptacle
• Useful when the element feels wobbly or the receptacle shifts during use

• Disconnect power before servicing
• Lift the cooktop or access panel to reach the receptacle area
• Support the receptacle, release the old clip, and snap the new clip into place
• Ensure the receptacle is secure and aligned before reinstalling the element

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

Size: 8 - 18 ab hxw 5/8 s
