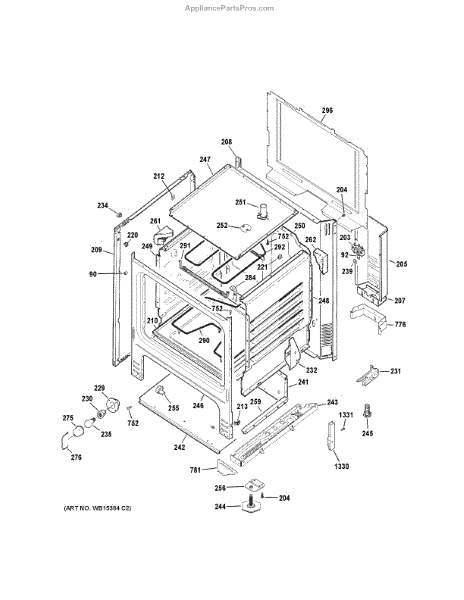

Parts for Ge JBS45DF2BB: Body Parts

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This guard terminal protects and covers exposed wire terminals to help prevent accidental contact and shorting. It's a simple replacement that restores the original terminal protection for safe operation. What it does:

• Covers and insulates exposed appliance wire terminals to reduce risk of shorts and arcing
• Helps prevent accidental contact with live terminals during use or service
• Commonly replaced when terminal guard is cracked, melted, or missing
• Restores proper routing and protection of terminal connections

• One guard terminal

• Disconnect power to the appliance before inspecting or replacing terminals
• Remove any panels necessary to access the terminal area; avoid stressing wires or connectors
• Verify the guard aligns with the terminal block and secures over the exposed terminals
• If terminals or wiring show heat damage or corrosion, replace those components.

This capillary clip secures the oven thermostat's sensing bulb/capillary to the cavity wall so it stays correctly positioned for accurate temperature control. Replace a missing or damaged clip to prevent a sagging bulb and erratic oven performance.

• Holds the thermostat capillary tube/sensing bulb in place inside the oven
• Helps maintain consistent temperature regulation by keeping the bulb properly located
• Direct replacement for a broken, corroded, or missing clip
• Symptoms include a loose or dangling bulb, uneven baking, or temperature swings

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the oven cavity; locate the thermostat sensing bulb and capillary along the wall or back panel
• Position the bulb/capillary and secure with the new clip; avoid kinking or crushing the tube
• Restore power, and test operation

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

This is a right-side guide support that secures and aligns a sliding component so drawers or shelves operate smoothly and stay on track. Replaces a worn or broken guide support to restore proper movement and seating. What it does:

• Holds the right-side guide rail or track in place so the drawer or shelf slides evenly
• Prevents the drawer or shelf from sagging, binding, or falling off the track
• Restores proper alignment when the original guide is cracked, broken, or worn
• Works with the existing rail, clips, and mounting hardware to maintain smooth travel

• Disconnect power or unplug the appliance before accessing internal components
• Access may require removing the drawer, shelf, or front panel—use basic hand tools
• Inspect related clips, rails, and fasteners and replace any damaged pieces for best results

This oven top replaces the worn or damaged top surface on compatible ranges to restore a clean, stable cooking area and help maintain proper appliance appearance and operation. What it does:

• Replaces a cracked, dented, or heavily scratched oven top to improve cooktop appearance and surface integrity
• Provides a stable mounting surface for burners, grates, and trim pieces
• Helps prevent heat and spills from reaching internal components under the top
• Can reduce rattles or fitment issues caused by a warped or damaged top

• Disconnect power to the range at the breaker before starting any work
• Remove burners, knobs, grates and any trim as required to access and lift off the old top
• Handle panel edges carefully — metal edges can be sharp
• Verify fit and orientation before final fastener installation; keep all removed hardware for reassembly

This replacement tube vent routes exhaust from the appliance to the rear vent opening to help maintain proper airflow and reduce heat/smoke buildup in the cabinet area. It fits where the original vent tube was installed. What it does:

• Channels hot air and combustion byproducts safely away from the appliance cavity
• Helps restore proper venting when the original tube is cracked, bent, or missing
• Reduces heat transfer to nearby components and control surfaces
• Can stop symptoms like poor venting, unusual odors, or smoke accumulation near the appliance

• Turn off and disconnect power and gas before servicing; allow appliance to cool
• Use original hardware or OEM-recommended fasteners to secure the vent tube
• After installation, test appliance operation and check for proper venting and clearance

The Insulation Oven Wrap is an OEM part for GE ovens. This wrap is designed to insulate the oven cavity, maintaining consistent internal temperatures and improving energy efficiency. It also helps protect surrounding cabinetry and components from heat damage.

Causes of a bad insulation oven wrap can include degradation over time due to high temperatures, physical damage during oven maintenance, or exposure to moisture. Compromised insulation can lead to heat loss and uneven cooking results.

Symptoms of a bad Insulation Oven Wrap include:

• Increased oven heat-up times
• Uneven cooking or baking results
• External oven surfaces becoming excessively hot
• Higher energy consumption

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven back insulation panel replaces the worn or damaged thermal liner behind the oven cavity to help contain heat and support even cooking. It restores the oven's thermal barrier and helps protect surrounding components from excess heat. What it does:

• Replaces the oven's rear insulation to help maintain proper cavity temperatures
• Helps reduce heat transfer to the exterior cabinet and nearby electronics
• Can improve temperature consistency when insulation is torn, compressed, or missing
• Reduces the chance of heat-related damage to rear components and wiring

• One oven back insulation panel

• Disconnect power at the breaker before starting any repair
• Allow the oven to cool completely; use gloves and a dust mask to avoid irritation from insulation fibers
• Typically accessed by removing the oven back panel; handle gently to avoid compressing or tearing the insulation
• Before reinstalling panels and restoring power

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

The Bake Element is an OEM replacement part for GE electric ranges. It is the internal heating element located at the bottom of the oven cavity that provides heat for baking and convection cooking functions. This heating element measures 17 1/2 x 18 1/2 inches.

Causes of a bad bake element include failure due to normal wear and tear over extended use. Exposure to spills or splatters inside the oven can potentially damage heating coils or insulators.

Symptoms of a bad bake element are:

• Inconsistent or uneven baking temperatures
• Element does not heat up or turns red but puts out no heat
• Buzzing/humming sounds from beneath oven cavity
• Failure of oven to operate or preheat as expected

This OEM part is also compatible with ranges sold under the Hotpoint, RCA and some Kenmore brands.

This broil element support bracket secures the upper heating element to the oven cavity, maintaining proper spacing and alignment. Replacing a damaged or missing support restores stable mounting and helps prevent sagging or arcing.

• Holds the broil element in position at the top of the oven
• Maintains safe clearance from the liner to reduce shorts/sparking
• Helps promote even broiling by keeping the element level and centered
• Common symptoms include a broken/missing support, a sagging or loose element, rattling, or scorch marks near the mount

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks; support the broil element while removing the existing support and screw
• Position the new support and secure it with the mounting screw; do not overtighten
• The element sits level with adequate clearance before restoring power and testing

The Oven Broil Element is an OEM replacement part for GE ovens. It is located in the upper portion of the oven cavity and is responsible for generating intense heat for broiling foods. This element provides even heat distribution, ensuring proper cooking and browning of food during the broil cycle.

Over time, broil elements can wear out or fail due to frequent use, high temperatures, or electrical issues. A damaged element will affect the oven's ability to broil properly.

Symptoms of a bad broil element include:

• The broil function not working or producing insufficient heat
• Uneven browning or cooking of food during broiling
• Visible damage, such as breaks or blisters on the element
• Sparking or tripping of the circuit breaker when the broil setting is used

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This back cabinet cover replaces the lower rear outer panel that protects internal components and helps keep the appliance stable and secure. Restores proper enclosure and helps reduce debris entry and incidental noise. What it does:

• Covers and protects motors, wiring, and components at the appliance's rear
• Helps prevent dust, lint, and small objects from entering internal areas
• Restores proper airflow routing and reduces rattles caused by a missing or damaged panel
• Improves appliance appearance by replacing cracked, bent, or broken rear trim

• Disconnect power before servicing to avoid electrical shock
• Remove access screws or fasteners securing the old panel; retain hardware if reusable
• Handle the cover carefully to avoid bending or damaging mounting tabs

Package of 12

A protective terminal block guard that shields and secures the appliance's electrical terminal connections, helping prevent accidental contact and wire strain. Fits the original terminal mounting location and restores the factory safety cover. What it does:

• Covers exposed terminal connections to reduce risk of accidental contact.
• Helps keep wires routed and secured to prevent strain or loose connections.
• Restores the factory protective enclosure after terminal service or replacement.
• Commonly used when replacing or servicing terminal blocks, power cords, or controls.

• Disconnect power at the breaker or unplug the appliance before servicing.
• Install over the terminal block so all connection points are fully covered; secure with original fasteners.
• Inspect terminals and wiring for damage while the guard is off; replace damaged wiring or connectors.

This receiver hinge is the fixed bracket in the oven frame that the door's hinge arm locks into. Replacing a worn receiver helps the door close squarely and seal correctly for safe, efficient cooking.

• Anchors the door hinge arm to the oven frame
• Keeps the door aligned and supported during opening and closing
• Wear or damage can cause a door that won't close fully or sits uneven
• May lead to heat escaping or a loose, wobbly door feel

• Disconnect power; if a gas range, shut off gas and allow the unit to cool completely
• Remove the door to access the hinge receivers in the frame
• Install the new receiver in the same orientation; ensure the hinge arm is fully seated
• Check door alignment and closure before returning to service
