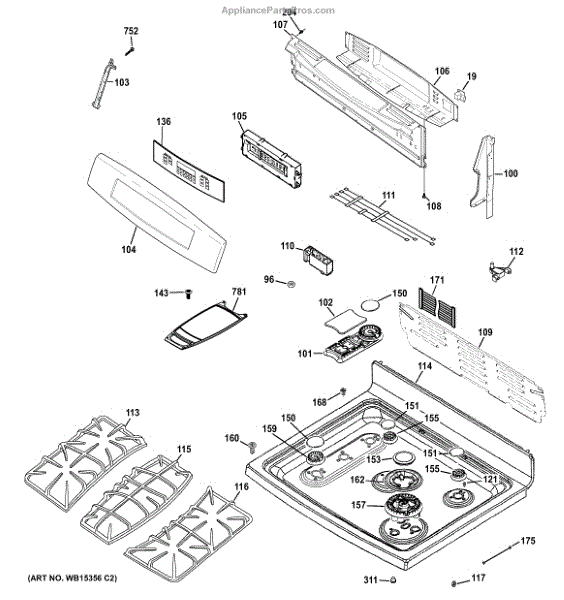

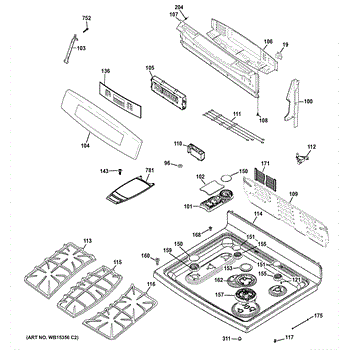

Parts for Ge PGB945SEF2SS: Control Panel & Cooktop Parts

A replacement dual section burner that restores heat to gas cooktops with a two-ring surface burner. Replaces damaged or worn burner sections to improve flame distribution and cooking performance on compatible gas ranges. What it does:

• Provides the outer and inner burner rings for a two-section gas surface burner so you can use both high and low flame settings.
• Re-establishes proper gas flow and even heating when one section of the burner is not lighting or producing an uneven flame.
• Commonly used to address clicking, weak flame, or no-flame symptoms localized to a single surface burner.
• Matches OEM fit and function for easy swap with the damaged burner assembly.

• Turn off the gas supply and power to the appliance before beginning any work.
• Remove the grates and burner cap, then lift or unscrew the old burner assembly as required by your model.
• Inspect the burner orifice and igniter for damage or debris; replace parts only if confirmed faulty.

A replacement dual burner cap for sealed surface cooktops that centers the flame and helps deliver consistent heat to cookware. Restores the protective cover on the burner for safer, more reliable stovetop cooking. What it does:

• Covers the burner head to help direct the flame and promote even heating.
• Centers cookware on the burner for more stable cooking.
• Protects the burner base from spills, grease and debris that can affect performance.
• Helps maintain correct burner flame shape and ignition reliability.

• One dual burner cap

• Allow the cooktop to cool completely before servicing.
• Disconnect power to the range (or shut off gas for gas ranges) as required by your appliance.
• Set the cap onto the burner post so it sits flat and is properly centered—no tools required for most installs.

This bracket secures the appliance control panel/console to the housing, restoring stable, properly aligned operation of the control assembly. Use this replacement when the panel feels loose or won't sit flush. What it does:

• Secures the control panel/console to the appliance frame to prevent movement
• Holds the control board and user interface in the correct position
• Stops rattling, shifting, or intermittent contact caused by a broken or missing bracket
• Helps restore proper button alignment and a flush fit of the control panel

• Disconnect power to the appliance before any service to avoid shock or injury
• Access the bracket by removing the control console or rear access panel per your model's service instructions
• Inspect surrounding clips and fasteners; replace any that are damaged for a secure fit
• Use appropriate hand tools and tighten fasteners securely but avoid over-torquing plastic parts

This control bracket secures the appliance control assembly in place to keep the control board and wiring stable and properly aligned. It replaces a bent, broken or missing bracket to restore correct mounting and reduce vibration. What it does:

• Holds the control board/control module firmly to the cabinet or frame
• Keeps wiring and connections aligned to prevent stress on plugs and harnesses
• Reduces vibration and rattling caused by loose or damaged brackets
• Helps prevent intermittent electrical issues caused by a poorly supported control assembly

• Disconnect power to the appliance before starting any repair
• Basic hand tools required; support the control board while removing/installing the bracket
• Handle the control board and connectors carefully to avoid damage from static or force
• After installation, verify connectors are fully seated and restore power to test operation

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The GE spark module kit is an OEM replacement part for GE stoves and ranges. It generates the spark needed to ignite the gas burners. The kit includes the spark module and associated wiring harness. When the burner control knob is turned to the "ignite" position, the spark module receives a signal and activates. It then produces an electrical spark that ignites the gas as it flows from the burner orifice, allowing the burner to light.

Over time, spark modules can fail due to electrical issues, wear and tear from frequent use, or exposure to moisture. A malfunctioning spark module can disrupt the ignition process, making it difficult to light the burners.

Symptoms of a bad spark module include:

• Burners not igniting
• No clicking sound when turning the burner knob
• Intermittent sparking
• Only some burners igniting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cast cooktop grate provides a sturdy, heat-resistant surface to support pots and pans over a gas burner, restoring safe and stable cooking performance on compatible gas ranges. What it does

• Supports cookware above the burner so pots and pans sit level during cooking
• Directs and disperses heat from the burner while resisting high temperatures
• Replaces cracked, warped or broken grates that cause wobbling or instability
• Helps protect the cooktop surface from direct flame contact and spills

• One cast cooktop grate

• Allow the range to cool completely before removing or installing the grate
• Lift the grate straight up and set the replacement in place so burner caps align
• Inspect burner caps and openings for debris; clean if needed for proper flame pattern
• Use caution: cast grates are heavy and can chip if dropped

This cast-iron middle grate replaces the center grate on a gas cooktop, restoring a stable, level cooking surface for pots and pans. Durable cast construction provides even support and resists high-heat wear. What it does:

• Replaces a cracked, chipped or missing center grate to stabilize cookware
• Restores proper spacing and support over the middle burner for safe cooking
• Withstands high temperatures and daily use without deforming under normal conditions
• Helps prevent pans from wobbling or tipping on the cooktop

• One cast-iron middle grate

• Position grate over the cooktop so it sits flat and stable on the cooktop ledges
• No tools typically required; lift the old grate straight up and set the replacement in place
• Allow the cooktop to cool completely before handling; use gloves to avoid pinches or sharp edges
• Clean with mild detergent and a non-abrasive pad; avoid harsh chemicals that can damage the finish

A cast cooktop grate that supports pots and pans over a burner and restores a stable cooking surface. Replaces a worn, cracked, or missing grate so cookware sits level for safer, more consistent stovetop use. What it does:

• Supports cookware above the burner for stable heating and safer cooking
• Replaces cracked, broken, or warped grates that let pots wobble or slide
• Restores proper spacing for burner caps and cookware contact
• Durable cast construction resists heat and everyday wear

• Always turn off burners and allow the cooktop to cool completely before handling
• Remove the old grate and set the replacement grate in place, aligning feet over the burner ports
• No special tools typically required; inspect for proper seating and any cracked pieces before use
• Clean grease and debris from the cooktop surface before reinstalling to ensure a stable fit

This factory screw secures components in your appliance for a tight, reliable fit. Replacing a missing or damaged screw helps stop rattles, restore alignment, and keep panels or brackets firmly attached. What it does:

• Acts as a mounting fastener for appliance components such as panels, brackets, or assemblies
• Maintains proper alignment and stability of secured parts
• Helps reduce vibration, rattling, or looseness caused by worn or missing hardware
• Replaces stripped, rusted, or lost screws to restore secure attachment

• One screw

• Disconnect power; shut off gas supply before servicing
• Replace screws one at a time to match length and location
• Start threads by hand to avoid cross-threading; use the correct driver/bit
• Tighten snugly—do not overtighten; inspect mating clip or bracket if threads are damaged

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This central burner cap covers the center of a gas burner to shape the flame and protect the burner head. Replacing a worn or missing cap restores proper ignition, even flame, and clean cooktop performance.

• Directs the center flame for more even heat distribution
• Shields the burner head/igniter area from spills and drafts
• Helps ensure consistent ignition when properly seated
• Common symptoms: uneven or yellow flames, delayed ignition, sooting, or a chipped/warped cap

• Turn all burner controls off and let the surface cool completely
• Lift off the old cap; clean and dry the burner head surface
• Center the new cap on the burner head so it sits flat with no rocking or gaps
• Test the burner; if the flame is uneven or lifting, re-seat the cap until level

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tri-Ring Burner Assembly is an OEM part for GE gas cooktops and ranges. It contains the three front right burners, grates, and supporting brackets.

Causes of a bad burner assembly can include cracked or warped burner heads from prolonged heat exposure. Deterioration of internal gas pipes and orifices may also diminish flame and heating performance.

Symptoms of a bad Tri-Ring Assembly include:

• Unstable, yellowish, or excessively large flames that cannot be adjusted
• Burners that cannot be ignited or controlled independently
• Improper alignment causing imbalanced pans or spills
• Leakage or gas smells detected around the burner cavities

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore branded appliances.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This trilobular screw secures appliance panels and internal components, restoring a tight, rattle-free fit. Replace missing or stripped hardware to keep assemblies aligned and safely fastened during everyday use.

• Secures brackets, panels, trim, and other appliance components
• Helps maintain proper alignment to reduce vibration and rattling
• Replaces missing, damaged, or stripped mounting hardware
• Can address loose panels or gaps noticed after service or cleaning

• Disconnect power at the breaker; for gas appliances, also shut off the gas supply
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the original used a washer or clip, transfer it to the new screw

This is the outer burner cap for a sealed gas burner. It covers the burner's outer ring to shape a steady flame, protect the burner head from spills, and help ensure consistent ignition and even cooking results.

• Shapes and distributes the flame around the outer ring for balanced heating
• Promotes reliable ignition when properly centered and seated
• Shields burner head and ports from spills and debris that can affect performance
• Replace if the cap is chipped, warped, or missing; symptoms can include yellow/uneven flames, sooting, or repeated clicking/delayed ignition

• Disconnect power and allow the cooktop/range to cool before servicing
• Lift off the old cap; clean the burner head and seating surface
• Position the new cap flat and centered; it should sit level and not rock
• Light the burner to verify a steady, blue flame; reposition if needed

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12
