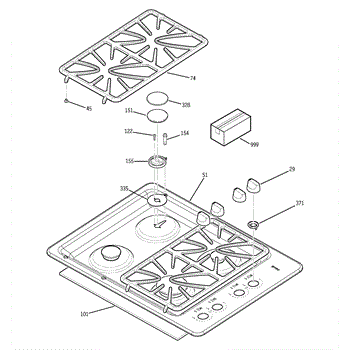

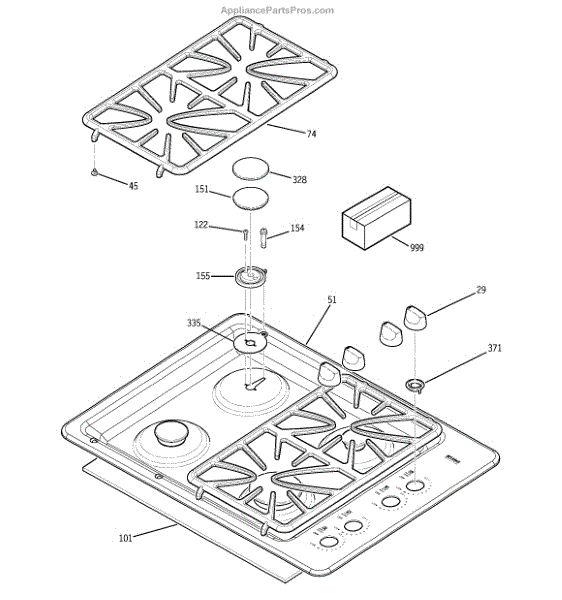

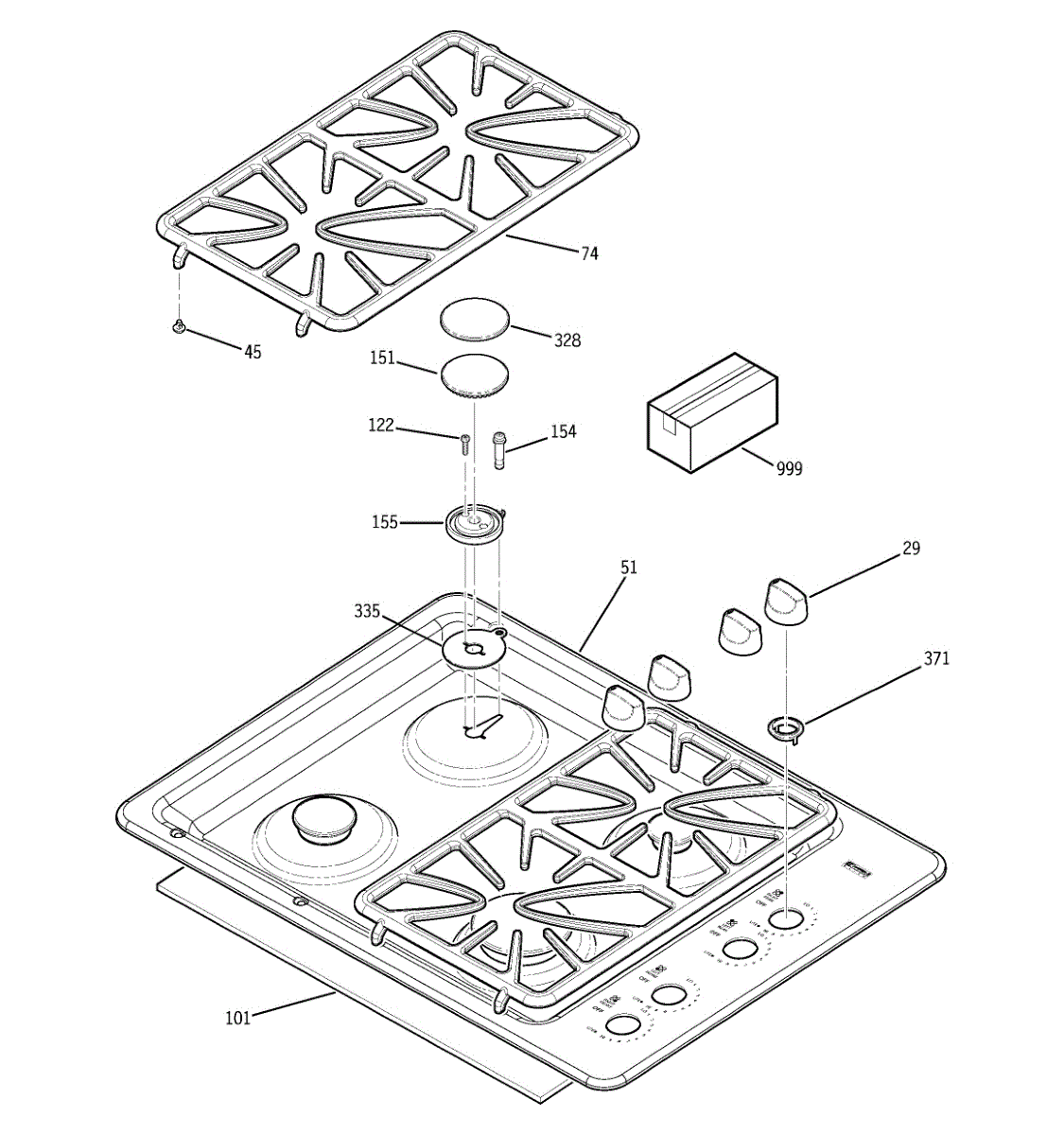

Parts for Kenmore 911.33202102 (91133202102, 911 33202102): Control Panel & Cooktop Parts

Rubber foot that attaches to the bottom of cooktop grates. Replace if cracked, worn, missing, or loose to prevent grates from sliding and scratching.

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it should be replaced. For safety reasons, the burner should not be used until this screw is replaced; the burner head could shift during cooking and lead to a fire. To start, disconnect the gas and power from the stove to prevent accidental ignition of the burner. Make sure the burners are not hot. Remove the burner grate and burner cap from the burner that is missing a screw. Install the new screw in the hole and tighten it with a screwdriver. Put the burner cap and burner grate back on the stove and reconnect the gas and power. Periodic inspection of the burner heads and all associated screws and parts on the stovetop will prevent accidents and keep the stove working correctly. This screw is a silver, metal part that is sold individually. It is designed for use in gas rangetops manufactured by General Electric and Hotpoint.

Approx 2 inches in diameter

Burner won't light or clicking with no spark? This igniter creates the spark to light gas burners. Easy press-fit installation takes 15 minutes.

Burner base for gas cooktops, secures to cooktop surface and holds igniter assembly. Replace if cracked, broken, or damaged during repairs.

Burner base installs beneath the burner cap on gas cooktops. Replace if cracked, warped, or dome-shaped to restore proper flame coverage and alignment.

Approx 3 inches in diameter

Burner base that sits beneath the burner cap on your cooktop. Replace this component if damaged, cracked, or missing to restore your burner's appearance.

Gray. Large. Used on the white model

Color: Black. Approx 3-1/2 inches in diameter

Color: Black. Approx 2-3/4 inches in diameter

Color: Black. Approx 2 inches in diameter

Bisque. Large

Color: Taupe, used for Bisque models.

Color: Grey

Color: Graphite for Stainless models.

Bisque. Small

Left-side burner cap that centers and protects the burner head while shaping the flame. Replace if cracked, chipped, or worn to restore proper coverage.

Gray. Small. Used on the white model

Color: Black. Approx 4-1/4 inches in diameter

Note: The part is approximately 4" in diameter.

Small

Note: The part is approximately 2-3/8" in diameter.

Seals burner assembly to cooktop surface, preventing gas leaks and ensuring proper ignition. Replace if cracked, brittle, or damaged during cleaning.

Cooktop control seal prevents moisture and debris from entering the control panel. Replace if cracked, worn, or loose to maintain a proper seal. Confirm fit with your model number before ordering.

Seals the gap around your cooktop control shaft to block spills and debris from entering the control area. Replace if worn or damaged. Verify fit.

Note: Ignitor wires
