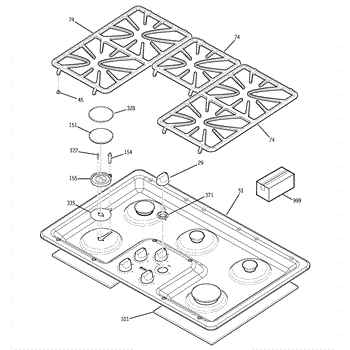

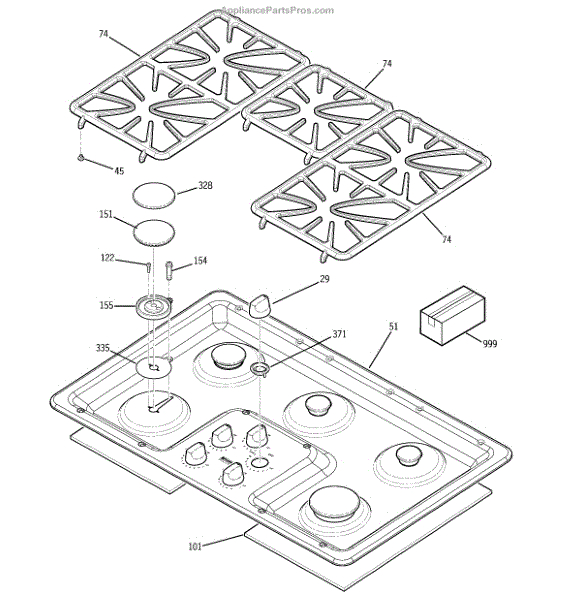

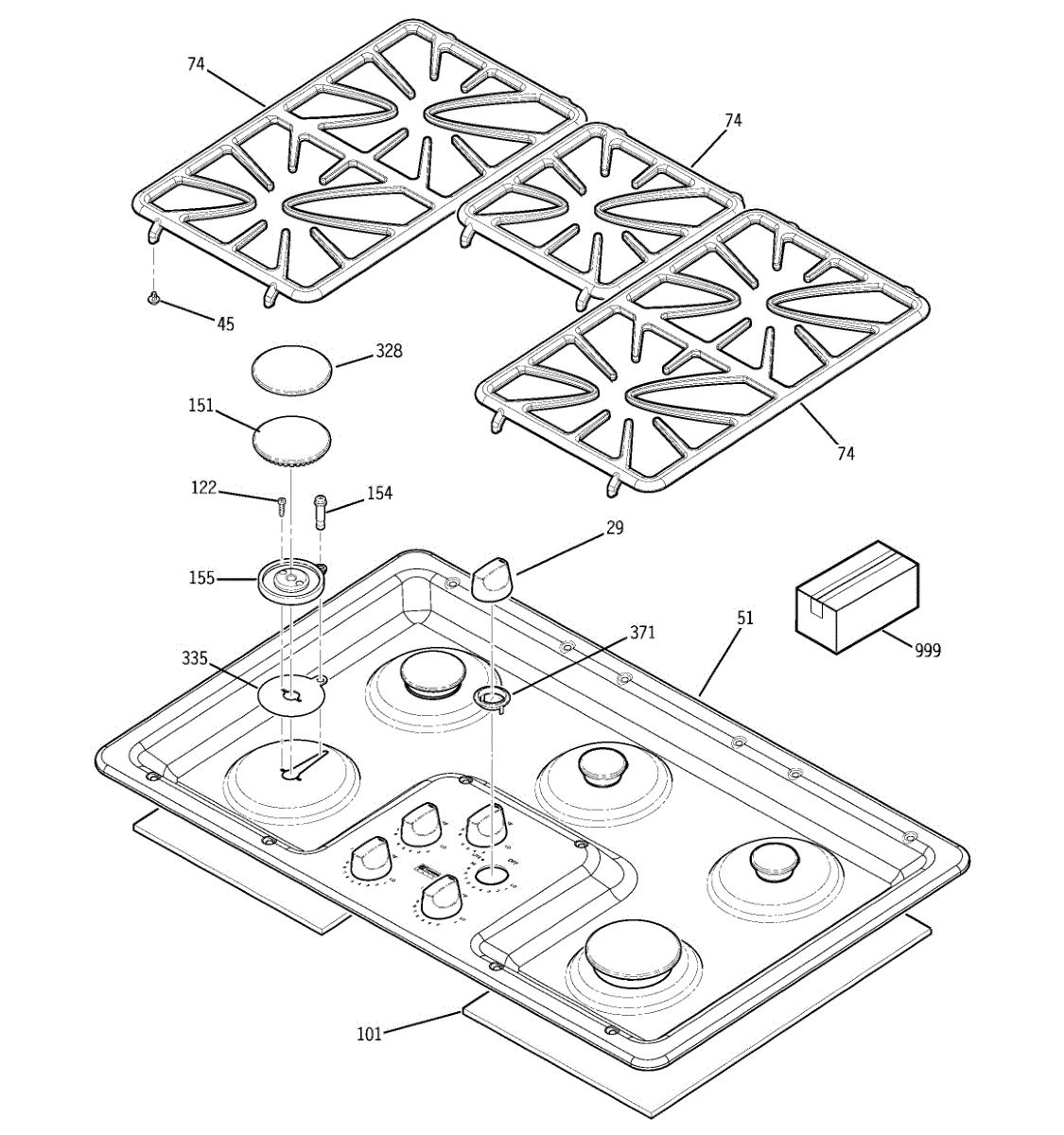

Parts for Kenmore 911.33214102 (91133214102, 911 33214102): Control Panel & Cooktop Parts

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Approx 2-3/4 inches in diameter

Approx 2 inches in diameter

This igniter lights the gas at a burner. Replacing a worn or cracked igniter restores quick, consistent ignition so your gas range or cooktop lights reliably and heats as expected without repeated tries.

• Provides the ignition source to light burner gas when heat is selected
• Supports consistent flame start-up for reliable cooking performance
• Common symptoms include: burner won't ignite, delayed or intermittent ignition, or needing to light manually
• Visual clues can include a cracked insulator or damaged igniter tip/element

• Disconnect power and shut off gas before servicing; allow the appliance to cool completely
• Access the igniter per your model; note wire routing and mounting before removal
• Transfer any reusable mounting clip/grommet from the old part to the new one
• Handle the igniter carefully and avoid touching the element/tip; ensure secure connections and test ignition before reassembly

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 4 inches in diameter

Approx 3 inches in diameter

Bisque. Small

Color: Grey

Color: Taupe, used for Bisque models.

Bisque. Large

Gray. Small. Used on the white model

This left-side burner cap centers and protects the burner head while helping shape the flame for efficient cooking. Durable replacement for worn or damaged caps to restore even heating and safe stovetop performance. What it does:

• Covers and shields the burner head from spills and debris
• Helps distribute and stabilize the burner flame for consistent heat
• Prevents flame distortion that can cause uneven cooking
• Reduces risk of burner clogging by directing spills away from the burner ports

• Turn off the cooktop and allow all components to cool completely before handling
• Remove the old cap (lift straight up) and set the new cap in place, ensuring it seats flat on the burner base
• Clean surrounding burner area of debris before installation for proper seating and flame quality

Small

Note: The part is approximately 2-3/8" in diameter.

Note: The part is approximately 4" in diameter.

This burner wire harness assembly routes power and signals between the control and the burner components so your range or oven can ignite and operate correctly. It replaces a damaged or corroded wiring harness to restore reliable ignition. What it does:

• Carries electrical connections from the control/igniter to the burner for proper ignition and heating
• Replaces broken, melted, or corroded wires that can cause intermittent or failed ignition
• Helps stop sparking issues or burners that don't light when the control calls for heat
• Restores secure connector fit and proper wire routing to prevent shorts or arcing

• One burner wire harness assembly

• Disconnect power (and gas supply for gas ranges) before starting any repair
• Handle connectors gently and match connector shapes; ensure all plugs seat fully
• Route and secure the harness away from high-heat surfaces and moving parts
