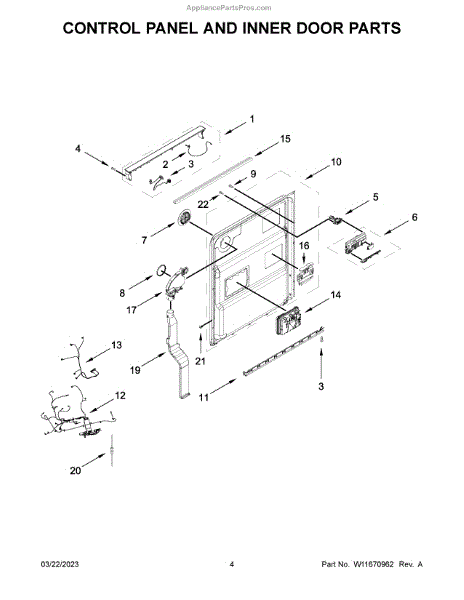

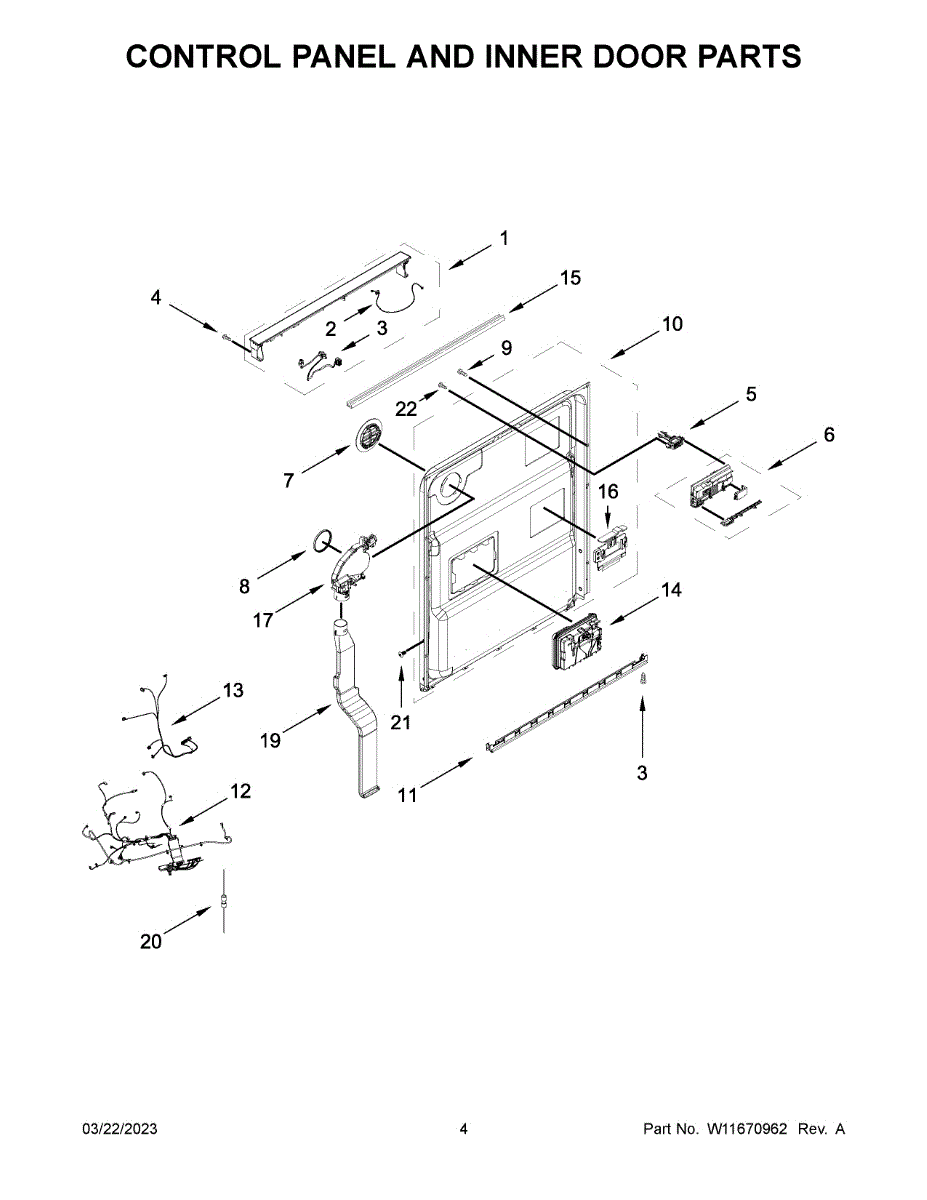

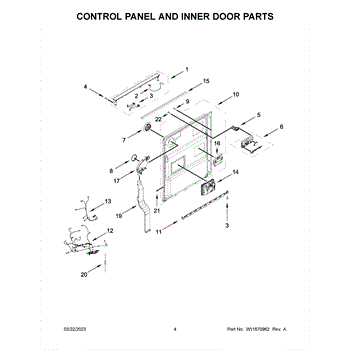

Parts for Kitchenaid KDPM804KBS1: Control Panel And Inner Door Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Harness-Wire Assembly is an OEM component specifically designed for Whirlpool dishwashers. This assembly consists of wiring harnesses that connect and transmit power to various electronic control boards and components inside the dishwasher.

Symptoms of a bad harness-wire assembly can include intermittent or complete failure of functions like dispensing, heating, draining, or the wash motor running due to open or damaged connections within the wiring.

Causes may involve normal wear and strain on wires from repeated use over time, moisture damage to insulation coatings on wires, or damage to connectors from improper installation or handling.

Causes of a bad harness-wire assembly include:

• Portions of the cycle like heating not activating
• Wash motor failing to run or running intermittently
• No dispensing from the detergent dispenser
• Drain pump failing to engage

This OEM part is also compatible with some KitchenAid, Jenn-Air, Amana, and Kenmore models that utilize similar components.

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function

The Inner Door Vent is an OEM part for Whirlpool dishwashers. It plays an important role in moisture removal by allowing airflow out of the dishwasher during operation. Proper ventilation is important for the drying performance and prevention of mold growth.

Causes of a bad inner door vent can be cracks, breaks or deformities restricting airflow. This may occur due to normal use over years of use or accidental impact damage.

Symptoms of a bad inner door vent include:

• Dishes not drying fully
• White film residue left behind
• Mold or mildew growth inside machine
• Poor ventilation causing increased drying times

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Vent Gasket is an OEM part for Whirlpool dishwashers. It is responsible for sealing the vent area of the dishwasher, preventing any leaks or air gaps that could compromise the efficiency of the appliance.

A bad vent gasket can be caused by wear and tear, exposure to high temperatures, or damage due to food debris or cleaning agents. If you notice water leakage or steam escaping from the vent area, it may indicate a problem with the vent gasket.

Symptoms of a bad vent gasket include:

• Water leakage or drips from the vent area
• Steam escaping from the vent during operation
• Moisture remaining on dishes after a cycle
• Increased noise levels coming from the vent area

Replace your faulty vent gasket with this genuine OEM part to restore your dishwasher.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

This wire harness assembly replaces a damaged or worn wiring group that connects appliance components so electrical signals and power reach the controls and motors reliably. Restores proper circuit routing and connector fit where the original harness is broken or burned. What it does:

• Routes and connects power and control signals between major components (control, motor, sensors).
• Replaces frayed, melted, or damaged wiring that can cause intermittent operation or component failure.
• Helps stop issues like no-start, certain controls not responding, or components losing power.
• Provides factory-style connector ends for a direct-fit electrical connection.

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury.
• Support and secure the harness away from sharp edges, moving parts and heat sources; use existing clips or ties.
• If any connectors or insulation show heat damage or corrosion, inspect related components and replace as needed.

This inner door jumper is a short wiring harness that restores electrical connections inside the appliance door for functions such as the fan, vent, dispenser and door switch. It helps re-establish reliable power and signal routing at the door assembly. What it does:

• Routes power and control signals between the cabinet and inner door components (fan, vent, dispenser, door switch)
• Replaces damaged or frayed jumper wiring that can cause intermittent or no operation of door-mounted features
• Helps stop issues like non-responsive dispenser, fan or vent functions when caused by a broken door connection
• Matches OEM routing and connectors for a direct electrical replacement

• Recommended for technicians or experienced DIYers; disconnect power before starting
• Inspect connector ends and harness routing; avoid pinching or sharp bends during reassembly
• Verify correct connector orientation and secure any retained clips to prevent chafing

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Replacement screw used to secure appliance panels and components. Small but essential, it restores proper fit and helps prevent rattling, misalignment, or parts coming loose after repair or service. What it does:

• Secures panels, trim, brackets and small appliance components to restore correct alignment and fit.
• Replaces missing, stripped or damaged fasteners that allow parts to shift or vibrate.
• Helps stop rattling or loose parts that can occur during operation.
• Works as a direct hardware replacement where this exact screw is specified.

• Disconnect power (and gas if applicable) before servicing the appliance.
• Use the correct size screwdriver or driver bit to avoid cam-out or stripped heads.
• Install with firm, even pressure—do not over-tighten to avoid stripping threads or cracking plastic parts.
• Replace with the exact OEM screw when specified to ensure correct fit and function.

This inline fuse is a replaceable safety device that protects your appliance's wiring and components from overcurrent. It restores circuit protection so the appliance can operate safely after a blown fuse is replaced. What it does:

• Protects the wiring harness and electrical components by interrupting power if a short or overload occurs
• Commonly used where a single-point fuse is needed inline with a circuit
• Resolves symptoms like a non-starting unit, intermittent power loss, or a tripped circuit when caused by a blown fuse
• Works as part of the appliance's electrical protection system when installed in the proper harness location

• Disconnect power to the appliance before inspecting or replacing the fuse
• Visually check the blown fuse or use a multimeter before replacing
• Install only in the correct harness location and ensure secure wire connections
• If the replacement fuse blows immediately, stop and diagnose the underlying short or fault

This machine screw secures panels, brackets, and other components inside your appliance. Replacing a missing or damaged fastener restores a solid fit, reduces vibration and rattling, and helps keep assemblies properly aligned for reliable performance.

• 10-32 machine-thread fastener for mounting and securing internal parts and panels
• Helps maintain alignment and structural integrity of assembled components
• Replaces missing, stripped, or damaged hardware
• Reduces rattling, vibration, or loosening from worn fasteners

• Disconnect power; shut off gas or water supplies before servicing
• Match thread and length to the original fastener used in that location
• Start by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse original washers or clips if present and in good condition

This replacement screw secures panels, brackets, and other components inside your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and keeps parts anchored as designed.

• Fastens metal or plastic panels, brackets, and internal components
• Replaces missing, damaged, or stripped screws
• Helps resolve vibration, rattling, or loose-fitting parts
• Maintains proper alignment and secure mounting points

• Disconnect power and shut off water/gas supplies before service
• Match the screw to its original location; your model's diagram to placement
• Start threads by hand and use the correct driver to avoid stripping
• Do not overtighten, especially into plastic or thin sheet metal

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
